Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

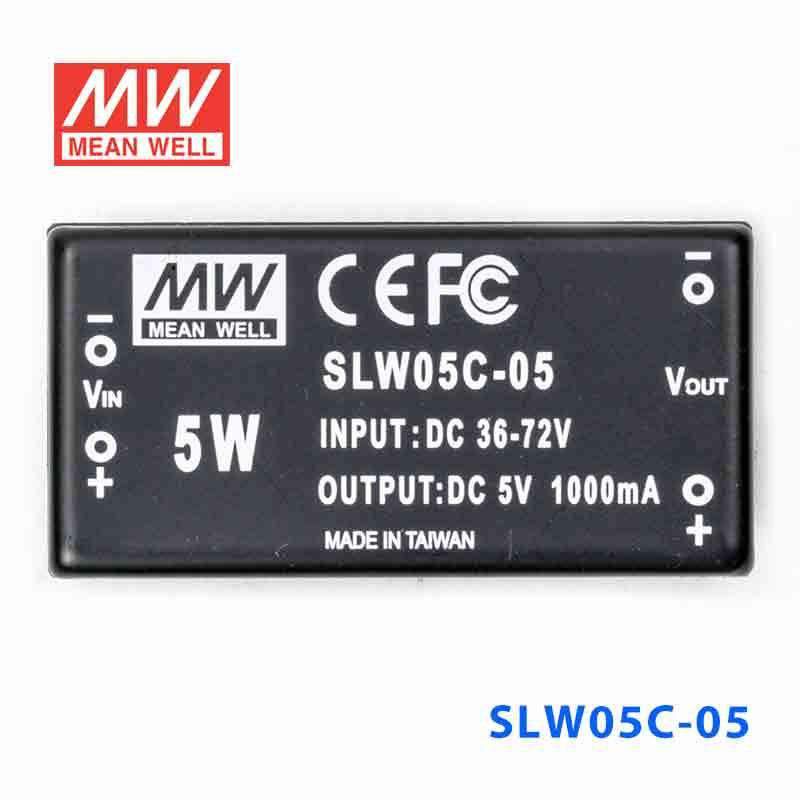

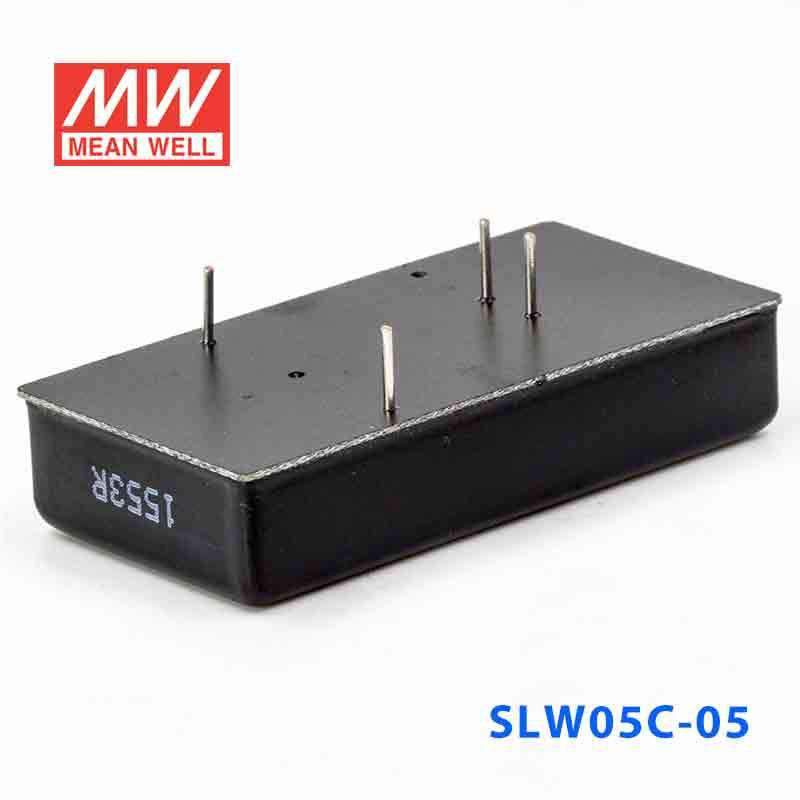

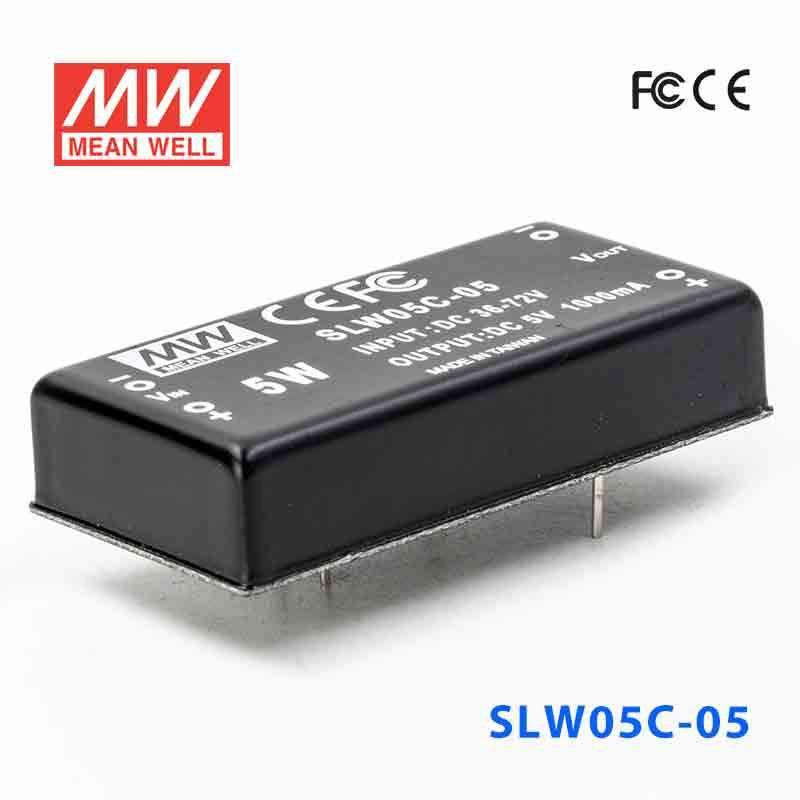

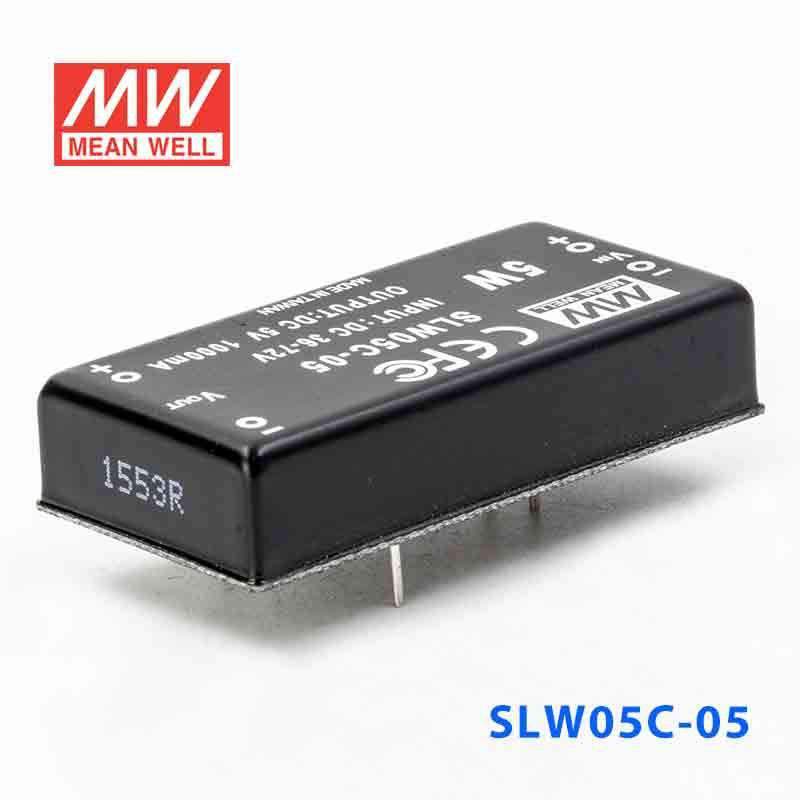

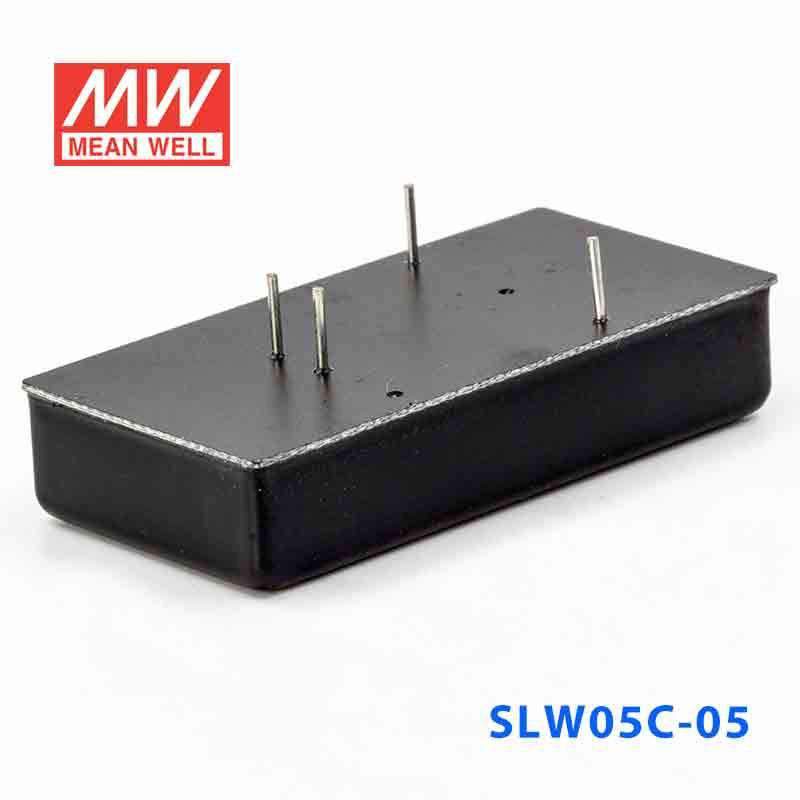

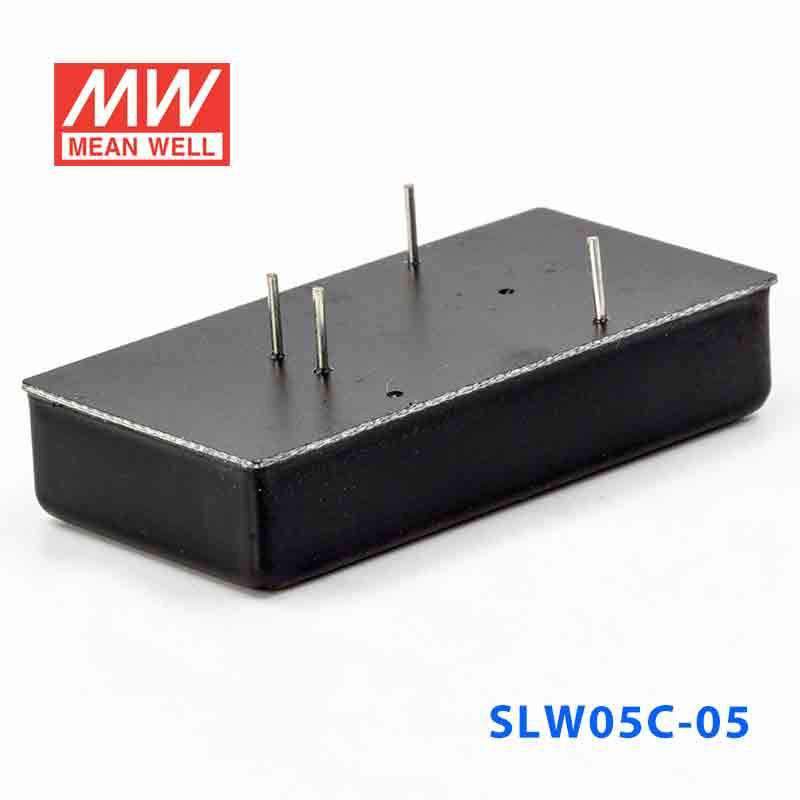

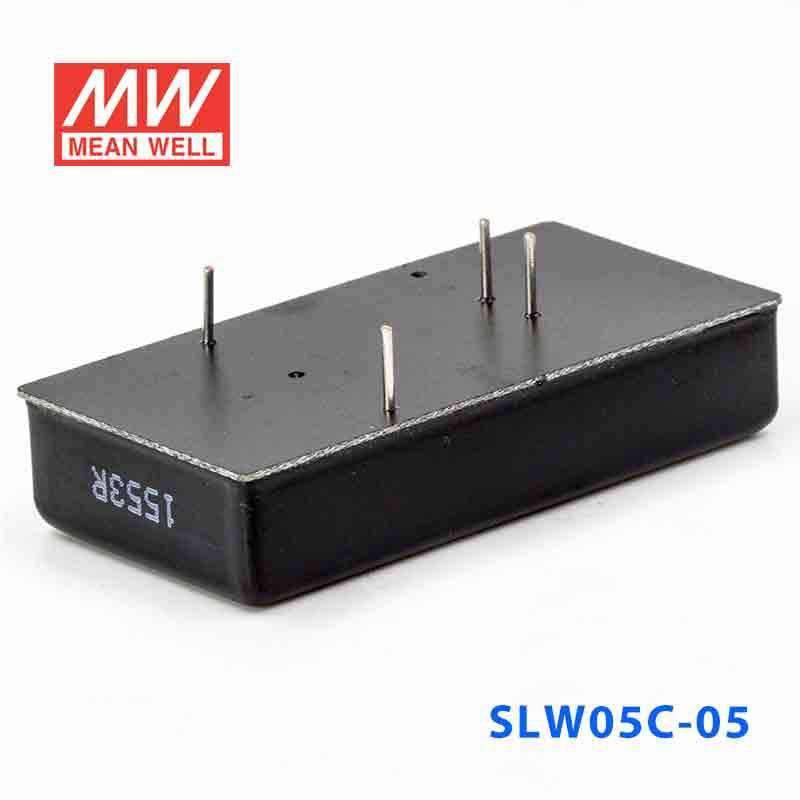

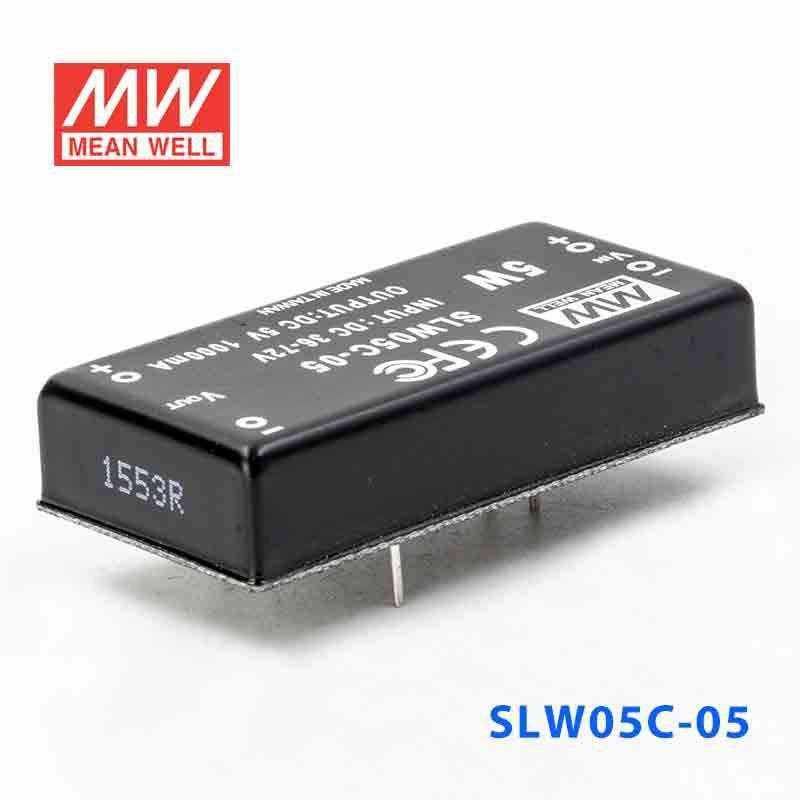

Mean Well SLW05C-05 DC-DC Converter - 5W - 36~72V in 5V out

SKU:

SLW05C-05

Please for Pricing

Notify me when it's back in stock

Description

Features

2:1 wide input range

4:1 wide input range (option)

1000VDC I/O isolation

3000VDC I/O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	±2% (max.)
Line regulation	±0.2% (max.)
Load regulation	±0.5% (max.)@10~100% load
Overload protection	160%~250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I/O isolation voltage	1000VDC (min.)
I/O isolation resistance	100MQ(min.)@500VDC
Working temperature	-25~+71°C (refer to output derating curve)
Storage temperature	-25°C to +105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	±0.03% / °C (max.)
Dimension (LxWxH) (mm)	2""x 1""x 0.44""
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SLW Series
Power Rating

5 Watt
Output Voltage

5 Volt
Rated Current

1 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

2.54 cm
Height

1.13 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SLW05C-05 to derive 5V for embedded electronics from a 36-72VAC source?

Yes, this model is built for a constant 5V output when the input is within 36-72VAC. It is rated at 5W and 1000A output current, which makes it relevant for low-power embedded or control electronics matched to those values.

Is the SLW05C-05 a good fit for industrial monitoring or controller logic that runs on 5V?

It can fit controller logic, monitoring circuits, or other 5V electronics when the available source is 36-72VAC. The converter is constant voltage and packaged in a 50.8 × 25.4 × 11.27 mm form factor for compact installations inside equipment.

Can this 5V converter be used in higher-voltage automation systems that only need a small regulated rail?

That is the intended type of use case, provided the upstream source is in the 36-72VAC range and the downstream load stays within 5W. It is suited to small regulated 5V subcircuits rather than larger power sections.

How does the SLW05C-05 compare with the other SLW05C models?

Within the SLW05C series, SLW05C-05 is 5W, 5V, 1000A; SLW05C-09 is 5W, 9V, 556A; SLW05C-12 is 5W, 12V, 417A; and SLW05C-15 is 5W, 15V, 333A. All share 36-72VAC input, constant-voltage operation, 50.8 × 25.4 × 11.27 mm dimensions, 0.032 kg weight, and a -25°C to +71°C operating range.

Can the SLW05C-05 be used in outdoor equipment?

The temperature specification is -25°C to +71°C, so that part of the environment should stay within the published range. No IP rating is provided in the specs, so outdoor exposure should only be considered if the enclosure handles moisture and dust protection.

Model	Power	Voltage	Current	IP Rating
Mean Well SLW05C-15 DC-DC Converter - 5W - 36~72V in 15V out	5W	15V	0.33A	Indoor	View
Mean Well SLW05C-12 DC-DC Converter - 5W - 36~72V in 12V out	5W	12V	0.41A	Indoor	View
Mean Well SLW05C-09 DC-DC Converter - 5W - 36~72V in 9V out	5W	9V	0.55A	Indoor	View
Mean Well SLW05B-15 DC-DC Converter - 5W - 18~36V in 15V out	5W	15V	0.33A	Indoor	View
Mean Well SLW05B-12 DC-DC Converter - 5W - 18~36V in 12V out	5W	12V	0.41A	Indoor	View
Mean Well SLW05B-09 DC-DC Converter - 5W - 18~36V in 9V out	5W	9V	0.55A	Indoor	View
Mean Well SLW05B-05 DC-DC Converter - 5W - 18~36V in 5V out	5W	5V	1A	Indoor	View
Mean Well SLW05A-15 DC-DC Converter - 5W - 9~18V in 15V out	5W	15V	0.33A	Indoor	View
Mean Well SLW05A-12 DC-DC Converter - 5W - 9~18V in 12V out	5W	12V	0.41A	Indoor	View
Mean Well SLW05A-09 DC-DC Converter - 5W - 9~18V in 9V out	5W	9V	0.55A	Indoor	View
Mean Well SLW05A-05 DC-DC Converter - 5W - 9~18V in 5V out	5W	5V	1A	Indoor	View
