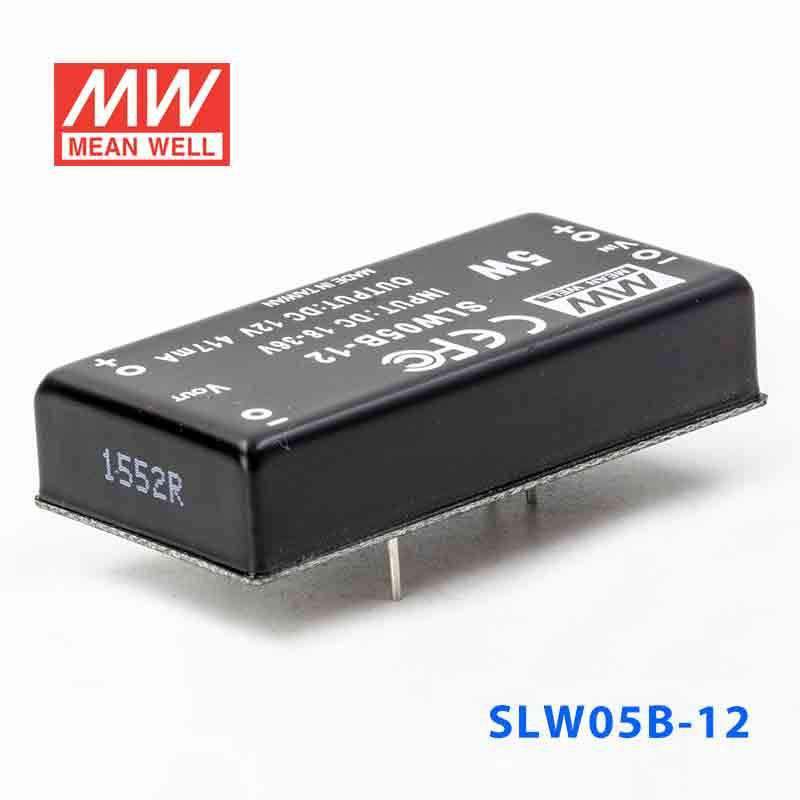

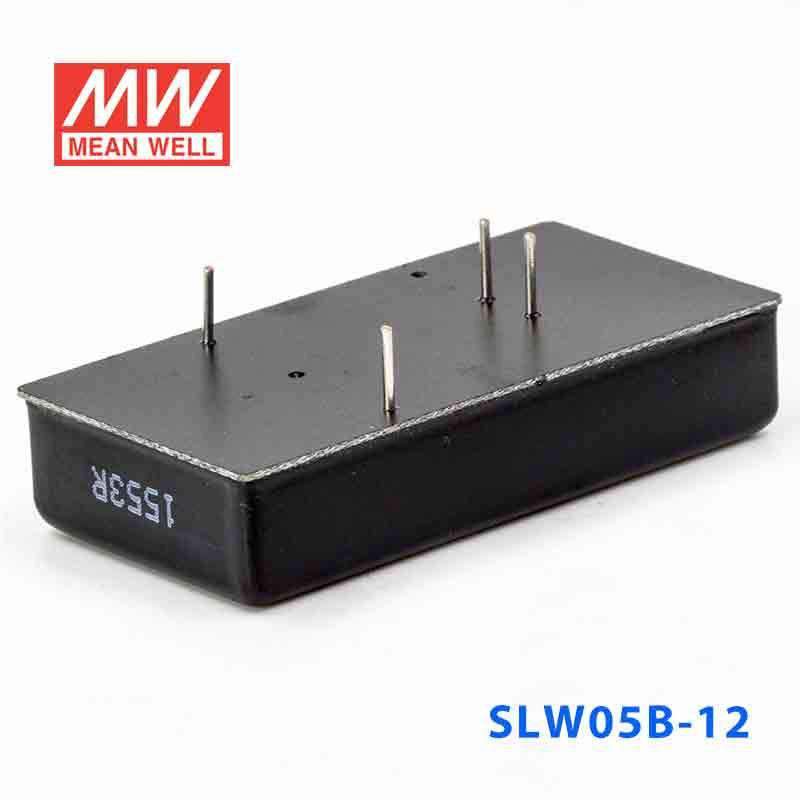

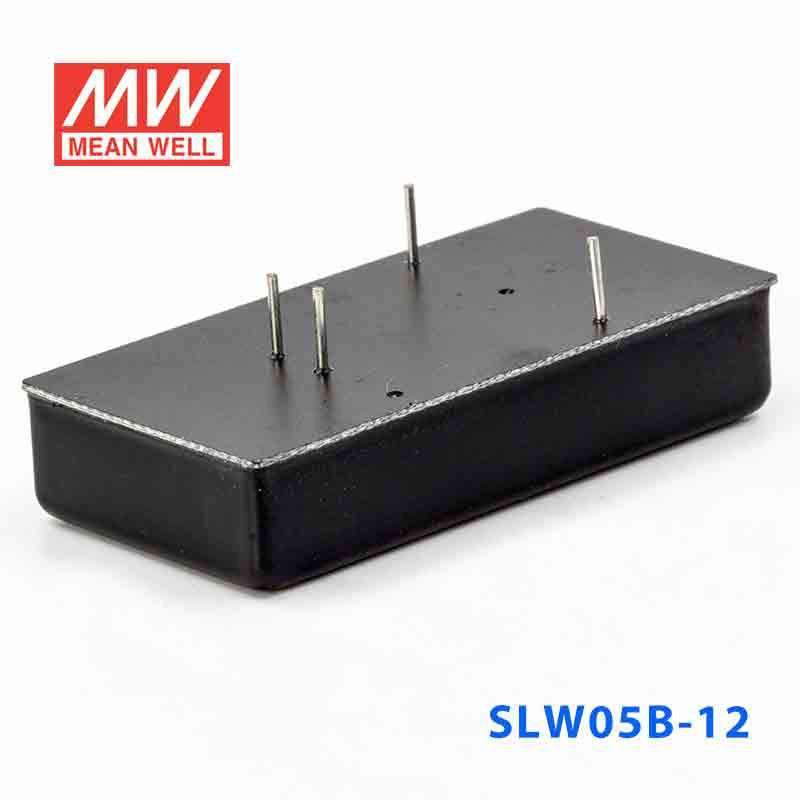

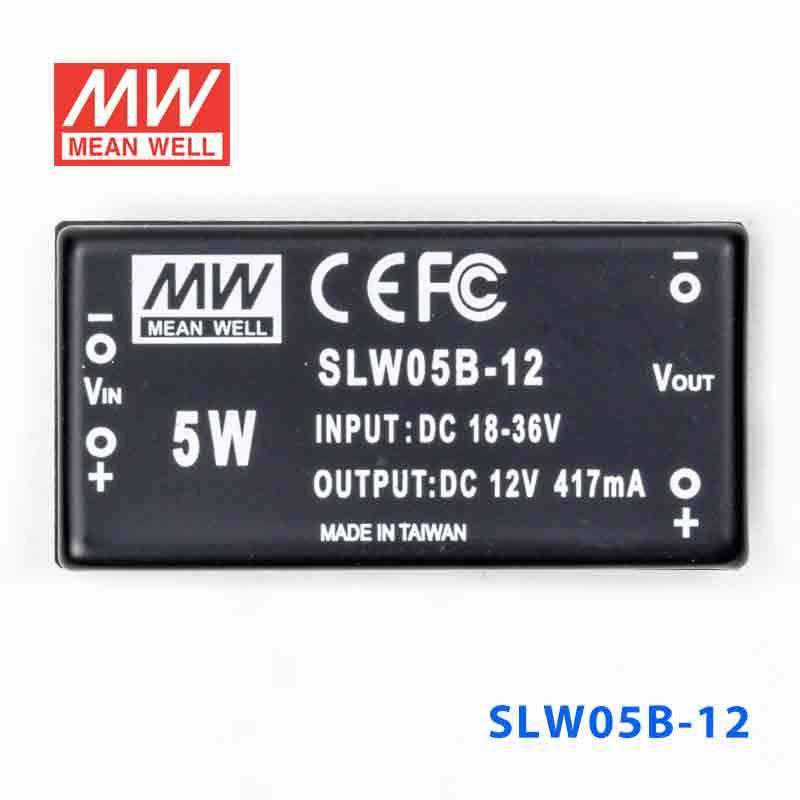

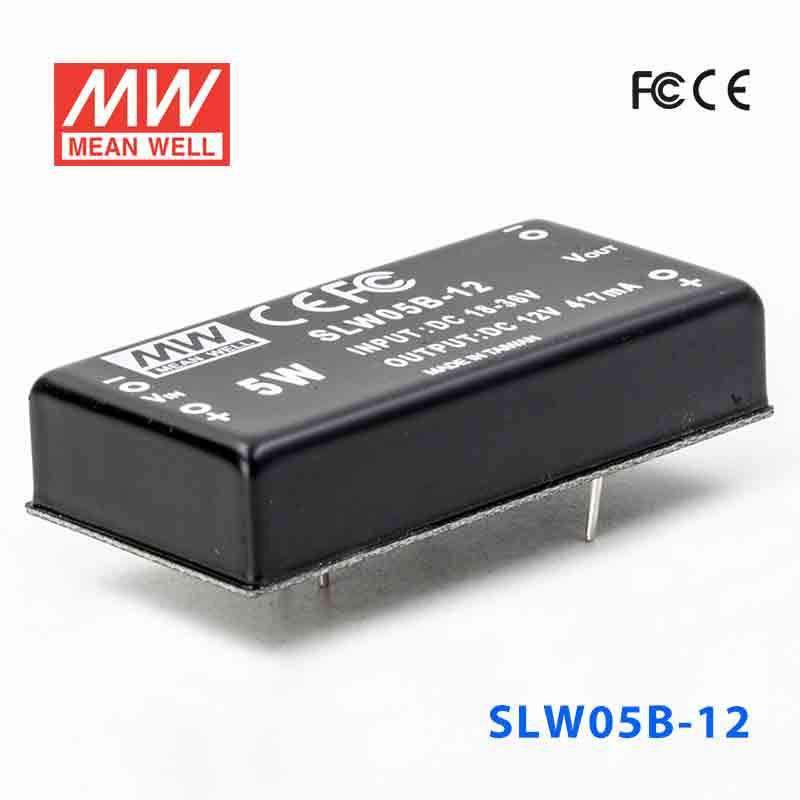

Mean Well SLW05B-12 DC-DC Converter - 5W - 18~36V in 12V out

SKU:

SLW05B-12

Please for Pricing

Notify me when it's back in stock

Description

Features

2:1 wide input range

4:1 wide input range (option)

1000VDC I/O isolation

3000VDC I/O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	±2% (max.)
Line regulation	±0.2% (max.)
Load regulation	±0.5% (max.)@10~100% load
Overload protection	160%~250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I/O isolation voltage	1000VDC (min.)
I/O isolation resistance	100MQ(min.)@500VDC
Working temperature	-25~+71°C (refer to output derating curve)
Storage temperature	-25°C to +105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	±0.03% / °C (max.)
Dimension (LxWxH) (mm)	2""x 1""x 0.44""
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SLW Series
Power Rating

5 Watt
Output Voltage

12 Volt
Rated Current

0.41 Ampere
Input Voltage

18V~36V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

2.54 cm
Height

1.13 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SLW05B-12 to power a 12V industrial control subcircuit from an 18-36VAC source?

Yes, this converter is intended for applications that need a constant 12V output from an 18-36VAC input range. It is rated at 5W and 417A output current, so it fits low-power industrial control or embedded circuits that match those published values.

Is the SLW05B-12 suitable for 12V embedded electronics inside automation equipment?

It can be used where the embedded section requires a constant 12V rail and the available source is within 18-36VAC. The unit is a 5W converter in a 50.8 × 25.4 × 11.27 mm package, which suits compact enclosed equipment.

Can this 12V converter be used for panel-mounted monitoring or signaling electronics?

It is a fit for panel or cabinet electronics that run on constant 12V and stay within the 5W rating. The 18-36VAC input range makes it relevant where the source already falls in that range and the circuit only needs a small regulated output stage.

How does the SLW05B-12 compare with other SLW05B models?

In the SLW05B series, SLW05B-05 is 5W, 5V, 1000A; SLW05B-09 is 5W, 9V, 556A; SLW05B-12 is 5W, 12V, 417A; and SLW05B-15 is 5W, 15V, 333A. All are constant-voltage models with 18-36VAC input, 50.8 × 25.4 × 11.27 mm dimensions, 0.032 kg weight, and a -25°C to +71°C operating temperature range.

Can the SLW05B-12 be used outdoors or in harsh environments?

The published data gives an operating temperature range of -25°C to +71°C, so temperature suitability should be checked against that range. No IP rating is listed in the provided specs, so outdoor or washdown use should only be considered if the final enclosure provides the required protection.
