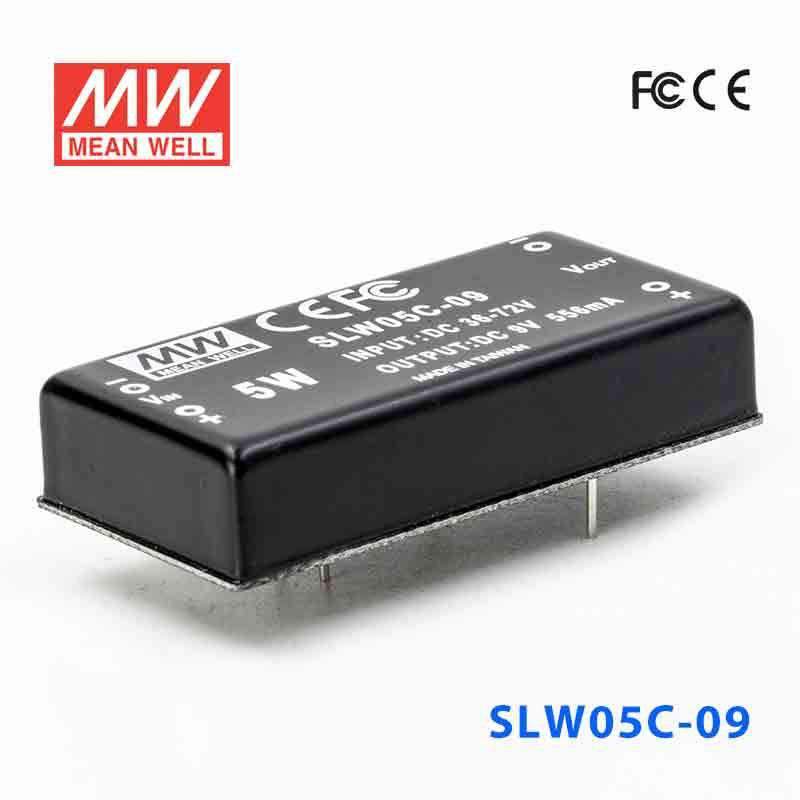

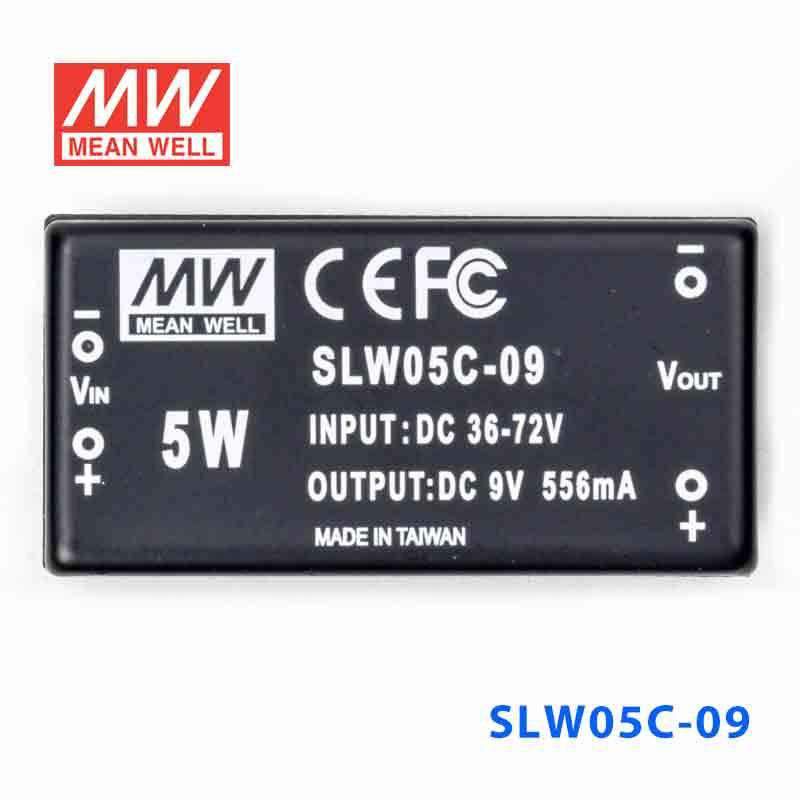

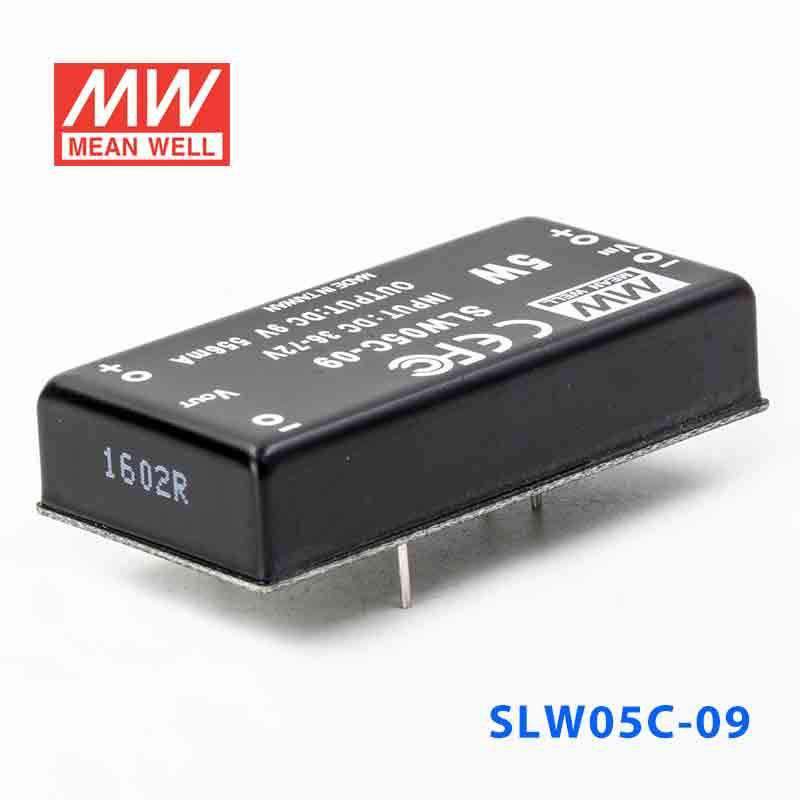

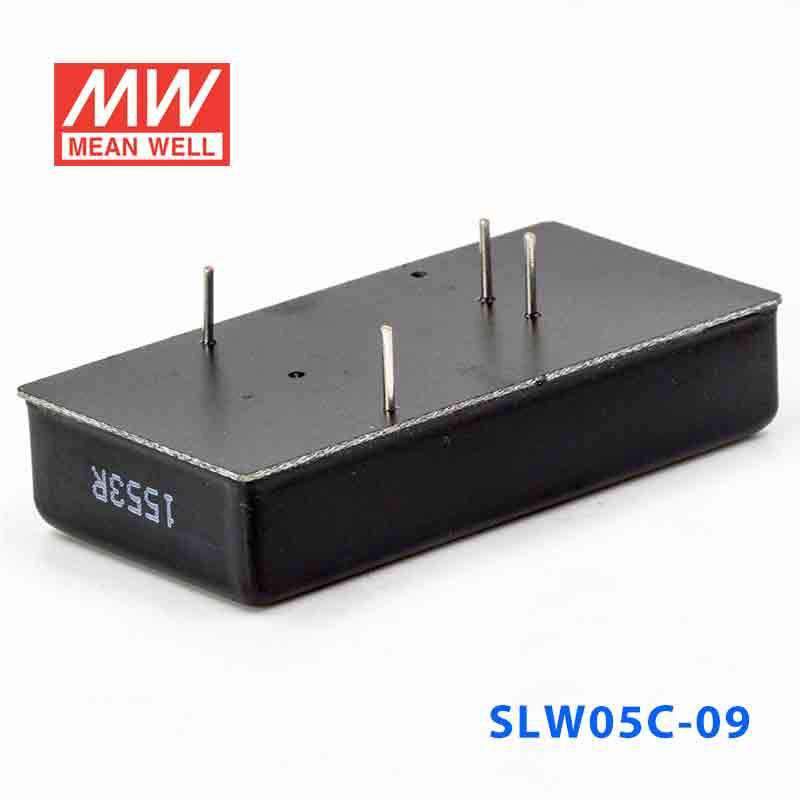

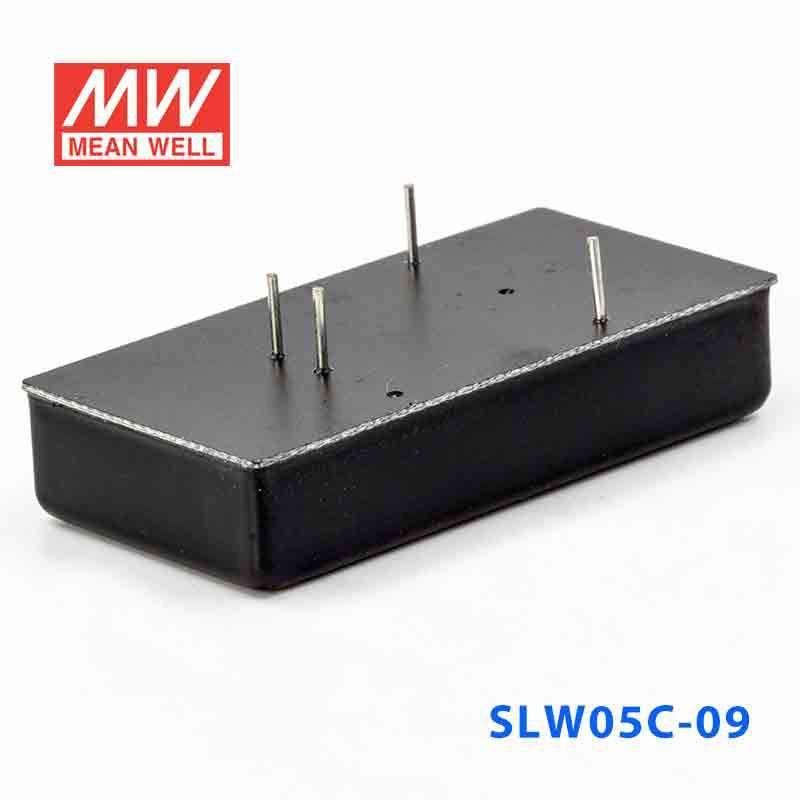

Mean Well SLW05C-09 DC-DC Converter - 5W - 36~72V in 9V out

SKU:

SLW05C-09

Please for Pricing

Notify me when it's back in stock

Description

Features

2:1 wide input range

4:1 wide input range (option)

1000VDC I/O isolation

3000VDC I/O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	±2% (max.)
Line regulation	±0.2% (max.)
Load regulation	±0.5% (max.)@10~100% load
Overload protection	160%~250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I/O isolation voltage	1000VDC (min.)
I/O isolation resistance	100MQ(min.)@500VDC
Working temperature	-25~+71°C (refer to output derating curve)
Storage temperature	-25°C to +105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	±0.03% / °C (max.)
Dimension (LxWxH) (mm)	2""x 1""x 0.44""
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SLW Series
Power Rating

5 Watt
Output Voltage

9 Volt
Rated Current

0.55 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

2.54 cm
Height

1.13 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SLW05C-09 for a 9V industrial or automation control circuit?

Yes, if the circuit needs a constant 9V output and the available source is within 36-72VAC. This model is rated at 5W with 556A output current, so it is intended for small regulated 9V loads that match the listed values.

Is the SLW05C-09 suitable for embedded 9V electronics inside higher-voltage equipment?

It is designed for exactly that kind of voltage conversion, taking 36-72VAC input and providing constant 9V output. The compact 50.8 × 25.4 × 11.27 mm size also helps where board or enclosure space is limited.

Can this converter power 9V sensing or interface modules in an industrial enclosure?

It can be used for 9V sensing or interface sections when the upstream source is 36-72VAC and the total load remains within 5W. The selection should be based on the required constant 9V rail and the published 556A output current figure.

What are the differences between the SLW05C-09 and its sibling models?

The SLW05C line includes SLW05C-05 at 5W, 5V, 1000A; SLW05C-09 at 5W, 9V, 556A; SLW05C-12 at 5W, 12V, 417A; and SLW05C-15 at 5W, 15V, 333A. The family otherwise shares the same 36-72VAC input, constant-voltage mode, 0.032 kg weight, and -25°C to +71°C operating temperature range.

Is the SLW05C-09 meant for indoor or outdoor environments?

The provided environmental limit is an operating temperature range of -25°C to +71°C. Since no IP rating is listed, this spec alone does not establish outdoor exposure suitability, so enclosure protection remains the deciding factor.

Model	Power	Voltage	Current	IP Rating
Mean Well SLW05C-15 DC-DC Converter - 5W - 36~72V in 15V out	5W	15V	0.33A	Indoor	View
Mean Well SLW05C-12 DC-DC Converter - 5W - 36~72V in 12V out	5W	12V	0.41A	Indoor	View
Mean Well SLW05C-05 DC-DC Converter - 5W - 36~72V in 5V out	5W	5V	1A	Indoor	View
Mean Well SLW05B-15 DC-DC Converter - 5W - 18~36V in 15V out	5W	15V	0.33A	Indoor	View
Mean Well SLW05B-12 DC-DC Converter - 5W - 18~36V in 12V out	5W	12V	0.41A	Indoor	View
Mean Well SLW05B-09 DC-DC Converter - 5W - 18~36V in 9V out	5W	9V	0.55A	Indoor	View
Mean Well SLW05B-05 DC-DC Converter - 5W - 18~36V in 5V out	5W	5V	1A	Indoor	View
Mean Well SLW05A-15 DC-DC Converter - 5W - 9~18V in 15V out	5W	15V	0.33A	Indoor	View
Mean Well SLW05A-12 DC-DC Converter - 5W - 9~18V in 12V out	5W	12V	0.41A	Indoor	View
Mean Well SLW05A-09 DC-DC Converter - 5W - 9~18V in 9V out	5W	9V	0.55A	Indoor	View
Mean Well SLW05A-05 DC-DC Converter - 5W - 9~18V in 5V out	5W	5V	1A	Indoor	View
