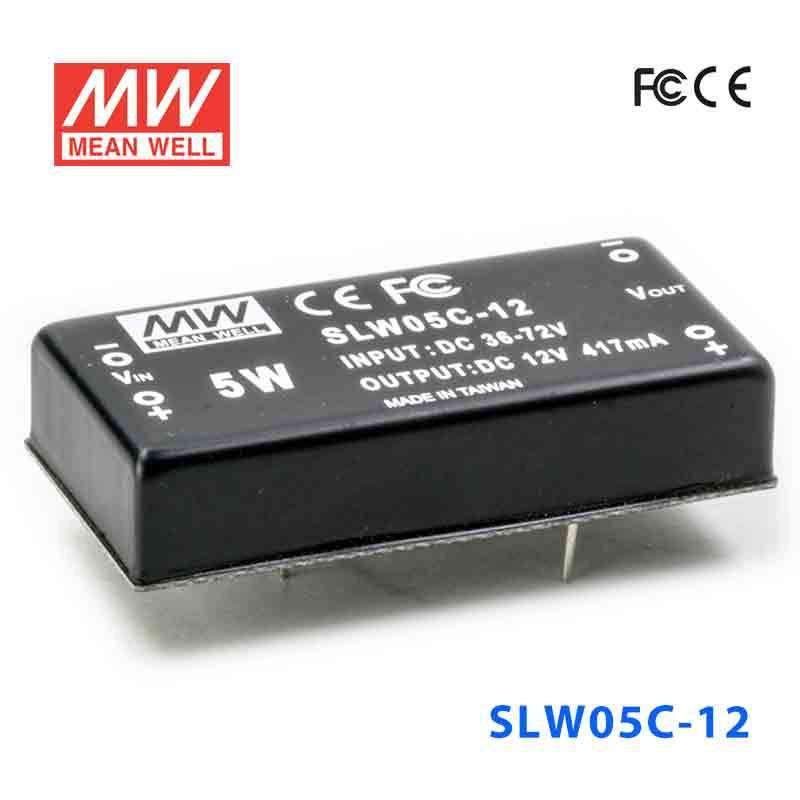

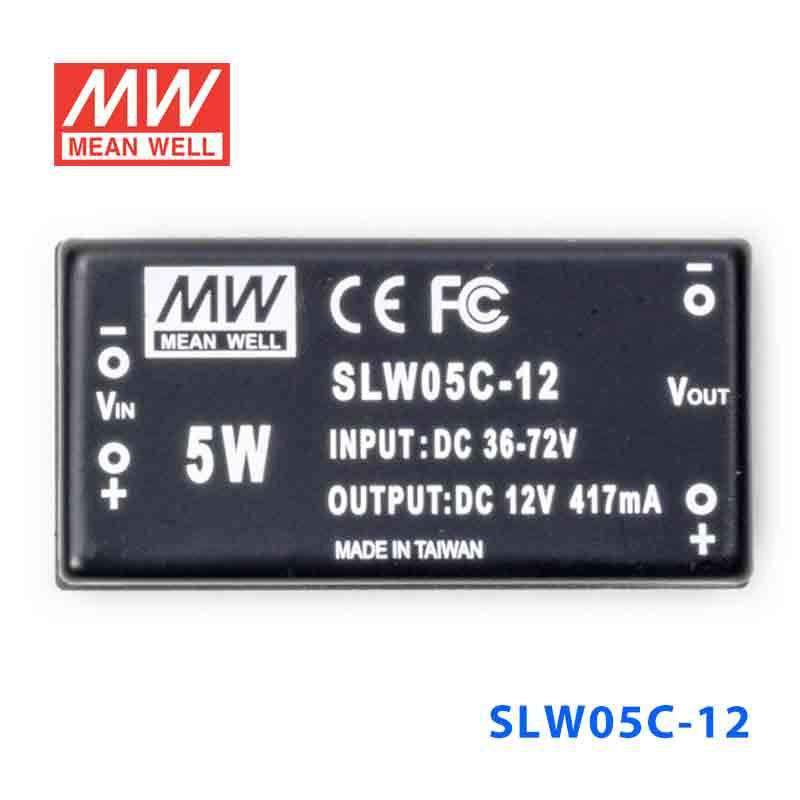

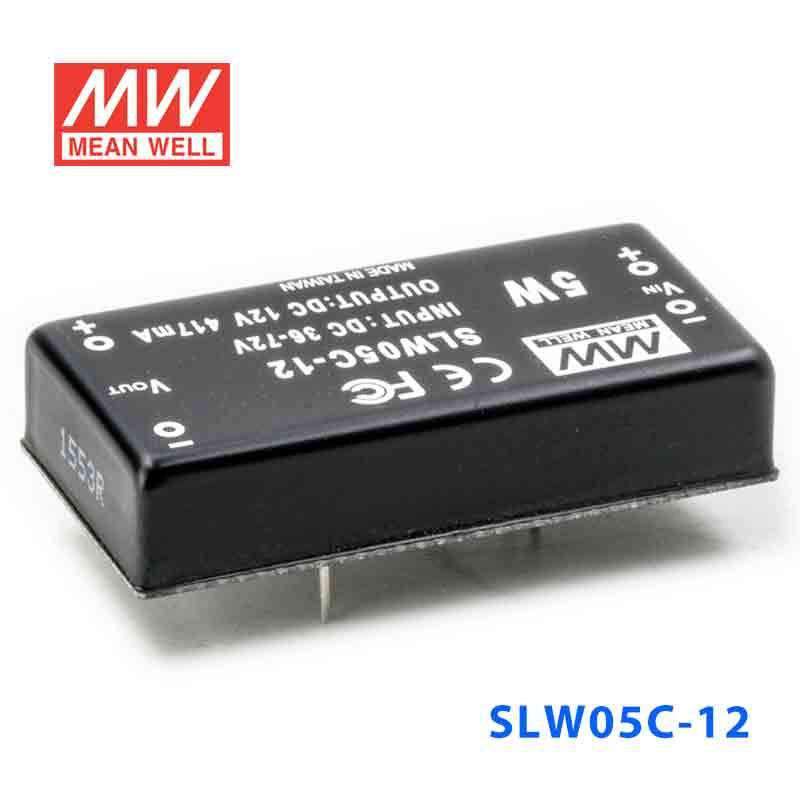

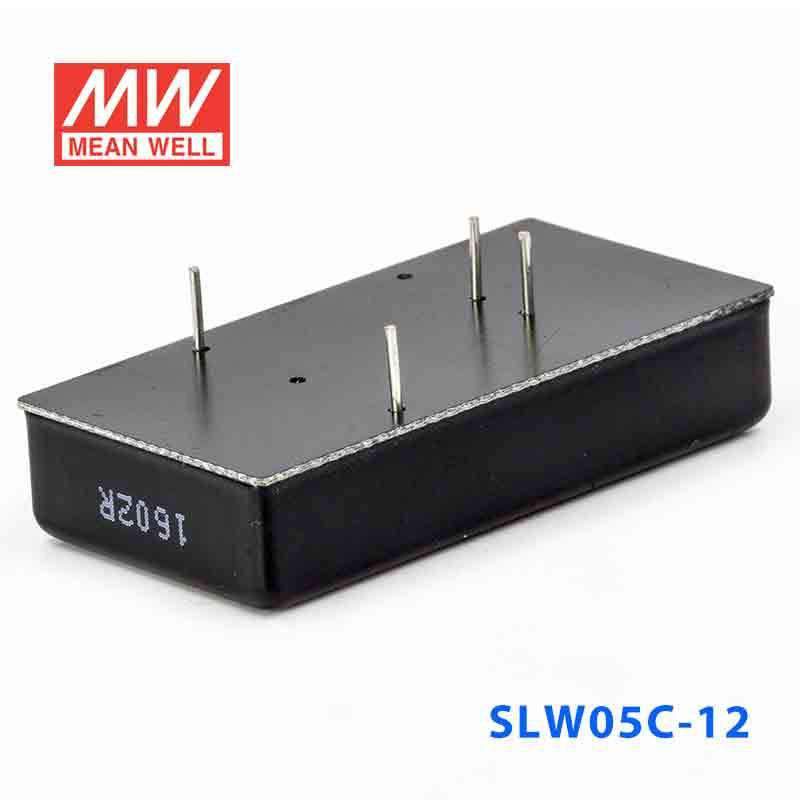

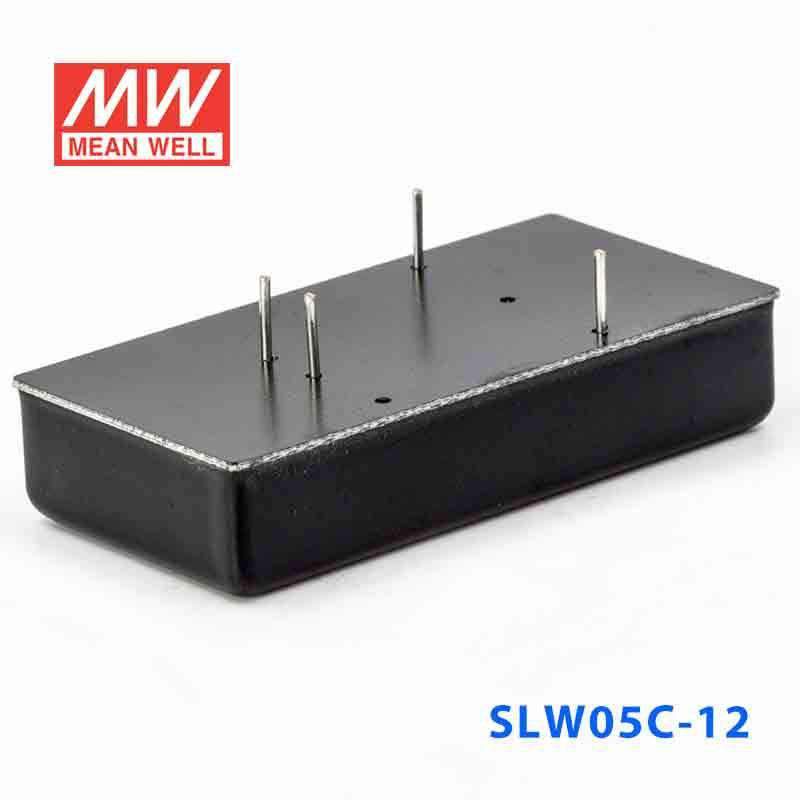

Mean Well SLW05C-12 DC-DC Converter - 5W - 36~72V in 12V out

SKU:

SLW05C-12

Please for Pricing

Notify me when it's back in stock

Description

Features

2:1 wide input range

4:1 wide input range (option)

1000VDC I/O isolation

3000VDC I/O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	±2% (max.)
Line regulation	±0.2% (max.)
Load regulation	±0.5% (max.)@10~100% load
Overload protection	160%~250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I/O isolation voltage	1000VDC (min.)
I/O isolation resistance	100MQ(min.)@500VDC
Working temperature	-25~+71°C (refer to output derating curve)
Storage temperature	-25°C to +105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	±0.03% / °C (max.)
Dimension (LxWxH) (mm)	2""x 1""x 0.44""
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SLW Series
Power Rating

5 Watt
Output Voltage

12 Volt
Rated Current

0.41 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

2.54 cm
Height

1.13 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SLW05C-12 to supply 12V control electronics from a 36-72VAC source?

Yes, this converter provides a constant 12V output with a specified 36-72VAC input range. It is rated at 5W and 417A output current, so it fits low-power 12V control, embedded, or monitoring circuits matched to those published figures.

Is the SLW05C-12 suitable for 12V embedded modules inside industrial equipment?

It is appropriate where the embedded module requires constant 12V and the source available in the equipment is 36-72VAC. The converter is compact at 50.8 × 25.4 × 11.27 mm and weighs 0.032 kg, which supports integration into space-constrained assemblies.

Can this model be used for 12V automation interface boards in higher-voltage systems?

It can be used for 12V interface boards or similar electronics when the system source falls within 36-72VAC and the load stays within 5W. The key fit is constant-voltage 12V output rather than variable or higher-power output requirements.

How does the SLW05C-12 compare to the rest of the SLW05C family?

The SLW05C family consists of SLW05C-05 at 5W, 5V, 1000A; SLW05C-09 at 5W, 9V, 556A; SLW05C-12 at 5W, 12V, 417A; and SLW05C-15 at 5W, 15V, 333A. All models share 36-72VAC input, constant-voltage operation, 50.8 × 25.4 × 11.27 mm dimensions, and a -25°C to +71°C operating temperature range.

Can the SLW05C-12 be used where temperatures change a lot or where the unit may be outdoors?

The specified operating range is -25°C to +71°C, so temperature conditions should stay inside that window. Because no IP rating is provided in the specs, outdoor use depends on the enclosure and overall system protection rather than on this converter alone.
