Can I use the SPBW06F-05 for 5V control boards or industrial interface circuits?

Yes, it is a constant voltage 5V converter rated for 6W, so it fits low-power 5V control and interface sections. The 9-36VAC input range is also useful in systems with variable input conditions.

Is this converter a good choice for embedded 5V electronics in compact equipment?

The 21.8 × 11.1 × 9.2 mm dimensions make it suitable where space is tight. With 5V output and 6W power, it is intended for compact low-power embedded electronics rather than larger 5V loads.

Can the SPBW06F-05 be used to power 5V monitoring or communication modules in automation systems?

It can be used where a regulated 5V constant voltage rail is needed and the total load stays within 6W. That makes it suitable for low-power monitoring, interface, or communication sections inside automation equipment.

Can I use the SPBW06F-05 in outdoor equipment or unheated enclosures?

The converter is specified for -40°C to +85°C operation, so the temperature range is broad. No IP rating is listed in the specs, so the product data does not define it as outdoor-rated.

What are the main differences between the SPBW06F-05 and the other 6W SPBW06F models?

These SPBW06F versions are all 6W models in the same family. The SPBW06F-03 is 3.3V and 1.5A, the SPBW06F-05 is 5V and 1.2A, the SPBW06F-12 is 12V and 500A, and the SPBW06F-15 is 15V and 400A.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

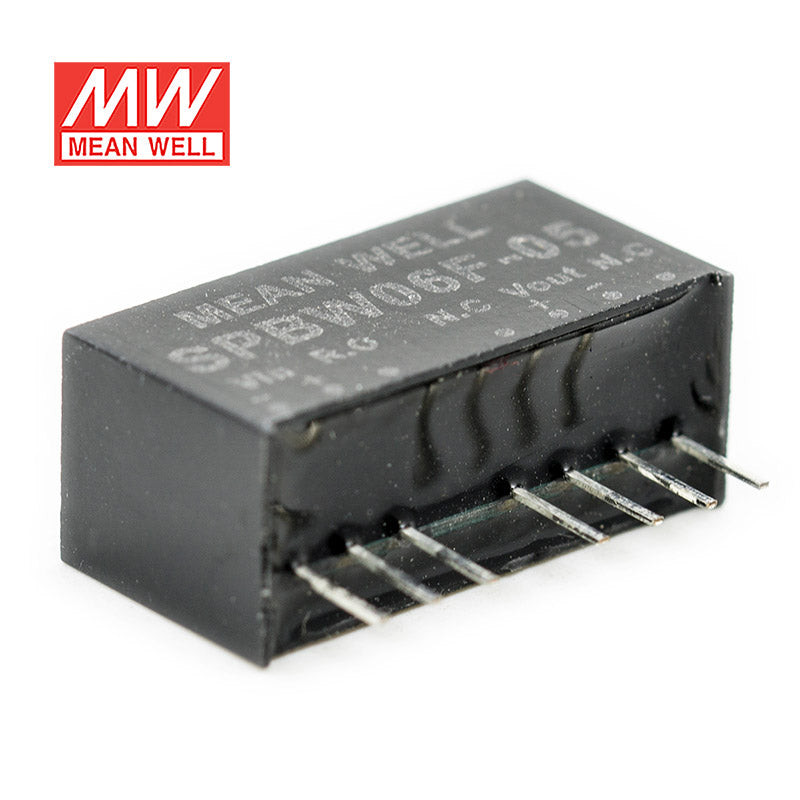

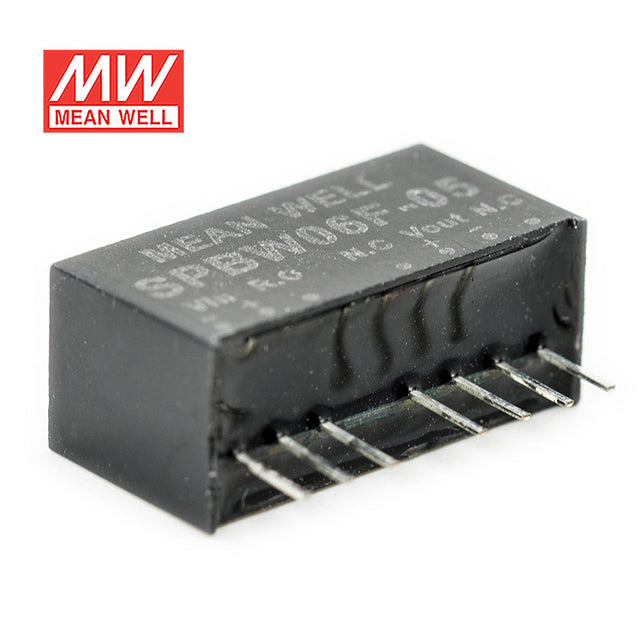

Mean Well SPBW06F-05 DC-DC Converter - 6W - 9~36V in 5V out

SKU:

SPBW06F-05

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Remote ON/OFF control

3 years warranty

Key Features

✓SIP8 package with industry-standard pinout
✓4:1 wide input range
✓Wide operating temperature range -40~+85°C
✓No minimum load required
✓High efficiency up to 89%
✓Protection: Short circuit(continuous)/Overload/Input under voltage
✓Comply to BS EN/EN55032 radiated Class B without additional components
✓1.5KVDC I/O isolation
✓Remote ON/OFF control
✓3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SPBW06G-15 DC-DC Converter - 6W - 18~75V in 15V out	6W	15V	0.4A	Indoor	View
Mean Well SPBW06G-12 DC-DC Converter - 6W - 18~75V in 12V out	6W	12V	0.5A	Indoor	View
Mean Well SPBW06G-05 DC-DC Converter - 6W - 18~75V in 5V out	6W	5V	1.2A	Indoor	View
Mean Well SPBW06G-03 DC-DC Converter - 6W - 18~75V in 3.3V out	6W	3.3V	1.5A	Indoor	View
Mean Well SPBW06F-15 DC-DC Converter - 6W - 9~36V in 15V out	6W	15V	0.4A	Indoor	View
Mean Well SPBW06F-12 DC-DC Converter - 6W - 9~36V in 12V out	6W	12V	0.5A	Indoor	View
Mean Well SPBW06F-03 DC-DC Converter - 6W - 9~36V in 3.3V out	6W	3.3V	1.5A	Indoor	View
