Can I use the SPBW06G-12 for 12V automation relays, interface boards, or control sections?

This model is a 6W constant-voltage converter with a 12V output, so it fits low-power automation relays, interface boards, or control sections designed for 12V. It is best matched to electronics that need a regulated 12V rail rather than a variable output.

Is the SPBW06G-12 suitable for industrial monitoring or embedded 12V subsystems?

Yes, it can support embedded or monitoring subsystems that require 12V and stay within the 6W power rating. The 18-75VAC input range also makes it relevant for industrial equipment that operates from higher-voltage input sources in that specified span.

Can this converter be used where board space is limited?

Its 21.8 x 11.1 x 9.2 mm footprint and 0.0048 kg weight make it practical for very compact control, instrumentation, or embedded assemblies. That small form factor is useful when a 12V constant-voltage rail has to be added without using a larger power module.

Is the SPBW06G-12 meant for indoor or outdoor environments?

The product is rated for operation from -40C to +85C, so temperature capability is broad. The provided specifications do not show an IP rating, which means indoor or outdoor sealing performance is not defined in this listing.

What are the output differences across the SPBW06G family?

The SPBW06G variants listed here are all 6W models, but they differ in output voltage and current. The sibling set includes SPBW06G-03 at 3.3V and 1.5A, SPBW06G-05 at 5V and 1.2A, SPBW06G-15 at 15V and 400A, while this SPBW06G-12 is rated at 12V and 500A.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

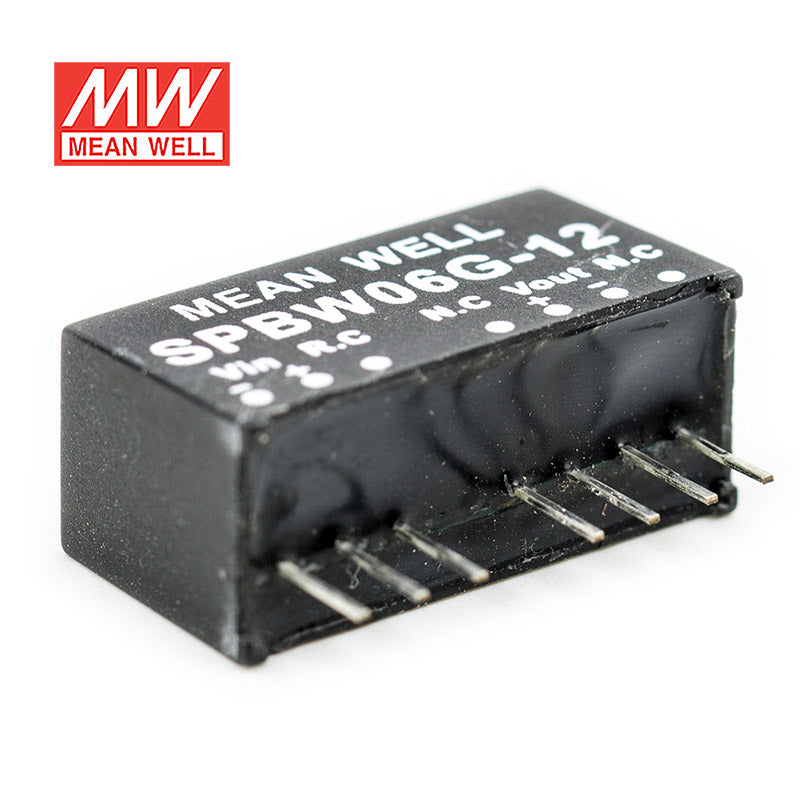

Mean Well SPBW06G-12 DC-DC Converter - 6W - 18~75V in 12V out

SKU:

SPBW06G-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Remote ON/OFF control

3 years warranty

Key Features

✓SIP8 package with industry-standard pinout
✓4:1 wide input range
✓Wide operating temperature range -40~+85°C
✓No minimum load required
✓High efficiency up to 89%
✓Protection: Short circuit(continuous)/Overload/Input under voltage
✓Comply to BS EN/EN55032 radiated Class B without additional components
✓1.5KVDC I/O isolation
✓Remote ON/OFF control
✓3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SPBW06G-15 DC-DC Converter - 6W - 18~75V in 15V out	6W	15V	0.4A	Indoor	View
Mean Well SPBW06G-05 DC-DC Converter - 6W - 18~75V in 5V out	6W	5V	1.2A	Indoor	View
Mean Well SPBW06G-03 DC-DC Converter - 6W - 18~75V in 3.3V out	6W	3.3V	1.5A	Indoor	View
Mean Well SPBW06F-15 DC-DC Converter - 6W - 9~36V in 15V out	6W	15V	0.4A	Indoor	View
Mean Well SPBW06F-12 DC-DC Converter - 6W - 9~36V in 12V out	6W	12V	0.5A	Indoor	View
Mean Well SPBW06F-05 DC-DC Converter - 6W - 9~36V in 5V out	6W	5V	1.2A	Indoor	View
Mean Well SPBW06F-03 DC-DC Converter - 6W - 9~36V in 3.3V out	6W	3.3V	1.5A	Indoor	View
