Can I use the SPBW06F-15 in a compact industrial control board that needs 15V power?

This model is a 6W constant-voltage DC-DC converter with a 15V output, so it fits low-power industrial control or interface sections designed for 15V rails. Its 21.8 x 11.1 x 9.2 mm size also suits dense embedded or automation assemblies where board space is limited.

Is the SPBW06F-15 suitable for 15V analog or signal-conditioning circuits in automation equipment?

It can fit low-power 15V analog, monitoring, or signal-conditioning sections that stay within the unit's 6W output rating. The constant-voltage output makes it appropriate where the downstream electronics expect a fixed 15V supply.

Can this converter be used inside embedded equipment powered from a 9-36VAC source?

Yes, the specified input range is 9-36VAC, so it is intended for designs operating within that span and needing a regulated 15V output. That makes it relevant for embedded control hardware, industrial subassemblies, or automation modules built around that input window.

Is the SPBW06F-15 appropriate for outdoor or harsh-temperature environments?

The operating temperature range is -40C to +85C, which supports use across a wide temperature span. The provided specs do not list an IP rating, so environmental sealing for indoor or outdoor exposure is not specified here.

How does the SPBW06F-15 compare with other SPBW06F models?

All SPBW06F models in this group are 6W converters. The sibling outputs are SPBW06F-03 at 3.3V and 1.5A, SPBW06F-05 at 5V and 1.2A, SPBW06F-12 at 12V and 500A, and this SPBW06F-15 at 15V and 400A.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

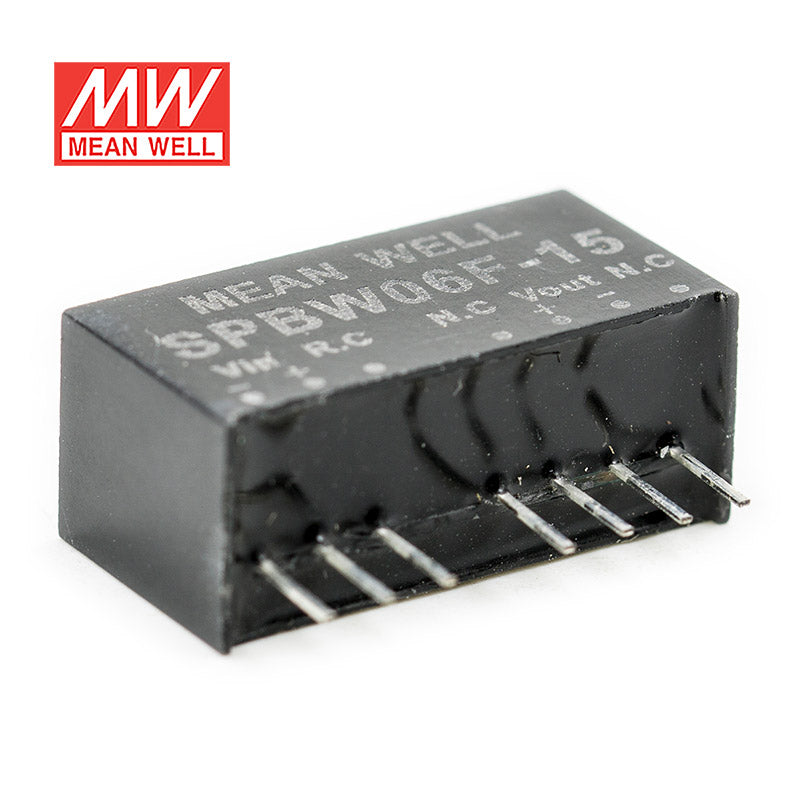

Mean Well SPBW06F-15 DC-DC Converter - 6W - 9~36V in 15V out

SKU:

SPBW06F-15

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Remote ON/OFF control

3 years warranty

Key Features

✓SIP8 package with industry-standard pinout
✓4:1 wide input range
✓Wide operating temperature range -40~+85°C
✓No minimum load required
✓High efficiency up to 89%
✓Protection: Short circuit(continuous)/Overload/Input under voltage
✓Comply to BS EN/EN55032 radiated Class B without additional components
✓1.5KVDC I/O isolation
✓Remote ON/OFF control
✓3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SPBW06G-15 DC-DC Converter - 6W - 18~75V in 15V out	6W	15V	0.4A	Indoor	View
Mean Well SPBW06G-12 DC-DC Converter - 6W - 18~75V in 12V out	6W	12V	0.5A	Indoor	View
Mean Well SPBW06G-05 DC-DC Converter - 6W - 18~75V in 5V out	6W	5V	1.2A	Indoor	View
Mean Well SPBW06G-03 DC-DC Converter - 6W - 18~75V in 3.3V out	6W	3.3V	1.5A	Indoor	View
Mean Well SPBW06F-12 DC-DC Converter - 6W - 9~36V in 12V out	6W	12V	0.5A	Indoor	View
Mean Well SPBW06F-05 DC-DC Converter - 6W - 9~36V in 5V out	6W	5V	1.2A	Indoor	View
Mean Well SPBW06F-03 DC-DC Converter - 6W - 9~36V in 3.3V out	6W	3.3V	1.5A	Indoor	View

Please log in to write a review.

{ "id":8442826883371, "variants" :[{ "context":"default", "variant_id": 45712952164651, "sku":"SPBW06F-15", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓SIP8 package with industry-standard pinout

✓4:1 wide input range

✓Wide operating temperature range -40~+85°C

✓No minimum load required

✓High efficiency up to 89%

✓Protection: Short circuit(continuous)/Overload/Input under voltage

✓Comply to BS EN/EN55032 radiated Class B without additional components

✓1.5KVDC I/O isolation

✓Remote ON/OFF control

✓3 years warranty
