Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

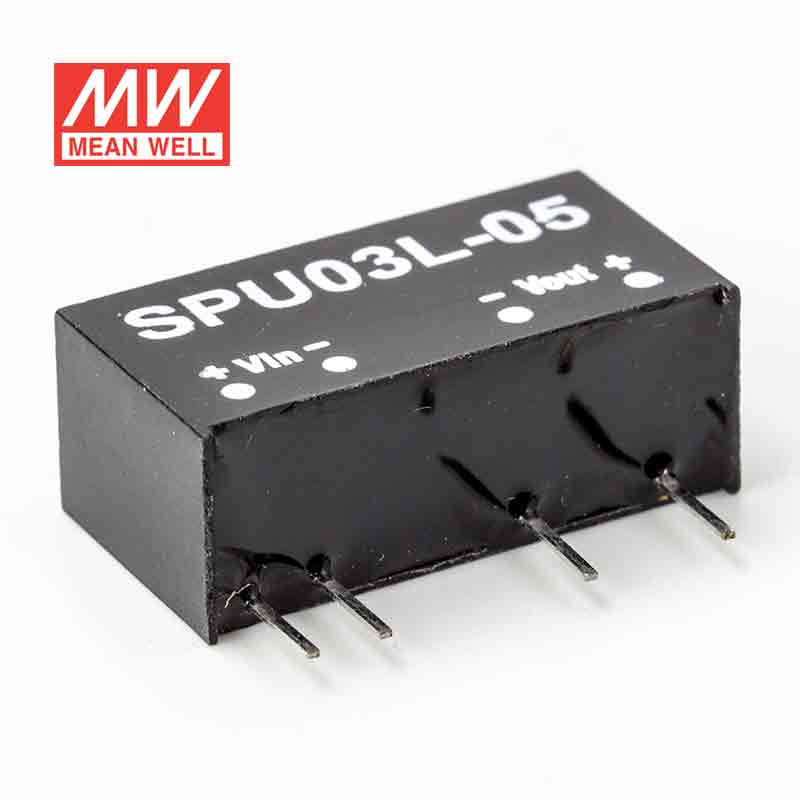

Mean Well SPU03L-05 DC-DC Converter - 3W - 4.5~5.5V in 15V out

SKU:

SPU03L-05

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SPU03L is a 3W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -40~+90℃).

Key Features

✓ Input voltage range: 4.5~5.5V
✓ 3KVDC reinforced I/O isolation
✓ Wide operating temperature: -40~+90℃
✓ Protections: Short circuit / Overload
✓ 3 years warranty

Frequently Asked Questions

Can I use the SPU03L-05 to generate 15V for a low-power embedded or control circuit from a 4.5~5.5V source?

Yes, this converter is designed to provide a 15V constant-voltage output from a 4.5~5.5V input range. Its 3W rating makes it suitable for low-power embedded, control, and interface electronics that need a higher output voltage than the source rail.

Is the SPU03L-05 appropriate for small industrial or automation subsystems that need a 15V rail?

It can fit low-power industrial or automation electronics that require 15V and remain within the unit's 3W rating. The constant-voltage output is appropriate for regulated electronic loads rather than applications that need larger power capacity.

Would the SPU03L-05 work for compact board-level designs where available space is tight?

Yes, the converter measures 19.6 × 10.2 × 7.5 mm and weighs 0.0029 kg. That compact size makes it suitable for embedded and automation boards that need a 15V rail from a 4.5~5.5V input.

Can this model be used in equipment that sees elevated or below-freezing temperatures?

The specified operating temperature range is -40°C to +90°C. That supports use in low-power electronics across a broad range of indoor industrial and embedded temperature conditions.

How does the SPU03L-05 compare with the other SPU03L versions?

The SPU03L family is rated at 3W and uses the same 19.6 × 10.2 × 7.5 mm package. In the provided sibling list, SPU03L-12 is listed as 5V with 600A and SPU03L-15 is also listed as 5V with 600A, while this model outputs 15V.

Is the SPU03L-05 intended for indoor or outdoor conditions?

Its operating temperature range is -40°C to +90°C, but no IP rating is provided in the listed specs. Based on the published information, temperature limits are defined, while direct outdoor exposure is not specifically rated.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SPU03N-15 DC-DC Converter - 3W - 21.6~26.4V in 15V out	3W	15V	0.2A	Indoor	View
Mean Well SPU03N-12 DC-DC Converter - 3W - 10.8~13.2V in 15V out	3W	15V	0.2A	Indoor	View
Mean Well SPU03N-05 DC-DC Converter - 3W - 4.5~5.5V in 12V out	3W	12V	0.25A	Indoor	View
Mean Well SPU03M-15 DC-DC Converter - 3W - 21.6~26.4V in 12V out	3W	12V	0.25A	Indoor	View
Mean Well SPU03M-12 DC-DC Converter - 3W - 10.8~13.2V in 12V out	3W	12V	0.25A	Indoor	View
Mean Well SPU03M-05 DC-DC Converter - 3W - 4.5~5.5V in 5V out	3W	5V	0.6A	Indoor	View
Mean Well SPU03L-15 DC-DC Converter - 3W - 21.6~26.4V in 5V out	3W	5V	0.6A	Indoor	View
Mean Well SPU03L-12 DC-DC Converter - 3W - 10.8~13.2V in 5V out	3W	5V	0.6A	Indoor	View
