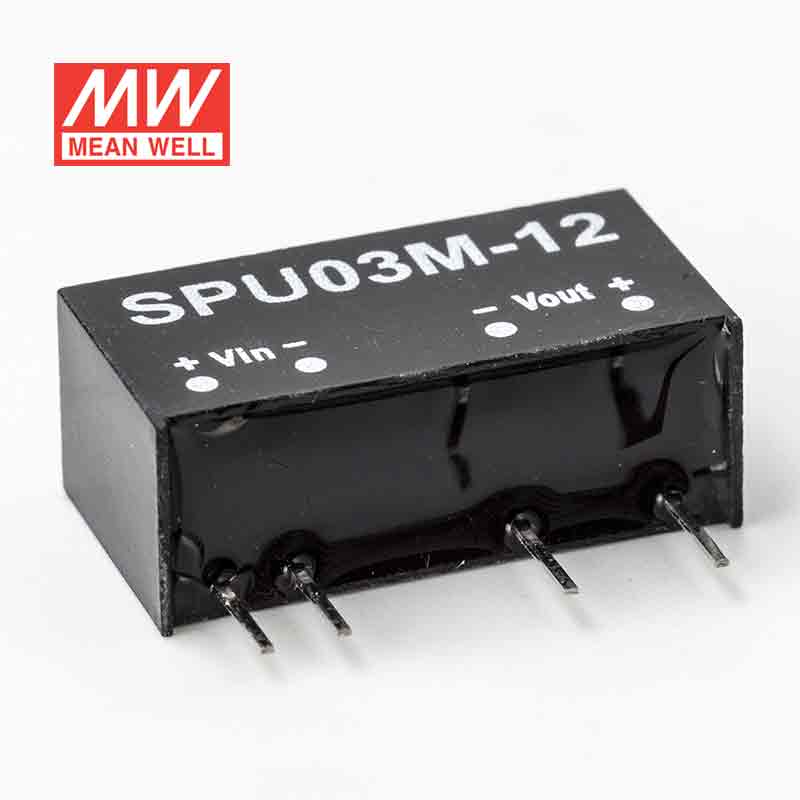

Mean Well SPU03M-12 DC-DC Converter - 3W - 10.8~13.2V in 12V out
Please Login for Pricing
Description
Description
Features
| 3000VDC I/O isolation |
| Internal SMD technology |
| Built-in EMI filter |
| Protection: Short circuit |
| Cooling by free air convection |
| non-conductive plastic case |
| Single in-line package |
| 100% full load burn-in test |
| Low cost / High reliability |
| 2 years warranty |
General Specification
| Voltage accuracy | ±2.0% |
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along the X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | Momentary; Protection type: Broken |
| Working temperature | -40 ~ +90℃ (Refer to "Derating Curve")C |
| EMC | Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | ±0.03% / ℃ (0 ~ 50℃) |
| Dimension (LxWxH) (mm) | 19.6 x 7.5 x 10.2mm |
| Potting material | UL 94V-0 rated |
Specifications
Specifications
-
BrandMean Well
-
SeriesSPU Series
-
Power Rating3 Watt
-
Output Voltage12 Volt
-
Rated Current0.25 Ampere
-
Input Voltage10.8V~13.2V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty2 Year
-
Length1.96 cm
-
Width1.02 cm
-
Height0.75 cm
-
Weight0 kg
