Can I use the SPU03M-05 to stabilize a 5V rail for embedded electronics?

Yes, this model accepts 4.5~5.5V input and provides a constant 5V output rated at 3W. That fits low-power embedded logic, monitoring, or control circuits that need a regulated 5V rail.

Is the SPU03M-05 suitable for low-power 5V sensor or I/O circuits in industrial equipment?

It is a 3W constant-voltage 5V converter, so it is aimed at low-power 5V electronics rather than high-power loads. The 4.5~5.5V input range makes it relevant where the source already operates around 5V.

Can this converter fit inside small automation or embedded assemblies?

Its dimensions are 19.6 × 10.2 × 7.5 mm and its weight is 0.0029 kg, so it is very compact. That size is well suited to space-constrained control boards and compact electronic assemblies.

Would the SPU03M-05 make sense for a small 5V housekeeping rail in IT or control hardware?

For low-power auxiliary 5V electronics, the 3W rating is appropriate. It is intended for designs with a 4.5~5.5V input source that still need a regulated constant-voltage 5V output.

Can the SPU03M-05 be used in harsh temperature conditions?

The specified operating temperature range is -40°C to +90°C. The provided specs do not state an IP rating, so only the temperature range is defined for environmental conditions.

How does the SPU03M-05 compare with the other SPU03M models?

The SPU03M-05 is 3W with 5V output and listed 600A output current. The SPU03M-12 is 3W with 12V output and listed 250A output current, and the SPU03M-15 is also 3W with 12V output and listed 250A output current.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

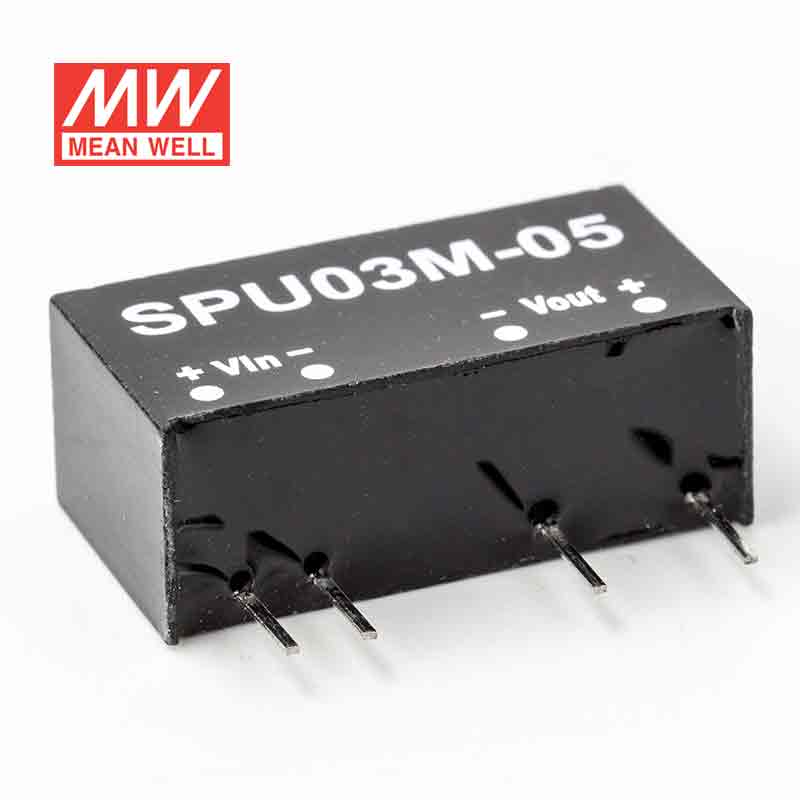

Mean Well SPU03M-05 DC-DC Converter - 3W - 4.5~5.5V in 5V out

SKU:

SPU03M-05

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SPU03M is a 3W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -40~+90℃).

Key Features

✓ Input voltage range: 4.5~5.5V
✓ 3KVDC reinforced I/O isolation
✓ Wide operating temperature: -40~+90℃
✓ Protections: Short circuit / Overload
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SPU03N-15 DC-DC Converter - 3W - 21.6~26.4V in 15V out	3W	15V	0.2A	Indoor	View
Mean Well SPU03N-12 DC-DC Converter - 3W - 10.8~13.2V in 15V out	3W	15V	0.2A	Indoor	View
Mean Well SPU03N-05 DC-DC Converter - 3W - 4.5~5.5V in 12V out	3W	12V	0.25A	Indoor	View
Mean Well SPU03M-15 DC-DC Converter - 3W - 21.6~26.4V in 12V out	3W	12V	0.25A	Indoor	View
Mean Well SPU03M-12 DC-DC Converter - 3W - 10.8~13.2V in 12V out	3W	12V	0.25A	Indoor	View
Mean Well SPU03L-15 DC-DC Converter - 3W - 21.6~26.4V in 5V out	3W	5V	0.6A	Indoor	View
Mean Well SPU03L-12 DC-DC Converter - 3W - 10.8~13.2V in 5V out	3W	5V	0.6A	Indoor	View
Mean Well SPU03L-05 DC-DC Converter - 3W - 4.5~5.5V in 15V out	3W	15V	0.2A	Indoor	View
