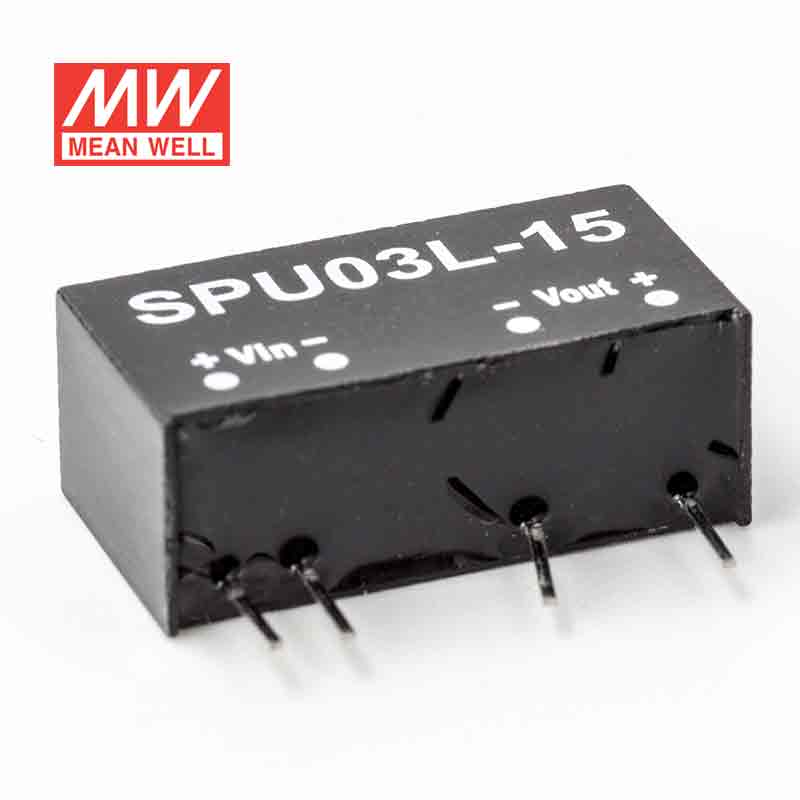

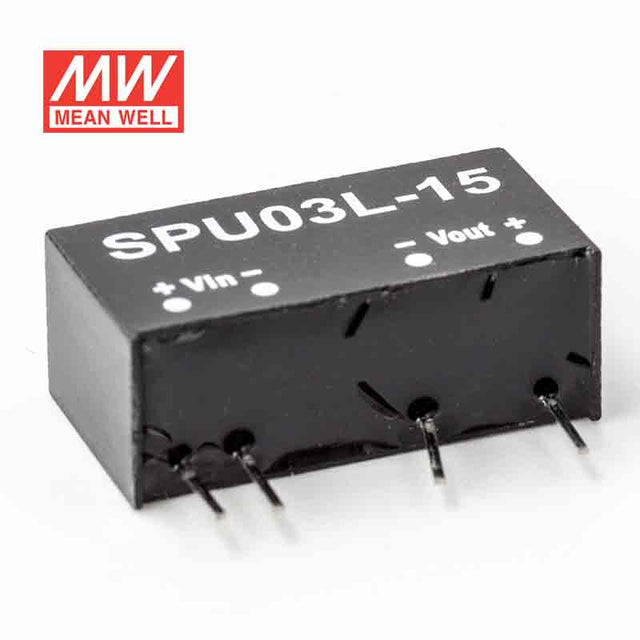

Mean Well SPU03L-15 DC-DC Converter - 3W - 21.6~26.4V in 5V out

SKU:

SPU03L-15

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SPU03L is a 3W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -40~+90℃).

Key Features

✓ Input voltage range: 4.5~5.5V
✓ 3KVDC reinforced I/O isolation
✓ Wide operating temperature: -40~+90℃
✓ Protections: Short circuit / Overload
✓ 3 years warranty

Frequently Asked Questions

Can I use the SPU03L-15 to derive 5V for embedded control electronics from a 21.6~26.4V source?

Yes, this converter is rated for 21.6~26.4V input and provides a constant 5V output at 3W. That makes it suitable for low-power embedded control, monitoring, or interface sections built around a 5V rail.

Is the SPU03L-15 a fit for 5V logic or signal-conditioning circuits in automation panels?

It is intended for constant-voltage 5V output and has a 3W power rating, which suits low-power logic and signal-processing electronics. The defined input range is 21.6~26.4V, so it should be matched to systems in that range.

Can this model support a small 5V service rail inside industrial instrumentation?

For low-power 5V support circuitry, the 3W output rating is aligned with compact service or housekeeping rails. Its small 19.6 × 10.2 × 7.5 mm size also helps in tightly packed instrumentation designs.

Would the SPU03L-15 work for 5V communication or controller subsections in IT equipment?

Yes, it is built for a regulated 5V output and accepts 21.6~26.4V input, which fits low-power controller or communication subsections. The converter is a constant-voltage design, so it is intended for electronics that need a stable 5V supply.

Is the SPU03L-15 suitable for exposed outdoor use?

The operating temperature range is -40°C to +90°C, so thermal limits are specified across a wide span. The provided specs do not include an IP rating, which means outdoor dust and water protection are not stated.

What is the difference between the SPU03L-15 and the other SPU03L versions?

The SPU03L-15 is rated 3W with 5V output and listed 600A output current. In the same series, the SPU03L-05 is 3W with 15V output and listed 200A output current, and the SPU03L-12 is 3W with 5V output and listed 600A output current.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SPU03N-15 DC-DC Converter - 3W - 21.6~26.4V in 15V out	3W	15V	0.2A	Indoor	View
Mean Well SPU03N-12 DC-DC Converter - 3W - 10.8~13.2V in 15V out	3W	15V	0.2A	Indoor	View
Mean Well SPU03N-05 DC-DC Converter - 3W - 4.5~5.5V in 12V out	3W	12V	0.25A	Indoor	View
Mean Well SPU03M-15 DC-DC Converter - 3W - 21.6~26.4V in 12V out	3W	12V	0.25A	Indoor	View
Mean Well SPU03M-12 DC-DC Converter - 3W - 10.8~13.2V in 12V out	3W	12V	0.25A	Indoor	View
Mean Well SPU03M-05 DC-DC Converter - 3W - 4.5~5.5V in 5V out	3W	5V	0.6A	Indoor	View
Mean Well SPU03L-12 DC-DC Converter - 3W - 10.8~13.2V in 5V out	3W	5V	0.6A	Indoor	View
Mean Well SPU03L-05 DC-DC Converter - 3W - 4.5~5.5V in 15V out	3W	15V	0.2A	Indoor	View
