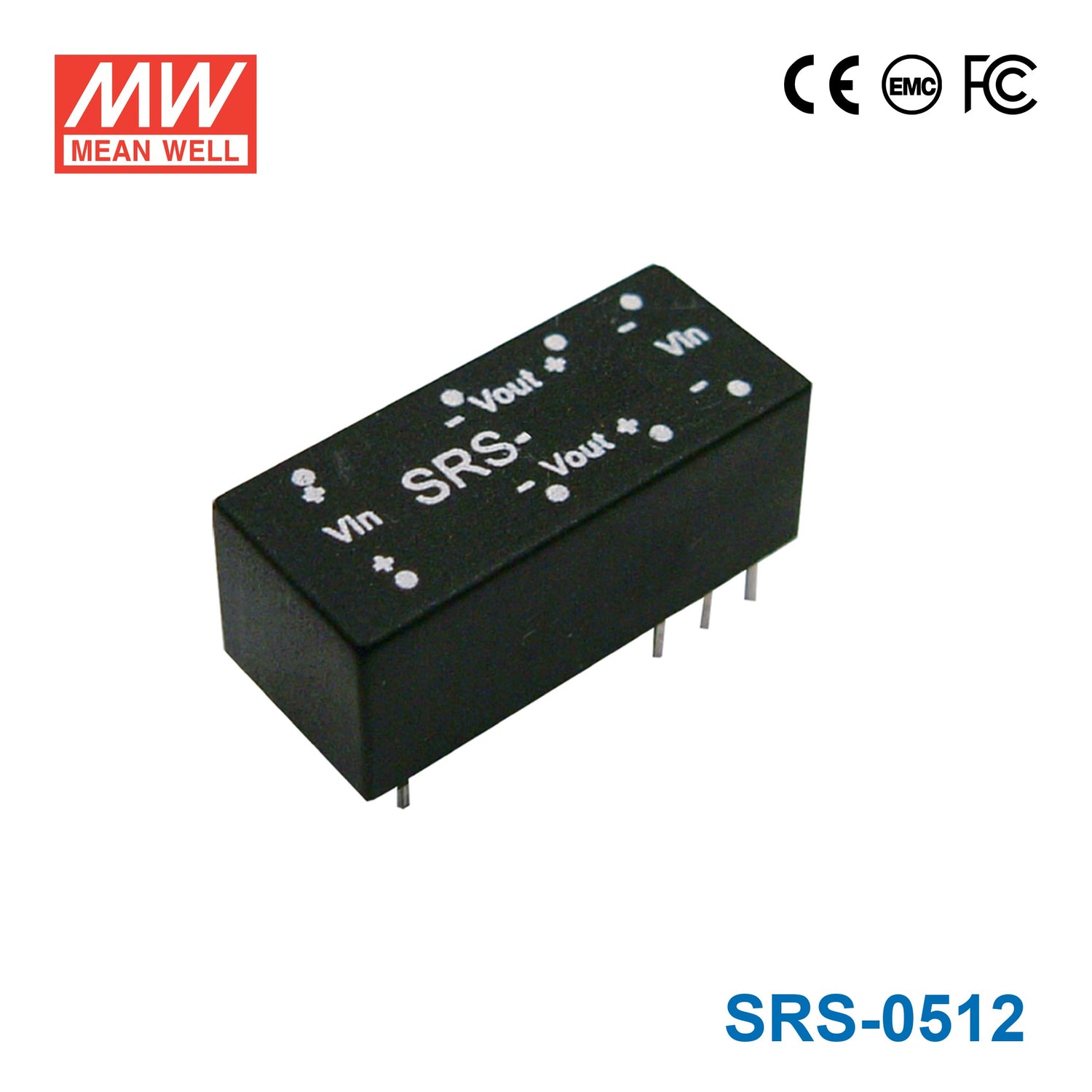

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

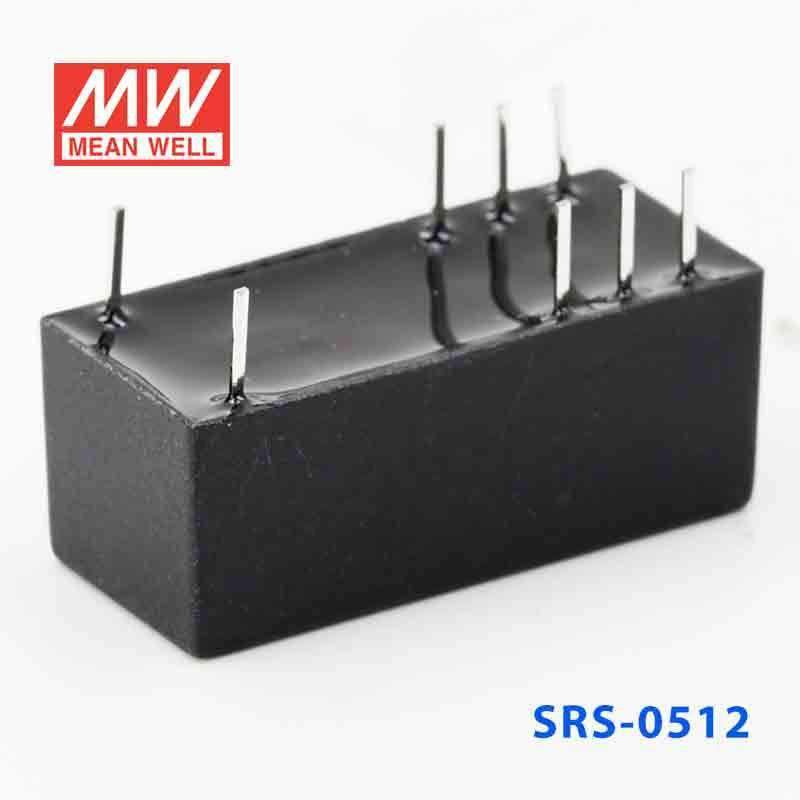

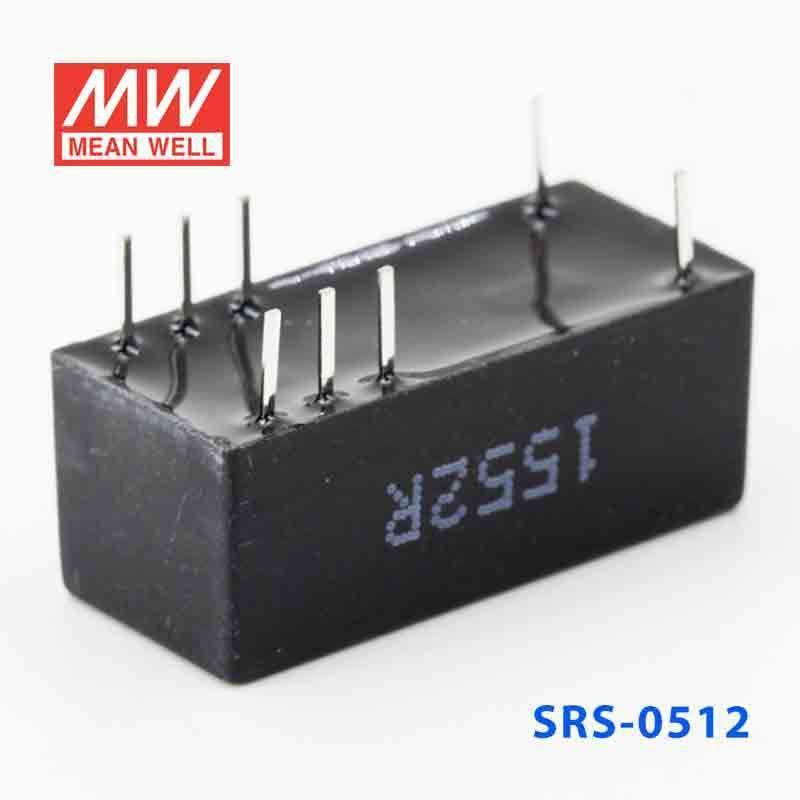

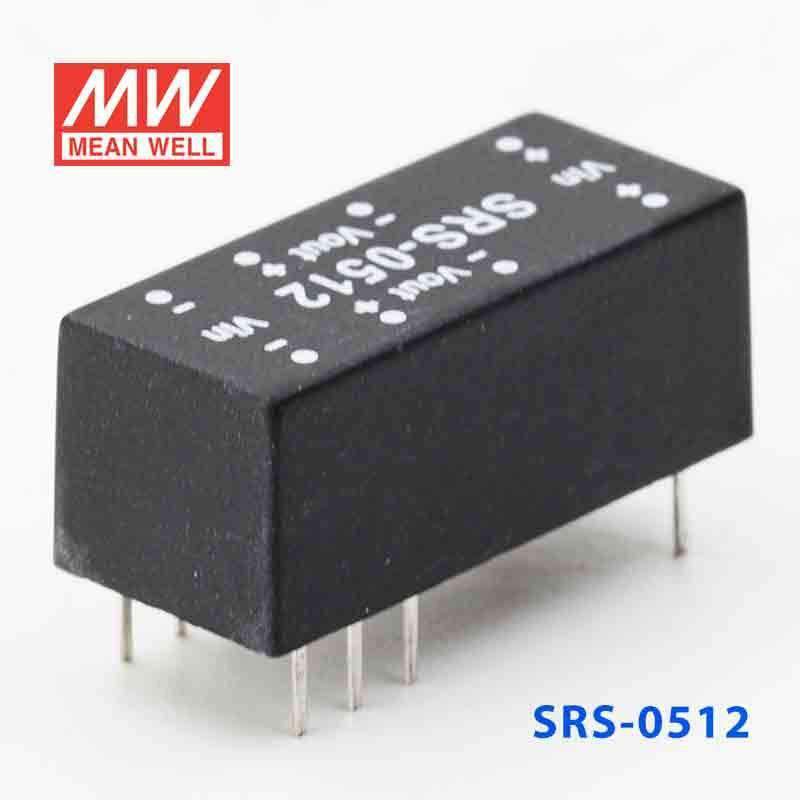

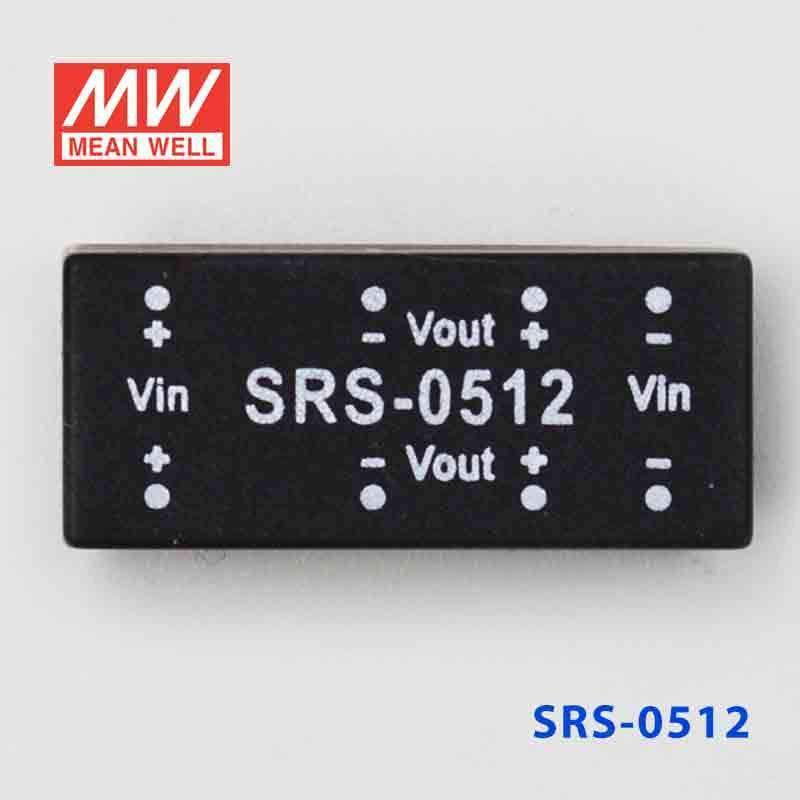

Mean Well SRS-0512 DC-DC Converter - 0.5W - 4.5~5.5V in 12V out

SKU:

SRS-0512

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SRS is a 0.5W Mean Well power converter.

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload
✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE ISOLATION CAPACITANCE EMC EMISSION EMC IMMUNITY MTBF DIMENSION WEIGHT -25 ~ +105 ± 0.03% / ℃ ℃ , 10 ~ 95% RH ℃ ) (0 ~ 50 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

Can I use the SRS-0512 to generate 12V for a small embedded control circuit from a 4.5~5.5V source?

Yes, this model is intended for low-power constant-voltage conversion from 4.5~5.5V input to 12V output. Its output is limited to 0.5W and 0.04A, so it fits small embedded, signal-conditioning, or control-bias tasks rather than higher-load 12V equipment.

Is the SRS-0512 suitable for industrial sensor or interface boards that only need a light 12V rail?

It can fit that type of use when the 12V side stays within 0.04A and 0.5W. The constant-voltage output makes it better suited to low-demand auxiliary rails on compact industrial or automation electronics than to devices needing more 12V current.

Can the SRS-0512 be used in compact IT or telecom subcircuits where board space is tight?

Its 22.6 × 9.9 × 8.4 mm body is sized for very compact electronics, and the unit weighs 0.0031 kg. That makes it practical for dense low-power support circuitry where a small 12V rail is needed from a 4.5~5.5V input range.

Is the SRS-0512 appropriate for outdoor or harsh-environment use?

The published specs show an operating range of -25°C to +71°C, but no IP rating is listed. That supports use inside protected equipment or enclosures, not exposed outdoor locations where ingress protection would need to be specified.

How does the SRS-0512 compare with other SRS output options?

In the sibling list, the 0.5W SRS models are offered at 5V, 9V, 12V, and 15V outputs. The listed pairs are SRS-0505, SRS-1205, SRS-2405, and SRS-4805 at 5V with listed 100A; SRS-0509, SRS-1209, SRS-2409, and SRS-4809 at 9V and 0.06A; SRS-0512, SRS-1212, SRS-2412, and SRS-4812 at 12V and 0.04A; and SRS-0515, SRS-1215, SRS-2415, and SRS-4815 at 15V and 0.03A.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SRS-4815 DC-DC Converter - 0.5W - 43.2~52.8V in 15V out	0.5W	15V	0.03A	Indoor	View
Mean Well SRS-4812 DC-DC Converter - 0.5W - 43.2~52.8V in 12V out	0.5W	12V	0.04A	Indoor	View
Mean Well SRS-4809 DC-DC Converter - 0.5W - 43.2~52.8V in 9V out	0.5W	9V	0.05A	Indoor	View
Mean Well SRS-4805 DC-DC Converter - 0.5W - 43.2~52.8V in 5V out	0.5W	5V	0.1A	Indoor	View
Mean Well SRS-2415 DC-DC Converter - 0.5W - 21.6~26.4V in 15V out	0.5W	15V	0.03A	Indoor	View
Mean Well SRS-2412 DC-DC Converter - 0.5W - 21.6~26.4V in 12V out	0.5W	12V	0.04A	Indoor	View
Mean Well SRS-2409 DC-DC Converter - 0.5W - 21.6~26.4V in 9V out	0.5W	9V	0.05A	Indoor	View
Mean Well SRS-2405 DC-DC Converter - 0.5W - 21.6~26.4V in 5V out	0.5W	5V	0.1A	Indoor	View
Mean Well SRS-1215 DC-DC Converter - 0.5W - 10.8~13.2V in 15V out	0.5W	15V	0.03A	Indoor	View
Mean Well SRS-1212 DC-DC Converter - 0.5W - 10.8~13.2V in 12V out	0.5W	12V	0.04A	Indoor	View
Mean Well SRS-1209 DC-DC Converter - 0.5W - 10.8~13.2V in 9V out	0.5W	9V	0.05A	Indoor	View
Mean Well SRS-1205 DC-DC Converter - 0.5W - 10.8~13.2V in 5V out	0.5W	5V	0.1A	Indoor	View
Mean Well SRS-0515 DC-DC Converter - 0.5W - 4.5~5.5V in 15V out	0.5W	15V	0.03A	Indoor	View
Mean Well SRS-0509 DC-DC Converter - 0.5W - 4.5~5.5V in 9V out	0.5W	9V	0.05A	Indoor	View
Mean Well SRS-0505 DC-DC Converter - 0.5W - 4.5~5.5V in 5V out	0.5W	5V	0.1A	Indoor	View
