Can I use the SRS-2409 for a 9V auxiliary rail in industrial electronics?

Yes, it can be used for a light 9V auxiliary rail when the available source is 21-26VAC. The output is 9V at 0.06A with a 0.5W rating, so it fits low-power industrial electronics rather than higher-draw loads.

Is the SRS-2409 suitable for a small 9V embedded subsystem powered from 24VAC?

It is suitable for a compact embedded subsystem that needs a fixed 9V supply from a 21-26VAC input. The constant-voltage output is useful for circuits that expect a stable 9V rail, provided the load stays within 0.06A and 0.5W.

Can this model support a low-current 9V signal or communications circuit in an automation cabinet?

Yes, it can support a low-current 9V signal or communications circuit inside automation equipment if the circuit demand does not exceed 0.06A. Its small 22.6 x 9.9 x 8.4 mm dimensions are also helpful for dense control assemblies.

Would the SRS-2409 work for a compact 9V measurement or control board?

It can work well for a compact 9V measurement or control board that only needs a modest support rail from 21-26VAC. With a 0.5W ceiling, it is meant for small electronic sections rather than larger actuators or multi-board loads.

Is the SRS-2409 appropriate for outdoor control boxes or washdown areas?

The specified operating temperature range is -25C to +71C, so thermal operation is defined across that span. No IP rating is provided, so exposure to rain, washdown, or open outdoor conditions is not covered by the listed specs and a protected enclosure is the more appropriate environment.

1 5

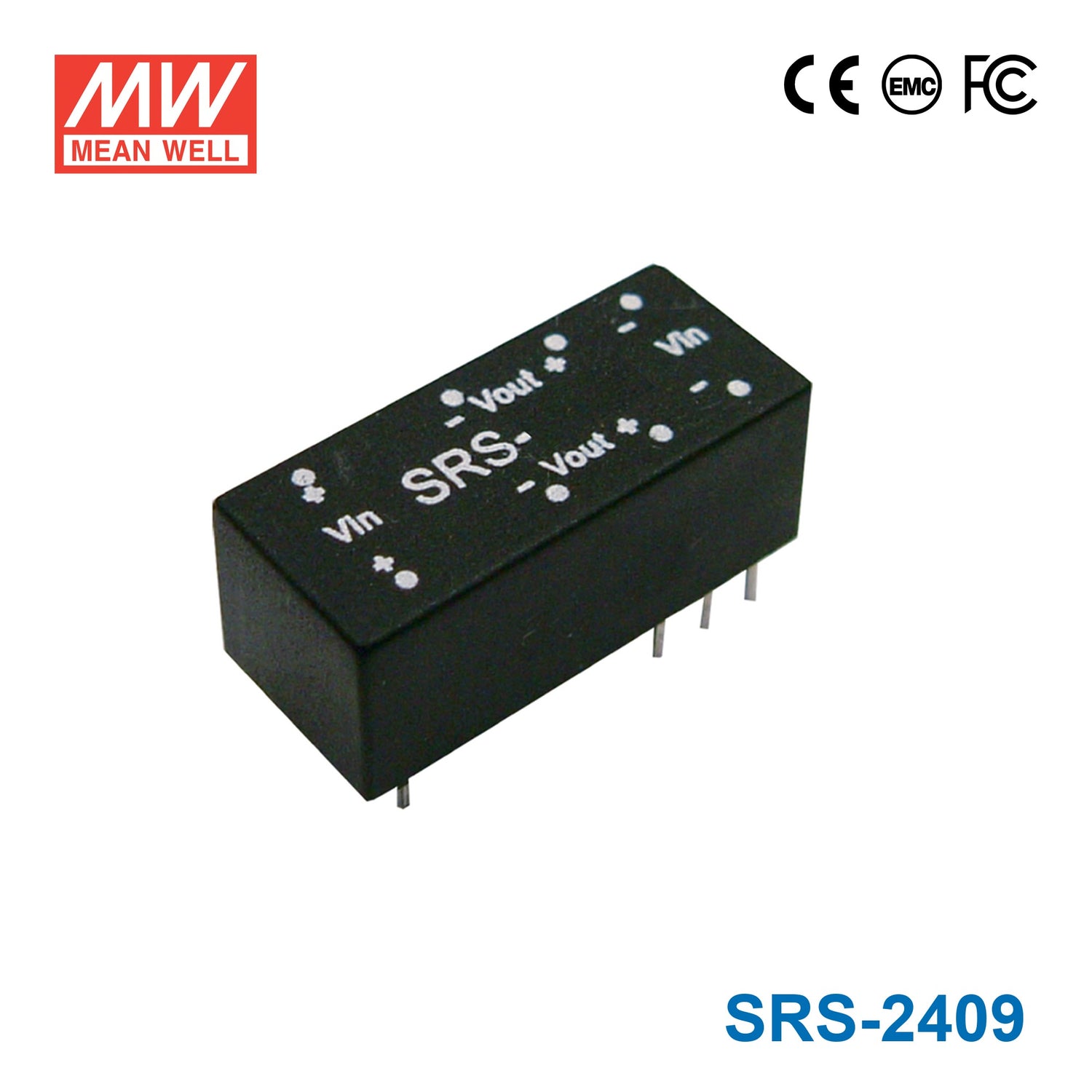

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

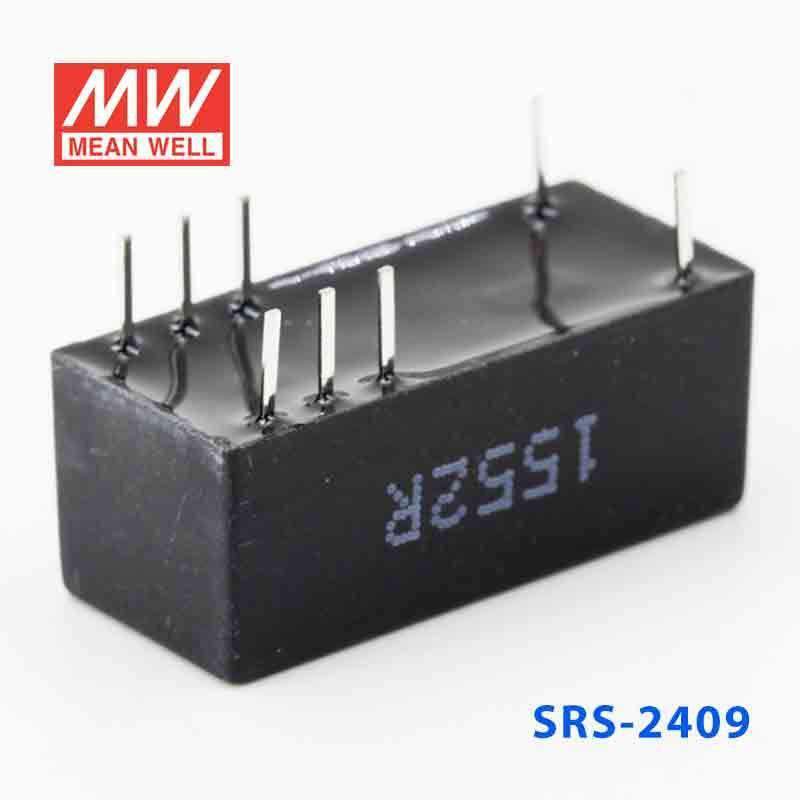

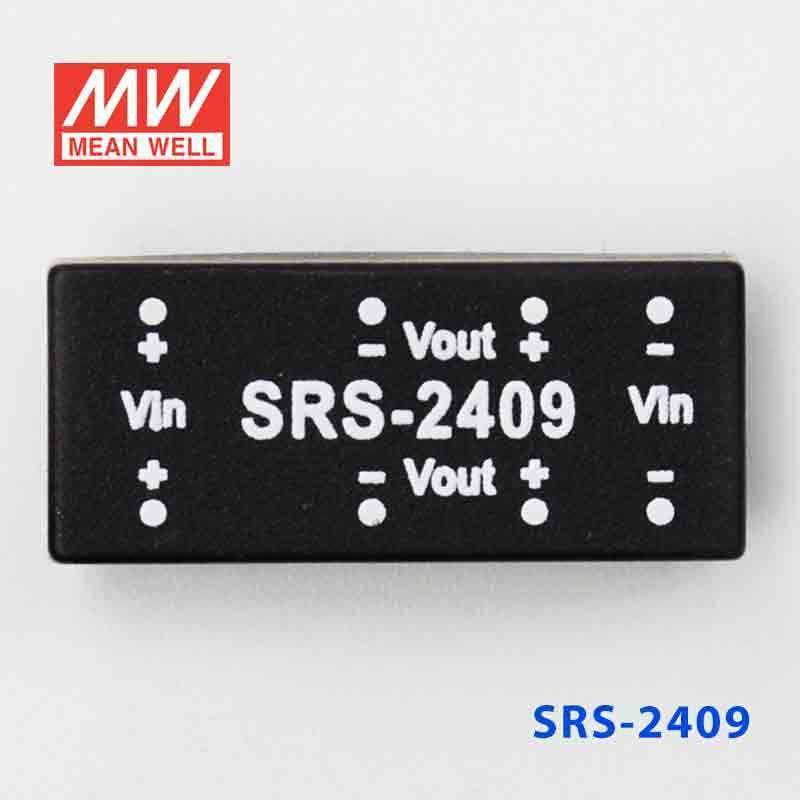

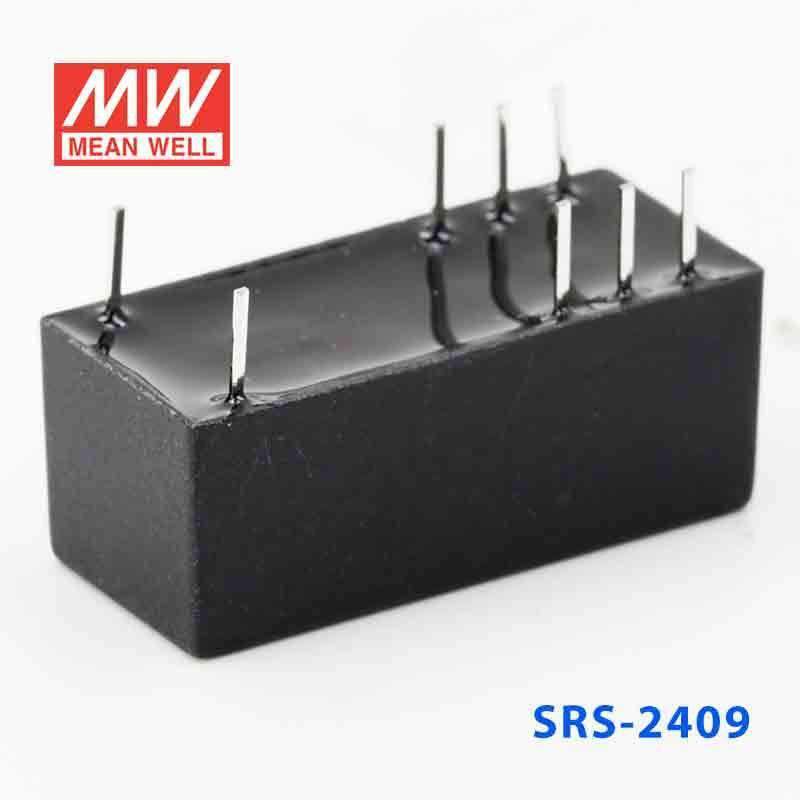

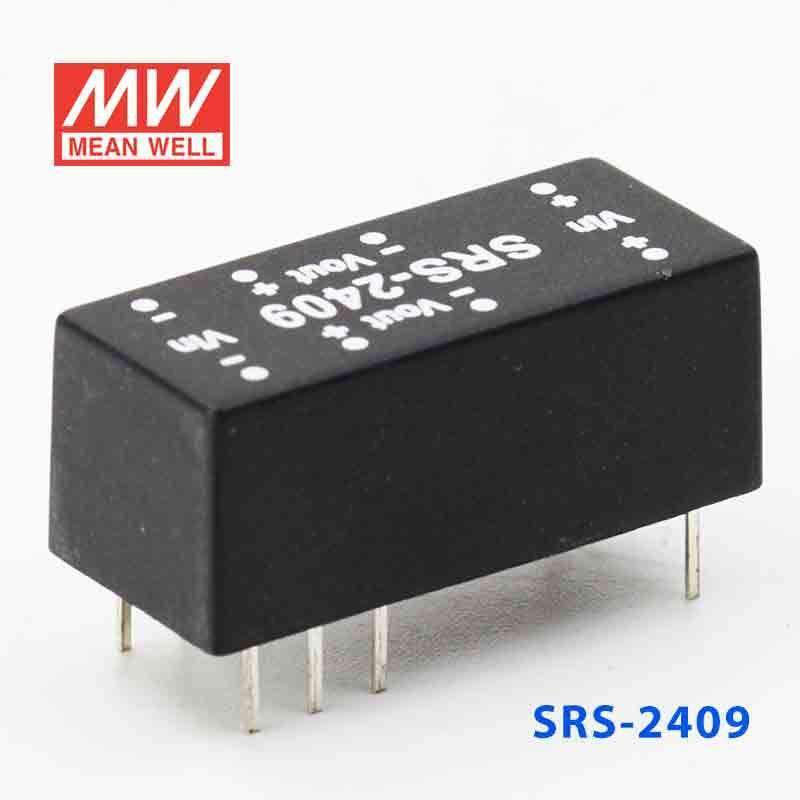

Mean Well SRS-2409 DC-DC Converter - 0.5W - 21.6~26.4V in 9V out

SKU:

SRS-2409

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SRS is a 0.5W Mean Well power converter.

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload
✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE ISOLATION CAPACITANCE EMC EMISSION EMC IMMUNITY MTBF DIMENSION WEIGHT -25 ~ +105 ± 0.03% / ℃ ℃ , 10 ~ 95% RH ℃ ) (0 ~ 50 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SRS-4815 DC-DC Converter - 0.5W - 43.2~52.8V in 15V out	0.5W	15V	0.03A	Indoor	View
Mean Well SRS-4812 DC-DC Converter - 0.5W - 43.2~52.8V in 12V out	0.5W	12V	0.04A	Indoor	View
Mean Well SRS-4809 DC-DC Converter - 0.5W - 43.2~52.8V in 9V out	0.5W	9V	0.05A	Indoor	View
Mean Well SRS-4805 DC-DC Converter - 0.5W - 43.2~52.8V in 5V out	0.5W	5V	0.1A	Indoor	View
Mean Well SRS-2415 DC-DC Converter - 0.5W - 21.6~26.4V in 15V out	0.5W	15V	0.03A	Indoor	View
Mean Well SRS-2412 DC-DC Converter - 0.5W - 21.6~26.4V in 12V out	0.5W	12V	0.04A	Indoor	View
Mean Well SRS-2405 DC-DC Converter - 0.5W - 21.6~26.4V in 5V out	0.5W	5V	0.1A	Indoor	View
Mean Well SRS-1215 DC-DC Converter - 0.5W - 10.8~13.2V in 15V out	0.5W	15V	0.03A	Indoor	View
Mean Well SRS-1212 DC-DC Converter - 0.5W - 10.8~13.2V in 12V out	0.5W	12V	0.04A	Indoor	View
Mean Well SRS-1209 DC-DC Converter - 0.5W - 10.8~13.2V in 9V out	0.5W	9V	0.05A	Indoor	View
Mean Well SRS-1205 DC-DC Converter - 0.5W - 10.8~13.2V in 5V out	0.5W	5V	0.1A	Indoor	View
Mean Well SRS-0515 DC-DC Converter - 0.5W - 4.5~5.5V in 15V out	0.5W	15V	0.03A	Indoor	View
Mean Well SRS-0512 DC-DC Converter - 0.5W - 4.5~5.5V in 12V out	0.5W	12V	0.04A	Indoor	View
Mean Well SRS-0509 DC-DC Converter - 0.5W - 4.5~5.5V in 9V out	0.5W	9V	0.05A	Indoor	View
Mean Well SRS-0505 DC-DC Converter - 0.5W - 4.5~5.5V in 5V out	0.5W	5V	0.1A	Indoor	View
