Can I use the SRS-2405 to generate 5V logic power from a 24VAC control circuit?

Yes, this model is intended for applications that need a constant 5V output from a 21-26VAC input range. It is best matched to low-power logic or control electronics within its 0.5W output rating.

Is the SRS-2405 a fit for powering a small embedded controller section from 24VAC?

It can fit a small embedded controller section if that section only needs a very light 5V rail and the source is 21-26VAC. The output is fixed at 5V and the total converter power is 0.5W, so it is intended for low-demand electronics rather than broad system loads.

Can the SRS-2405 be used in an automation panel for a 5V interface circuit?

It is suitable for a 5V interface or auxiliary logic circuit in an automation panel when the available input is 21-26VAC. Its 22.6 x 9.9 x 8.4 mm package also helps where space is tight in compact control hardware.

Would this converter make sense for a low-power 5V monitoring or sensor-support circuit?

Yes, it can be used for a low-power 5V monitoring or support circuit fed from 21-26VAC. Because the unit is rated at 0.5W and uses constant-voltage output, it is best for light electronics rather than larger sensor groups or higher-load devices.

Can the SRS-2405 be used outdoors or in unprotected locations?

The operating temperature range is -25C to +71C, which defines the thermal limits. However, no IP rating is listed, so there is no stated ingress-protection basis for exposed outdoor placement, making protected indoor enclosures the safer use case.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

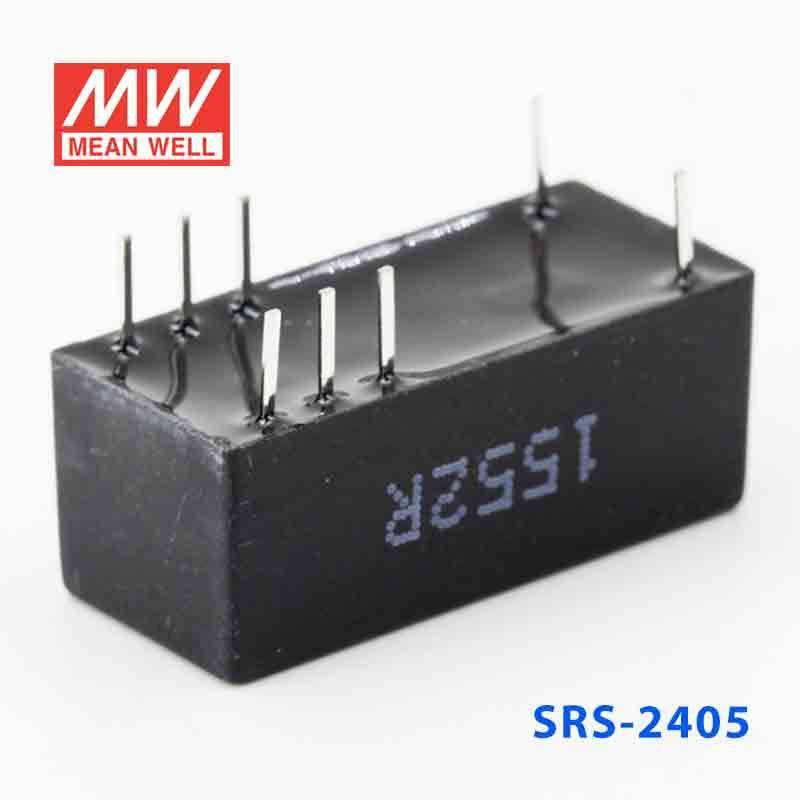

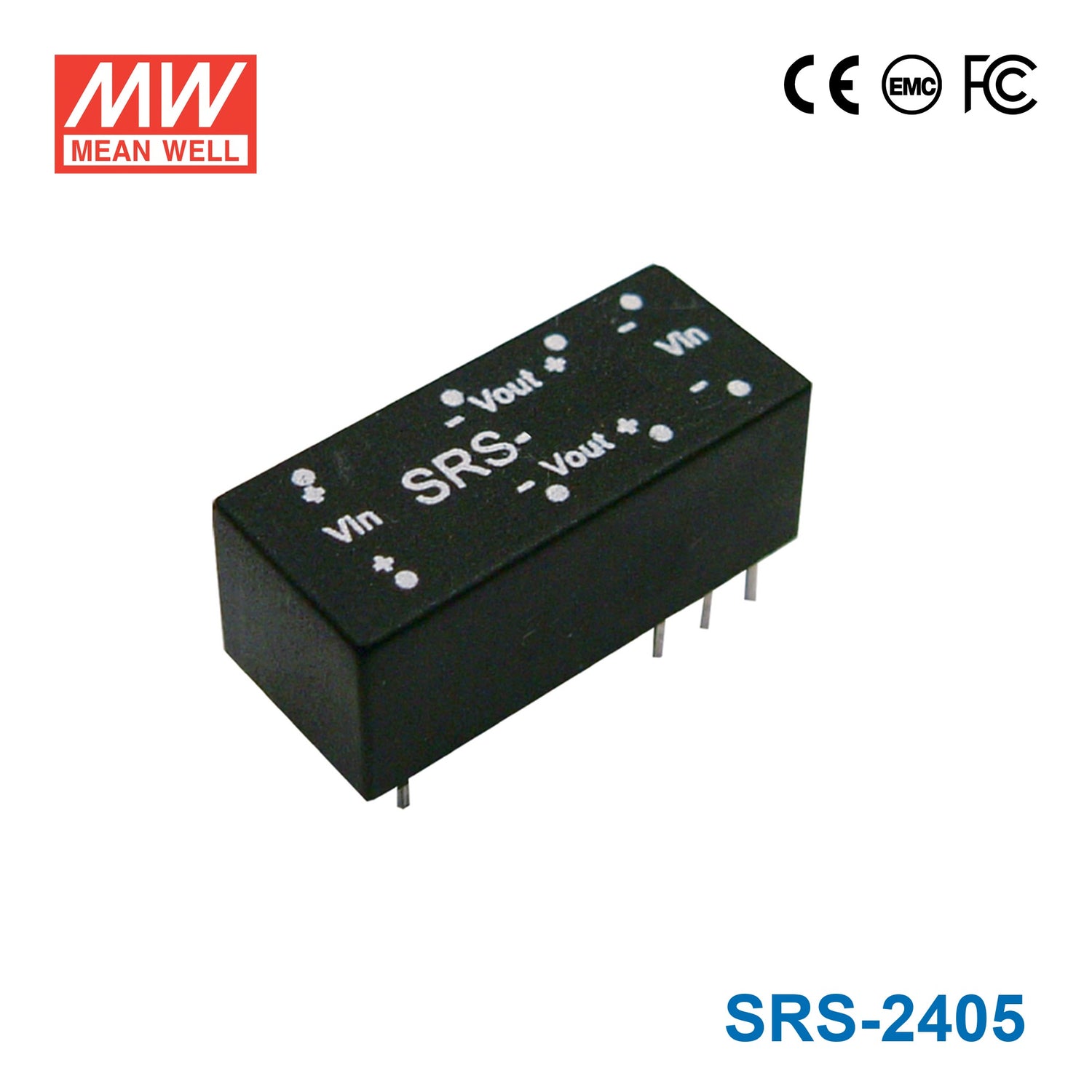

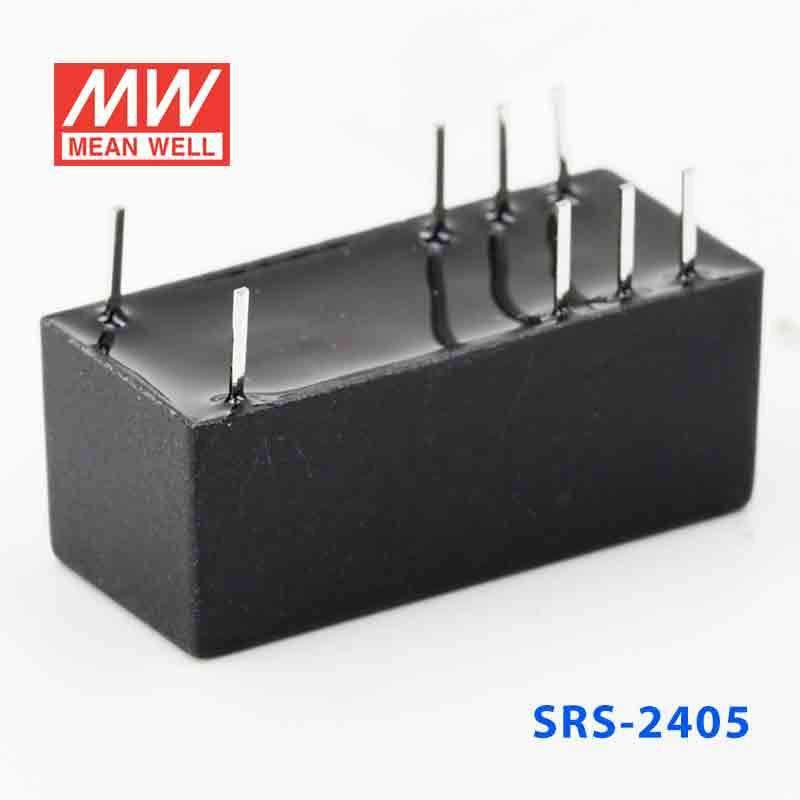

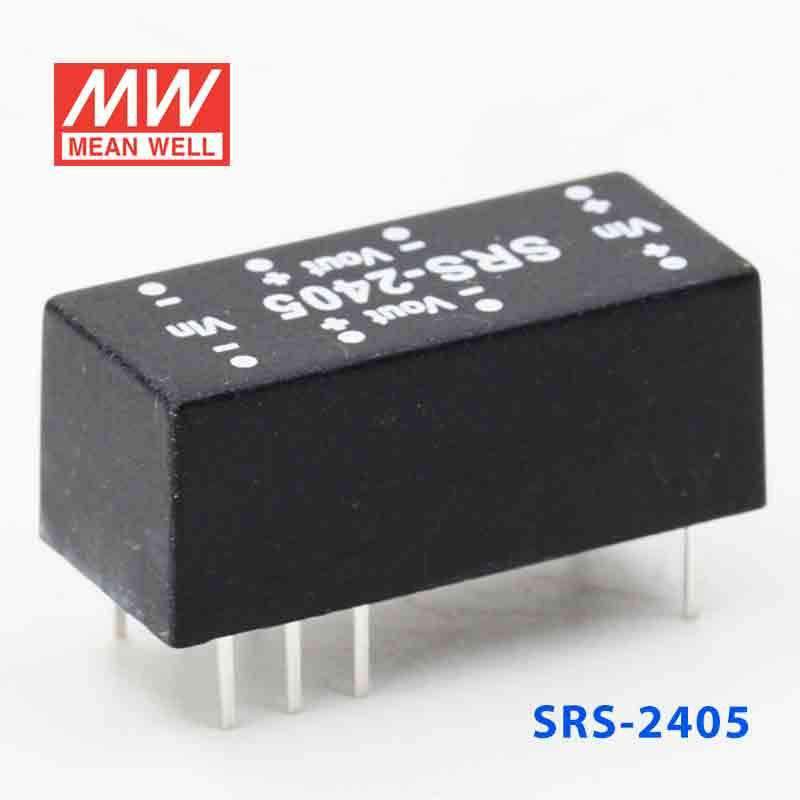

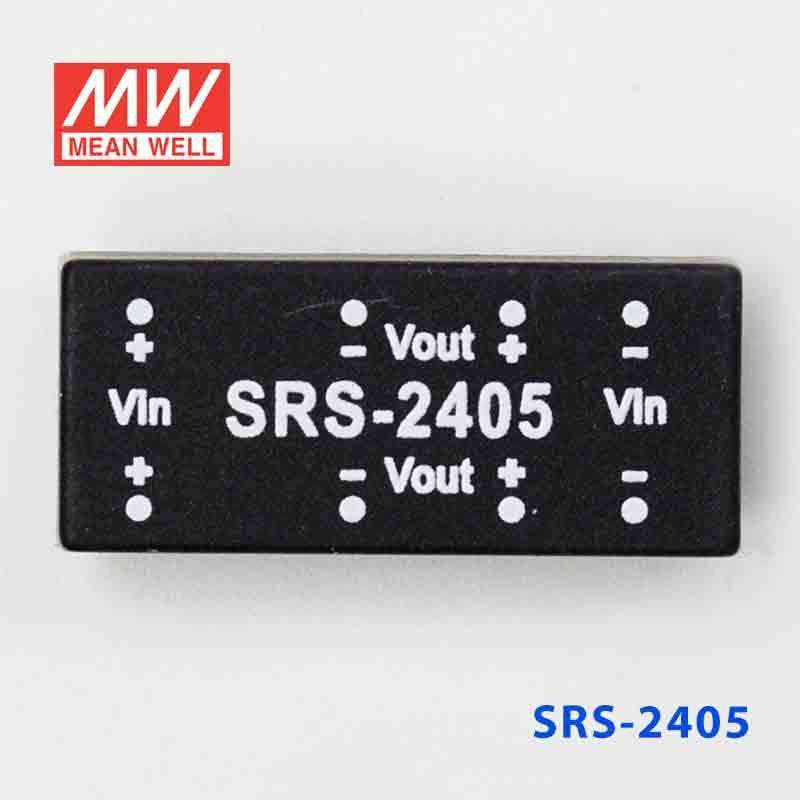

Mean Well SRS-2405 DC-DC Converter - 0.5W - 21.6~26.4V in 5V out

SKU:

SRS-2405

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SRS is a 0.5W Mean Well power converter.

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload
✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE ISOLATION CAPACITANCE EMC EMISSION EMC IMMUNITY MTBF DIMENSION WEIGHT -25 ~ +105 ± 0.03% / ℃ ℃ , 10 ~ 95% RH ℃ ) (0 ~ 50 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SRS-4815 DC-DC Converter - 0.5W - 43.2~52.8V in 15V out	0.5W	15V	0.03A	Indoor	View
Mean Well SRS-4812 DC-DC Converter - 0.5W - 43.2~52.8V in 12V out	0.5W	12V	0.04A	Indoor	View
Mean Well SRS-4809 DC-DC Converter - 0.5W - 43.2~52.8V in 9V out	0.5W	9V	0.05A	Indoor	View
Mean Well SRS-4805 DC-DC Converter - 0.5W - 43.2~52.8V in 5V out	0.5W	5V	0.1A	Indoor	View
Mean Well SRS-2415 DC-DC Converter - 0.5W - 21.6~26.4V in 15V out	0.5W	15V	0.03A	Indoor	View
Mean Well SRS-2412 DC-DC Converter - 0.5W - 21.6~26.4V in 12V out	0.5W	12V	0.04A	Indoor	View
Mean Well SRS-2409 DC-DC Converter - 0.5W - 21.6~26.4V in 9V out	0.5W	9V	0.05A	Indoor	View
Mean Well SRS-1215 DC-DC Converter - 0.5W - 10.8~13.2V in 15V out	0.5W	15V	0.03A	Indoor	View
Mean Well SRS-1212 DC-DC Converter - 0.5W - 10.8~13.2V in 12V out	0.5W	12V	0.04A	Indoor	View
Mean Well SRS-1209 DC-DC Converter - 0.5W - 10.8~13.2V in 9V out	0.5W	9V	0.05A	Indoor	View
Mean Well SRS-1205 DC-DC Converter - 0.5W - 10.8~13.2V in 5V out	0.5W	5V	0.1A	Indoor	View
Mean Well SRS-0515 DC-DC Converter - 0.5W - 4.5~5.5V in 15V out	0.5W	15V	0.03A	Indoor	View
Mean Well SRS-0512 DC-DC Converter - 0.5W - 4.5~5.5V in 12V out	0.5W	12V	0.04A	Indoor	View
Mean Well SRS-0509 DC-DC Converter - 0.5W - 4.5~5.5V in 9V out	0.5W	9V	0.05A	Indoor	View
Mean Well SRS-0505 DC-DC Converter - 0.5W - 4.5~5.5V in 5V out	0.5W	5V	0.1A	Indoor	View
