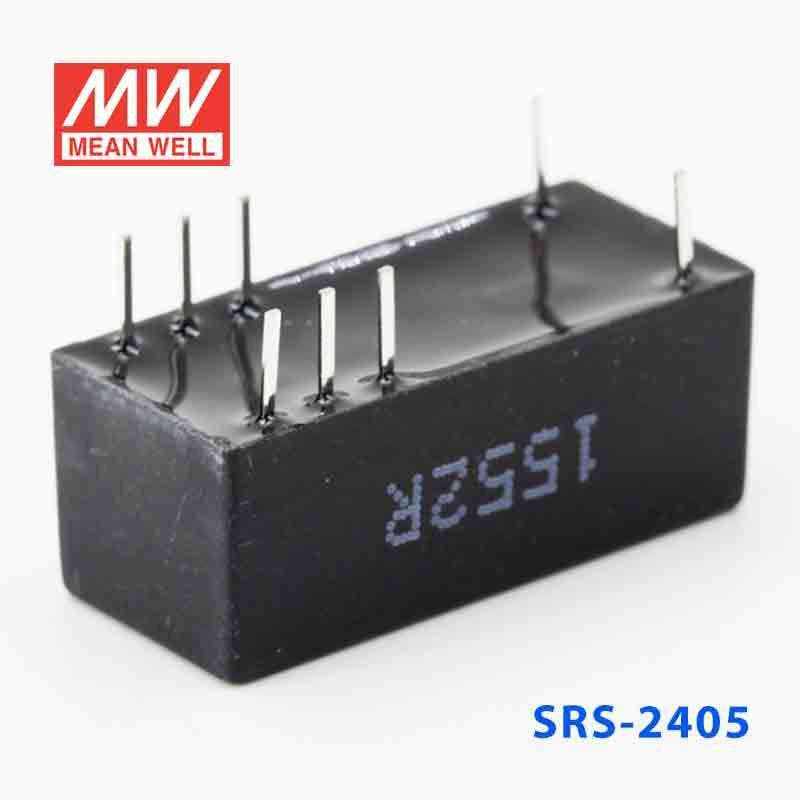

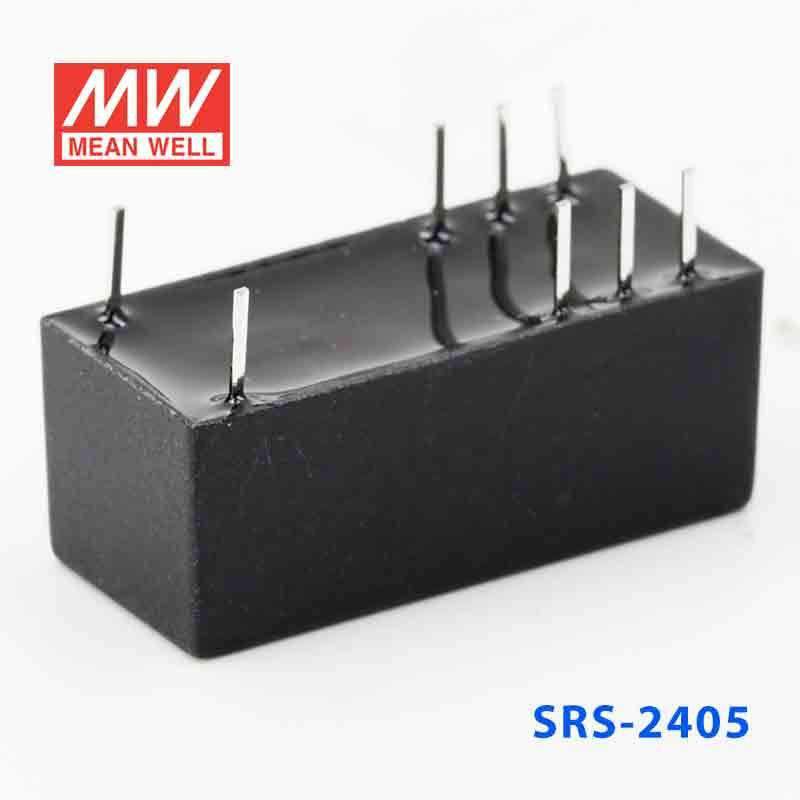

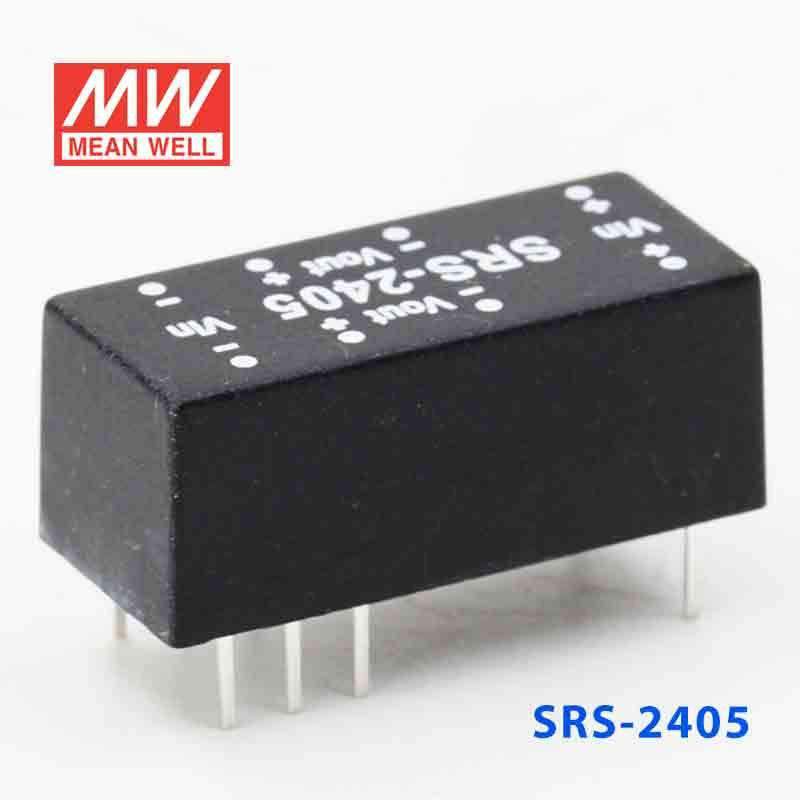

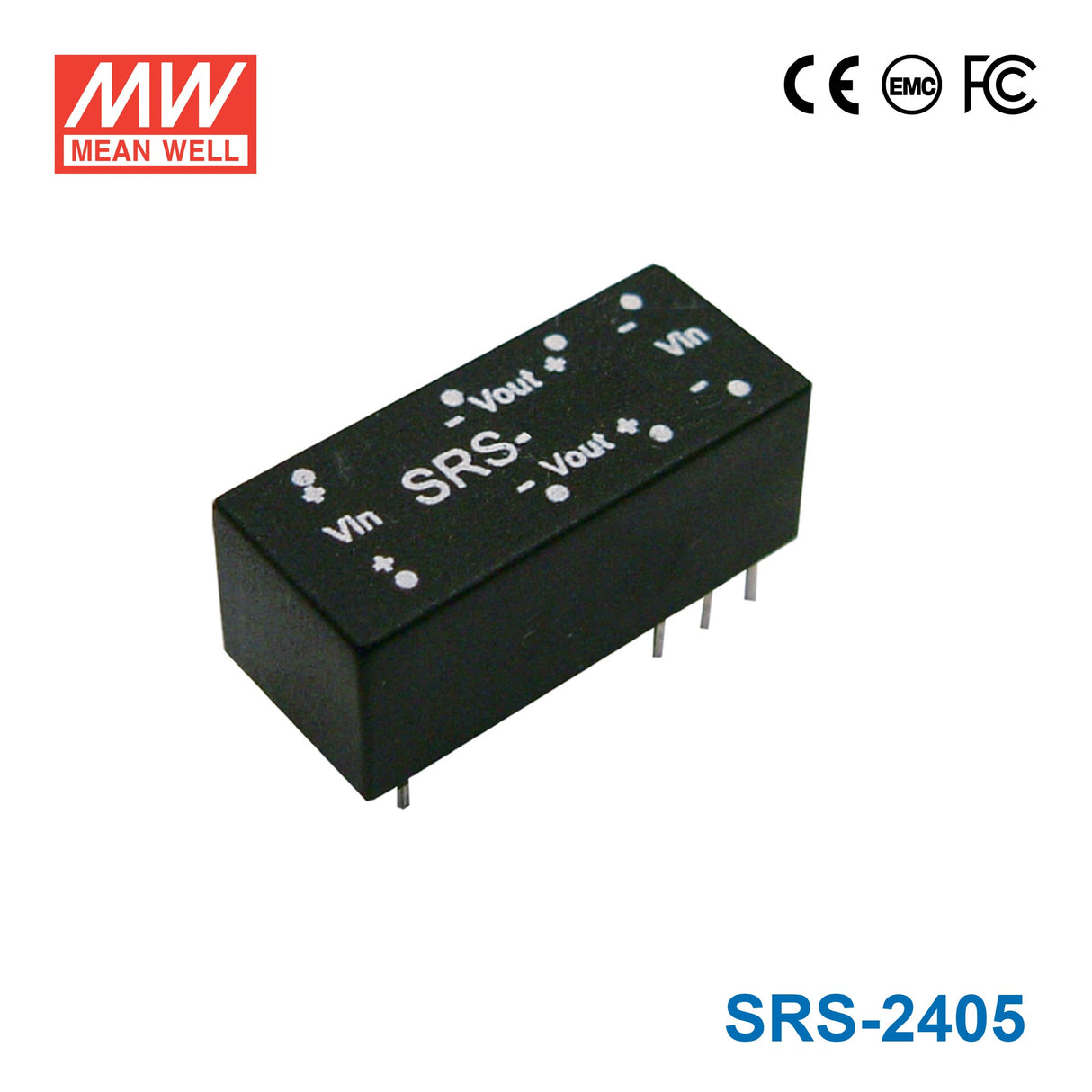

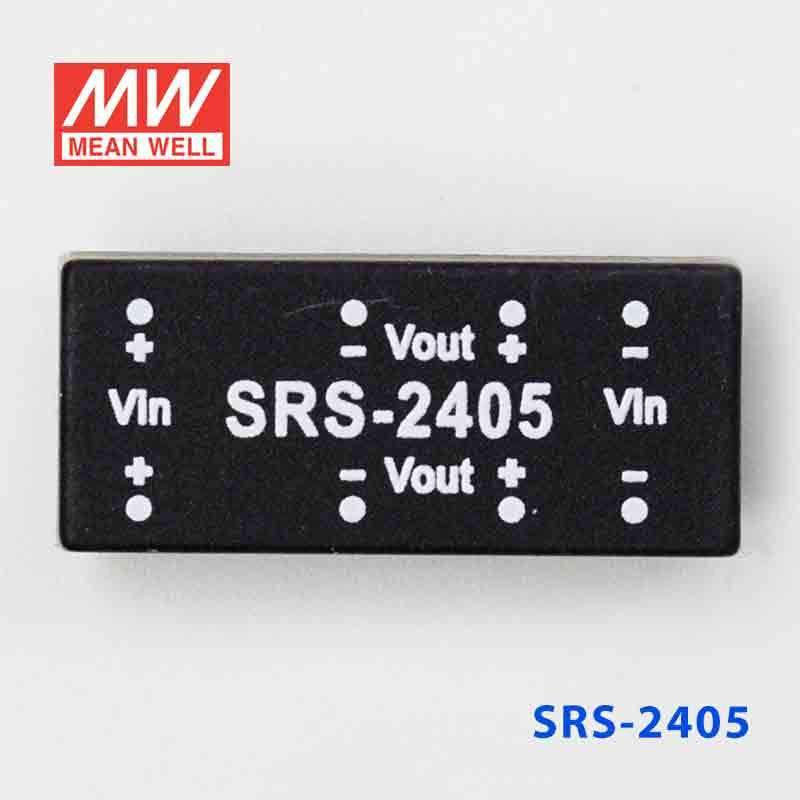

Mean Well SRS-2405 DC-DC Converter - 0.5W - 21.6~26.4V in 5V out
Please Login for Pricing
Description
Description
Features
| 1000VDC I/O isolation |
| Internal SMD technology |
| Built-in EMI filter |
| Protection: Short circuit |
| Cooling by free air convection |
| Non-conductive plastic case |
| Dual in line package |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ±2% (typical) |
| Line regulation | ±1% (max.) |
| Load regulation | ±1% (max.)@10~100% load |
| Input reflected ripple | 120mVp-p |
| Efficiency | 60% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| Switching frequency | 50kHz (min.) |
| I/O isolation voltage | 1000VDC (min.) |
| I/O isolation resistance | 100MQ(min.)@500DC |
| Isolation capacitance | 80pF (max.) |
| Working temperature | -25°C to +60°C (no derating), +71°C@80% load |
| Storage temperature | -25°C to +105°C |
| Temp. Coefficient | ±0.03% / °C (max.) |
| Case material | non-conductive plastic |
| Dimension (LxWxH) (mm) | 0.89""x 0.39""x 0.33"" |
Specifications
Specifications
-
BrandMean Well
-
SeriesSRS Series
-
Power Rating0.5 Watt
-
Output Voltage5 Volt
-
Rated Current0.1 Ampere
-
Input Voltage21.6V~26.4V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2.26 cm
-
Width0.99 cm
-
Height0.84 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SRS-2405 to generate 5V logic power from a 24VAC control circuit?
Yes, this model is intended for applications that need a constant 5V output from a 21-26VAC input range. It is best matched to low-power logic or control electronics within its 0.5W output rating.
Is the SRS-2405 a fit for powering a small embedded controller section from 24VAC?
It can fit a small embedded controller section if that section only needs a very light 5V rail and the source is 21-26VAC. The output is fixed at 5V and the total converter power is 0.5W, so it is intended for low-demand electronics rather than broad system loads.
Can the SRS-2405 be used in an automation panel for a 5V interface circuit?
It is suitable for a 5V interface or auxiliary logic circuit in an automation panel when the available input is 21-26VAC. Its 22.6 x 9.9 x 8.4 mm package also helps where space is tight in compact control hardware.
Would this converter make sense for a low-power 5V monitoring or sensor-support circuit?
Yes, it can be used for a low-power 5V monitoring or support circuit fed from 21-26VAC. Because the unit is rated at 0.5W and uses constant-voltage output, it is best for light electronics rather than larger sensor groups or higher-load devices.
Can the SRS-2405 be used outdoors or in unprotected locations?
The operating temperature range is -25C to +71C, which defines the thermal limits. However, no IP rating is listed, so there is no stated ingress-protection basis for exposed outdoor placement, making protected indoor enclosures the safer use case.
