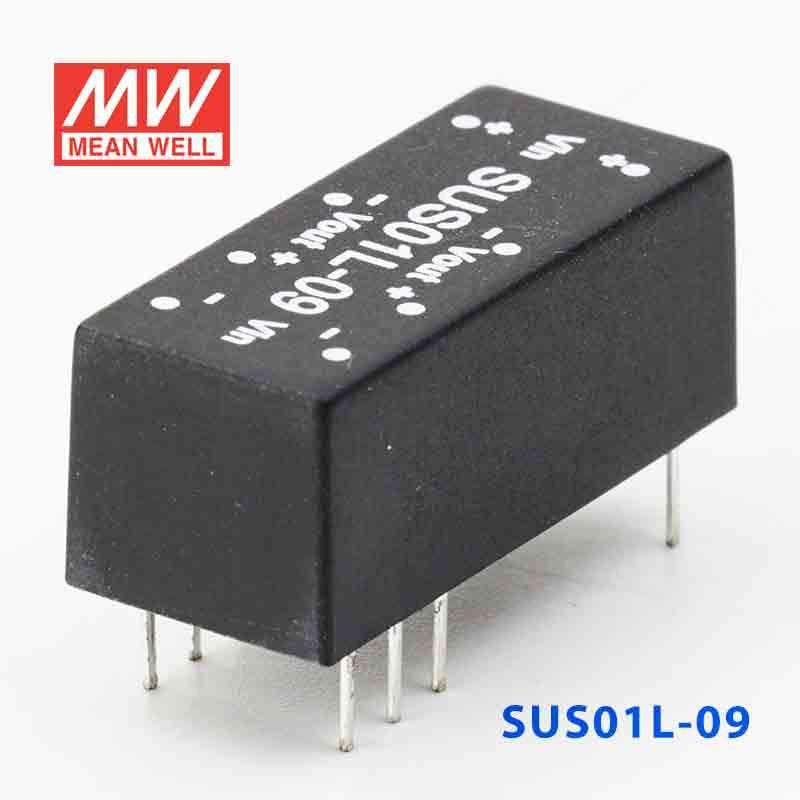

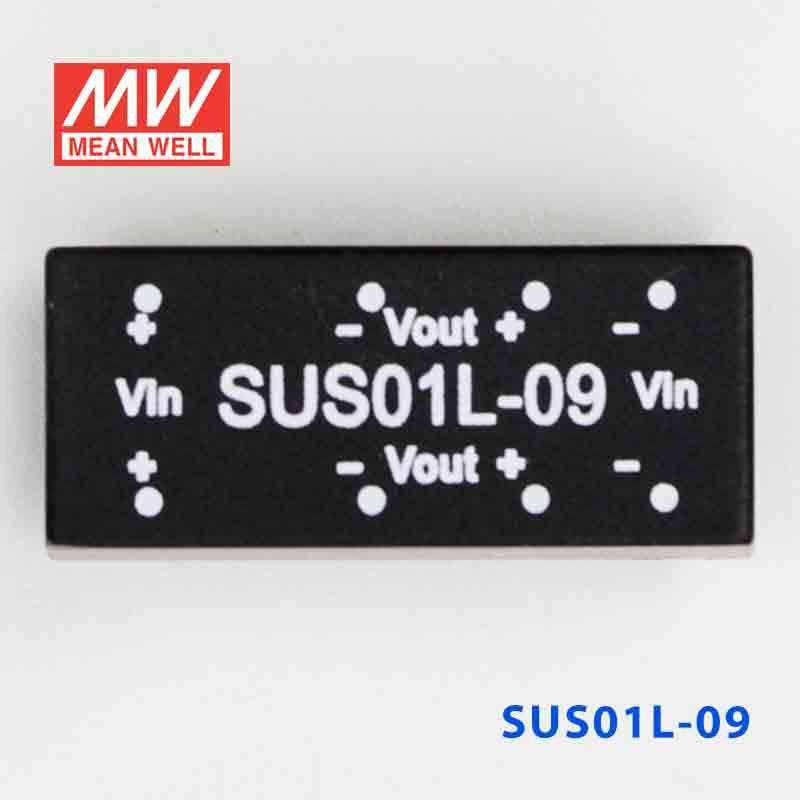

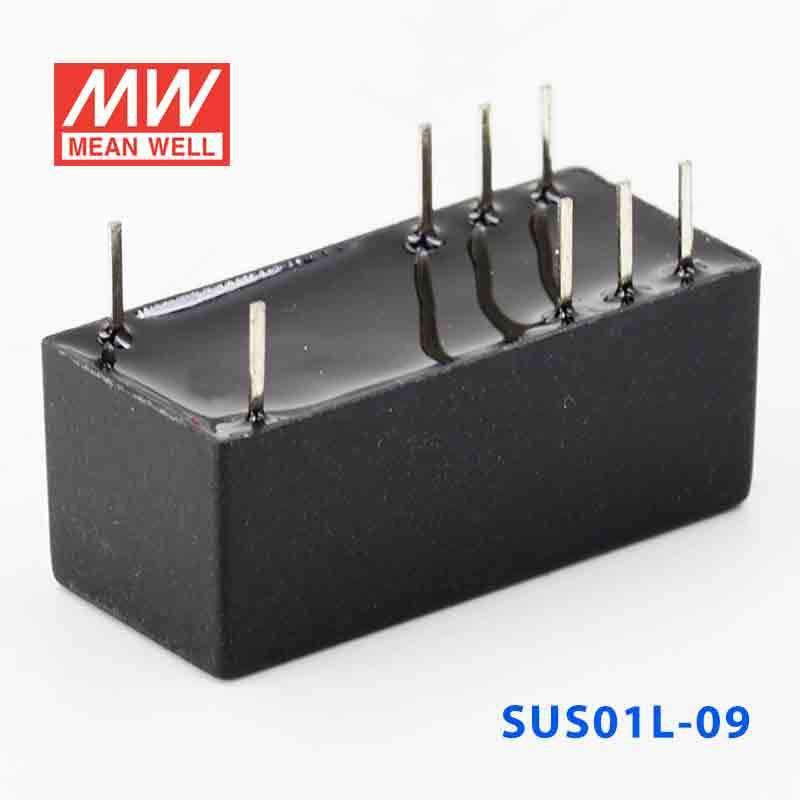

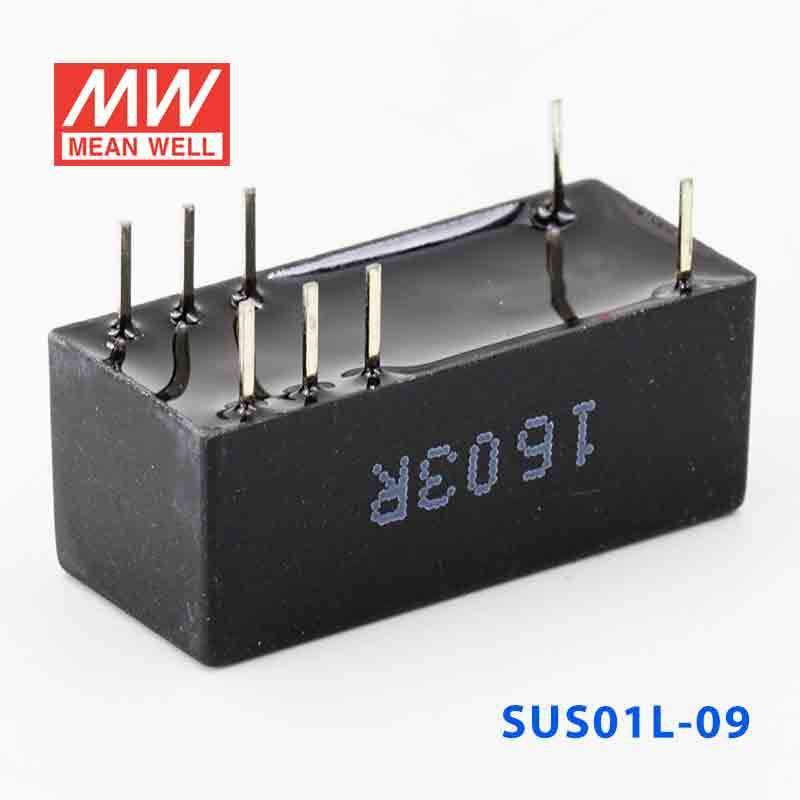

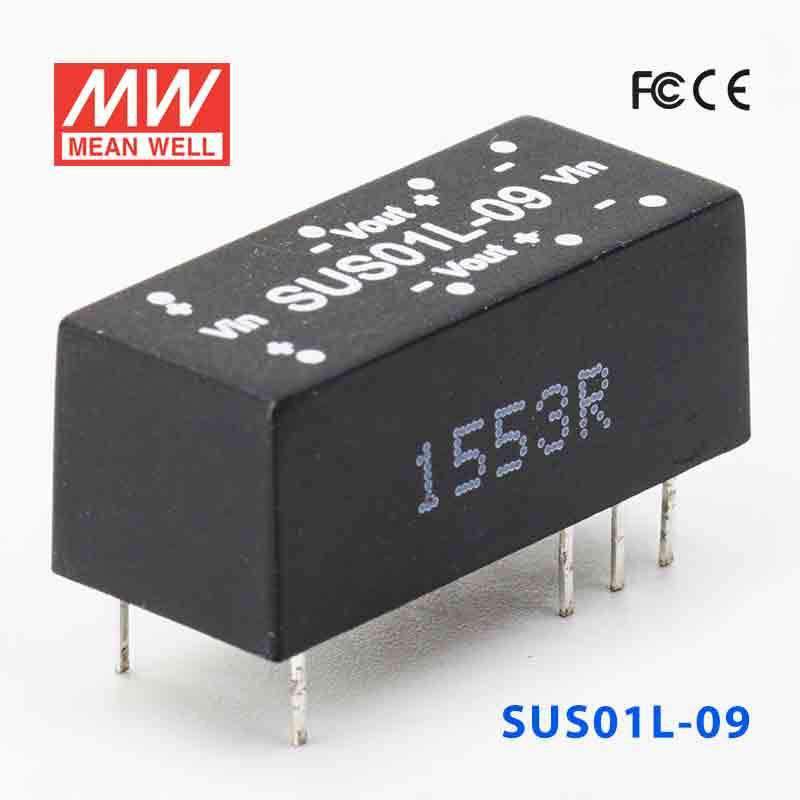

Mean Well SUS01L-09 DC-DC Converter - 1W - 4.5~5.5V in 9V out

SKU SUS01L-09
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

SUS01L-09 is the model of this series: rated power 1W, typical efficiency 75%.

Features

  • 1500VDC I/O isolation
  • Internal SMD technology
  • Built-in EMI filter
  • Cooling by free air convection
  • Non-conductive plastic case
  • Dual in line package
  • 100% burn-in test
  • Low cost / High reliability
  • Approvals: FCC / EAC / CE / UKCA
  • 2 years warranty

Specifications

SUS01L-09Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC OUTPUT VOLTAGE
9V
OUTPUT CURRENT RANGE
0 ~ 111mA
EFFICIENCY
75%
RATED POWER
1W
RIPPLE & NOISE (max.)Note.2
100mVp-p
LINE REGULATIONNote.3
±1.2% for 1% input variation
LOAD REGULATIONNote.4
±8.0%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
50KHz min.

INPUT

VOLTAGE RANGE
4.5 ~ 5.5V
NORMAL VOLTAGE
5V
INPUT CURRENT Full load
280mA
INPUT CURRENT No load
21mA
FILTER
Capacitor type
PROTECTION
Fuse recommended

PROTECTION

OVERLOAD
Momentary Protection type : Broken
SHORT CIRCUIT
Momentary Protection type : Broken

ENVIRONMENT

WORKING TEMP.
-25 ~ +71℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-25 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE
80pF max.
EMC EMISSION
Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020

OTHERS

MTBF
700khrs min. MIL-HDBK-217F(25℃)
DIMENSION
22.6*9.9*8.9mm or 0.89"*0.39"*0.35" inch (L*W*H)
PACKING
3.1g ; 22 pcs/per tube, 3080 pcs/ 140 tube/per carton
Test conditions and notes4
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 20% to 100% rated load.

Technical drawings

SUS01L-09 Mechanical Specification Unit: mm
Mechanical Specification Unit: mm
SUS01L-09 Packing
Packing

Downloads

FAQ

Can I use the SUS01L-09 to create a regulated 9V rail inside a compact embedded controller?

Yes, this model is a constant-voltage DC-DC converter with a 9V output and 1W power rating. Its 22.6 × 9.9 × 8.9 mm size also suits tight embedded designs that have a 4.5~5.5V input available.

Is the SUS01L-09 suitable for low-power industrial sensor or interface boards that need 9V from a 4.5~5.5V source?

It can fit low-power industrial electronics that need a fixed 9V output, as long as the total load stays within the 1W rating. The converter is designed for 4.5~5.5V input and constant-voltage operation.

Can this converter be used in portable test, monitoring, or automation electronics that need a small 9V supply stage?

It is appropriate for compact low-power electronics where a stable 9V rail is needed and the system input falls within 4.5~5.5V. The small 0.0031 kg weight and miniature package help where board space and mass are limited.

How do I know if the SUS01L-09 is sized correctly for my 9V circuit?

Match it to a load that needs constant 9V and does not exceed the product's 1W rating or listed 111mA output current. If your circuit needs more than this converter can deliver, you should move to a higher-power option.

Is the SUS01L-09 better for indoor or outdoor equipment?

The listed environmental spec is an operating temperature range of -25°C to +71°C, but no IP rating is provided. That makes it a better fit for protected indoor equipment or enclosed assemblies rather than direct outdoor exposure.
