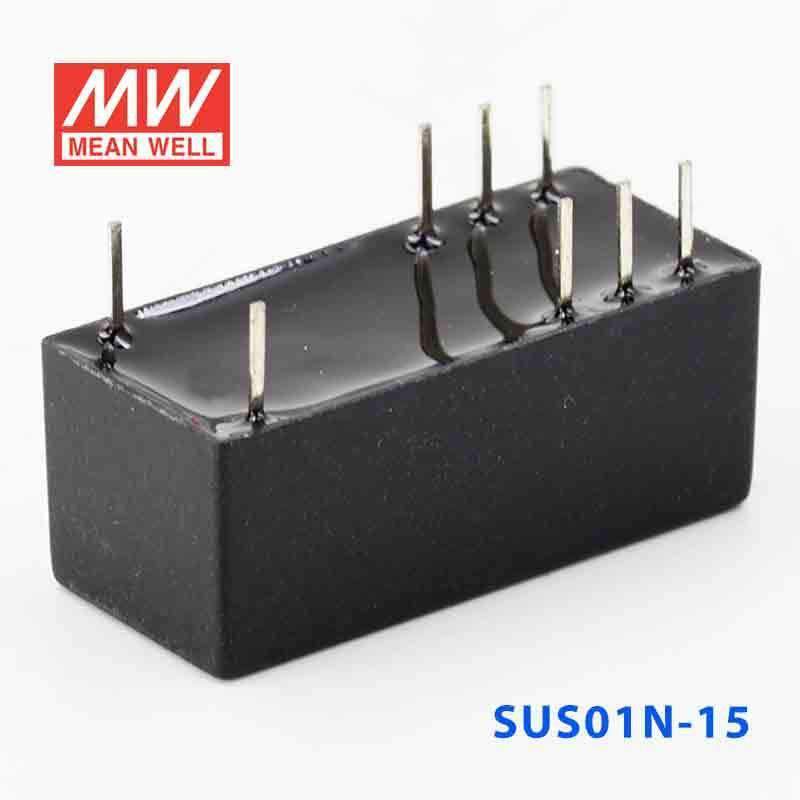

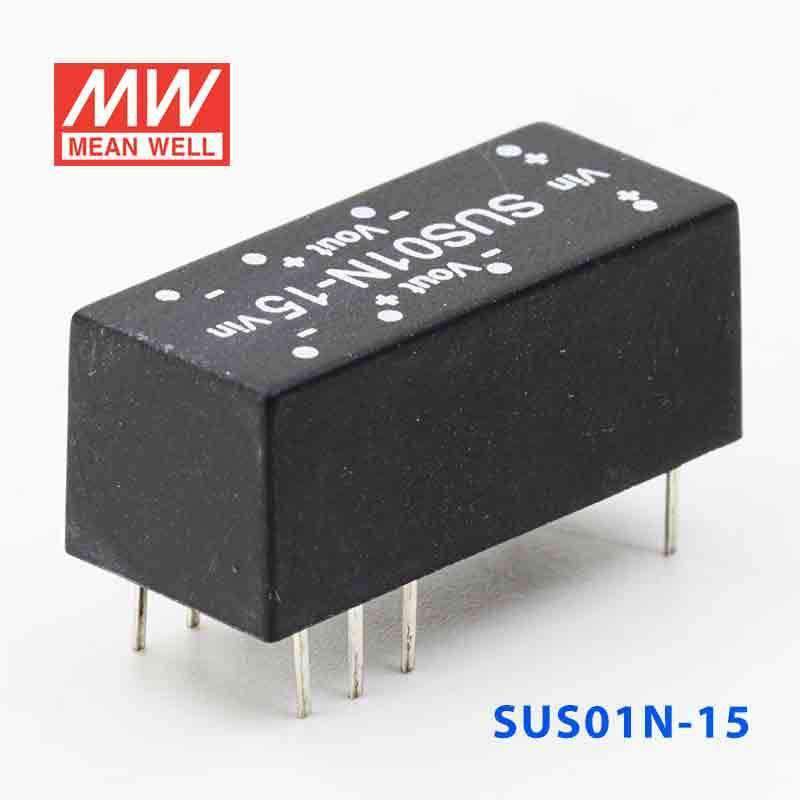

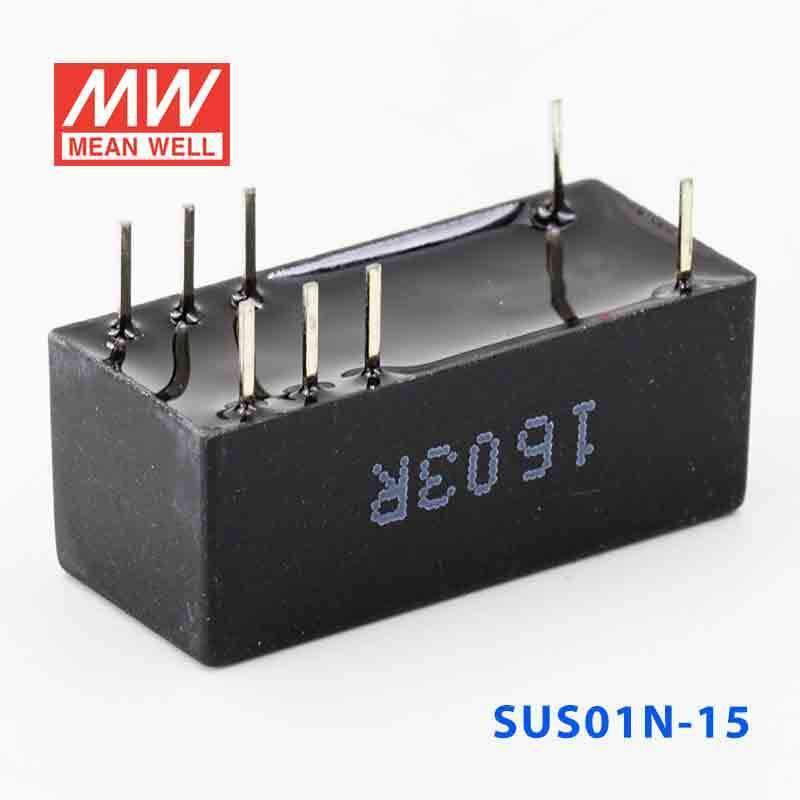

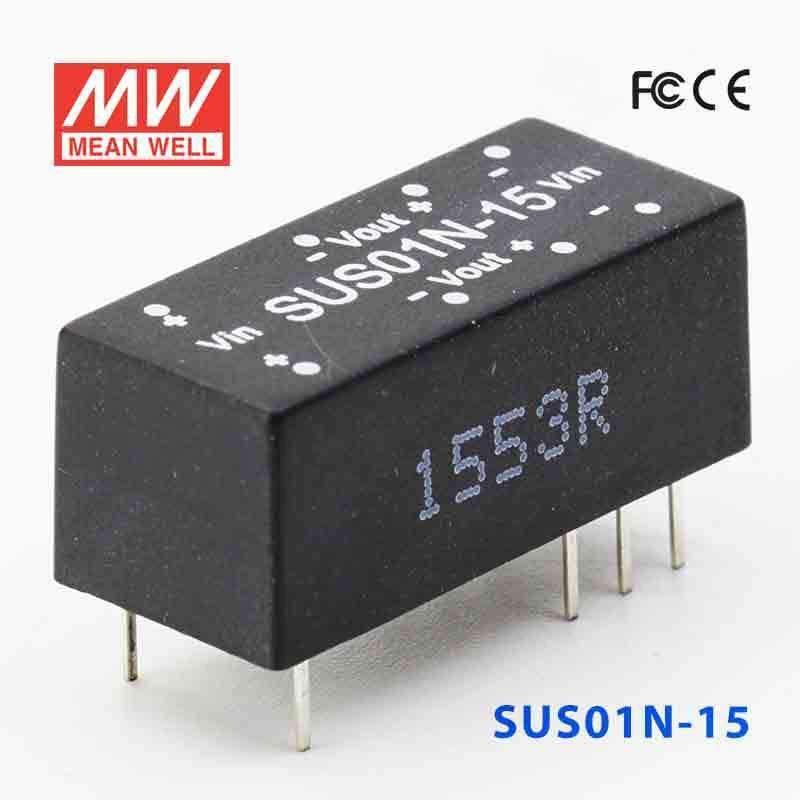

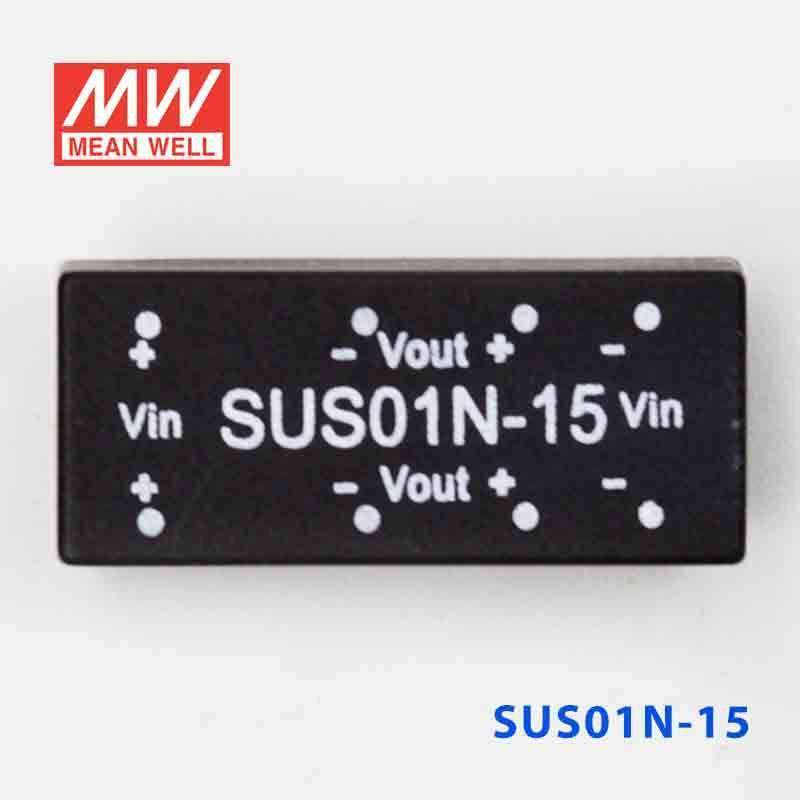

Mean Well SUS01N-15 DC-DC Converter - 1W - 21.6~26.4V in 15V out
Please Login for Pricing
Description
Description
The SUS01N is a 1W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -25~+71℃).
Key Features
- ✓ Input voltage range: 4.5~5.5V
- ✓ 1KVDC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -25~+71℃
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: WITHSTAND VOLTAGE ℃ -25 ~ +105 ℃ ± , 10 ~ 95% RH ℃ ) 0.03% / 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes (0 ~ 50 EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSUS Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage21.6V~26.4V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2.26 cm
-
Width0.99 cm
-
Height0.89 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SUS01N-15 to provide 15V power inside a compact industrial control board?
It can fit compact industrial control boards that need a regulated 15V constant-voltage output and only 1W of power. The small 22.6 × 9.9 × 8.9 mm package also suits dense layouts where space is limited.
Is this converter appropriate for embedded electronics that run from a 21.6~26.4VAC source and need 15V output?
Yes, this model is intended for applications with a 21.6~26.4VAC input and a 15V constant-voltage output. With a 1W rating and 0.07A output current, it fits low-power embedded circuits rather than larger loads.
Can this be used for low-power 15V signal or interface sections in automation equipment?
It is a reasonable fit for low-power 15V signal, interface, or auxiliary sections in automation equipment when the load stays within 1W. The 0.07A output rating makes it better suited to light electronics than to higher-draw devices.
Is the SUS01N-15 suitable for outdoor or harsh-environment use?
The published specs list an operating temperature range of -25°C to +71°C, which helps define its thermal range. However, no IP rating is provided, so the listing does not establish outdoor or water-exposed suitability.
How does the SUS01N-15 compare with the other SUS01N output options?
Within the SUS01N family, all listed siblings are 1W models in the same 22.6 × 9.9 × 8.9 mm form factor, but they differ by output: SUS01N-05 is 5V and 200A, SUS01N-09 is 9V and 111A, SUS01N-12 is 12V and 0.08A, and this SUS01N-15 is 15V and 0.07A. The key selection point in this group is the required output voltage and matching output current specification.
