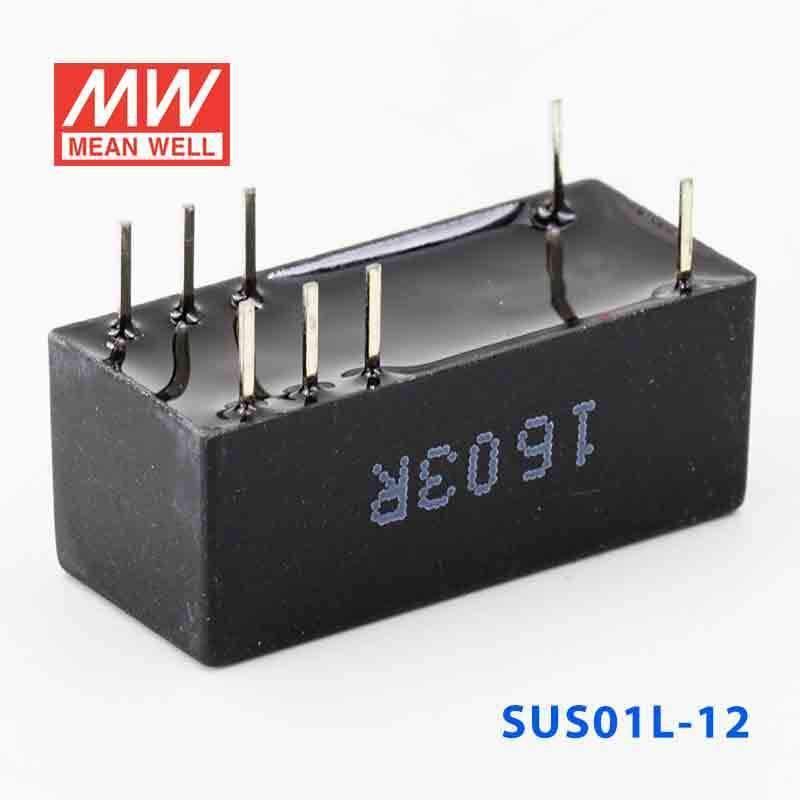

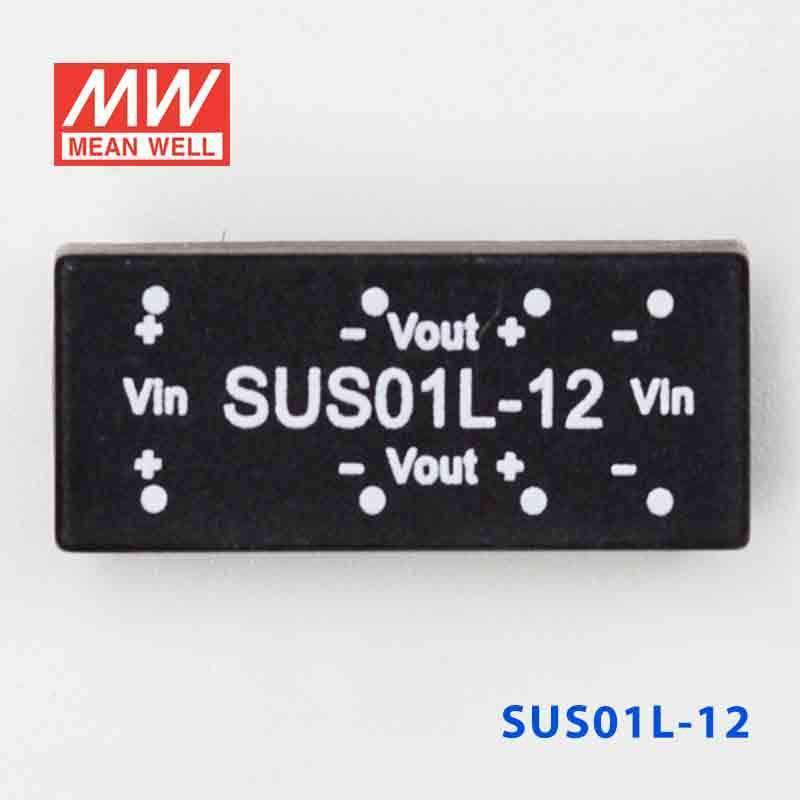

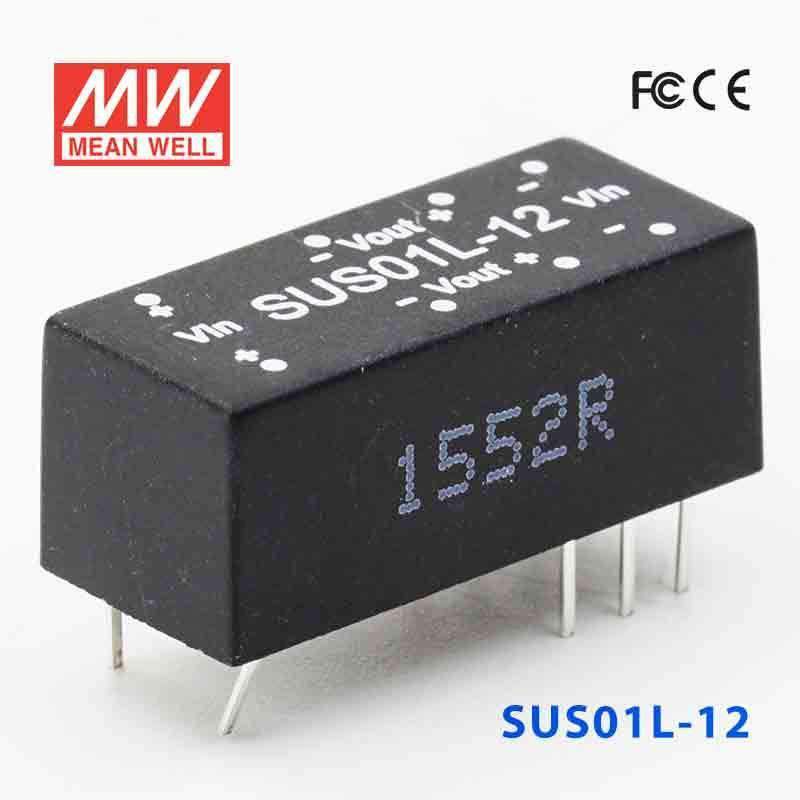

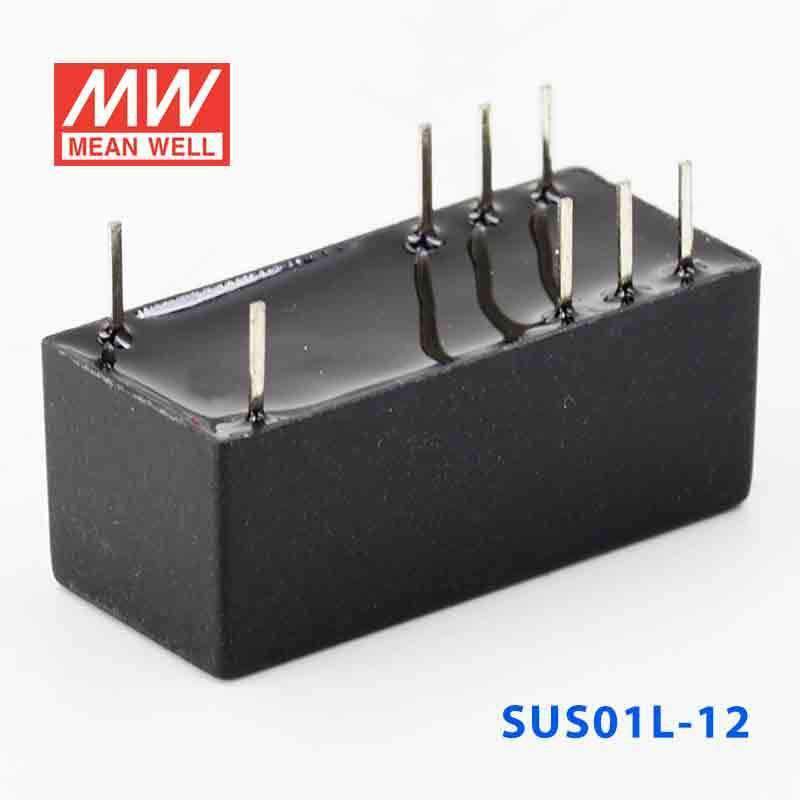

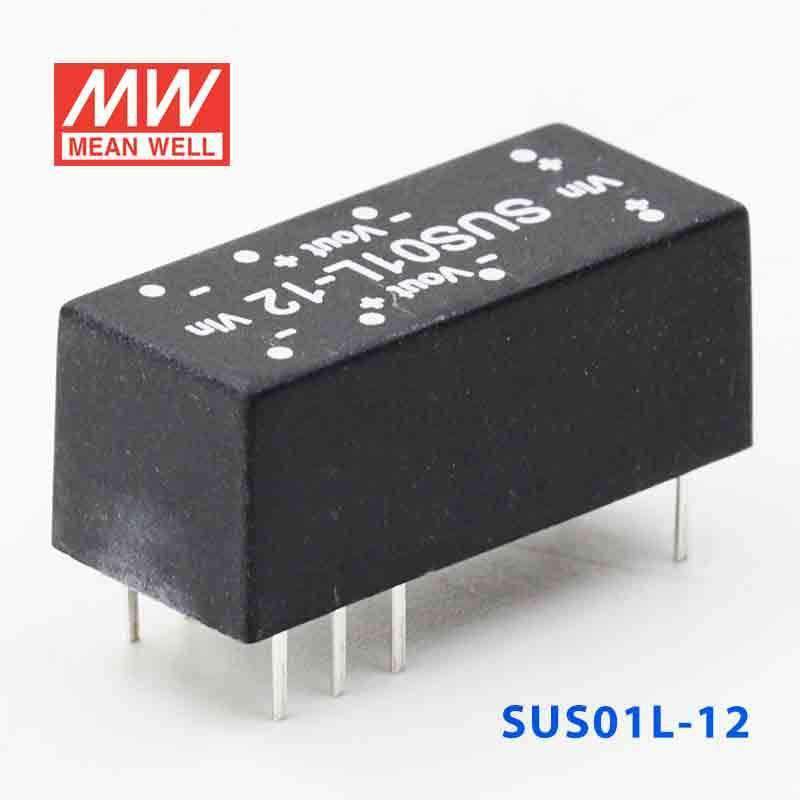

Mean Well SUS01L-12 DC-DC Converter - 1W - 4.5~5.5V in 12V out
Please Login for Pricing
Description
Description
The SUS01L is a 1W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -25~+71℃).
Key Features
- ✓ Input voltage range: 4.5~5.5V
- ✓ 1KVDC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -25~+71℃
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: WITHSTAND VOLTAGE ℃ -25 ~ +105 ℃ ± , 10 ~ 95% RH ℃ ) 0.03% / 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes (0 ~ 50 EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSUS Series
-
Power Rating1 Watt
-
Output Voltage12 Volt
-
Rated Current0.08 Ampere
-
Input Voltage4.5V~5.5V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2.26 cm
-
Width0.99 cm
-
Height0.89 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SUS01L-12 to generate 12V for a compact industrial control or embedded board?
Yes, this unit provides constant 12V output from a 4.5~5.5V input range and is intended for low-power conversion tasks. Its 1W rating makes it suitable for small control, monitoring, or embedded subcircuits rather than heavier 12V loads.
Is the SUS01L-12 a fit for low-power automation interface circuits that need a regulated 12V rail?
It can be used where the input source is 4.5~5.5V and the downstream 12V section stays within the 1W limit. The converter's constant-voltage mode is appropriate when the load expects a fixed 12V output.
Can this model work in compact instrumentation or portable electronics that need a small 12V supply stage?
Yes, its 22.6 × 9.9 × 8.9 mm dimensions support use in space-constrained electronics. With a weight of 0.0031 kg, it also fits small assemblies where component size matters.
What is the difference between the SUS01L-05, SUS01L-09, SUS01L-12, and SUS01L-15 models?
All four are 1W converters in the same series. The sibling outputs are SUS01L-05 at 5V and 200A, SUS01L-09 at 9V and 111A, SUS01L-12 at 12V and 0.08A, and SUS01L-15 at 15V and 0.07A.
Is the SUS01L-12 suitable for outdoor or harsh-environment use?
The specified operating temperature is -25°C to +71°C, which supports a broad indoor equipment range. Since no IP rating is listed, it is better treated as a converter for protected enclosures rather than exposed outdoor mounting.
