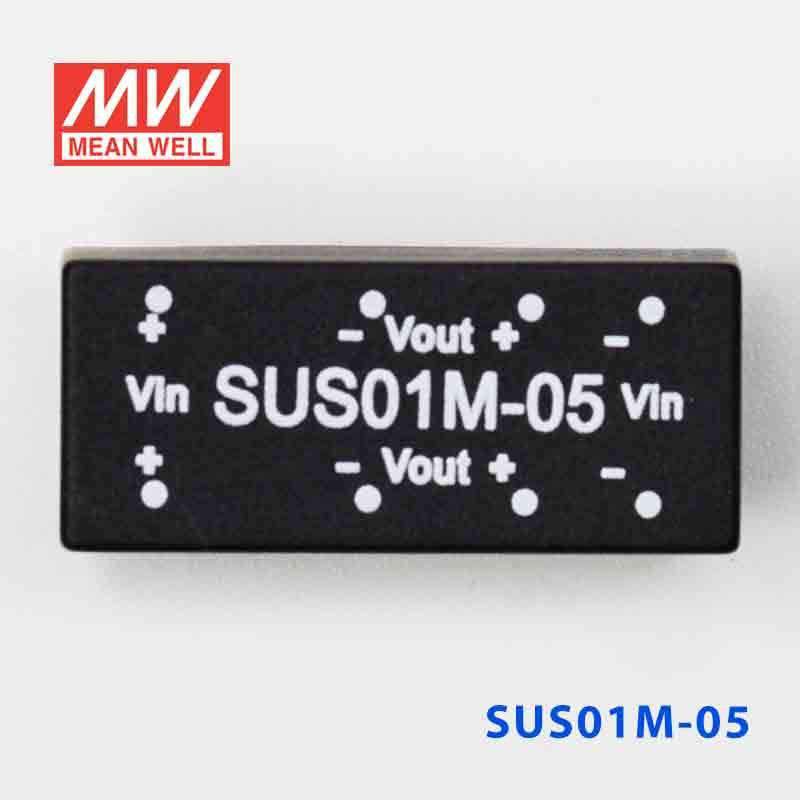

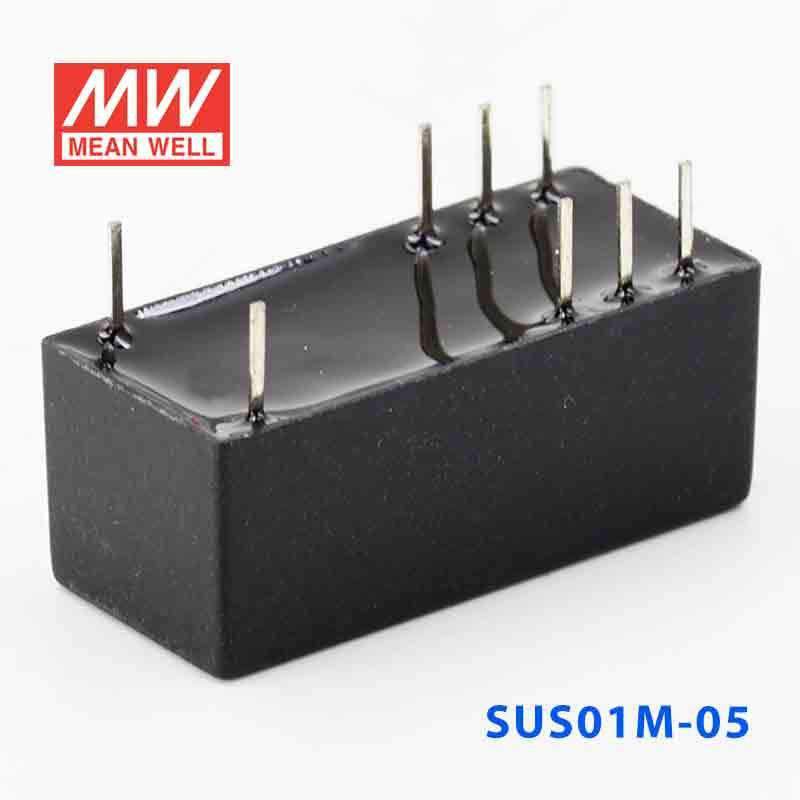

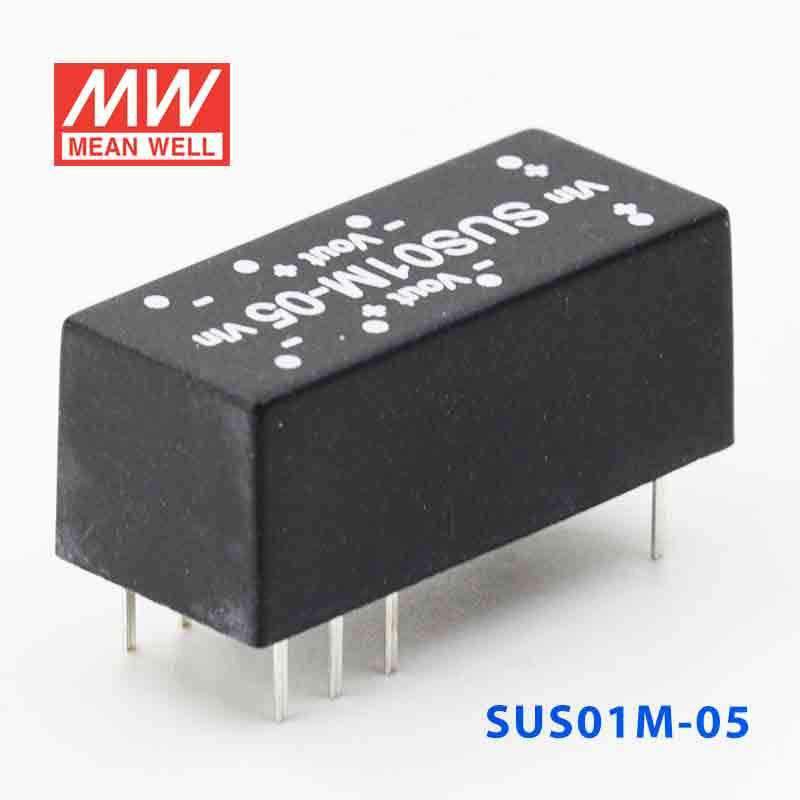

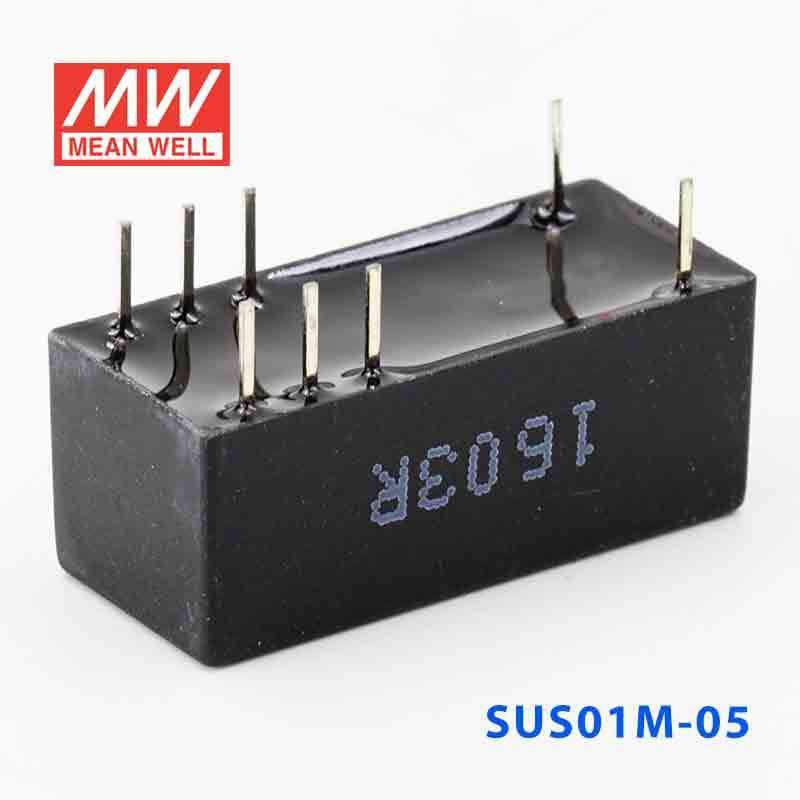

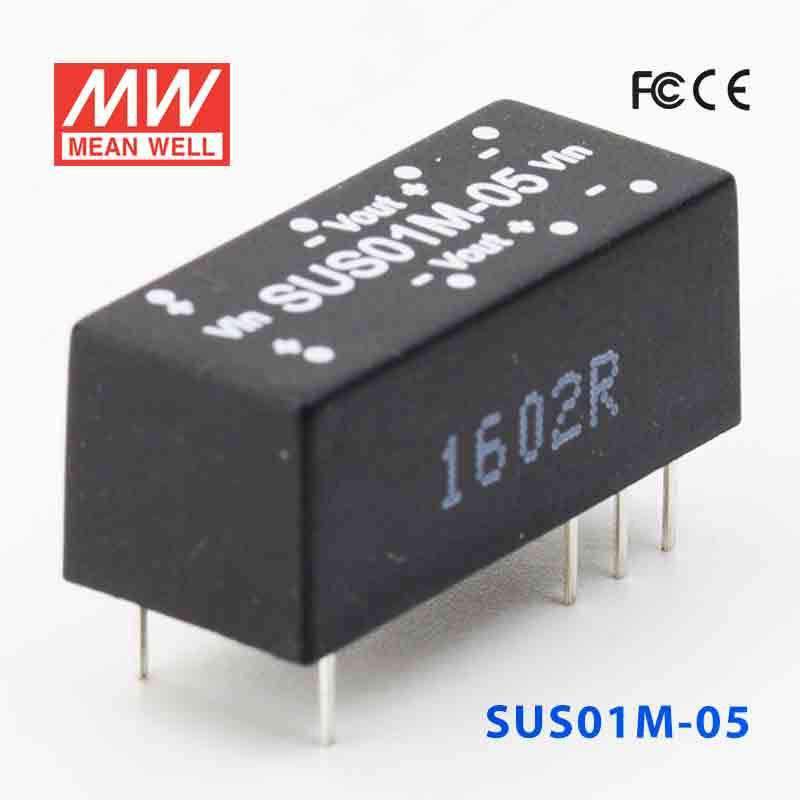

Mean Well SUS01M-05 DC-DC Converter - 1W - 10.8~13.2V in 5V out
Please Login for Pricing
Description
Description
The SUS01M is a 1W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -25~+71℃).
Key Features
- ✓ Input voltage range: 4.5~5.5V
- ✓ 1KVDC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -25~+71℃
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: WITHSTAND VOLTAGE ℃ -25 ~ +105 ℃ ± , 10 ~ 95% RH ℃ ) 0.03% / 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes (0 ~ 50 EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSUS Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.2 Ampere
-
Input Voltage10.8V~13.2V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2.26 cm
-
Width0.99 cm
-
Height0.89 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SUS01M-05 to derive 5V for embedded logic or automation electronics from a 10.8~13.2V source?
Yes, this converter is built for constant 5V output with a 10.8~13.2V input range. Its 1W rating makes it appropriate for low-power embedded, industrial, or automation subcircuits rather than larger 5V loads.
Is the SUS01M-05 suitable for low-power industrial monitoring or control boards that need a regulated 5V rail?
It can be a fit when the source voltage is within 10.8~13.2V and the total 5V load remains within 1W. The constant-voltage output is intended for electronics that require a fixed 5V supply.
Can this model work in compact portable or panel-mounted electronics where space is tight?
Yes, the body size is 22.6 × 9.9 × 8.9 mm, which supports dense PCB or enclosed designs. At 0.0031 kg, it is also very light for compact equipment builds.
How do I check whether the SUS01M-05 can handle my 5V load?
Your circuit should need constant 5V and stay within the converter's 1W rating and listed 200A output current. If the load is above either value, a larger converter is the safer choice.
Is the SUS01M-05 suitable for outdoor equipment or only indoor use?
The product is rated for -25°C to +71°C operation, which is useful for a wide range of equipment temperatures. No IP rating is provided, so it is best used inside protected housings or indoor equipment rather than in exposed outdoor locations.
