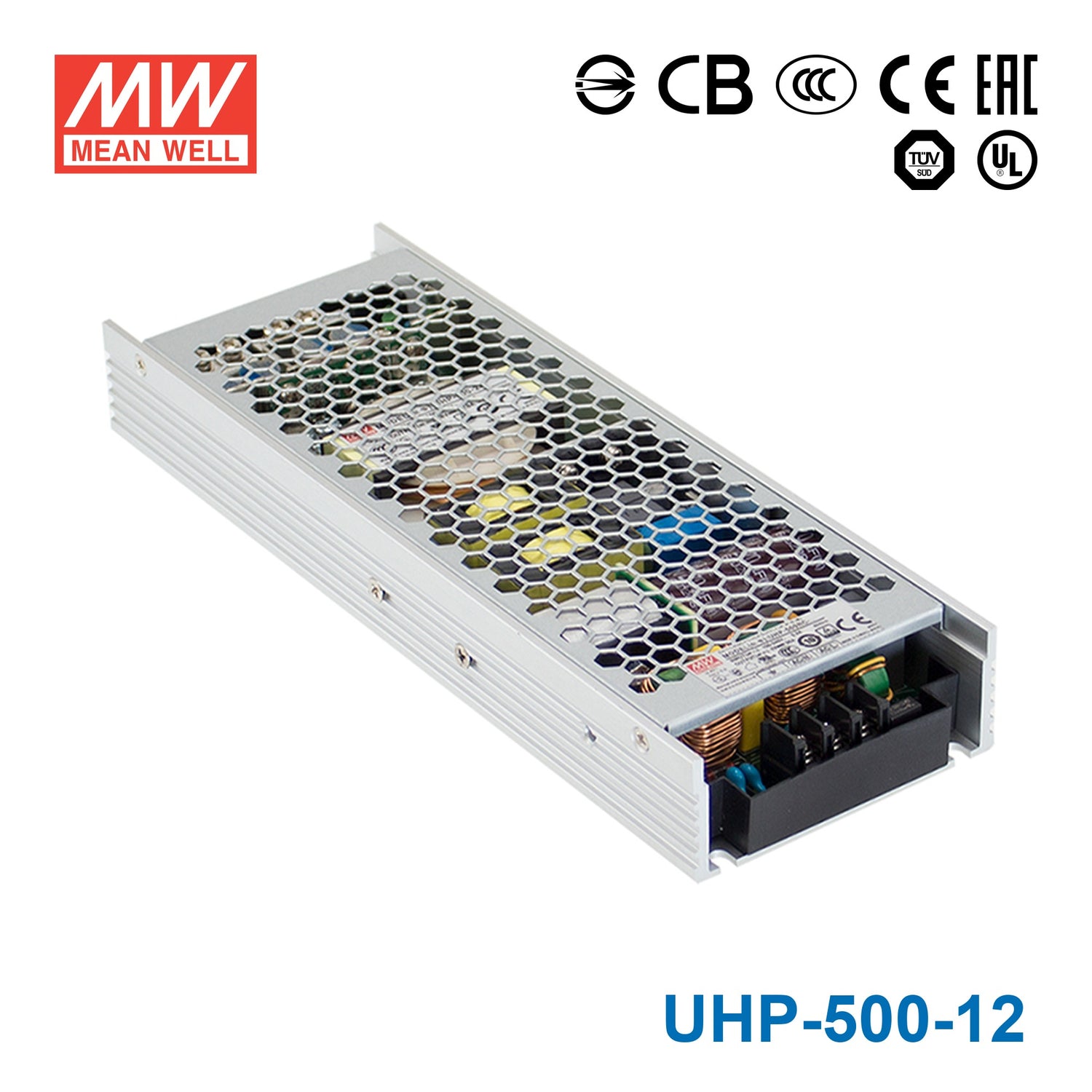

Mean Well UHP-500-12 Power Supply 500.4W 12V
Please Login for Pricing
Description
Description
The UHP-500 is a 500W Mean Well DIN rail power converter with a 232mm profile (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ 232mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: WITHSTAND VOLTAGE 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes UL 62368-1,TUV EN62368-1,EN60335-1, CCC GB4943, BSMI CNS14336-1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating500.4 Watt
-
Output Voltage12 Volt
-
Rated Current41.7 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length23.2 cm
-
Width8.1 cm
-
Height3.1 cm
-
Weight0.91 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the UHP-500-12 for a 12V industrial control or automation cabinet?
Yes, if the load requires constant voltage 12V and the total demand stays within 500.4W and 41.7A. Its fanless design and 232.0 x 81.0 x 31.0 mm low-profile housing can also help in enclosed industrial layouts.
Is the UHP-500-12 suitable for 12V CCTV, access control, or security electronics?
It can fit 12V security or monitoring systems that need a regulated constant voltage source up to 41.7A and 500.4W. The broad 90-264VAC input range is useful when the same model is deployed across different AC supply conditions.
Can this model power 12V embedded devices, relays, or industrial I/O loads from one supply?
Yes, it is designed for constant voltage 12V applications and can support multiple 12V loads as long as the combined demand remains within 500.4W and 41.7A. The fanless construction may also be preferred where lower acoustic output is important.
How does the UHP-500-12 compare with the other UHP-500 models?
The UHP-500 series variants listed are 4.2V 336W 80A, 5V 400W 80A, 12V 500.4W 41.7A, 15V 501W 33.4A, 24V 501.6W 20.9A, 36V 500.4W 13.9A, and 48V 501.6W 10.45A. This unit is the 12V version, so it offers a mid-range voltage with higher current than the 24V, 36V, and 48V versions.
Can the UHP-500-12 be used outdoors or in wide-temperature indoor locations?
The published operating temperature range is -30C to +70C, so it is specified for a wide indoor temperature span. The provided specs do not include an IP rating, so direct outdoor exposure is not established here.
Other UHP-500 Models
6 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well UHP-500-5 Power Supply 400W 5V | 400W | 5V | 80A | View |
| Mean Well UHP-500-48 Power Supply 501.6W 48V | 501.6W | 48V | 10.45A | View |
| Mean Well UHP-500-4.2 Power Supply 336W 4.2V | 336W | 4.2V | 80A | View |
| Mean Well UHP-500-36 Power Supply 500.4W 36V | 500.4W | 36V | 13.9A | View |
| Mean Well UHP-500-24 Power Supply 501.6W 24V | 501.6W | 24V | 20.9A | View |
| Mean Well UHP-500-15 Power Supply 501W 15V | 501W | 15V | 33.4A | View |
