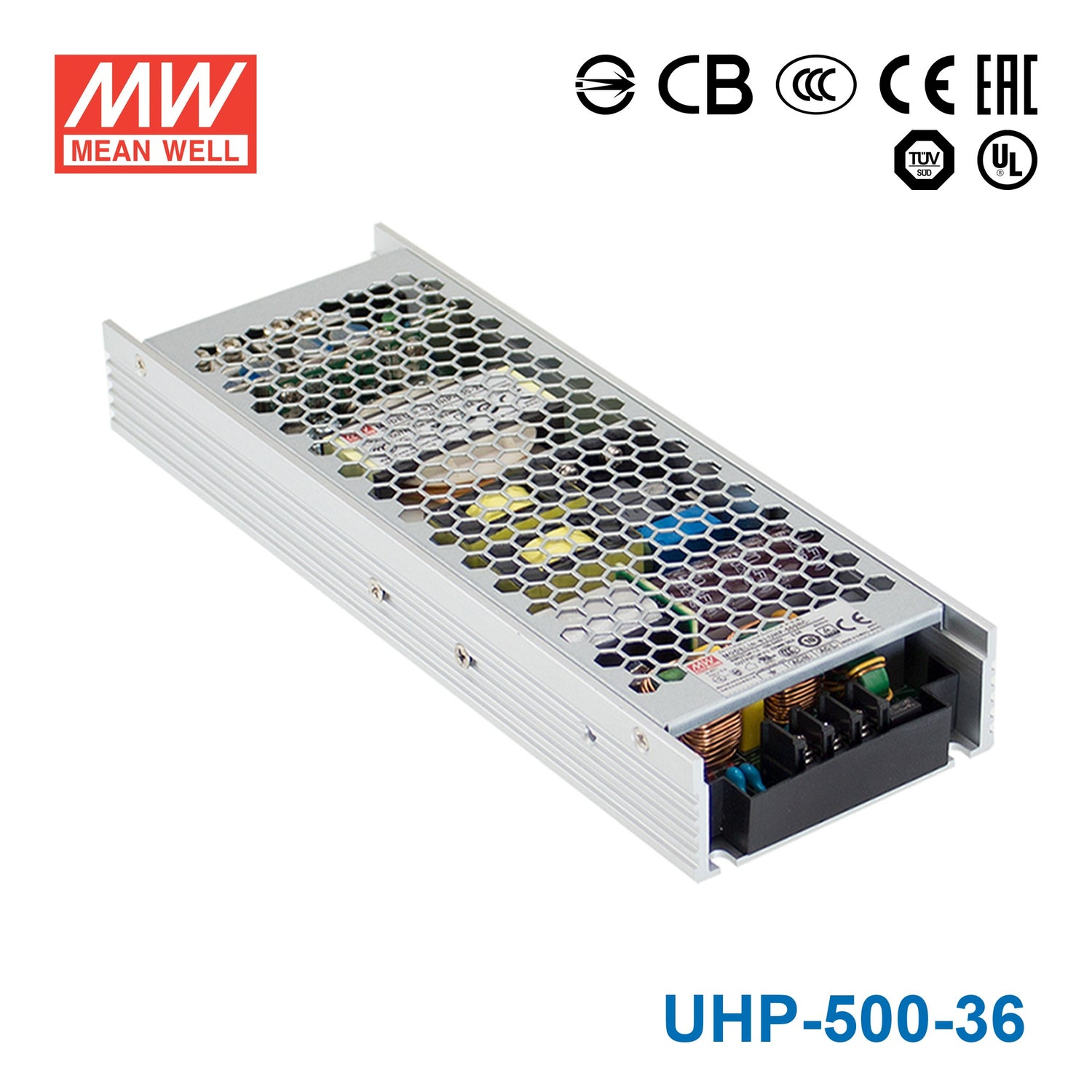

Mean Well UHP-500-36 Power Supply 500.4W 36V
Please Login for Pricing
Description
Description
The UHP-500 is a 500W Mean Well DIN rail power converter with a 232mm profile (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ 232mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: WITHSTAND VOLTAGE 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes UL 62368-1,TUV EN62368-1,EN60335-1, CCC GB4943, BSMI CNS14336-1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating500.4 Watt
-
Output Voltage36 Volt
-
Rated Current13.9 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length23.2 cm
-
Width8.1 cm
-
Height3.1 cm
-
Weight0.91 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the UHP-500-36 for 36V industrial automation equipment?
Yes, this model is intended for equipment that requires a constant 36VDC source. It is rated for 500.4W and 13.9A, so it fits 36V automation loads that stay within those limits.
Is this a good choice for a 36V test bench or industrial R&D fixture?
It can be, because it provides a constant 36V output with up to 13.9A available. The 500.4W rating and 90-264VAC input also make it practical for lab and industrial bench environments that need a higher-power 36V source.
Can the UHP-500-36 power 36V embedded systems or motion-control electronics?
It is suitable for 36V embedded or control electronics that are designed for constant voltage input. With 36V output, 13.9A current capacity, and 500.4W total power, it fits applications that need more capacity than smaller 36V supplies.
Would this supply make sense for a 36V industrial lighting or display application?
Yes, if the load requires a constant 36V supply and the total draw does not exceed 500.4W or 13.9A. The unit is a constant voltage model, so it is appropriate for systems built around a 36VDC input rail.
Can the UHP-500-36 be used in cold or hot indoor equipment spaces?
The specified operating temperature range is -30°C to +70°C, which supports a wide span of indoor equipment conditions. The provided specs do not include an IP rating, so those specs do not by themselves confirm outdoor exposure resistance.
What is different between the 36V UHP-500 and the other UHP-500 versions?
The listed UHP-500 variants are 500.4W at 12V and 41.7A, 501W at 15V and 33.4A, 501.6W at 24V and 20.9A, 500.4W at 36V and 13.9A, 501.6W at 48V and 10.45A, 400W at 5V and 80A, and 336W at 4.2V and 80A. This model is the 36V version, with 500.4W output and 13.9A available.
Other UHP-500 Models
6 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well UHP-500-5 Power Supply 400W 5V | 400W | 5V | 80A | View |
| Mean Well UHP-500-48 Power Supply 501.6W 48V | 501.6W | 48V | 10.45A | View |
| Mean Well UHP-500-4.2 Power Supply 336W 4.2V | 336W | 4.2V | 80A | View |
| Mean Well UHP-500-24 Power Supply 501.6W 24V | 501.6W | 24V | 20.9A | View |
| Mean Well UHP-500-15 Power Supply 501W 15V | 501W | 15V | 33.4A | View |
| Mean Well UHP-500-12 Power Supply 500.4W 12V | 500.4W | 12V | 41.7A | View |
