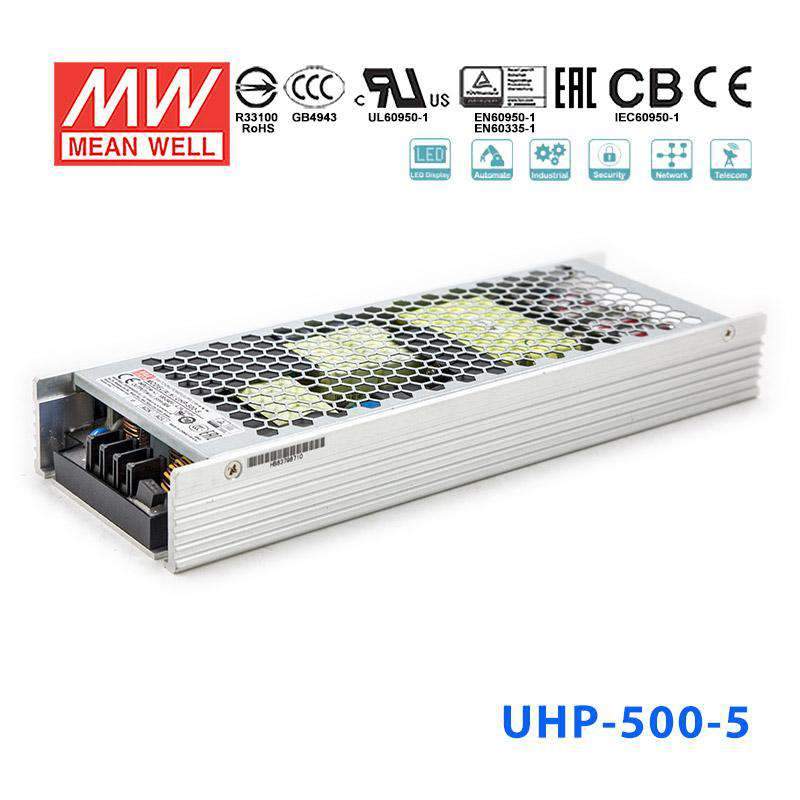

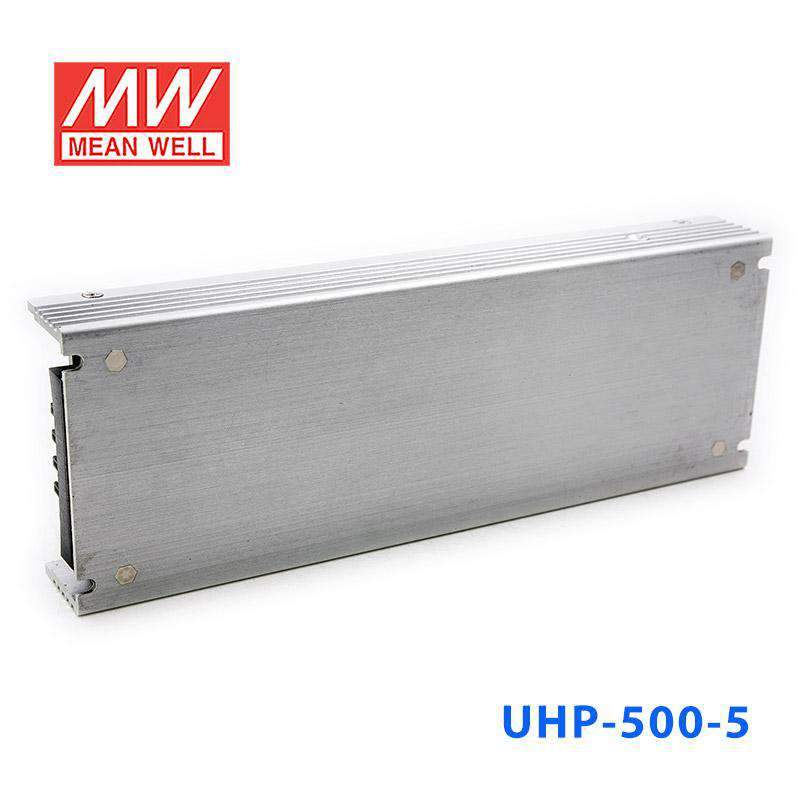

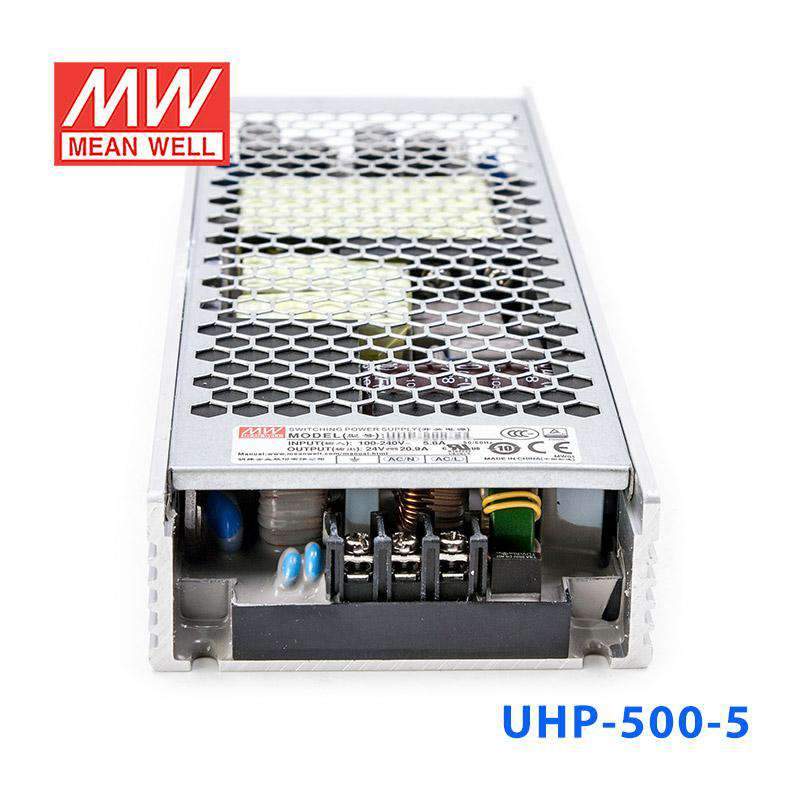

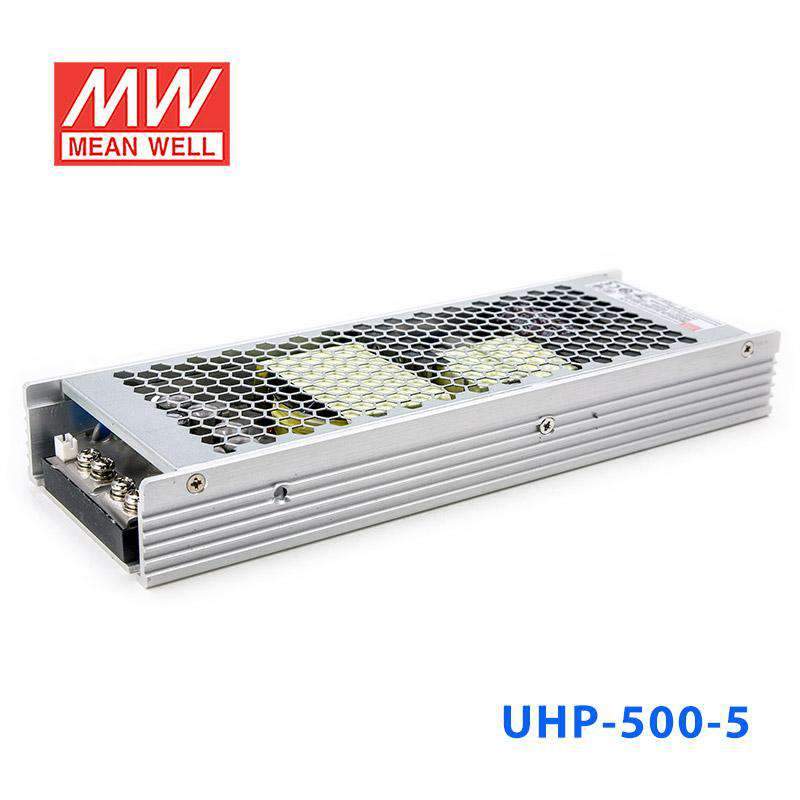

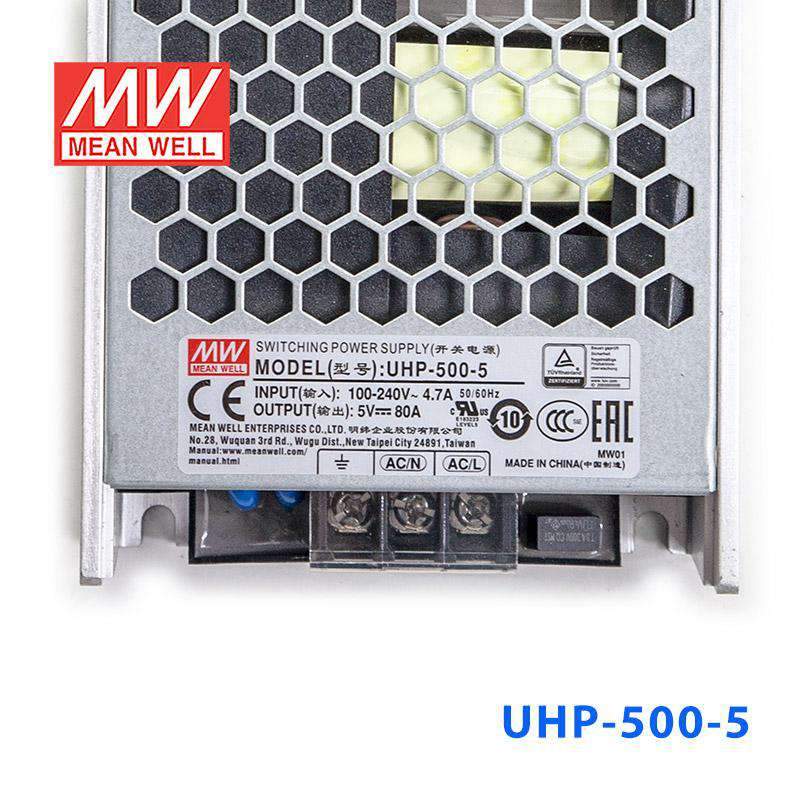

Mean Well UHP-500-5 Power Supply 400W 5V
Please Login for Pricing
Description
Description
The UHP-500 is a 500W Mean Well DIN rail power converter with a 232mm profile (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ 232mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: WITHSTAND VOLTAGE 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes UL 62368-1,TUV EN62368-1,EN60335-1, CCC GB4943, BSMI CNS14336-1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating400 Watt
-
Output Voltage5 Volt
-
Rated Current80 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length23.2 cm
-
Width8.1 cm
-
Height3.1 cm
-
Weight0.91 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the UHP-500-5 for a high-current 5V logic or embedded computing system?
Yes, this model is intended for applications that need a constant 5V rail at high current. It provides up to 80A and 400W, which makes it suitable for dense 5V embedded and logic loads within those limits.
Is the UHP-500-5 a fit for an industrial test rack powering multiple 5V devices?
It can be a strong fit for centralized 5V test or production fixtures. The supply delivers constant 5V output with up to 80A available, allowing one source to support a larger combined 5V load up to 400W.
Would this power supply work for 5V control electronics in an automation or OEM assembly?
Yes, if the assembly is designed for a constant 5V input rail. The unit is rated at 400W and 80A, so it is aimed at high-current 5V electronics rather than lower-current control circuits.
Can the UHP-500-5 be used for 5V LED, display, or digital signage electronics?
It can be used where the system requires a constant 5V source and the total load stays within 400W or 80A. That makes it more appropriate for larger 5VDC electronics groupings than smaller 5V supplies.
Is this model suitable for outdoor or exposed installations?
The provided specifications include an operating temperature range of -30°C to +70°C, but they do not include an IP rating. That means the listed data supports temperature planning, while outdoor or wet-location suitability is not defined by the provided specs.
How does the UHP-500-5 compare with the other UHP-500 output versions?
The listed UHP-500 models are 500.4W at 12V and 41.7A, 501W at 15V and 33.4A, 501.6W at 24V and 20.9A, 500.4W at 36V and 13.9A, 501.6W at 48V and 10.45A, 400W at 5V and 80A, and 336W at 4.2V and 80A. This version is the 5V option, combining the highest current shown at 80A with a 400W output rating.
Other UHP-500 Models
6 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well UHP-500-48 Power Supply 501.6W 48V | 501.6W | 48V | 10.45A | View |
| Mean Well UHP-500-4.2 Power Supply 336W 4.2V | 336W | 4.2V | 80A | View |
| Mean Well UHP-500-36 Power Supply 500.4W 36V | 500.4W | 36V | 13.9A | View |
| Mean Well UHP-500-24 Power Supply 501.6W 24V | 501.6W | 24V | 20.9A | View |
| Mean Well UHP-500-15 Power Supply 501W 15V | 501W | 15V | 33.4A | View |
| Mean Well UHP-500-12 Power Supply 500.4W 12V | 500.4W | 12V | 41.7A | View |
