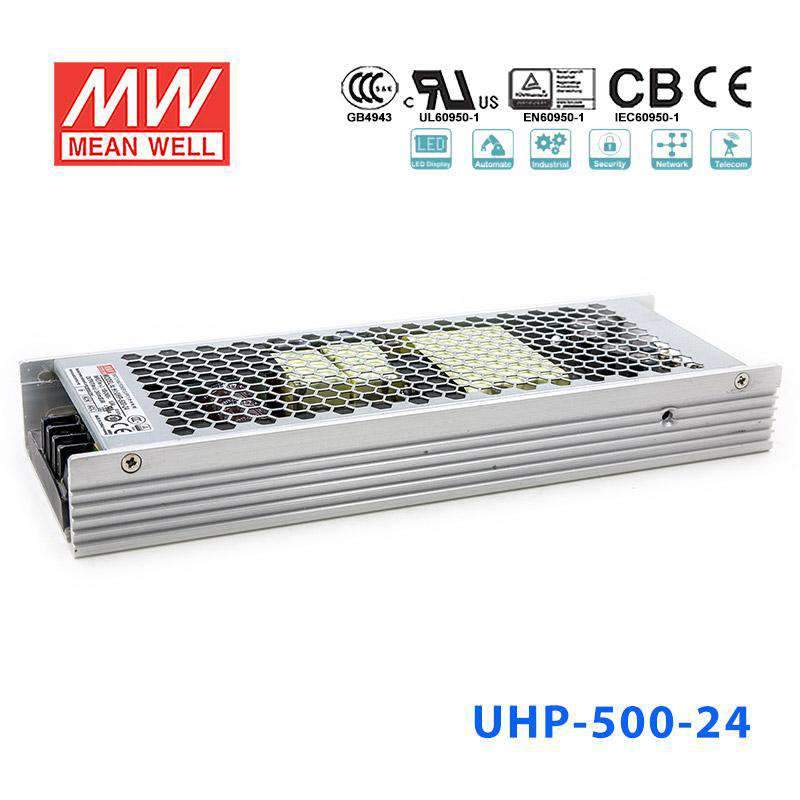

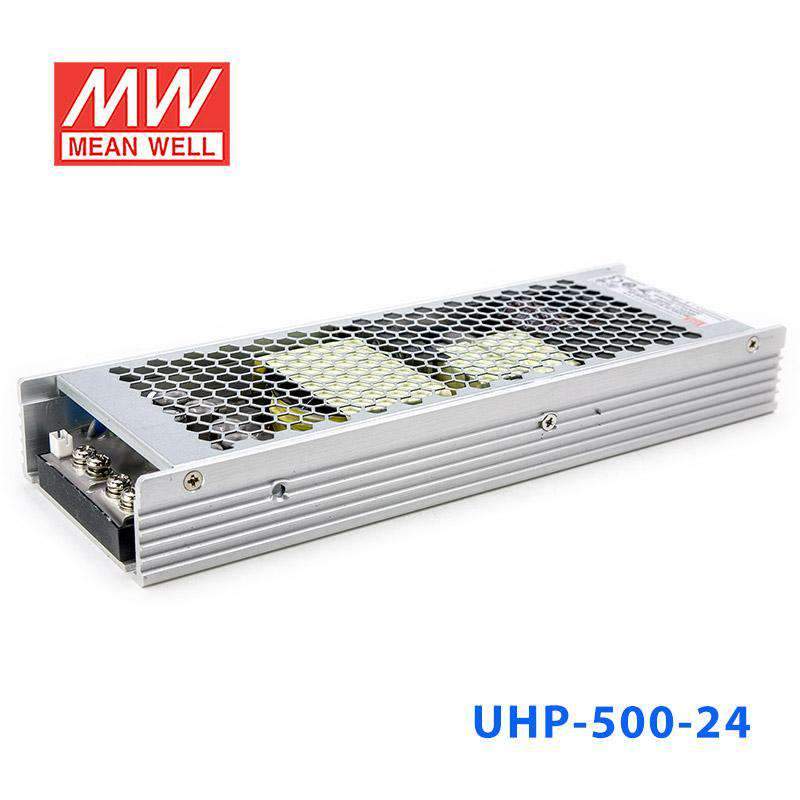

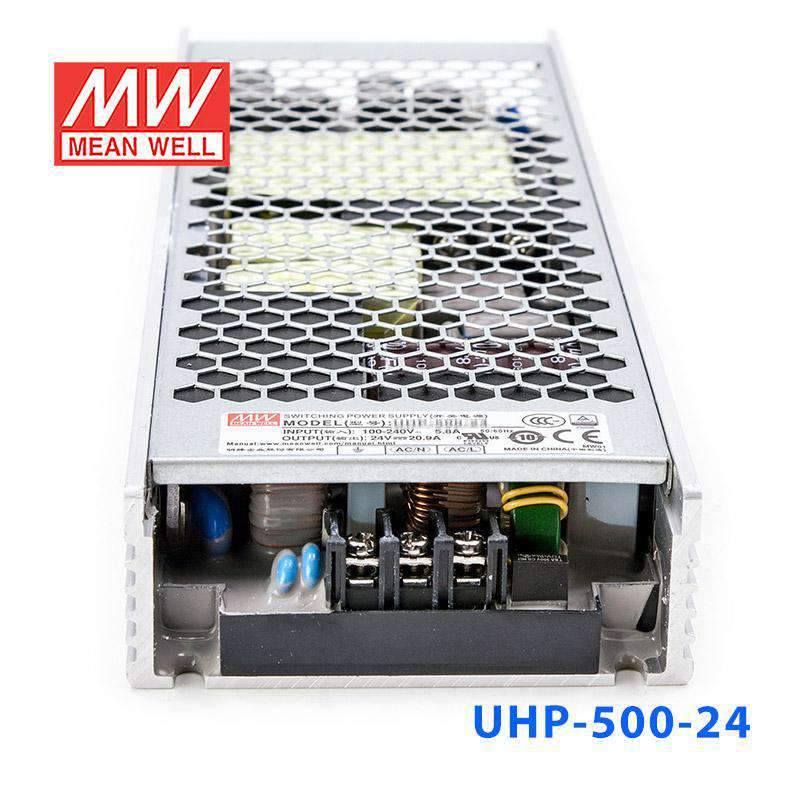

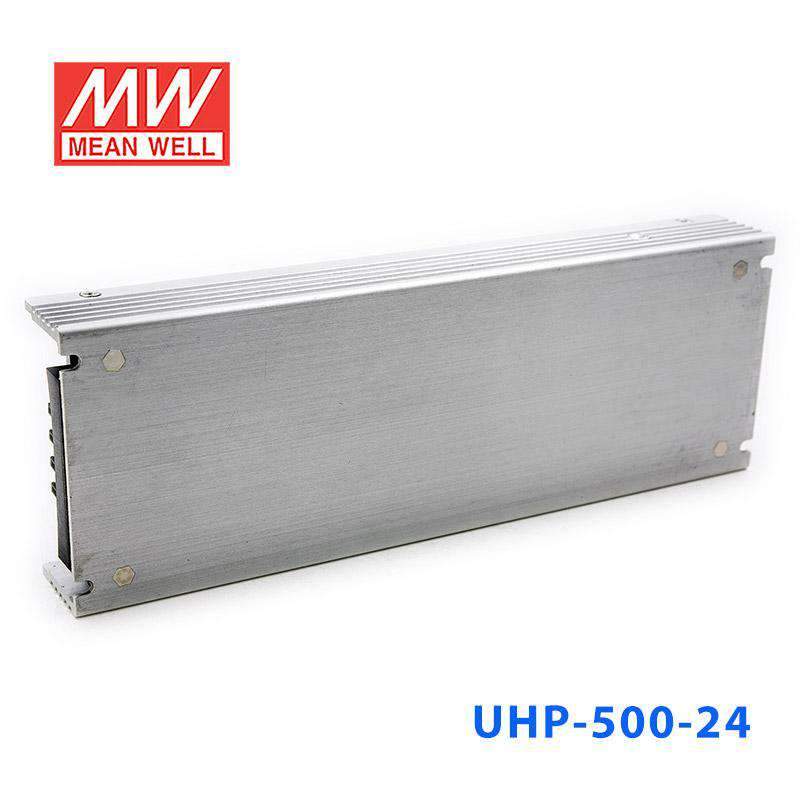

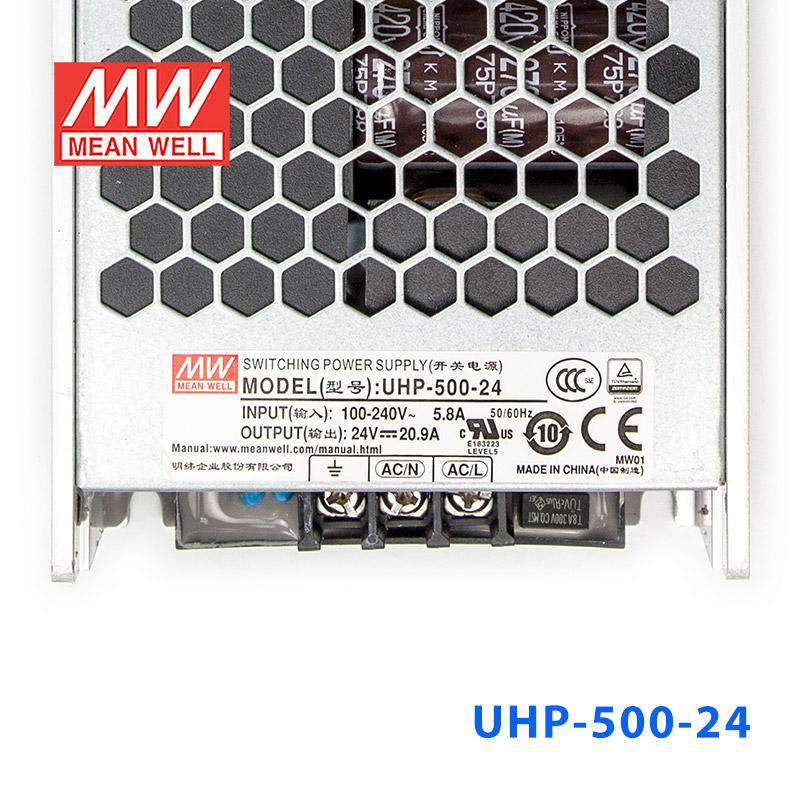

Mean Well UHP-500-24 Power Supply 501.6W 24V

slim and low profile, fanless design

|

Description

Features

Slim and Low profile (31mm)
Fanless design, 500W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
150% peak load capability(100ms)
-20~+70℃ working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature
DC OK active signal and redundant function(option)
Operating altitude up to 5000 meter
LED indicator for power on
3 years warranty

General Specification

AC input voltage range 90~264VAC 127~370VDC
AC inrush current Cold start :30A/115VAC 60A/230VAC
Overload protection 110~140% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over voltage protection 12V:13.2~15.6V, 15V:16.5~19.5V, 24V:26.4~31.2V, 36V:39.6~46.8V, 48V:52.8~62.4V Protection type :Shut down O/P voltage, re-power on to recover
Setup, rise, hold up time 1000ms, 50ms/230VAC/115VAC at full load; 12ms/115VAC, 230VAC
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC
Working temperature -20~+70℃ (Refer to “Derating Curve)
Safety standards UL60950-1,TUV EN60950-1, CCC GB4943, EAC TP TC 004,BSMI CNS14336-1 approved, Design refer to EN60335-1, EN61558-1,-2-16
EMC standards Compliance to EN55032,GB/T9254,Class B, EN61000-3-2,-3,EAC TP TC 020,BSMI CNS13438; Compliance to EN61000-4-2,3,4,5,6,8,11;EN61000-6-2 (EN50082-2), heavy industry level ,criterial A,EAC TP TC 020
Dimension (LxWxH) 232×81×31mm
Packing 0.905Kg;16pcs/15.48Kg

Specifications

  • Brand
    Mean Well
  • Series
    UHP Series
  • Power Rating
    501.6 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    20.9 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    BSMI,CB,CCC,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    23.2 cm
  • Width
    8.1 cm
  • Height
    3.1 cm
  • Weight
    0.91 kg
