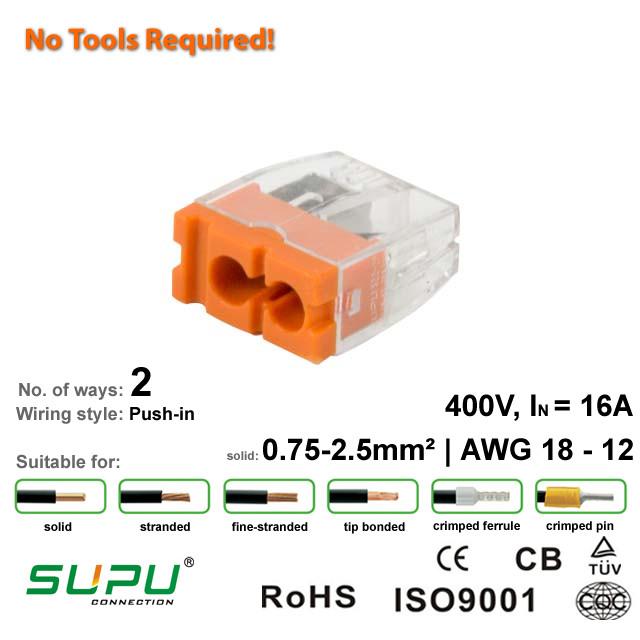

Supu 522402 Push-in Connector - 2 Way
Please Login for Pricing
Description
Description
Specifications
Specifications
-
BrandSUPU
-
SeriesLED Warehouse Connector
-
Rated Current24 Ampere
-
Warranty1 Year
-
Length1.86 cm
-
Width0.82 cm
-
Height1.57 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Supu 522402 Push-in Connector - 2 Way used for?
The Supu 522402 is a compact 2-way connector intended for electrical connector applications where a plate type spring connection product is required. It is suited to commercial and industrial buying contexts that need a simple two-position connector with defined current, voltage, and material ratings.
What are the electrical ratings of the Supu 522402?
This model is rated at 400 V and 24 A under the listed product standard details. It also carries UL ratings of 600 V and 20 A, so buyers can review both sets of published values when checking project requirements.
What wire size range is supported by the Supu 522402?
The published wire range for this connector is 0.75 to 2.5 mm². The UL-listed wire range is 18 to 12 AWG, which is useful for buyers working across metric and AWG-based specifications.
What material and flammability rating does this connector have?
The insulation material is PA66. Its flammability rating is UL94 V0, which is an important specification for buyers evaluating material performance and compliance expectations.
Which standards are referenced for the Supu 522402 connector?
The product information references IEC60998, UL488C, and CSA-C22.2 No. 188. These references help buyers assess whether this specific model aligns with the standards relevant to their procurement or compliance needs.
How does the Supu 522402 differ from higher-position connector options?
The key distinction is that this is a 2-way connector, so it is intended for applications needing two positions rather than multi-way distribution in a single connector body. Buyers comparing options should also note this model's published 24 A rating, 400 V rating, and 0.75-2.5 mm² wire range.
