Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

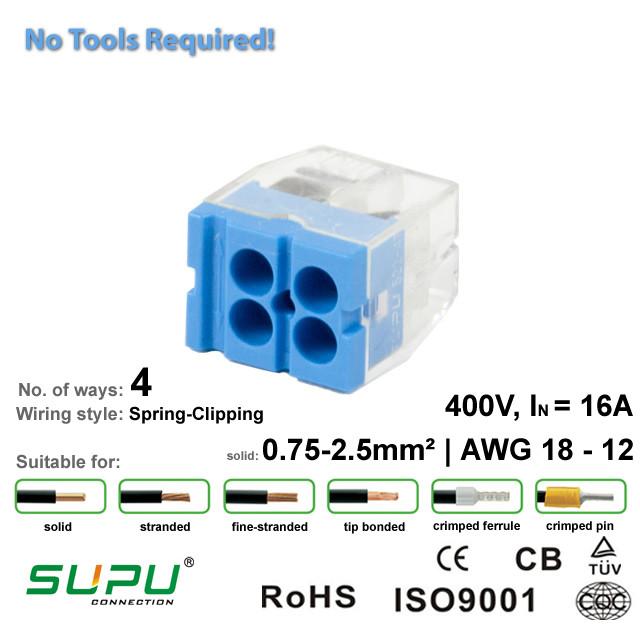

Supu 522404 Push-in Connector - 4 Way

SKU:

522404

Notify me when it's back in stock

Description

Color blue Connection technology Plate type spring connection technology Product conform standard IEC60998、UL488C、CSA-C22.2 No. 188etc Strip length 12mm Insulation material PA66 Flammability rating conform to UL94 V0 Rated voltage V 400 Rated current A 24 Wire range mm² 0.75-2.5 UL Rated voltage V 600 UL Rated current A 20 UL Wire range AWG 18-12

Specifications

Brand

SUPU
Series

LED Warehouse Connector
Rated Current

24 Ampere
Warranty

1 Year
Length

1.86 cm
Width

1.22 cm
Height

1.57 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Supu 522404 Push-in Connector - 4 Way used for?

The Supu 522404 is a 4-way push-in connector intended for electrical accessory and connector applications. Based on its category placement, it is suited to power supply and light electrical product contexts where a compact multi-way connector is needed.

What are the main electrical ratings of the Supu 522404?

This model is rated at 400 V and 24 A under the listed product standards. It also carries UL ratings of 600 V and 20 A, with a supported UL wire range of 18-12 AWG.

What conductor size range is supported by the Supu 522404?

The specified wire range for this connector is 0.75-2.5 mm². For UL-rated applications, the listed wire range is 18-12 AWG.

What material and fire rating does the Supu 522404 have?

The insulation material is PA66. Its flammability rating is UL94 V0, which is relevant for buyers evaluating component performance in demanding electrical environments.

Which standards does the Supu 522404 conform to?

The product is listed as conforming to IEC60998, UL488C, and CSA-C22.2 No. 188, among others. That makes it easier to assess for projects that require recognized electrical component standards.

What distinguishes the Supu 522404 from lower-capacity connector options?

This model combines a 4-way format with a rated current of 24 A and support for conductors up to 2.5 mm². That makes it a stronger fit than lighter-duty connector options when higher current capacity and broader conductor compatibility are required.

Model	Material	Finish
Supu 522408 Push-in Connector - 8 Way	—	—	View
Supu 522406 Push-in Connector - 6 Way	—	—	View
Supu 522402 Push-in Connector - 2 Way	—	—	View
Supu 520201 Lighting Connector - 2 Way	—	—	View
Supu 520101 Lighting Connector - 2 Way	—	—	View
