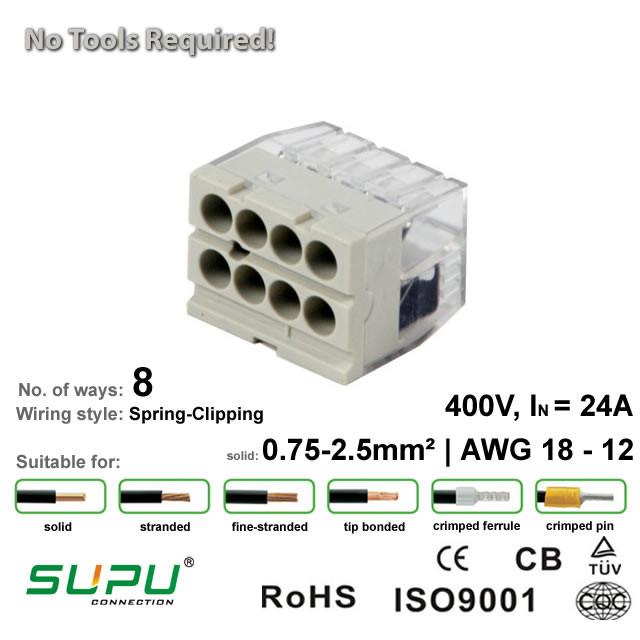

Supu 522408 Push-in Connector - 8 Way
Please Login for Pricing
Description
Description
Specifications
Specifications
-
BrandSUPU
-
SeriesLED Warehouse Connector
-
Rated Current24 Ampere
-
Warranty1 Year
-
Length2.05 cm
-
Width1.86 cm
-
Height1.57 cm
-
Weight0.06 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Supu 522408 Push-in Connector - 8 Way typically used for?
The Supu 522408 is an 8-way connector intended for electrical accessory and connector applications where a compact multi-position connector is needed. For wf_b2b buyers, it is generally relevant to panel, lighting, and power supply accessory sourcing where an 8-way format matches the project requirement.
What are the main electrical ratings of the Supu 522408?
This model is rated at 400V and 24A under the listed general product specifications. Its UL rating is 600V and 20A, so buyers should review the applicable compliance standard for their market and project documentation.
What cable size range is supported by the Supu 522408?
The stated wire range for this connector is 0.75-2.5 mm2. The UL wire range is 18-12 AWG, which gives B2B buyers a clear sizing reference when checking compatibility with existing project specifications.
Is the Supu 522408 suitable for commercial or industrial environments?
This model is built with PA66 insulation material and carries a UL94 V0 flammability rating, which supports use in demanding electrical environments where material performance matters. It also lists compliance with IEC60998, UL488C, and CSA-C22.2 No. 188 series standards, making it relevant for professional procurement review.
Why would a buyer choose the Supu 522408 8-way version instead of a smaller connector?
The main differentiator is its 8-way format, which suits applications that need more connection positions within one connector body. Buyers comparing options would usually select this model when the project calls for that higher circuit count together with its 24A rated current and specified wire range.
