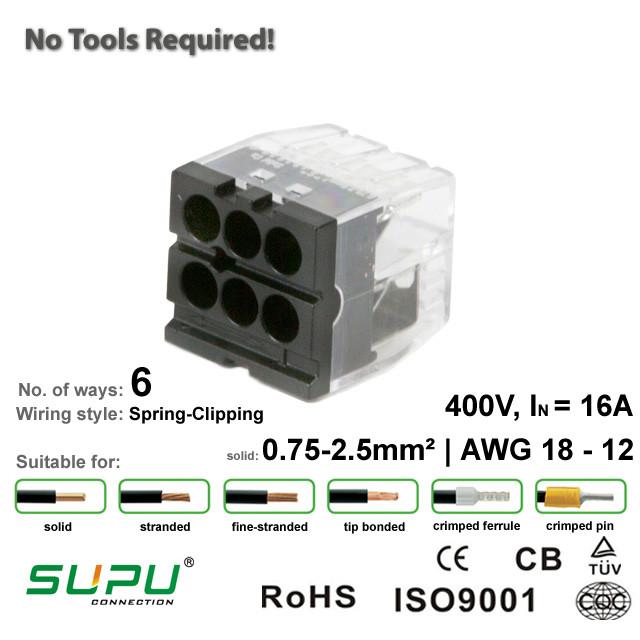

Supu 522406 Push-in Connector - 6 Way
Please Login for Pricing
Description
Description
Specifications
Specifications
-
BrandSUPU
-
SeriesLED Warehouse Connector
-
Rated Current24 Ampere
-
Warranty1 Year
-
Length1.86 cm
-
Width1.62 cm
-
Height1.57 cm
-
Weight0.04 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Supu 522406 Push-in Connector - 6 Way used for?
The Supu 522406 is a 6-way push-in connector intended for electrical assembly applications that need a compact multi-position connector. Based on the listed categories and model data, it fits accessory, connector, terminal, and light electrical product selections where this exact 6-way format is required.
What are the main specifications of the Supu 522406?
This model is a black 6-way push-in connector that uses plate type spring connection technology. Its listed ratings are 400 V and 24 A, with an insulation body made from PA66 and a UL94 V0 flammability rating.
What conductor size range is listed for the Supu 522406?
The product data lists a wire range of 0.75-2.5 mm² for this model. For UL-referenced sizing, the listed range is AWG 18-12, which helps buyers match this connector to the required conductor size range in their specifications.
Does the Supu 522406 have IEC and UL reference ratings?
Yes. The description lists IEC60998, UL488C, and CSA-C22.2 No. 188 among the referenced standards, with rated values of 400 V and 24 A plus UL-rated values of 600 V and 20 A. That gives procurement teams clear catalog-level standards and rating references for this exact model.
What makes the Supu 522406 different from other connector options?
The main differentiators in the provided data are its 6-way format, plate type spring connection technology, and its combination of IEC and UL rating references. Buyers should also note the PA66 insulation material, UL94 V0 flammability class, and the exact SKU 522406 when comparing alternatives.
Is the Supu 522406 suited to applications where material and flammability performance matter?
This model uses PA66 insulation material and is listed with a UL94 V0 flammability rating, which are relevant details when material performance is part of the buying criteria. The product also carries a 1-year warranty, giving an additional reference point for commercial and maintenance planning.
