Vimar

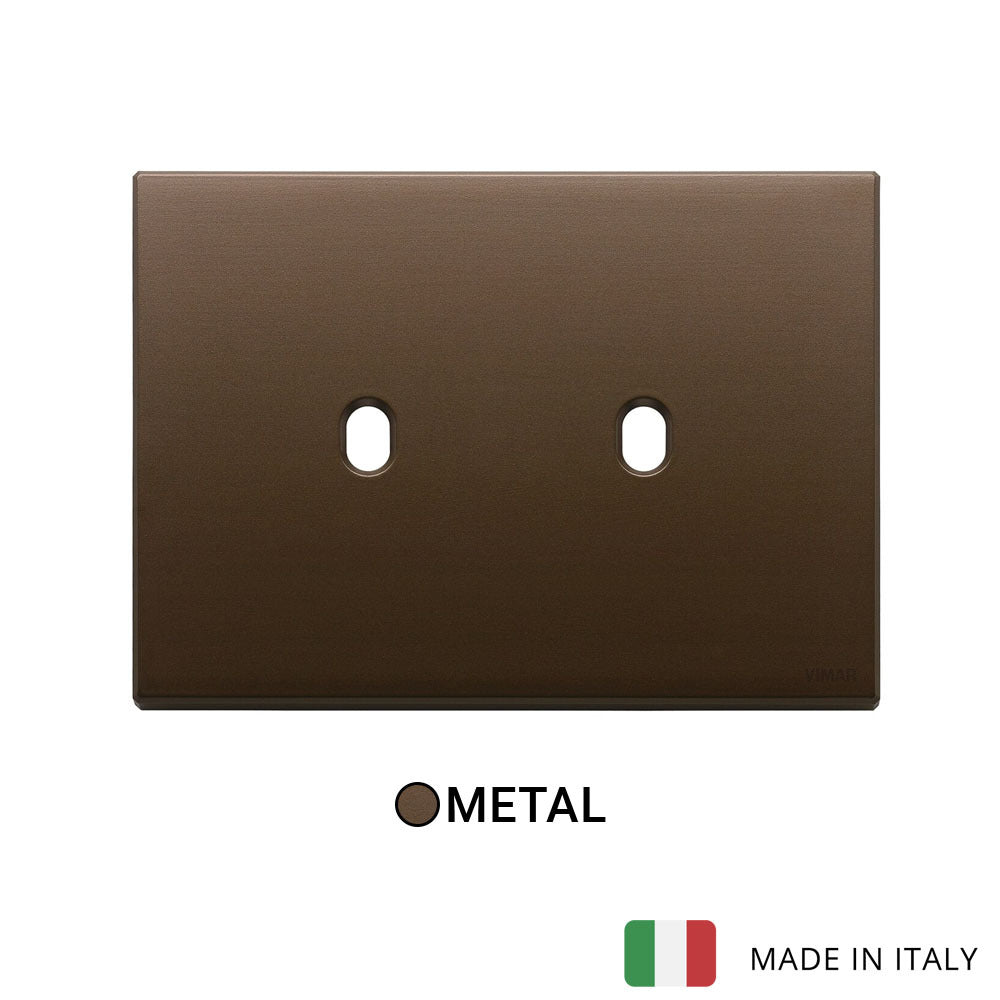

Vimar Eikon Plate 3Mx2 Vintage Brushed Dark Bronze

3 Module Dark Bronze
SKU VM-22673.2.12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-22673.2.12 is Vimar EIKON 22673.2.12, plate 3Mx2 Vintage brushed dark bronze.

Plate 3Mx2 Vintage brushed dark bronze

Specifications

VM-22673.2.12Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
2
Number of device inserts vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Surface protection
Lacquered
Surface finishing
Matt
Colour
Bronze
RAL-number (similar)
7013
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122 mm
Height
90 mm
Depth
7.15 mm
Built-in width
122 mm
Built-in height
90 mm

Packaging

EAN
8007352621923
Packed size (cm)
12.5 × 9.5 × 1.4
Packed weight
213.6 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), IMQ (Italy)

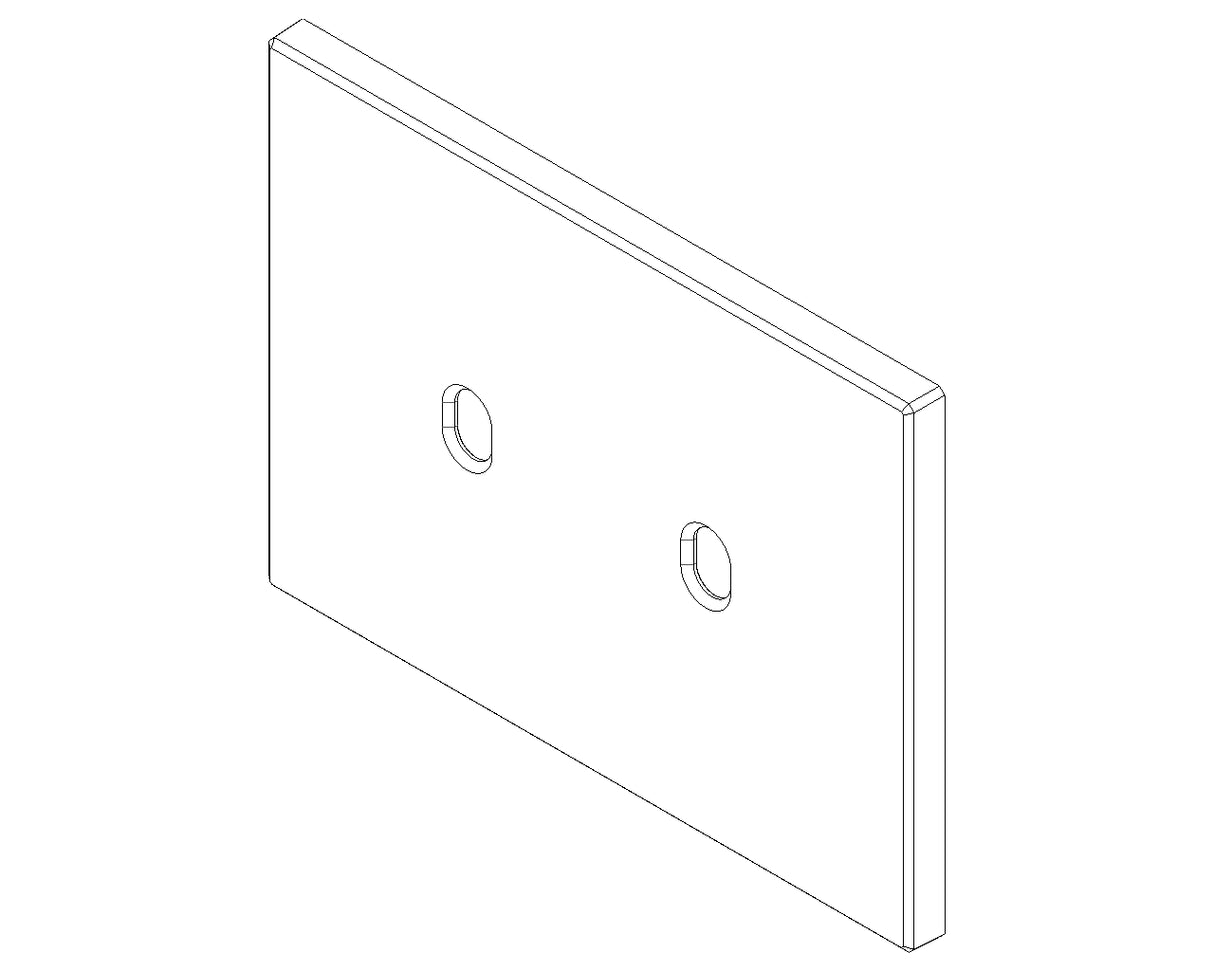

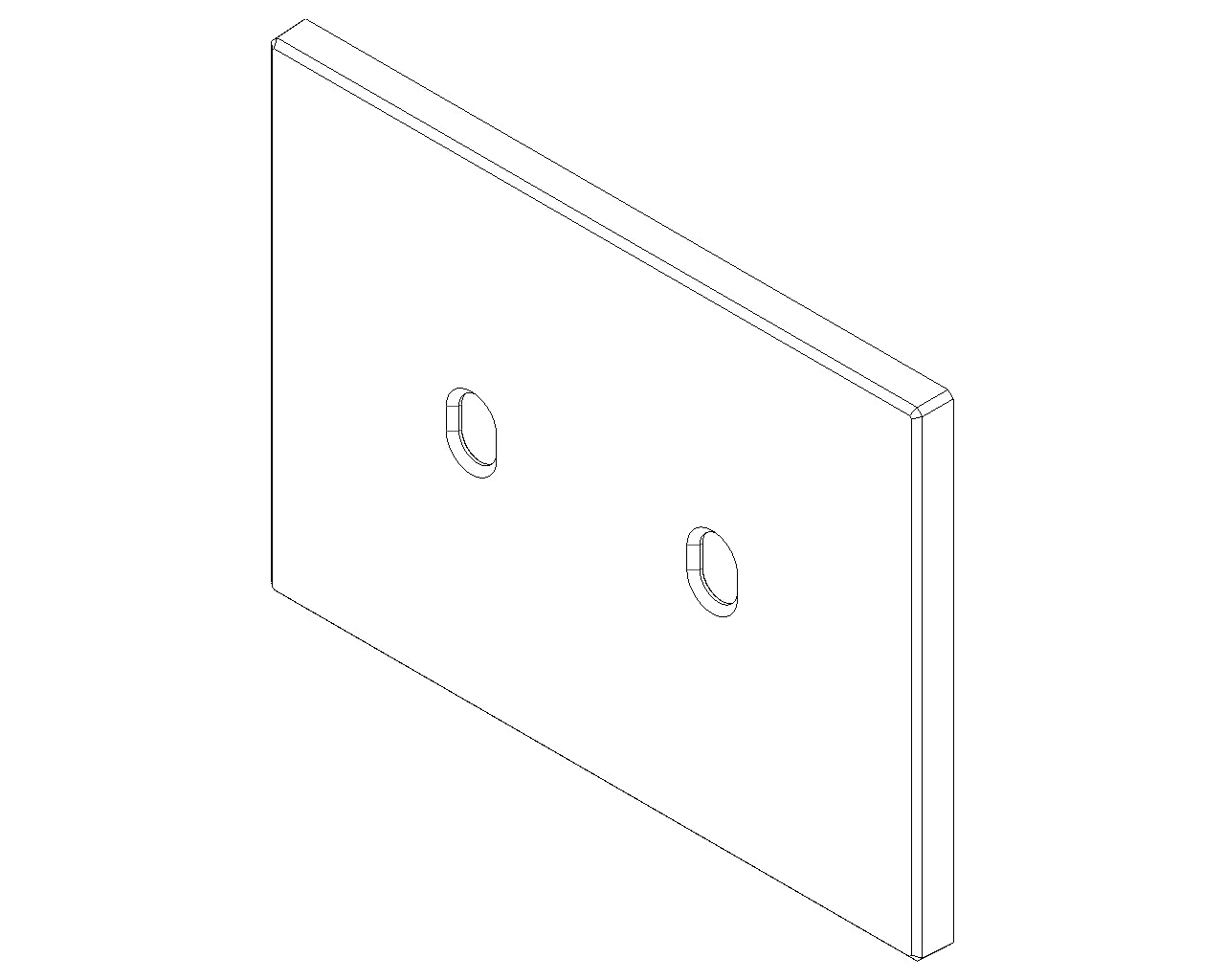

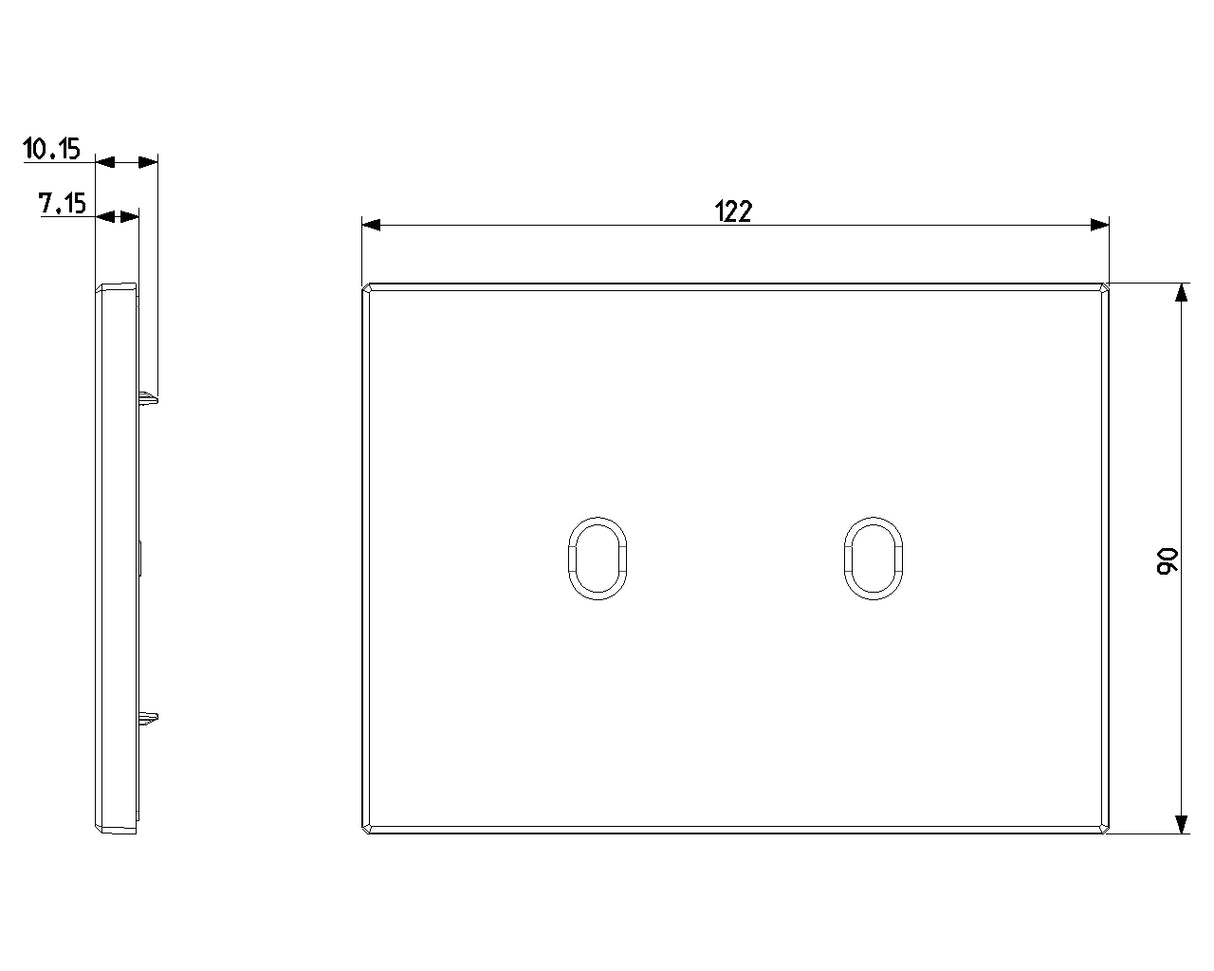

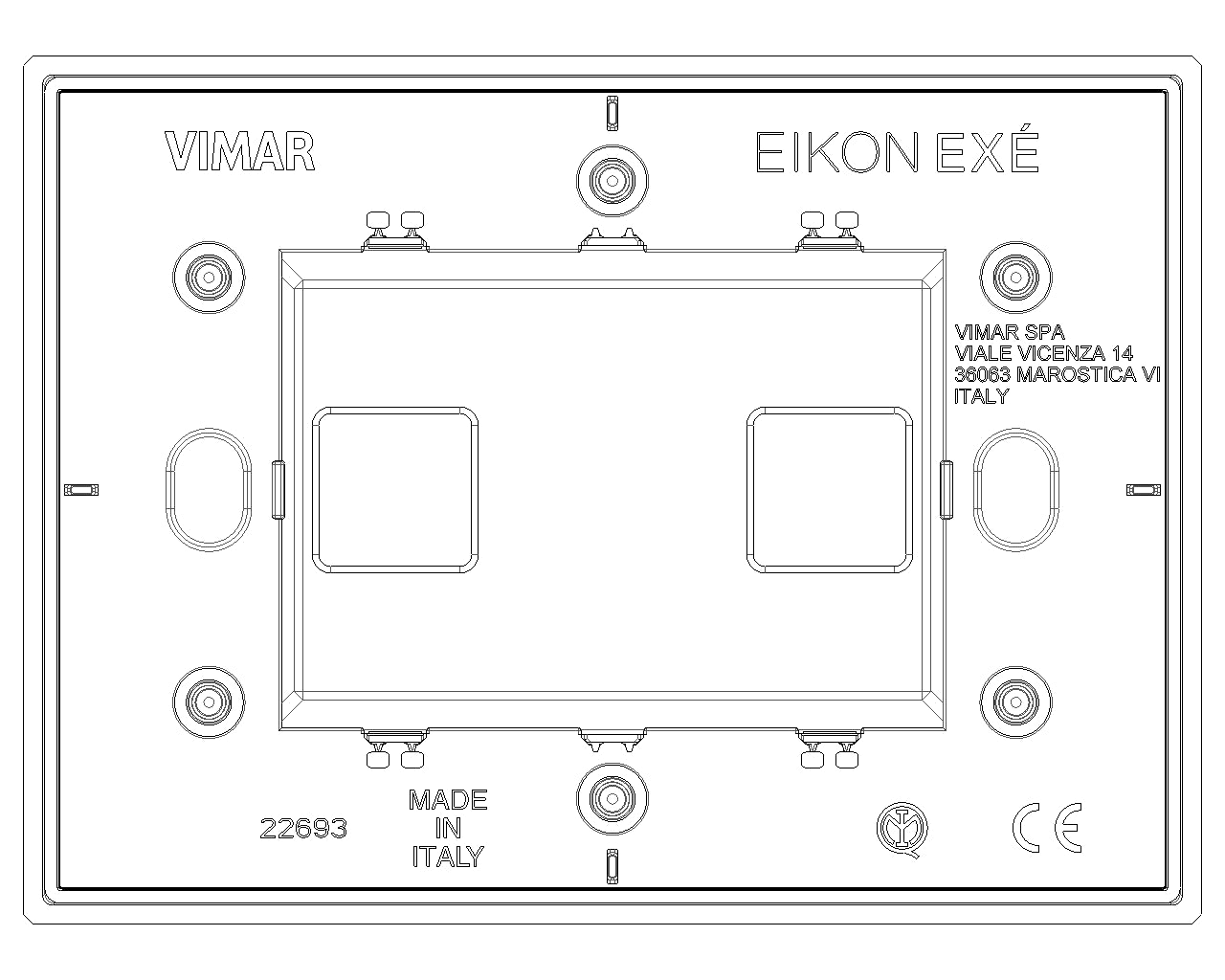

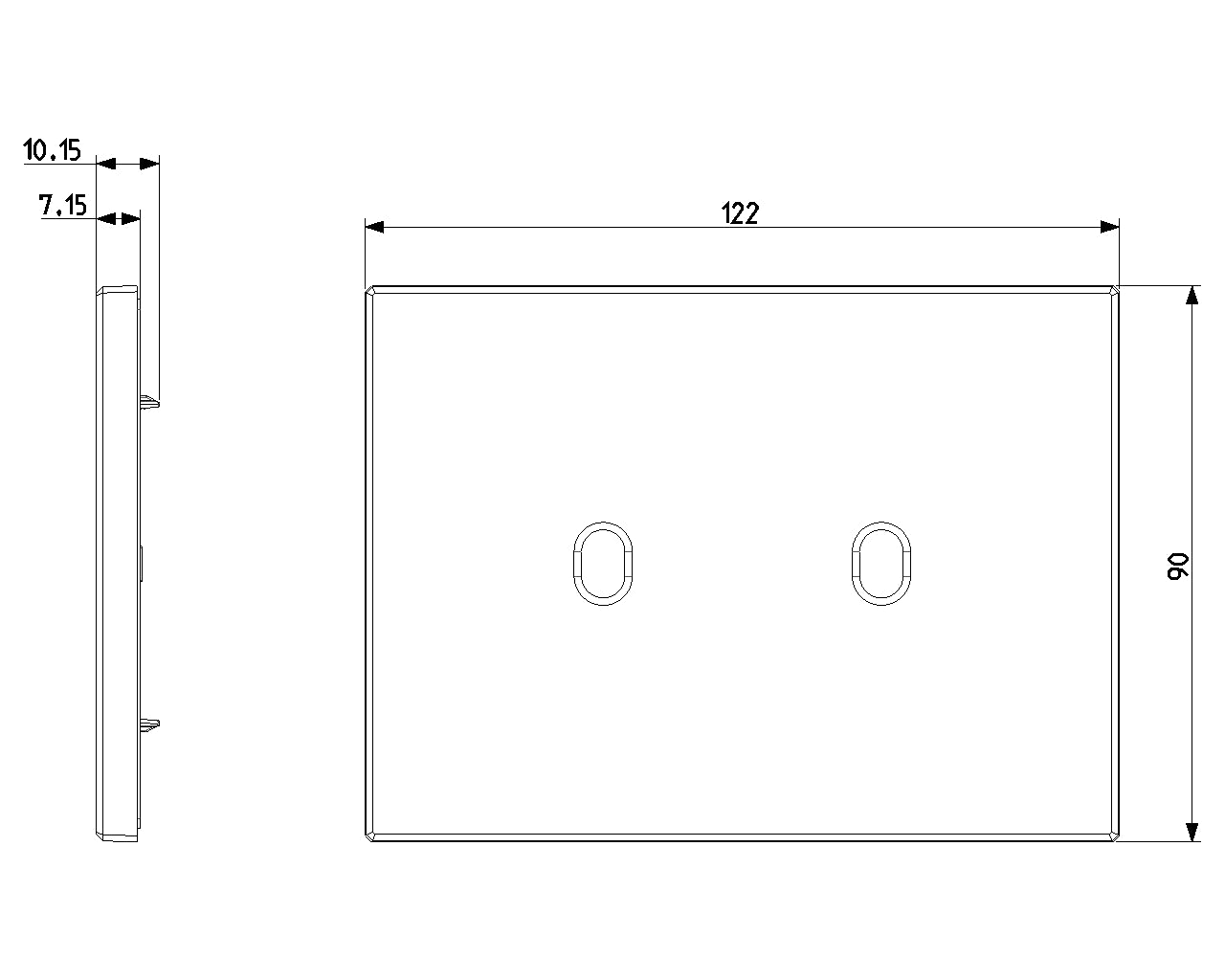

Technical drawings

VM-22673.2.12 Drawings
Drawings

Downloads

FAQ

What type of project is the Vimar Eikon Plate 3Mx2 Vintage Brushed Dark Bronze suited for?

This cover plate is suited for projects using the Vimar Eikon Vintage range where a retro-inspired metal finish is desired. Its brushed dark bronze look is intended to coordinate with controls and covers for a consistent visual effect.

Is this plate part of the Vimar Eikon Vintage series?

Yes. The product name and categories identify this item as a Vimar Eikon Vintage cover plate. It is intended for use within that design family.

What finish and colour does model VM-22673.2.12 have?

Model VM-22673.2.12 has a brushed dark bronze finish. The listed finish colour is bronze.

What temperature range is this Vimar Eikon plate rated for?

This model is listed with a minimum temperature of -20 °C and a maximum temperature of 50 °C. Those values describe the stated operating temperature range for this product.

What is the weight of the Vimar Eikon Plate 3Mx2 Vintage Brushed Dark Bronze?

The listed weight for this cover plate is 0.2136 kg. This can be useful for procurement, shipping estimates, and product comparison.

What warranty period is listed for this Vimar cover plate?

The warranty period listed for this model is 3 years. This applies to SKU VM-22673.2.12 as provided in the product data.
