Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

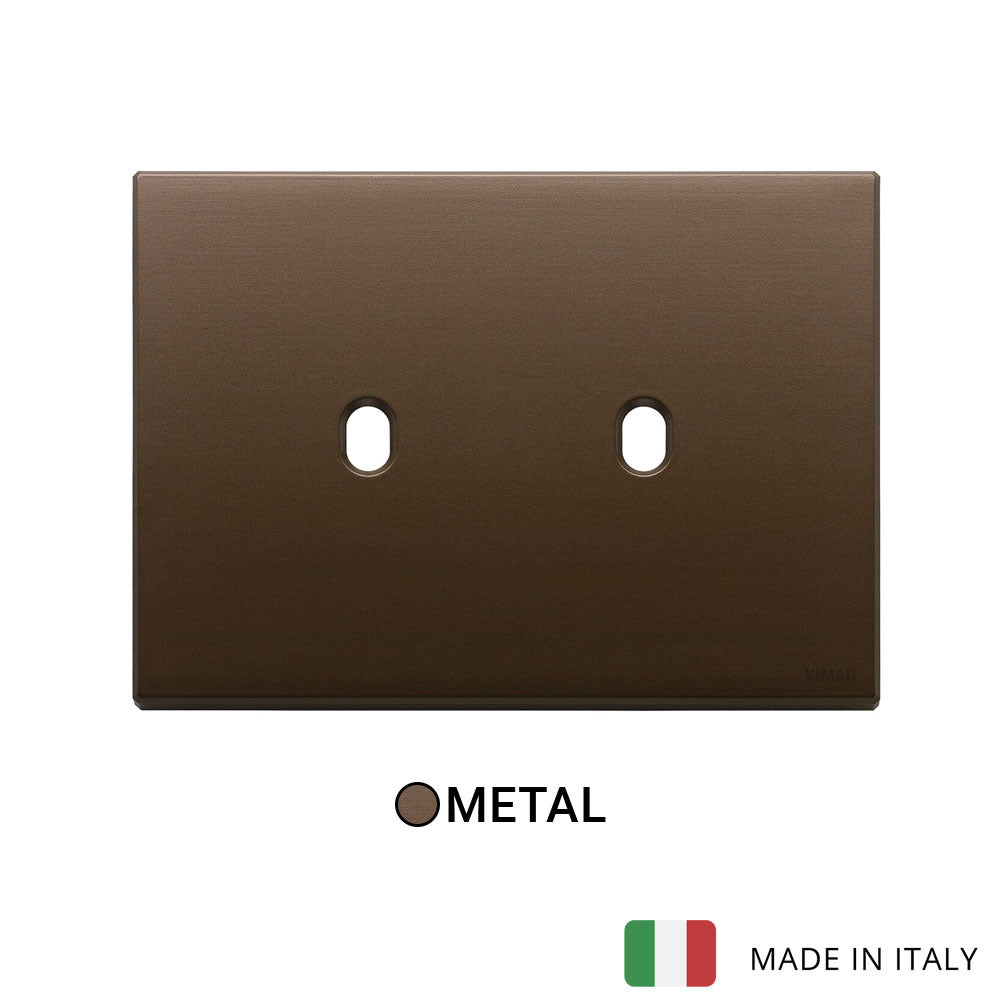

Vimar Eikon Plate 3Mx3 Vintage Brushed Dark Bronze

3 Module Dark Bronze
SKU VM-22673.3.12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-22673.3.12 is Vimar EIKON 22673.3.12, plate 3Mx3 Vintage brushed dark bronze.

Plate 3Mx3 Vintage brushed dark bronze

Specifications

VM-22673.3.12Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
3
Number of device inserts vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Surface protection
Lacquered
Surface finishing
Matt
Colour
Bronze
RAL-number (similar)
7013
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122 mm
Height
90 mm
Depth
7.15 mm
Built-in width
122 mm
Built-in height
90 mm

Packaging

EAN
8007352621947
Packed size (cm)
12.5 × 9.5 × 1.4
Packed weight
212.4 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), IMQ (Italy)

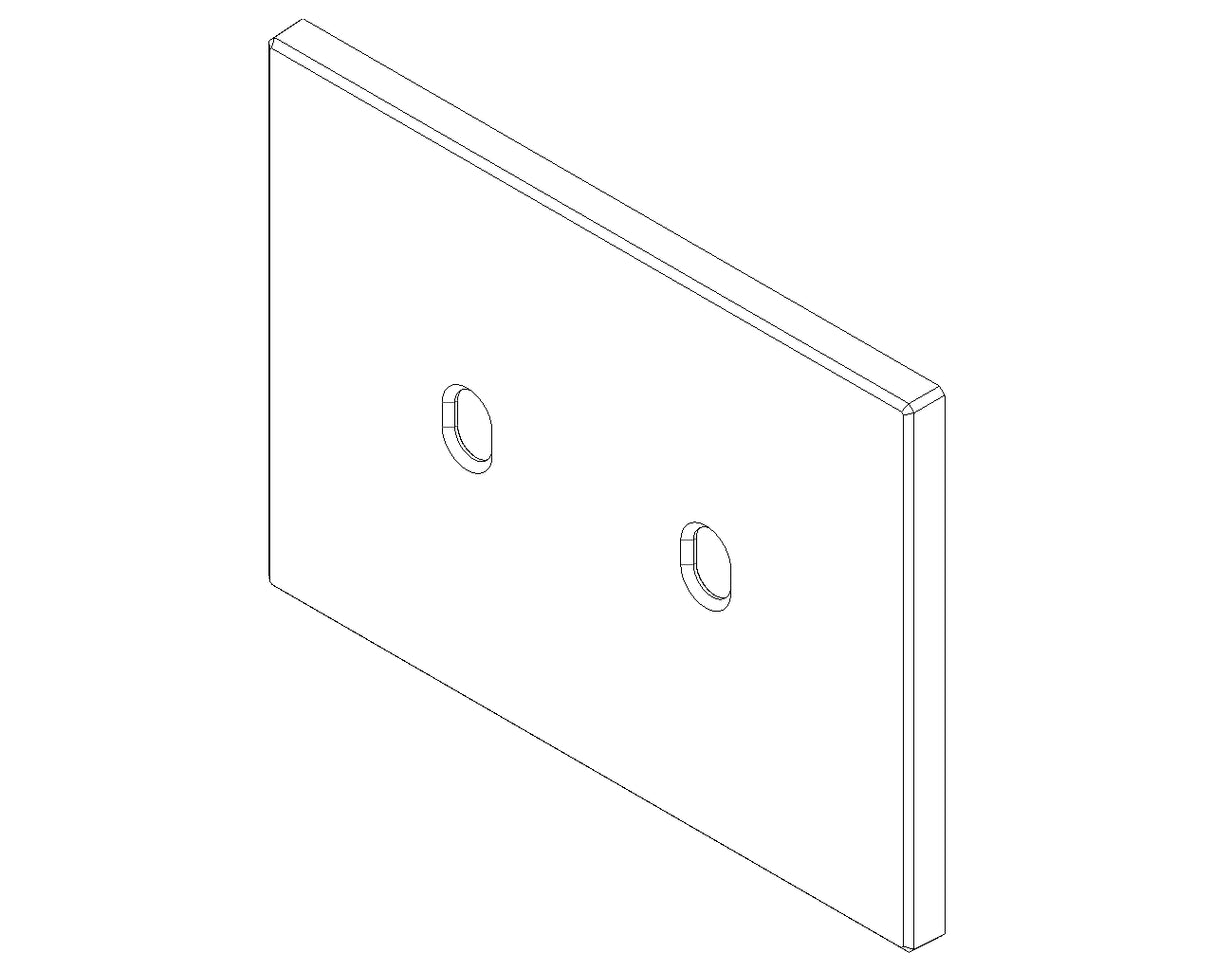

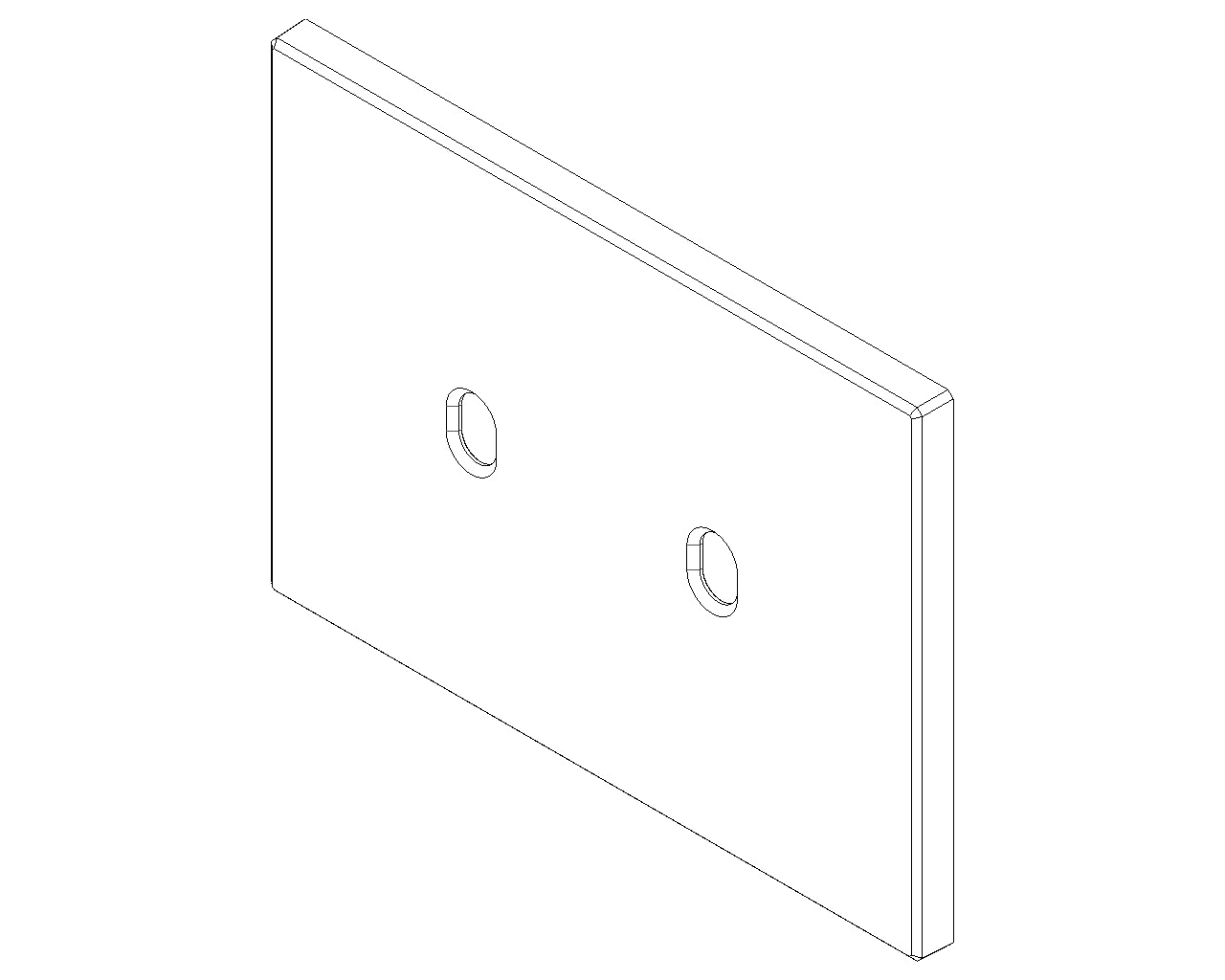

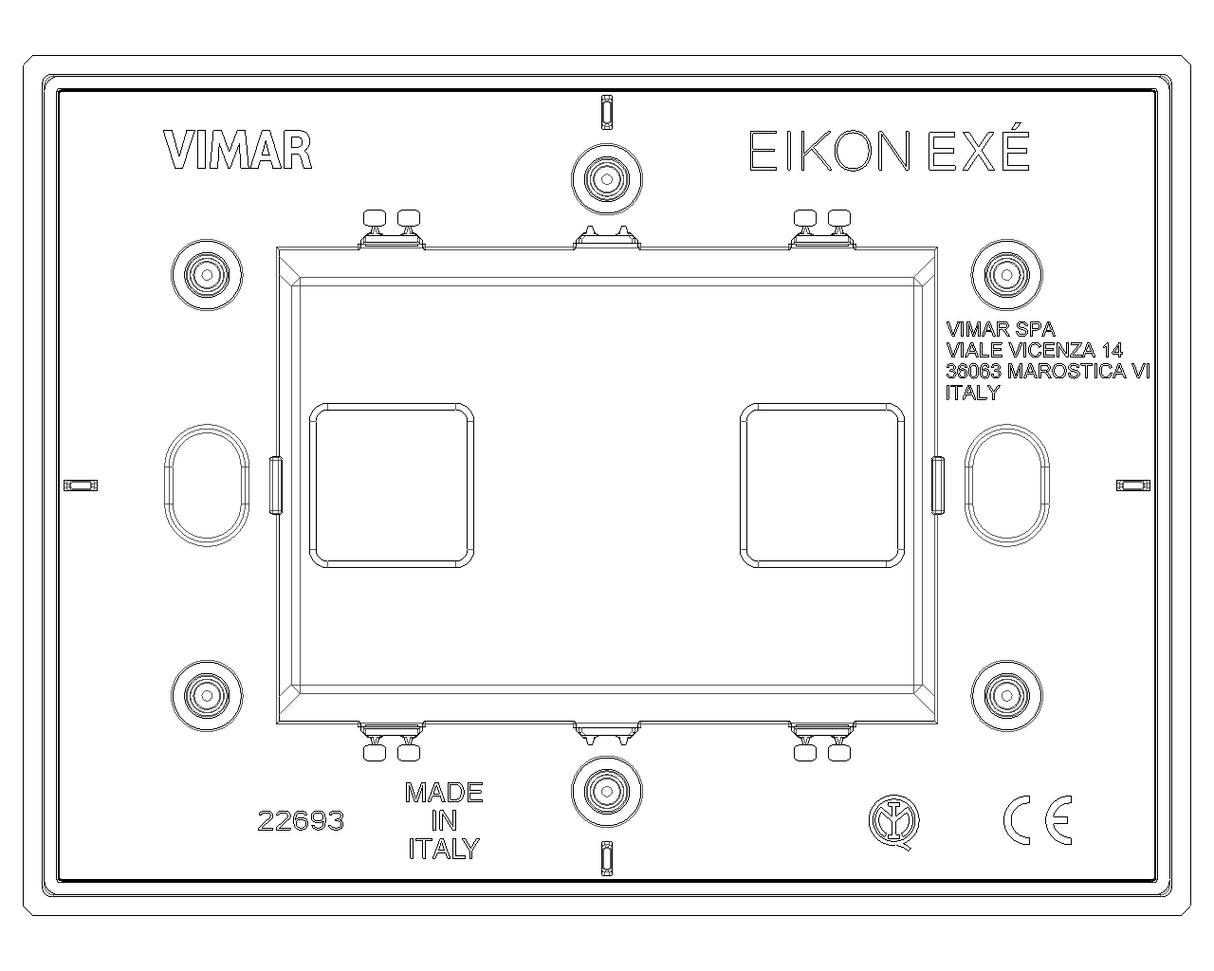

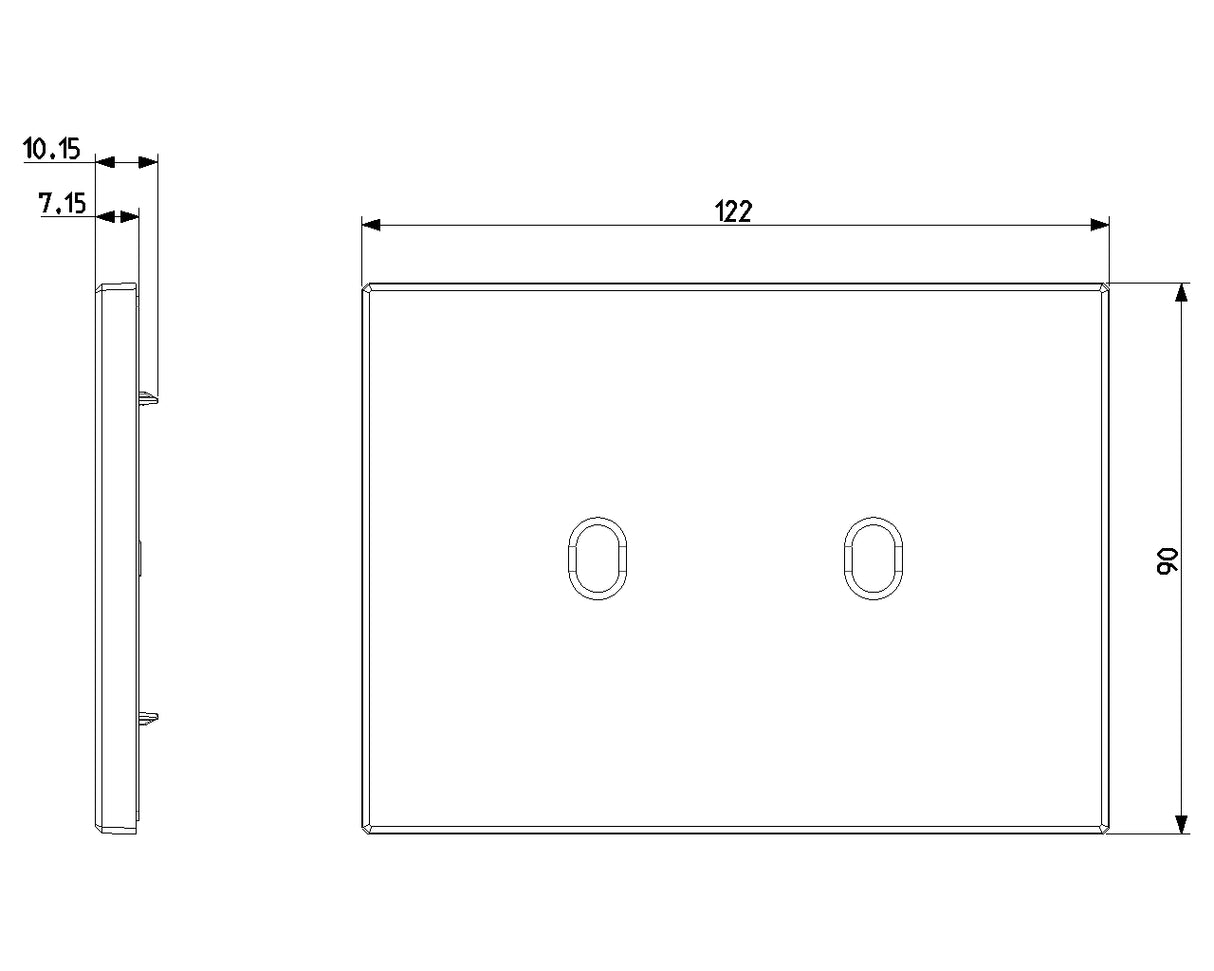

Technical drawings

VM-22673.3.12 Drawings
Drawings

Downloads

FAQ

What is the VM-22673.3.12 used for?

The VM-22673.3.12 is a Vimar Eikon Vintage switch cover plate for completing the visible face of compatible light switch and socket layouts. Its brushed dark bronze finish is intended for spaces where a coordinated, retro-inspired Eikon Vintage look is required.

Is this product part of the Vimar Eikon Vintage range?

Yes. This model is listed as a Vimar Eikon Vintage cover plate and is intended for use within that design series. The product name specifies a 3Mx3 Vintage brushed dark bronze plate.

What finish and colour does this cover plate have?

This model has a brushed dark bronze finish. The listed finish colour is bronze, giving the plate a darker metallic appearance suited to coordinated Eikon Vintage controls and covers.

What environments is the VM-22673.3.12 rated for?

The listed operating temperature range is -20 °C to 50 °C. That makes it suitable for environments within those temperature limits, based on the product data provided.

How heavy is this Vimar Eikon Vintage plate?

The VM-22673.3.12 has a listed weight of 0.2124 kg. This is useful for specification, procurement, and shipment planning when ordering multiple cover plates for a project.

What warranty applies to this model?

The listed warranty period for this product is 3 years. This applies specifically to SKU VM-22673.3.12 based on the provided product specifications.
