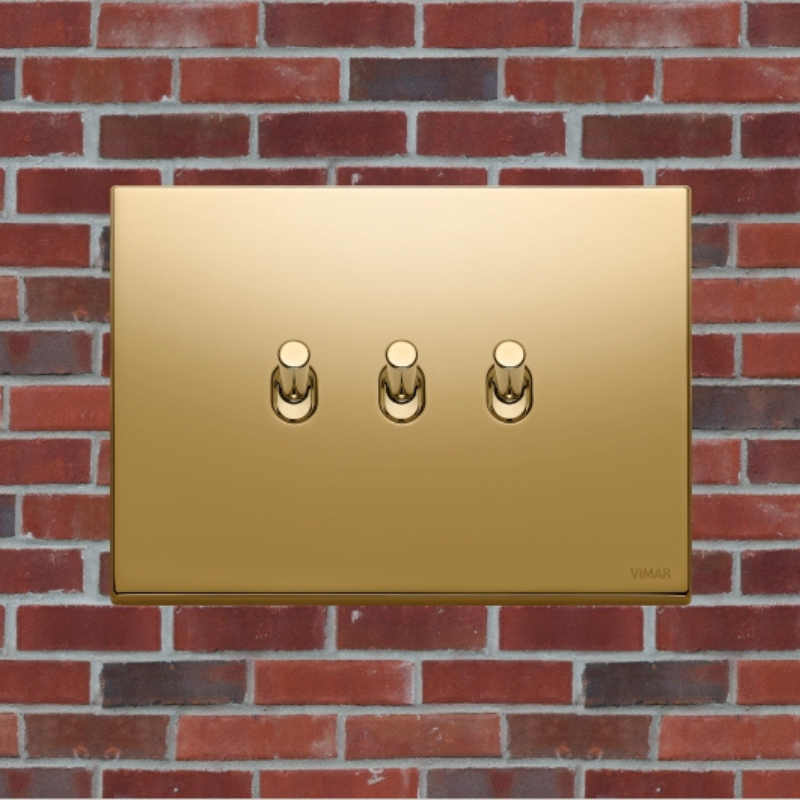

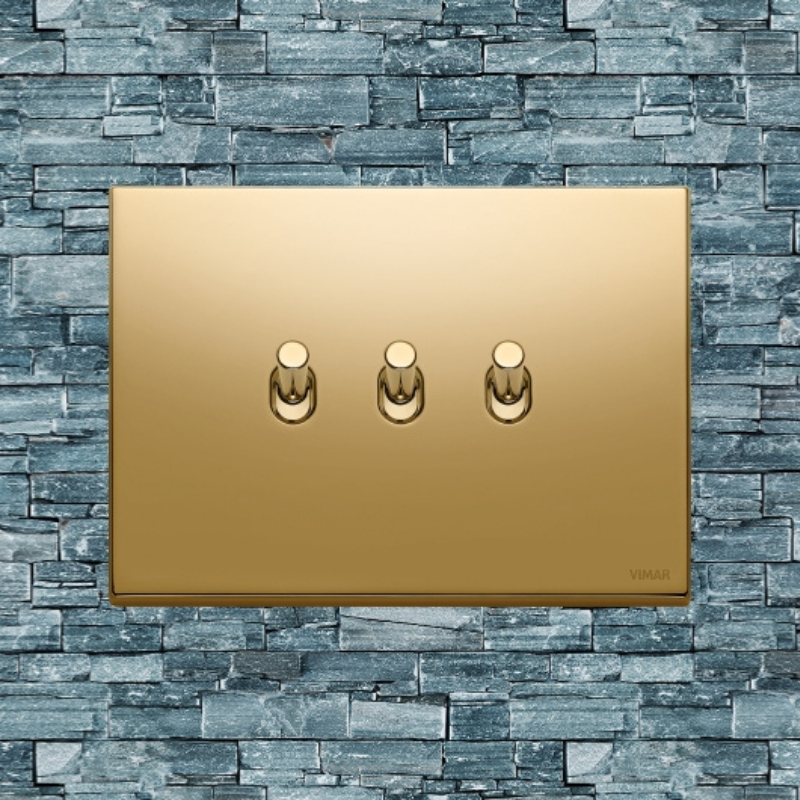

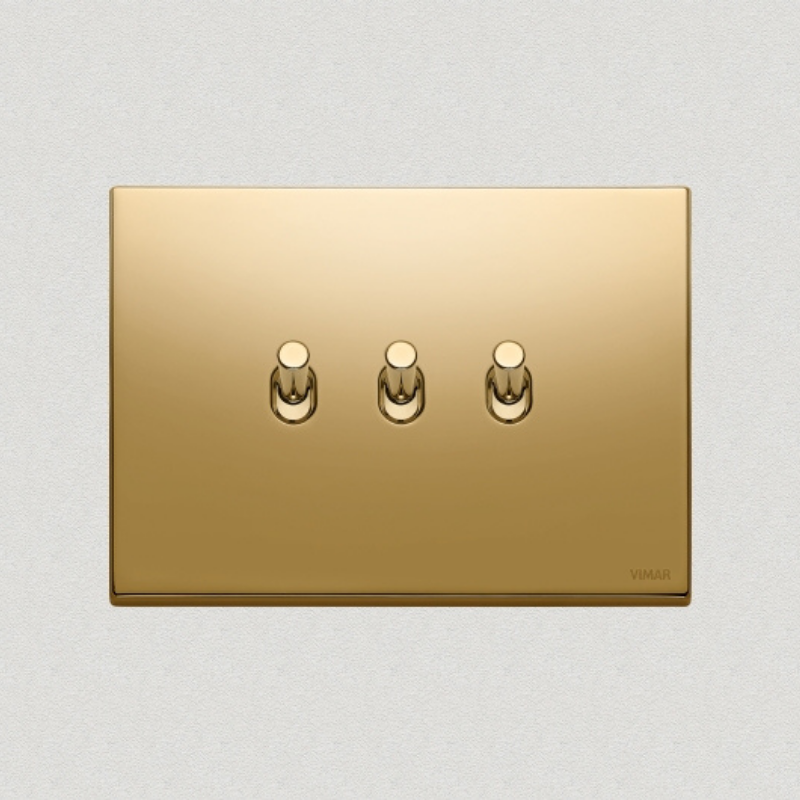

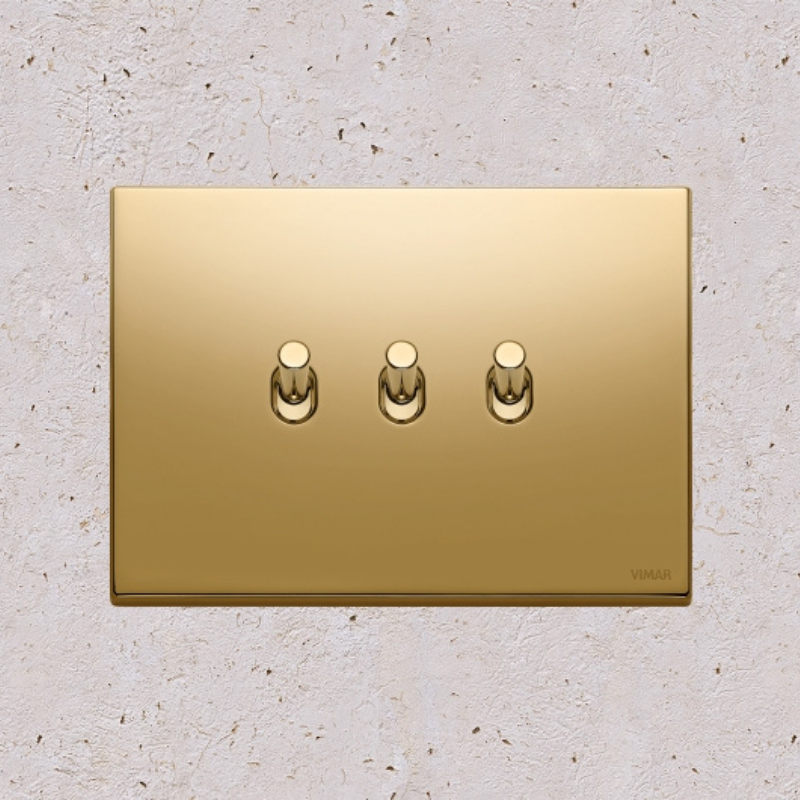

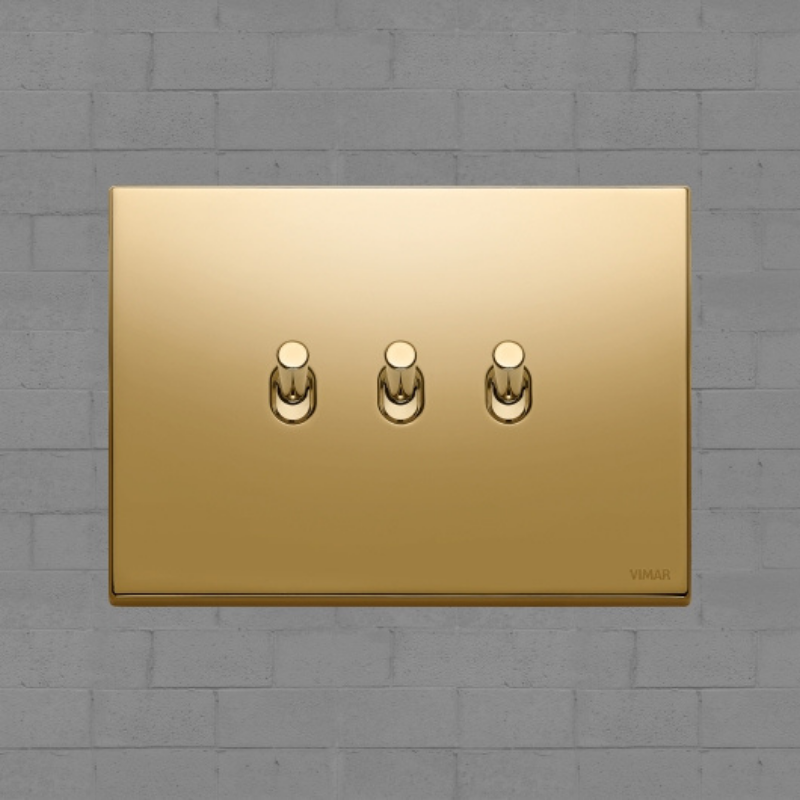

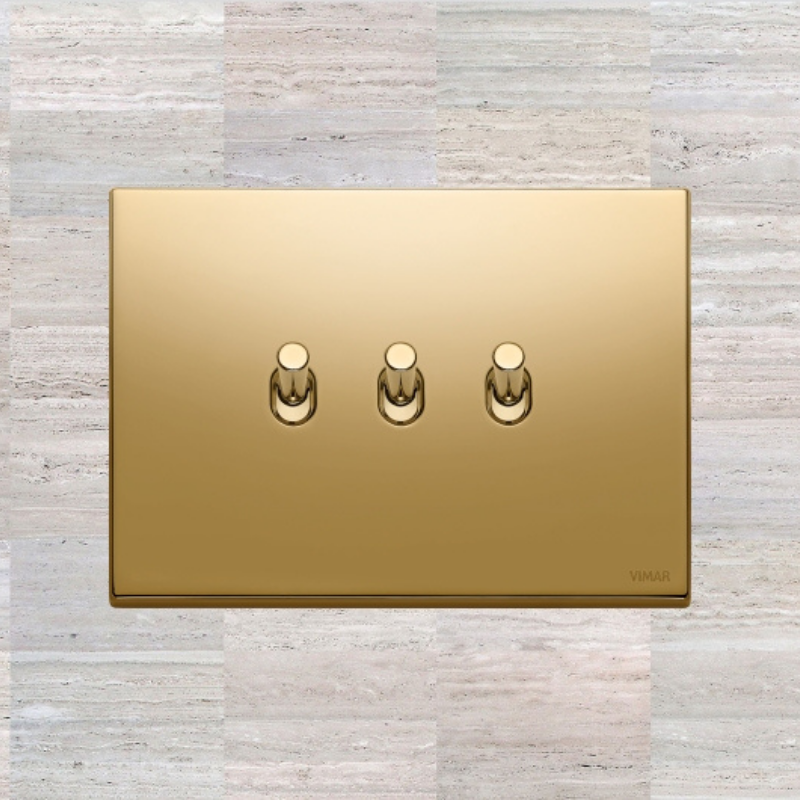

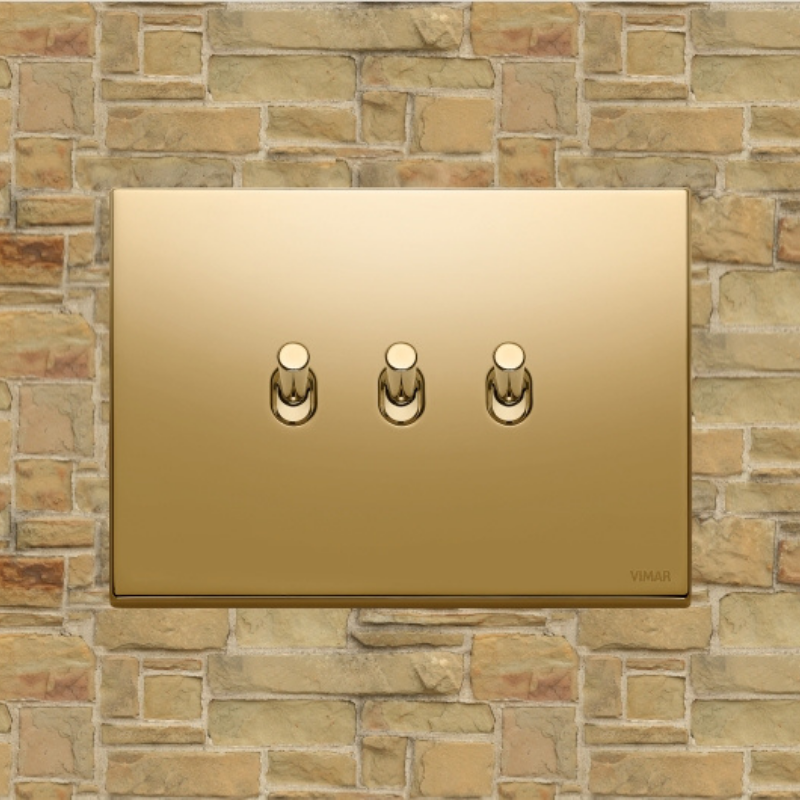

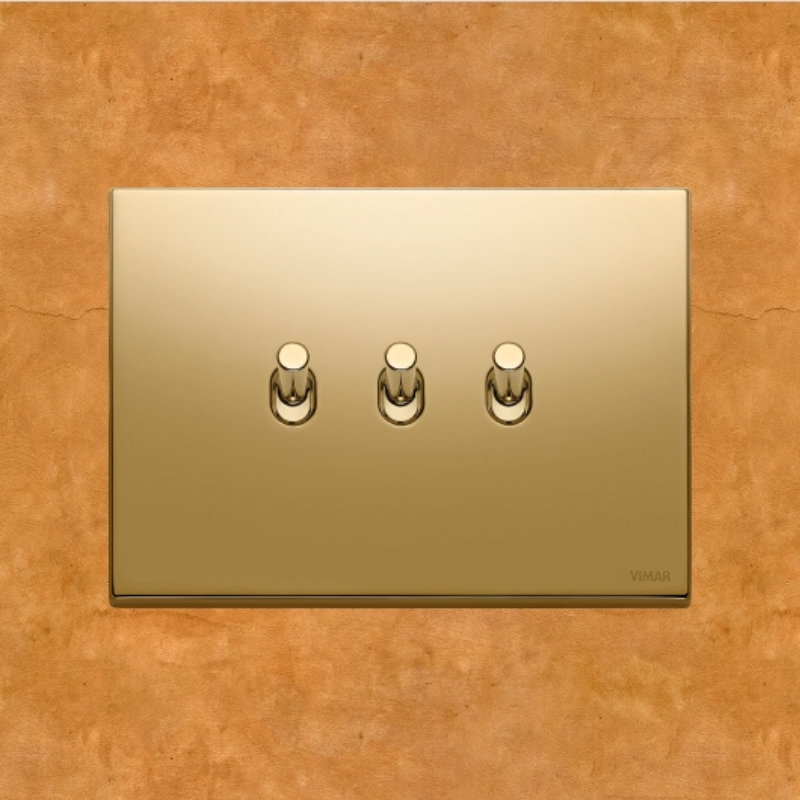

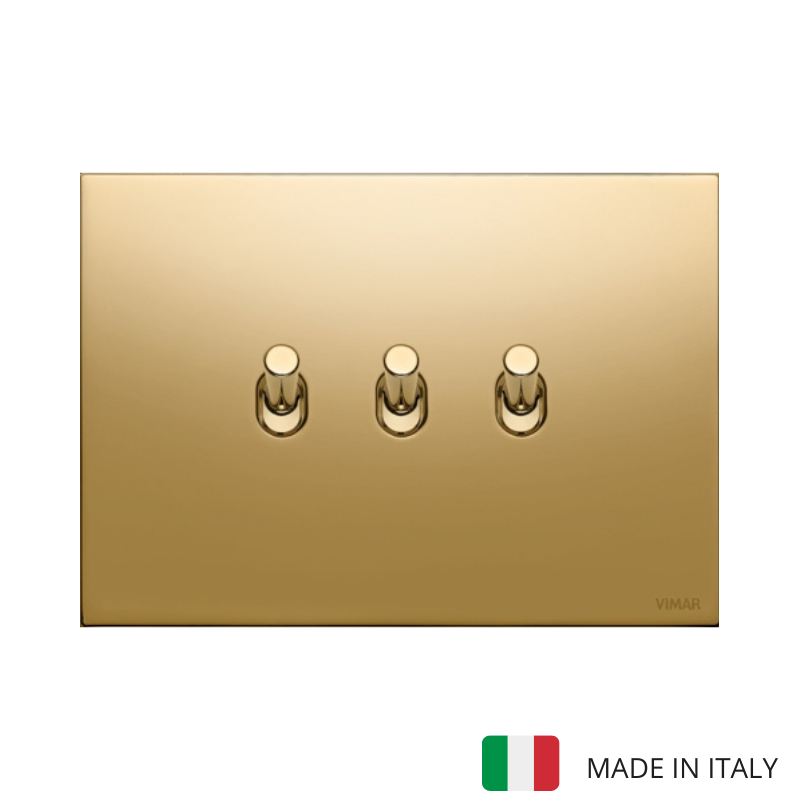

Vimar Eikon Vintage Metal 3 Gang Switch - Gold - 10A
Log in to see priceOverview
This kit is assembled from Vimar parts: 1 × plate 3Mx3 Vintage gold (VM-22673.3.82); 1 × frame 3M +screws (VM-21613); 3 × 1P 10AX 2-way switch Vintage gold (VM-22004.82). Each part's specifications follow, with a link to its own page.
Specifications
Kit contents
- Cover plate × 1
- VM-22673.3.82 · plate 3Mx3 Vintage gold
- Frame × 1
- VM-21613 · frame 3M +screws
- Installation switch × 3
- VM-22004.82 · 1P 10AX 2-way switch Vintage gold
Cover plate (VM-22673.3.82)
- Product type
- Cover frame for domestic switching devices
- Number of units
- 3
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 3
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 3
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Metal
- Surface protection
- Lacquered
- Surface finishing
- Glossy
- Colour
- Gold
- RAL-number (similar)
- 1036
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 122 mm
- Height
- 90 mm
- Depth
- 7.15 mm
- Built-in width
- 122 mm
- Built-in height
- 90 mm
- Certifications
- CE marking (EU), IMQ (Italy)
Frame (VM-21613)
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 3
- Number of modules vertical (module system)
- 1
- With screws
- Yes
- Flush-mounted installation
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Certifications
- CE marking (EU), IMQ (Italy), Product Environm. Profile
Installation switch (VM-22004.82)
- Product type
- Installation switch
- Wiring system
- Two-way switch
- Assembly arrangement
- Modular device for domestic switching devices
- Number of modules (module system)
- 1
- Push button switch
- Yes
- Number of rockers
- 1
- Mounting method
- Flush-mounted
- Type of fastening
- Engage (snap)
- Material
- Plastic
- Surface protection
- Metallic
- Surface finishing
- Glossy
- Colour
- Gold
- RAL-number (similar)
- 1004
- Label space/information surface
- Yes
- Function lighting
- Control and orientation
- Nominal voltage
- 250 V
- Rated current
- 10 A
- Connection type
- Screwed terminal
- Device width
- 22.3 mm
- Device height
- 48.8 mm
- Device depth
- 54.7 mm
- Built-in depth
- 32 mm
- Certifications
- CE marking (EU), INMETRO (Brazil), IMQ (Italy), ISI (India), VDE (Germany), SNI-SUCOFINDO Indonesia, RoHS UAE, CCC (China), NOM (Mexico), WEEE Directive, IQC (Argentina)
Technical drawings
Downloads
Datasheet3
Catalogues15
FAQ
What type of project is the Vimar Eikon Vintage Metal 3 Gang Switch suited for?
This model is suited for premium residential, hospitality, retail, and commercial interiors where a coordinated decorative switch finish is important. Its Eikon Vintage design and gold metal finish make it a good fit for spaces that need a refined retro-style look rather than a plain utility switch.
What is the rated current of SKU Z-VM43GG-VG?
SKU Z-VM43GG-VG is rated at 10A. This rating should be checked against the electrical requirements of the intended circuit and project specification before selection.
How is this 3 gang switch different from a single gang switch?
This is a 3 gang switch package, intended for applications where three switch positions are required in one coordinated unit. A single gang switch would provide only one switch position, while this model supports a cleaner grouped appearance for multi-control areas.
What operating temperature range is specified for this switch?
The specified temperature range for this model is -20°C to 50°C. That makes it suitable for typical indoor environments that remain within those limits.
What finish does this Vimar Eikon Vintage switch have?
This switch has a gold finish colour. The product description highlights chromatic coordination between the controls and cover, giving the switch a unified total-look appearance.
What is the warranty period for this product?
The warranty period listed for SKU Z-VM43GG-VG is 3 years. Buyers should retain purchase and project documentation in case warranty support is needed.
How much does this 3 gang switch package weigh?
This Vimar Eikon Vintage Metal 3 Gang Switch package has a listed weight of 0.355 kg. The weight can be useful for procurement, shipping estimates, and project documentation.
