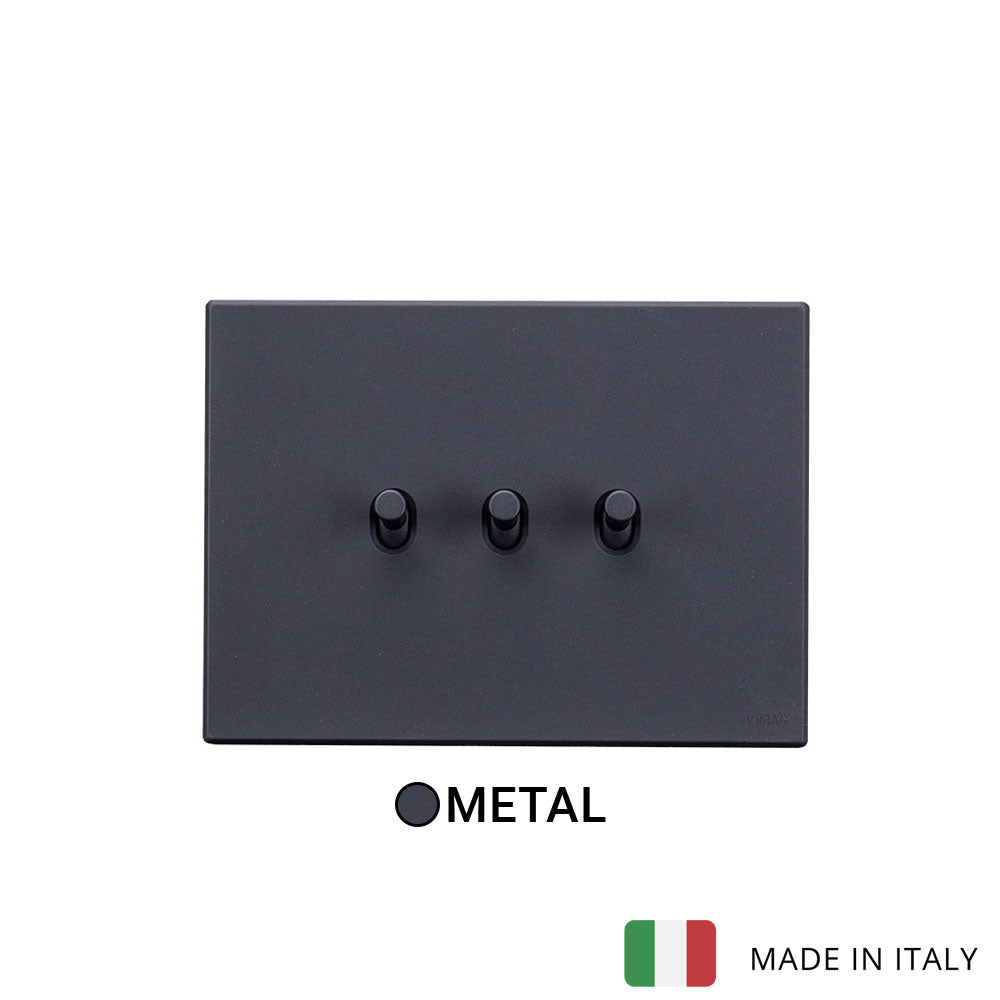

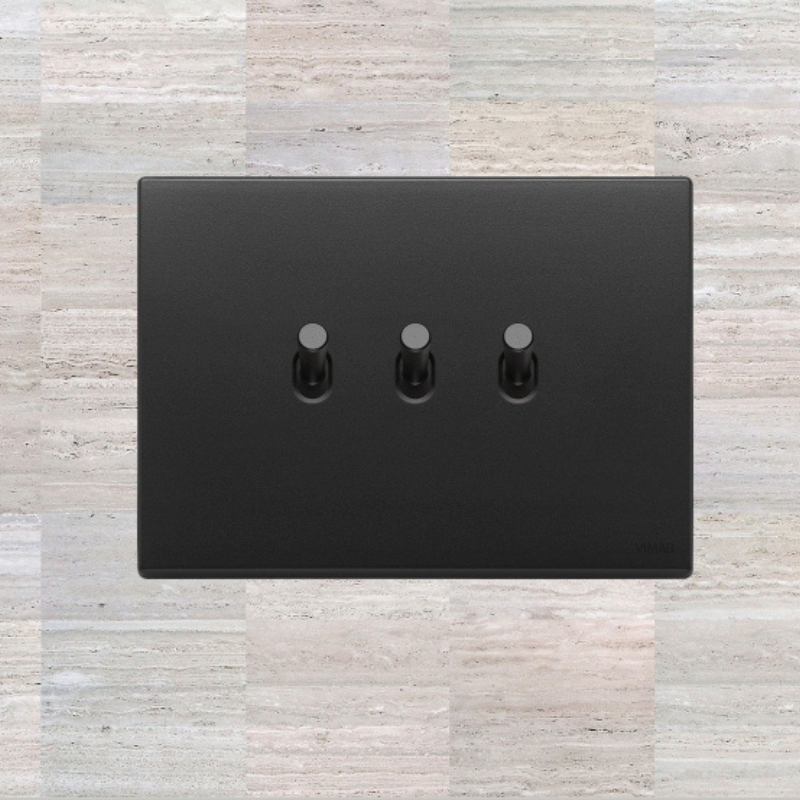

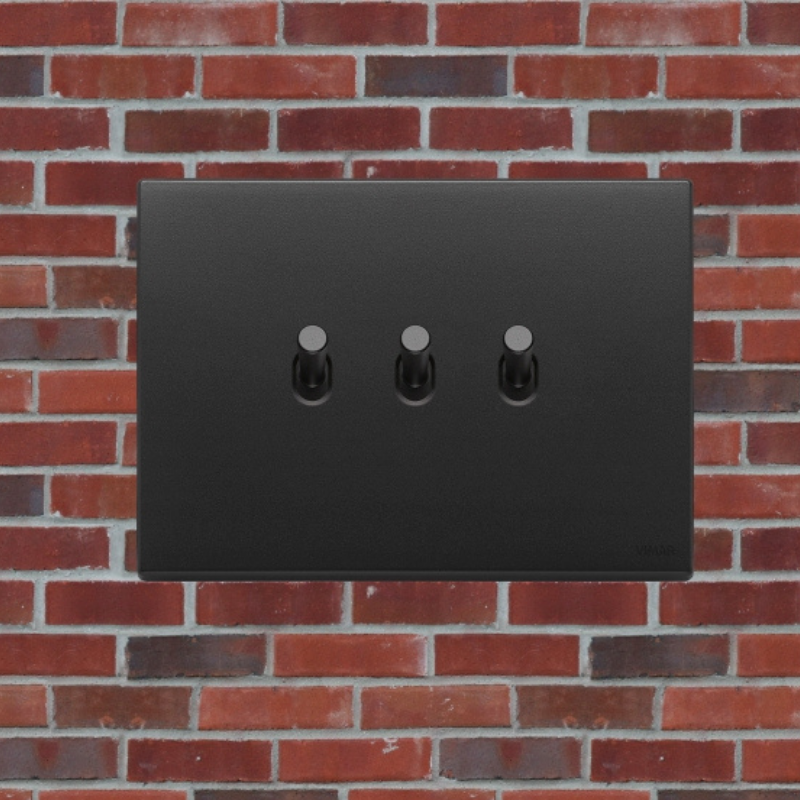

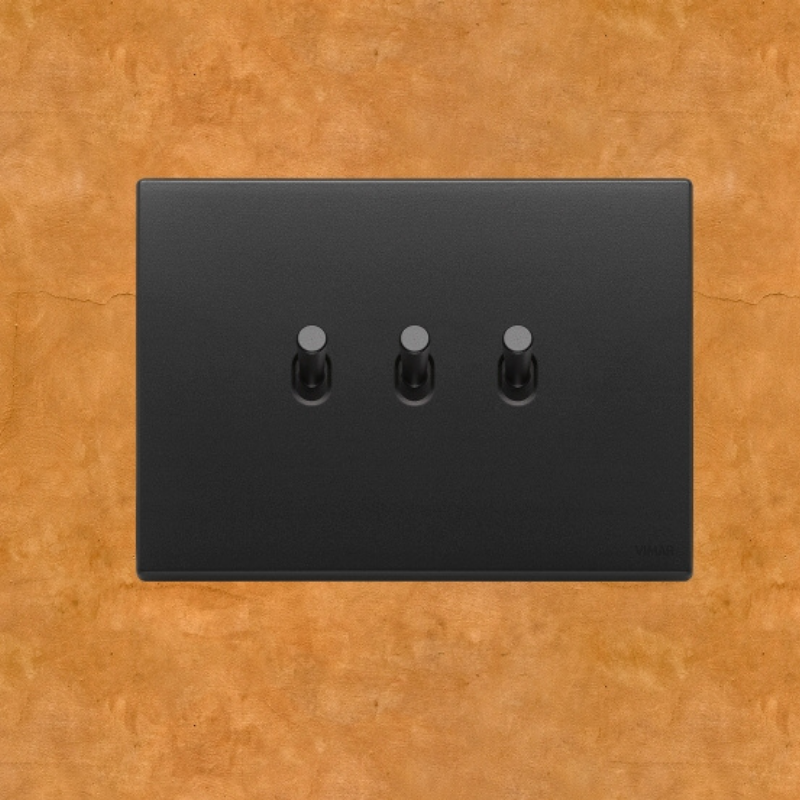

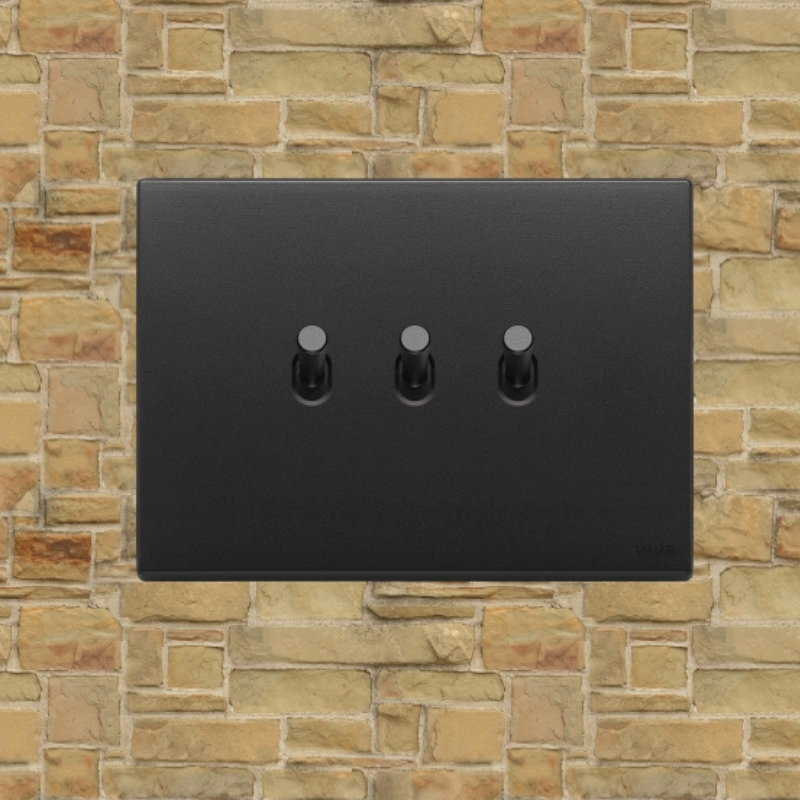

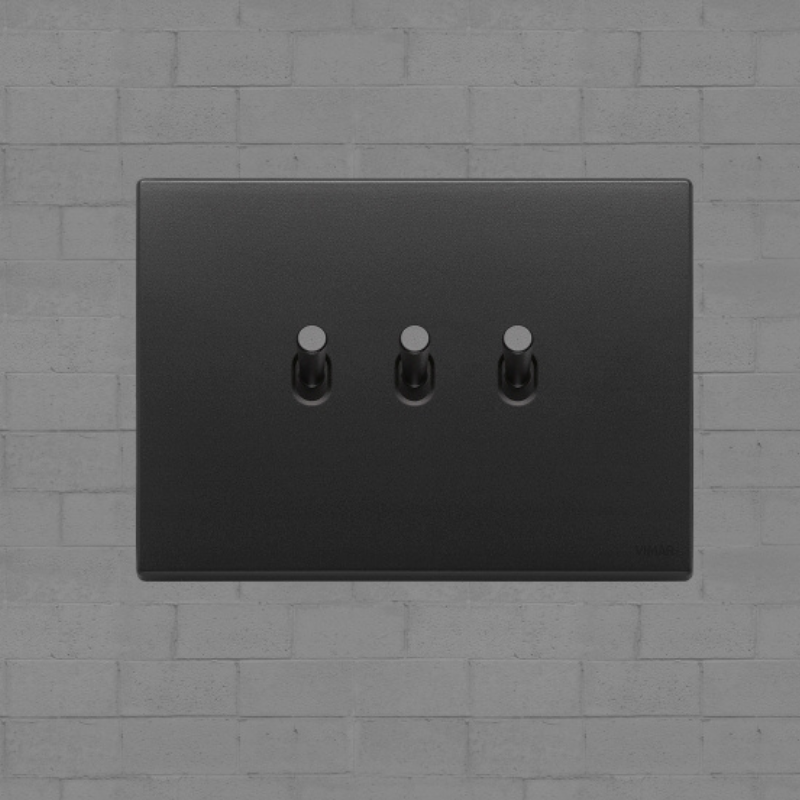

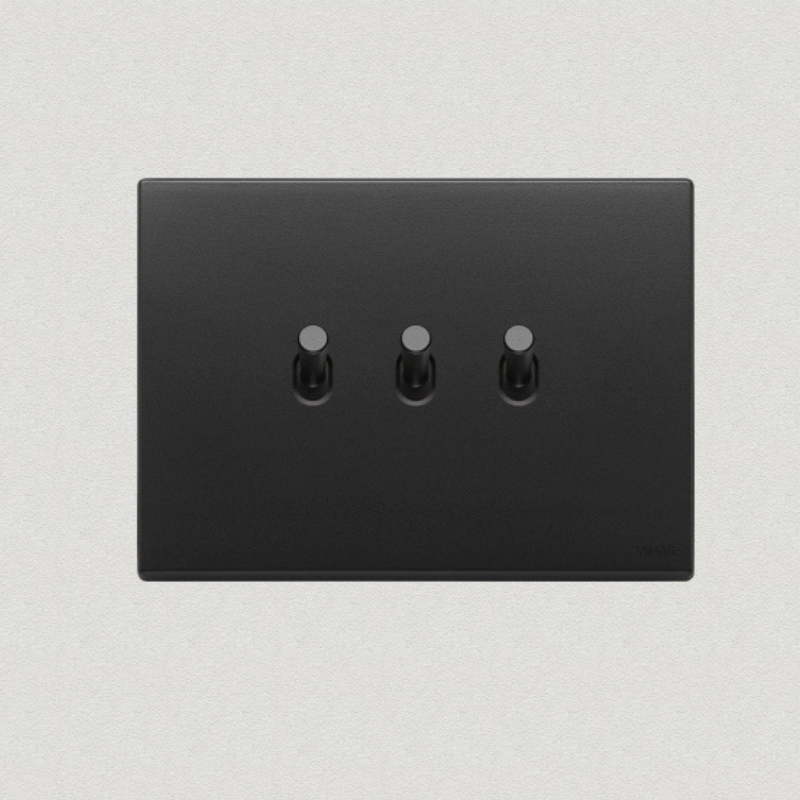

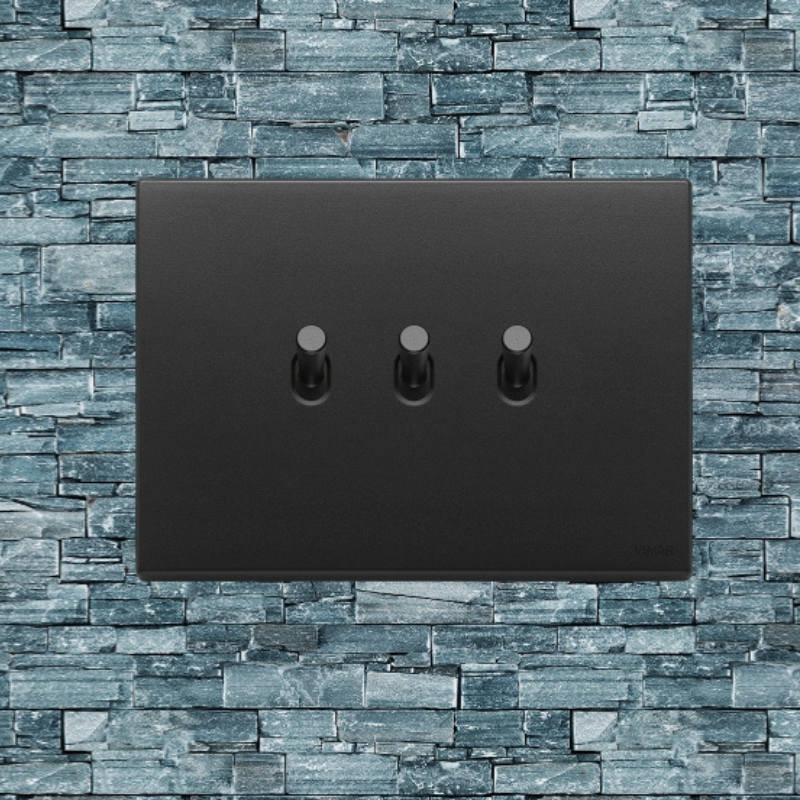

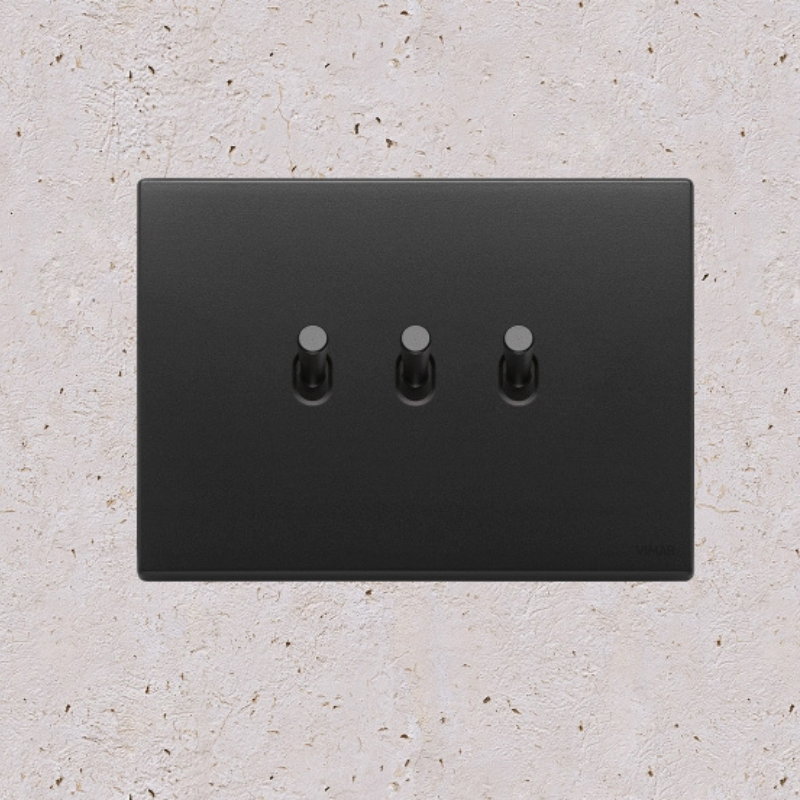

Vimar Eikon Vintage Metal 3 Gang Switch - Anthracite Grey - 10A
Log in to see priceOverview
This kit is assembled from Vimar parts: 1 × plate 3Mx3 Vintage anthracite (VM-22673.3.03); 1 × frame 3M +screws (VM-21613); 3 × 1P 10AX 2-way switch Vintage (VM-22004.03). Each part's specifications follow, with a link to its own page.
Specifications
Kit contents
- Cover plate × 1
- VM-22673.3.03 · plate 3Mx3 Vintage anthracite grey
- Frame × 1
- VM-21613 · frame 3M +screws
- Installation switch × 3
- VM-22004.03 · 1P 10AX 2-way switch Vintage grey
Cover plate (VM-22673.3.03)
- Product type
- Cover frame for domestic switching devices
- Number of units
- 3
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 3
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 3
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Metal
- Surface protection
- Lacquered
- Surface finishing
- Matt
- Colour
- Anthracite
- RAL-number (similar)
- 7043
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 122 mm
- Height
- 90 mm
- Depth
- 7.15 mm
- Built-in width
- 122 mm
- Built-in height
- 90 mm
- Certifications
- CE marking (EU), IMQ (Italy)
Frame (VM-21613)
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 3
- Number of modules vertical (module system)
- 1
- With screws
- Yes
- Flush-mounted installation
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Certifications
- CE marking (EU), IMQ (Italy), Product Environm. Profile
Installation switch (VM-22004.03)
- Product type
- Installation switch
- Wiring system
- Two-way switch
- Assembly arrangement
- Modular device for domestic switching devices
- Number of modules (module system)
- 1
- Push button switch
- Yes
- Number of rockers
- 1
- Mounting method
- Flush-mounted
- Type of fastening
- Engage (snap)
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Lacquered
- Surface finishing
- Matt
- Colour
- Grey
- RAL-number (similar)
- 7024
- Label space/information surface
- Yes
- Function lighting
- Control and orientation
- Nominal voltage
- 250 V
- Rated current
- 10 A
- Connection type
- Screwed terminal
- Device width
- 22.3 mm
- Device height
- 48.8 mm
- Device depth
- 54.7 mm
- Built-in depth
- 32 mm
- Certifications
- CE marking (EU), INMETRO (Brazil), IMQ (Italy), ISI (India), VDE (Germany), SNI-SUCOFINDO Indonesia, RoHS UAE, CCC (China), NOM (Mexico), WEEE Directive, IQC (Argentina)
Technical drawings
Downloads
Datasheet3
Catalogues15
FAQ
What type of project is the Vimar Eikon Vintage Metal 3 Gang Switch suited for?
This model is suited for projects that need a 3 gang switch with a coordinated, premium retro-modern finish. Its Eikon Vintage styling and anthracite grey metal look make it appropriate for residential, hospitality, retail, and commercial interiors where the switch appearance is part of the design specification.
What is the rated current of this switch?
The Z-VM43GB-VAG is rated at 10A. This rating should be checked against the project requirements and the applicable electrical design documentation before procurement.
How does this 3 gang model differ from simpler switch options?
This is a 3 gang switch, so it is intended for locations where three switch positions are required in one coordinated unit. It also belongs to the Vimar Eikon Vintage range, which emphasizes a metal anthracite grey finish and a retro-inspired design rather than a plain utility appearance.
What operating temperature range is specified for this product?
The specified operating temperature range is -20 °C to 50 °C. This makes the product suitable for environments that remain within that range, subject to the wider project and enclosure requirements.
What finish colour is supplied for SKU Z-VM43GB-VAG?
This SKU is supplied in grey, described in the product name as anthracite grey. The description also highlights chromatic coordination between the controls and cover for a unified total-look effect.
What warranty period applies to this Vimar Eikon Vintage switch?
The listed warranty period for this model is 3 years. Buyers specifying this for B2B projects should retain the SKU, purchase records, and project documentation for warranty reference.
What is the product weight?
The listed weight for SKU Z-VM43GB-VAG is 0.354 kg. This can be useful for order planning, handling, and logistics when purchasing multiple units for a project.
