Overview

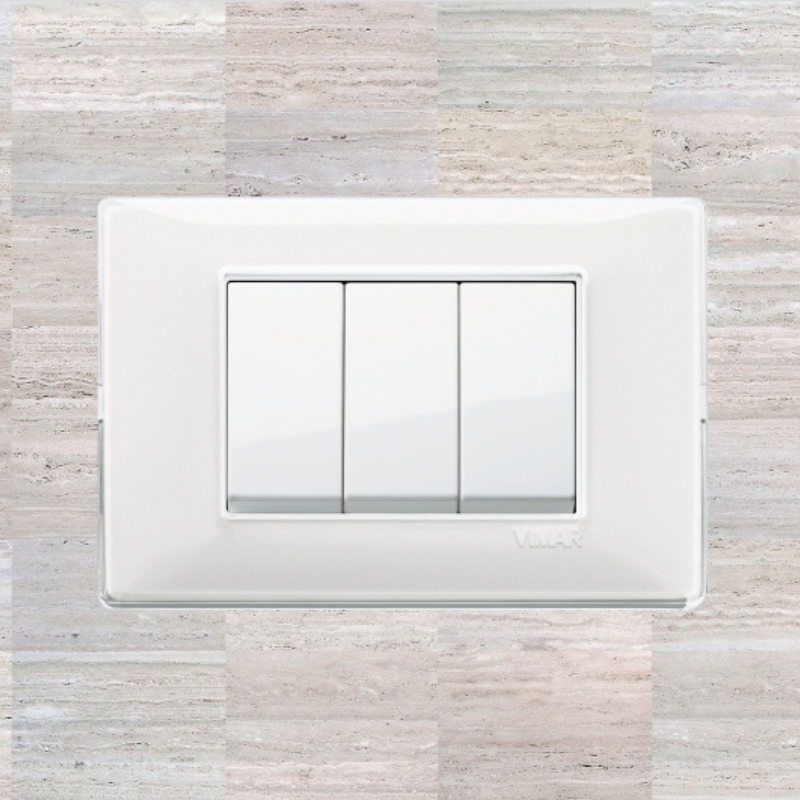

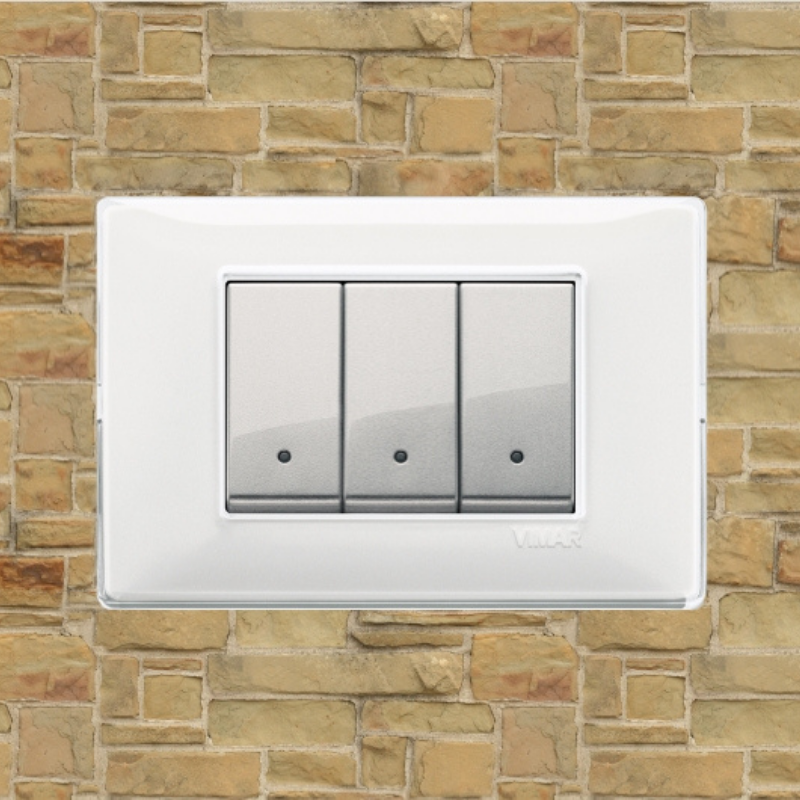

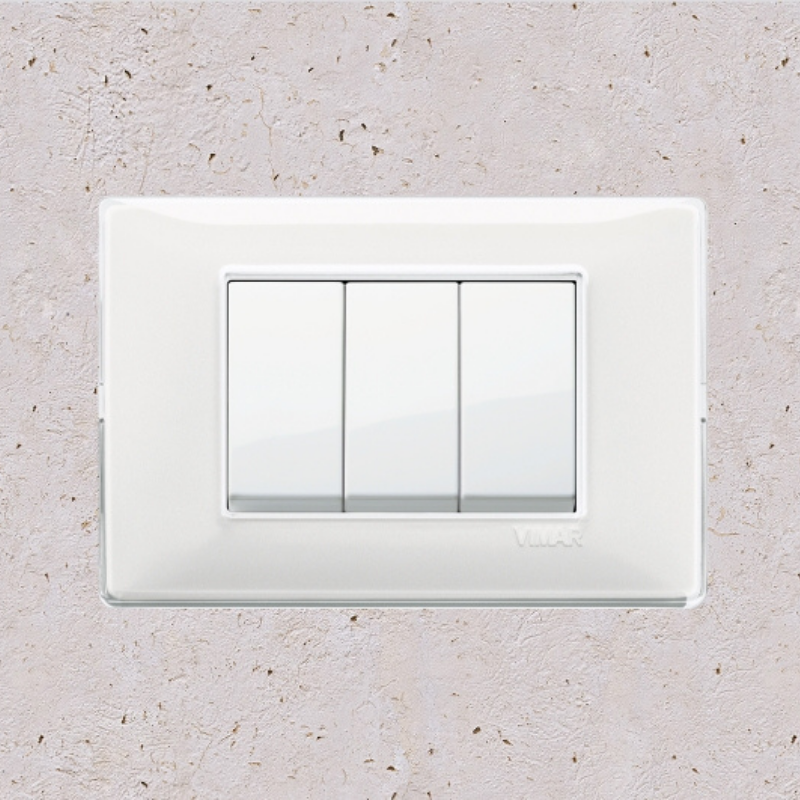

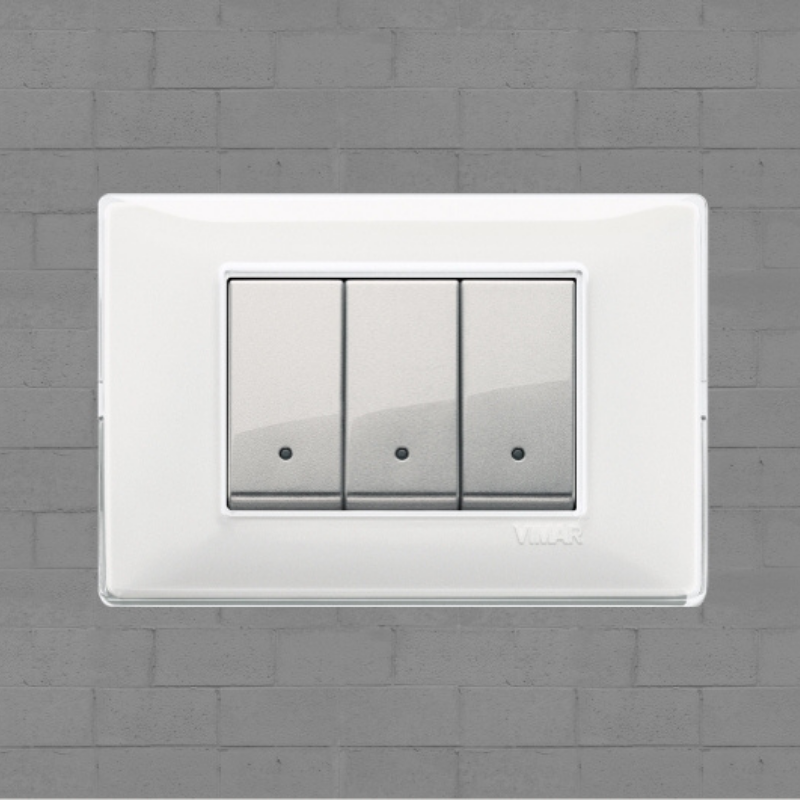

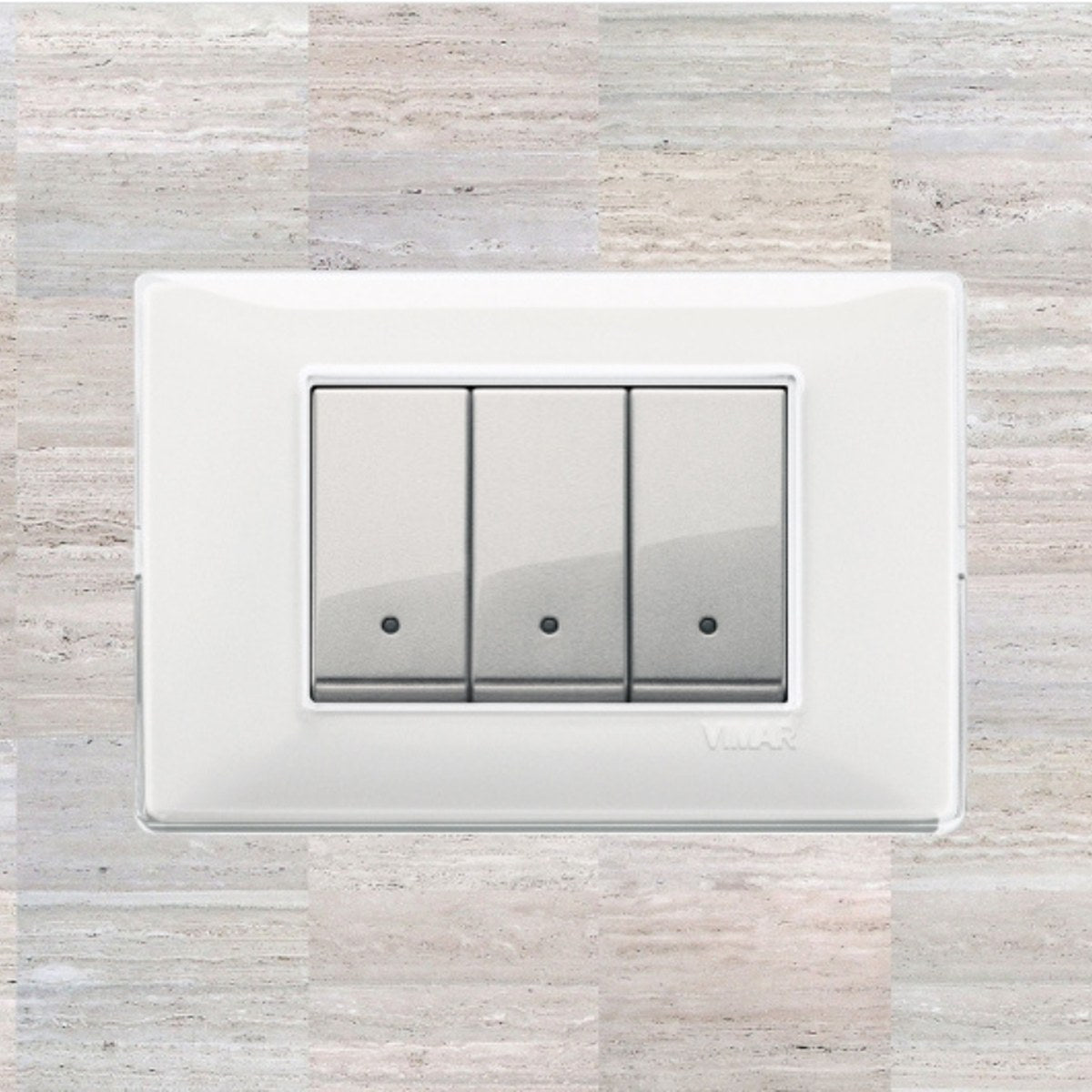

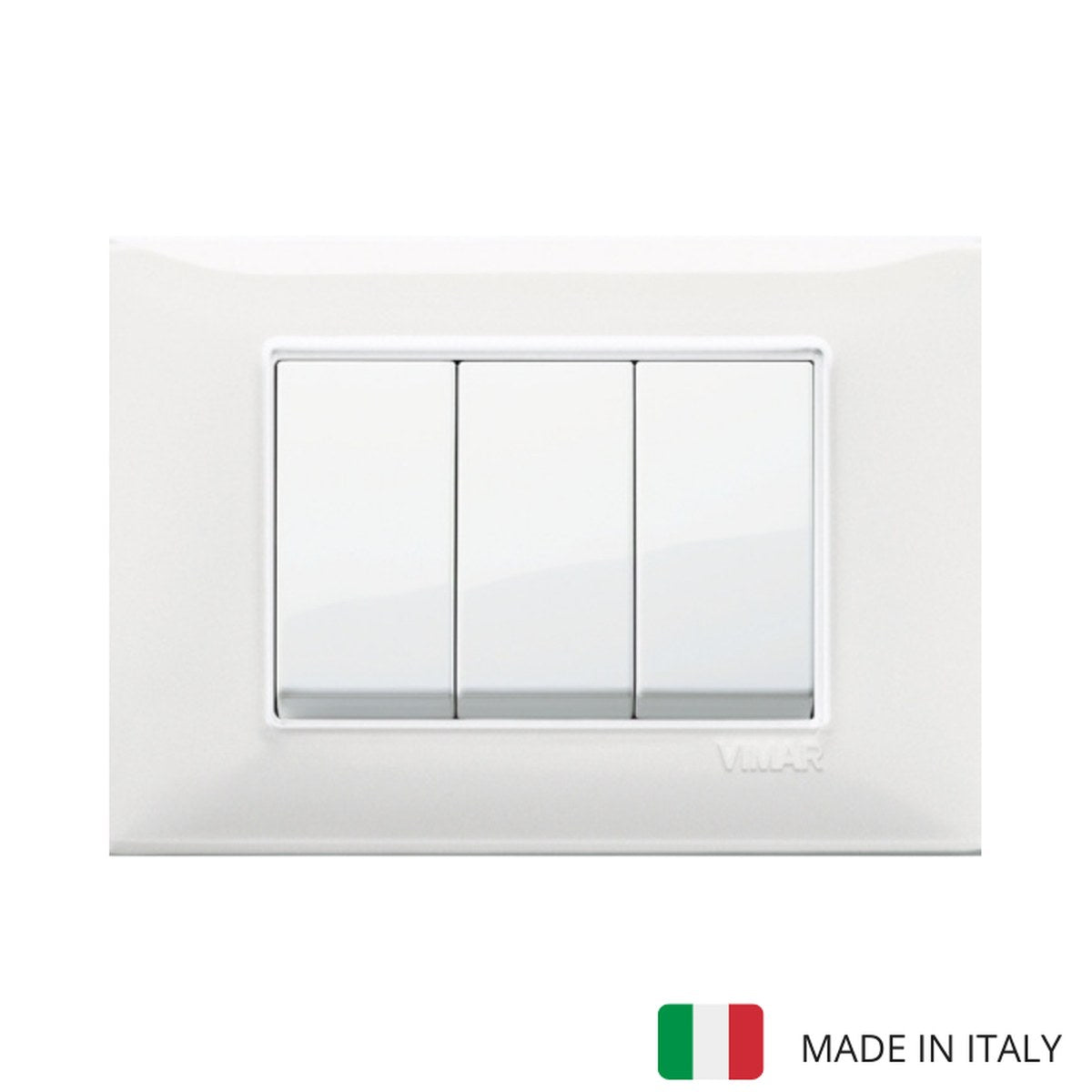

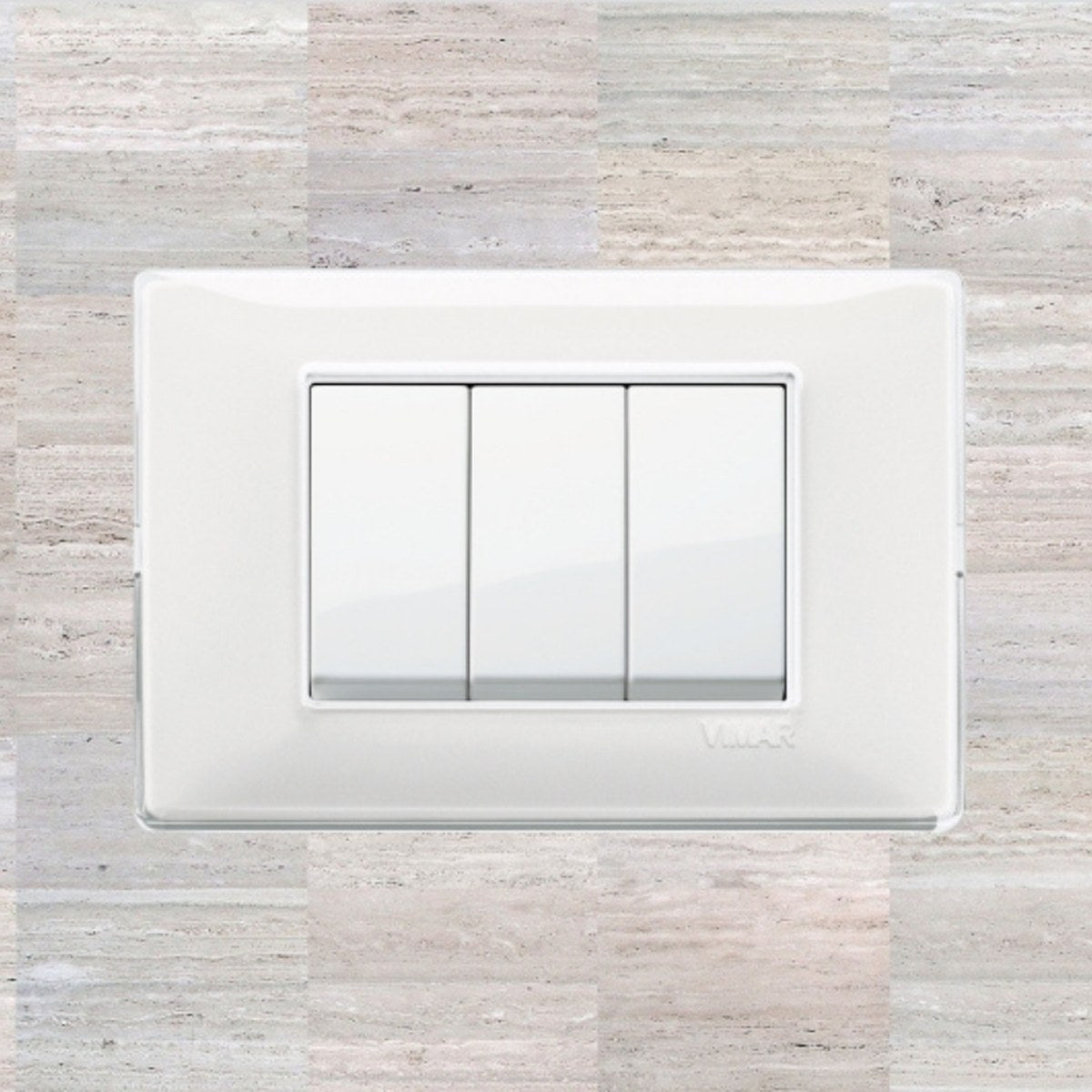

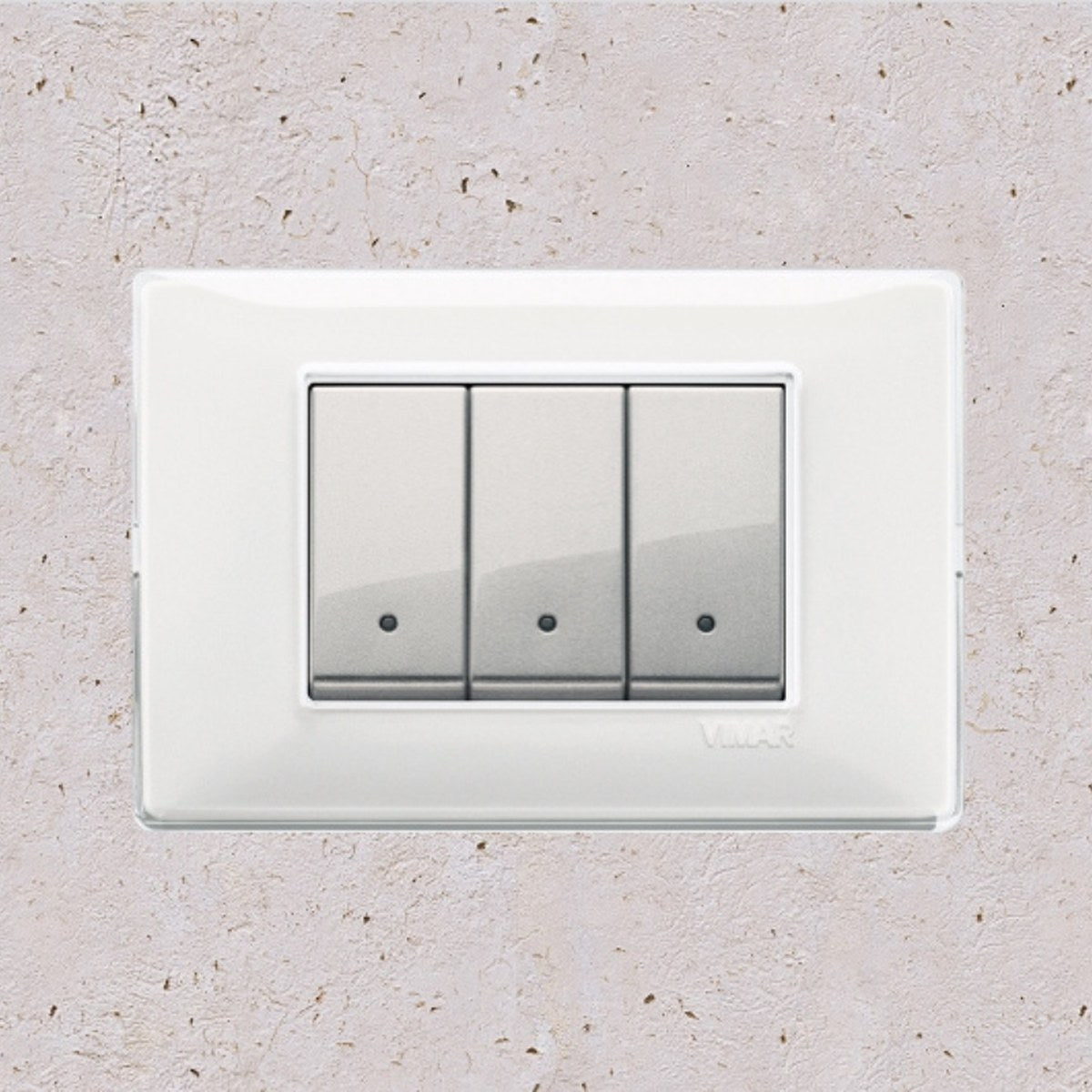

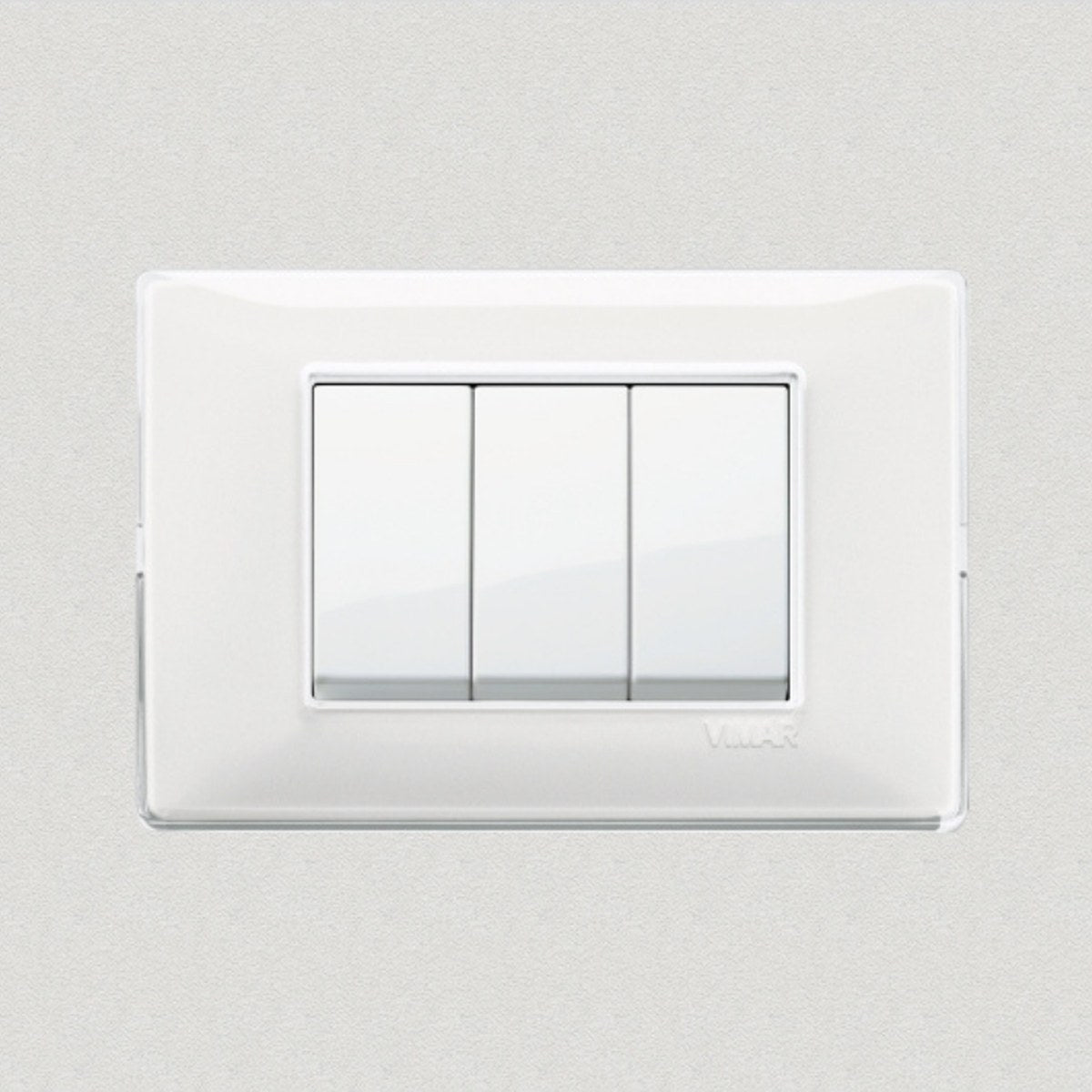

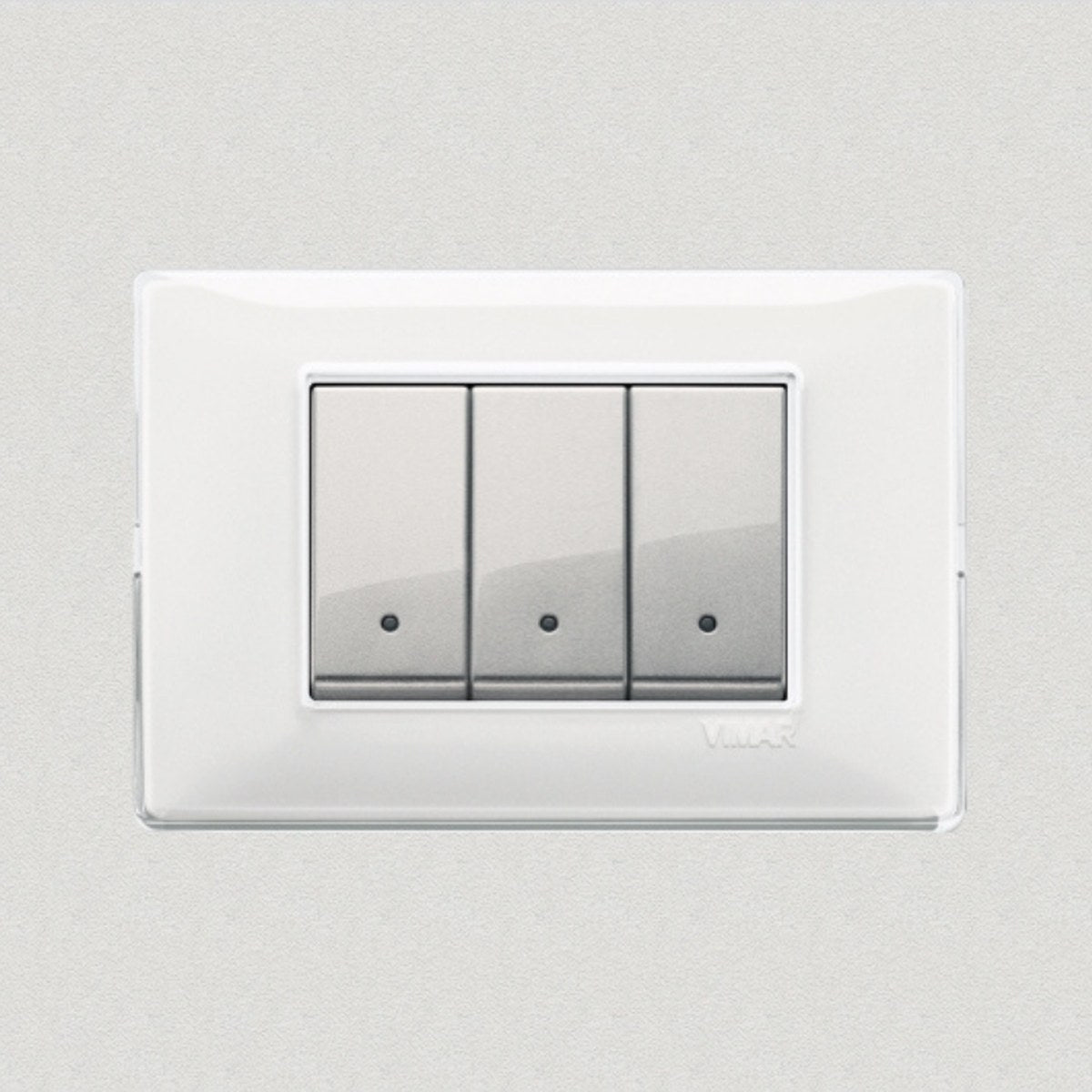

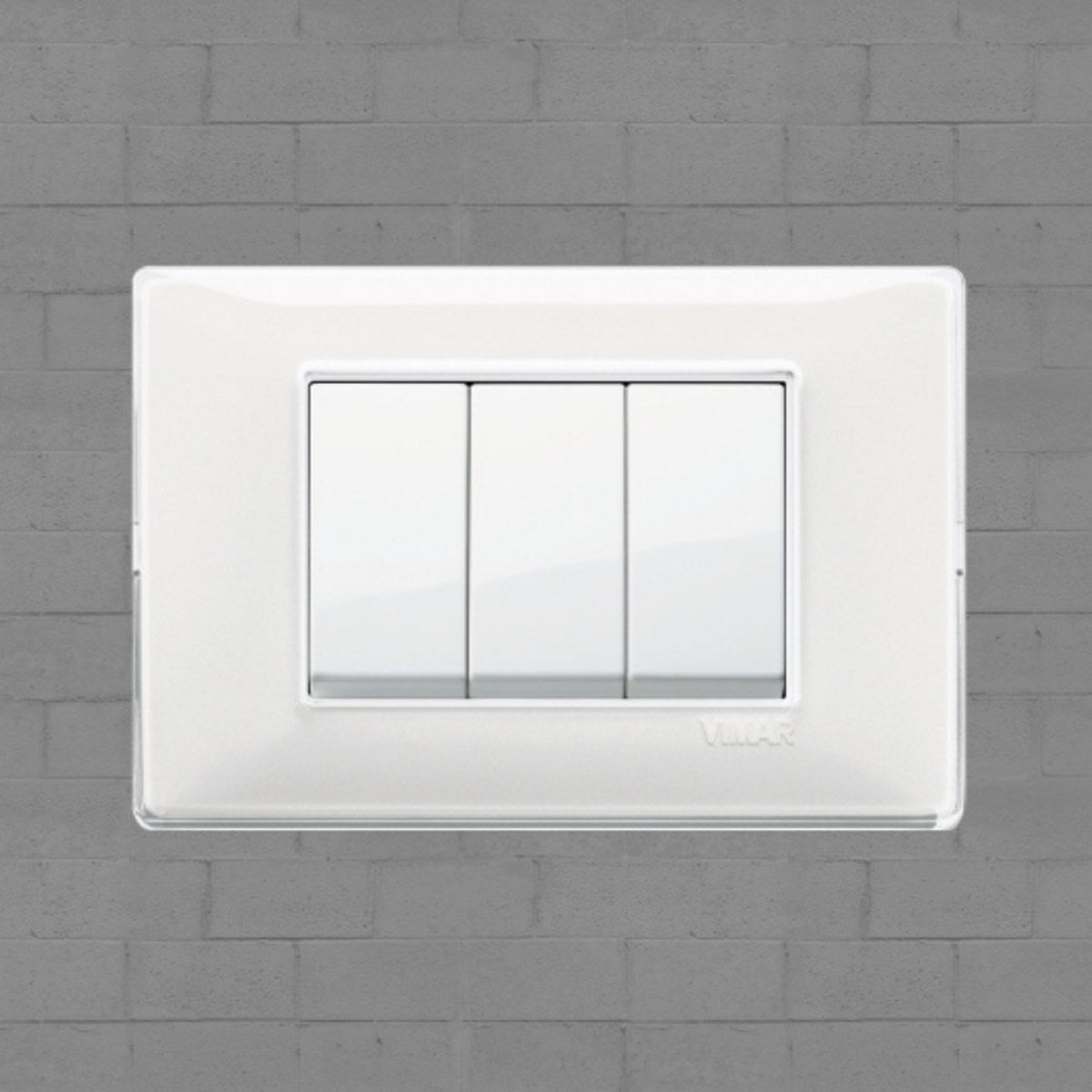

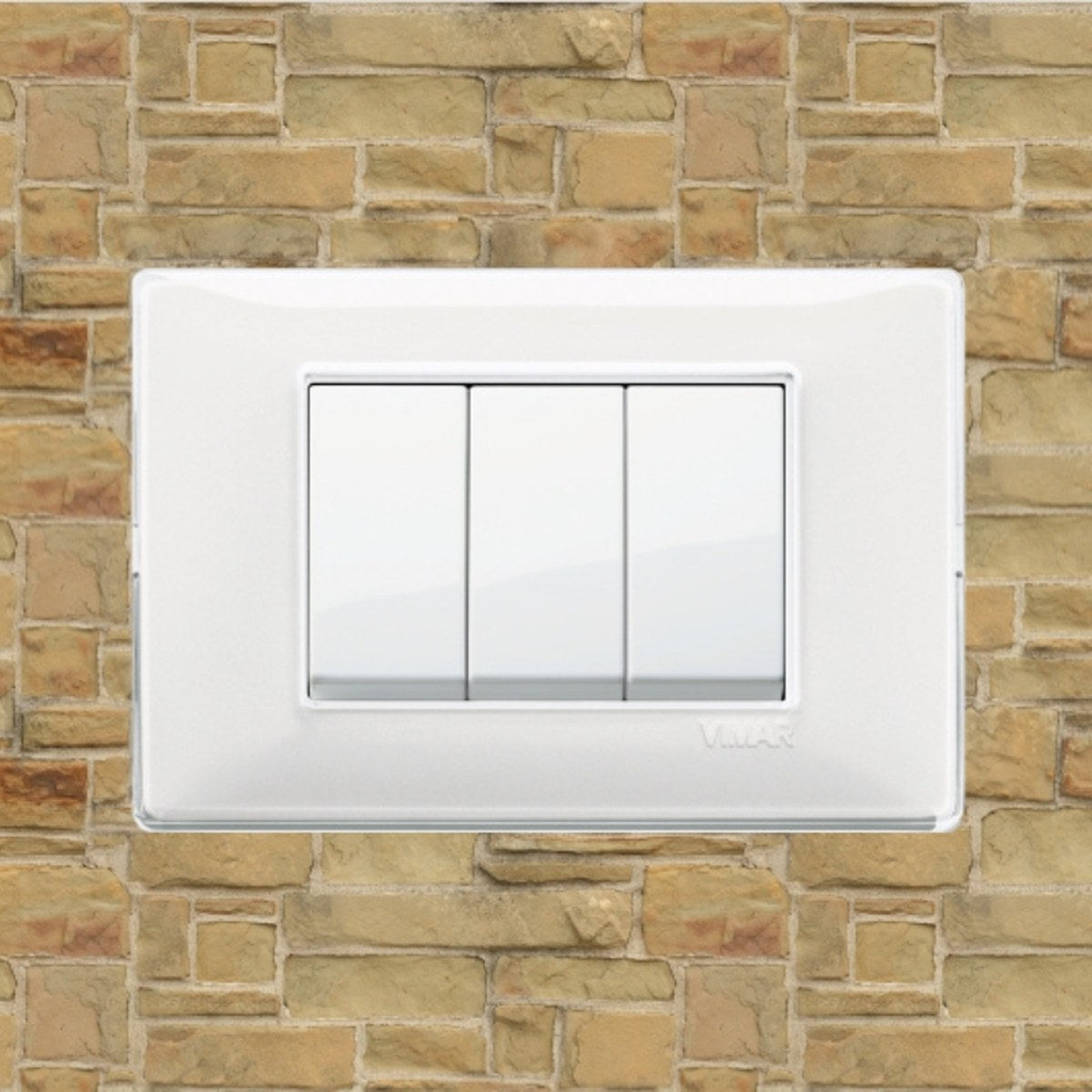

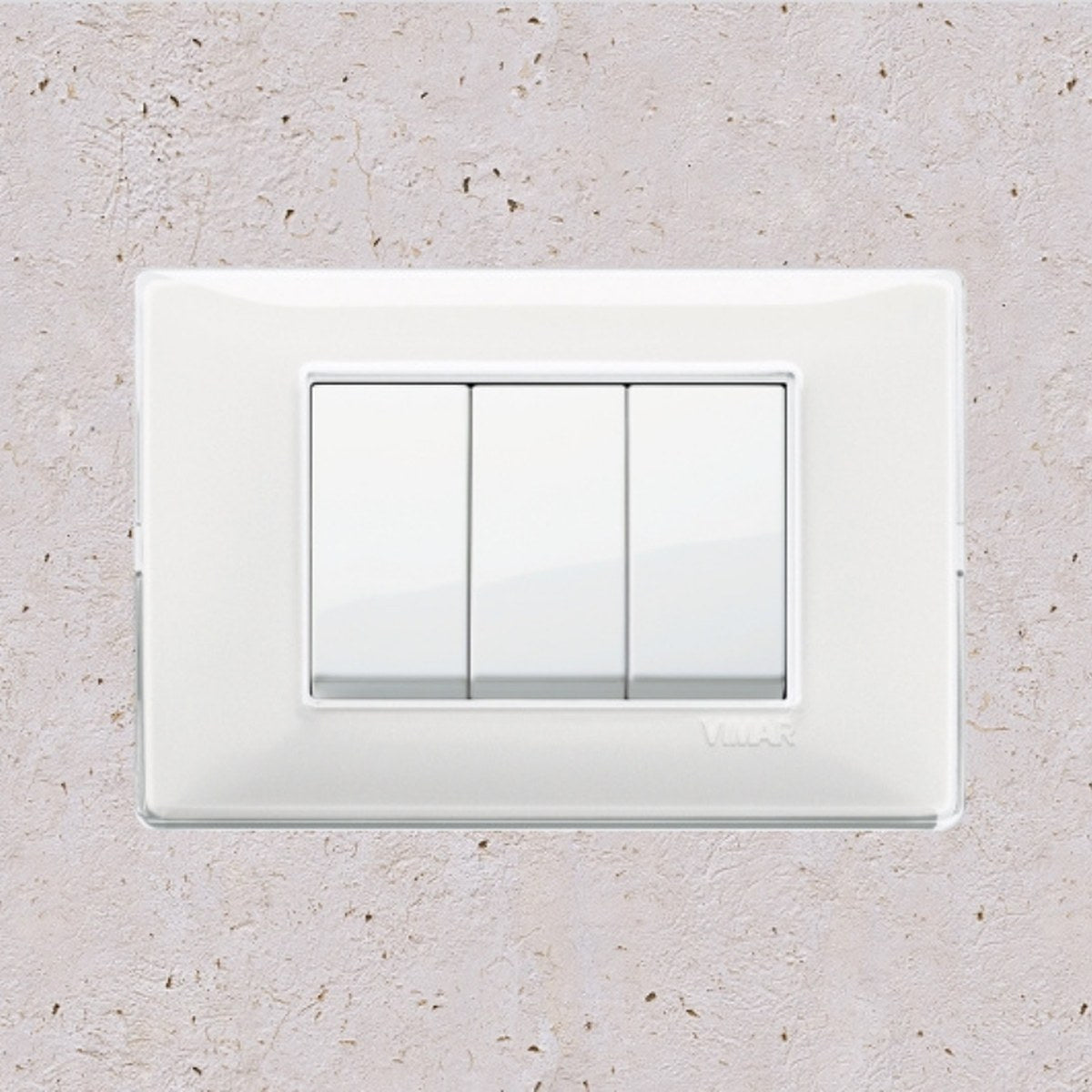

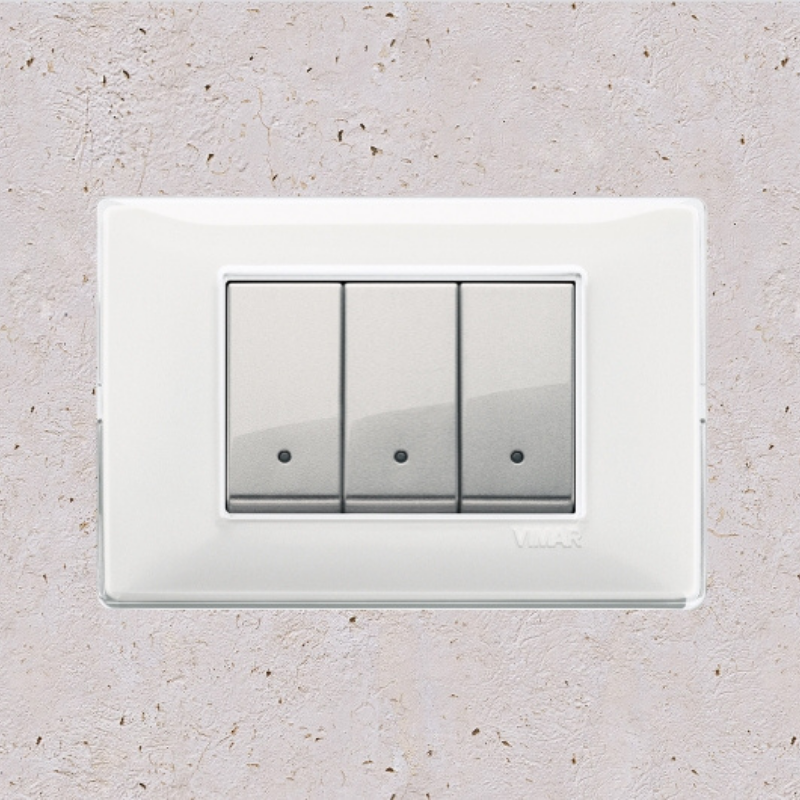

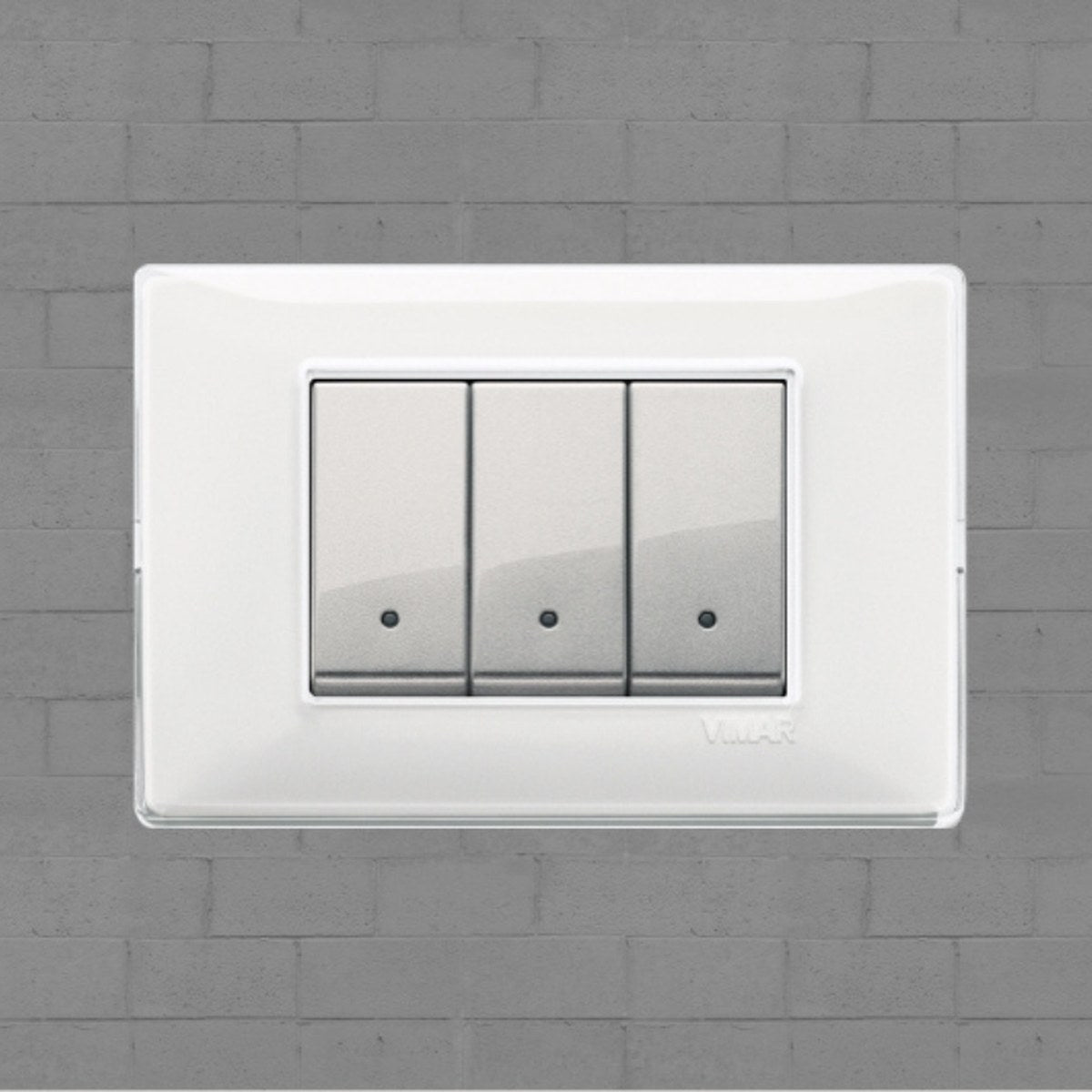

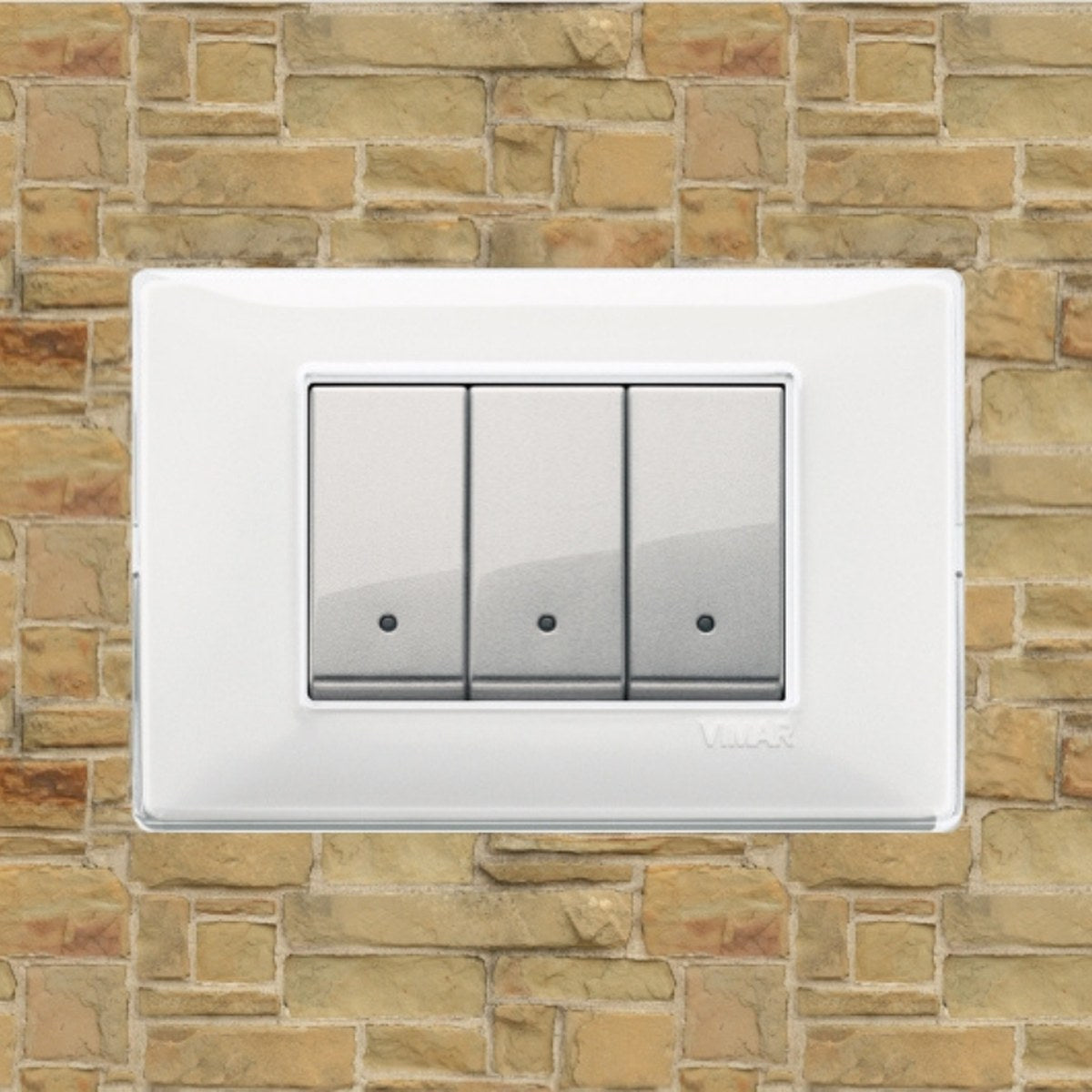

This kit is assembled from Vimar parts: 1 × plate 3M Reflex snow (VM-14653.41); 1 × frame 3M +screws (VM-14613); 3 × 1P 16AX 1-way switch (VM-14001). Each part's specifications follow, with a link to its own page.
Specifications
Kit contents
- Cover plate × 1
- VM-14653.41 · plate 3M Reflex snow
- Frame × 1
- VM-14613 · frame 3M +screws
- Installation switch × 3
- VM-14001 · 1P 16AX 1-way switch white
Cover plate (VM-14653.41)
- Product type
- Cover frame for domestic switching devices
- Number of units
- 3
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 3
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 3
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Plastic
- Material quality
- Acrylic glass
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9016
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 120 mm
- Height
- 80 mm
- Depth
- 9 mm
- Built-in width
- 120 mm
- Built-in height
- 80 mm
- Certifications
- CE marking (EU), IMQ (Italy)
Frame (VM-14613)
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 3
- Number of modules vertical (module system)
- 1
- With screws
- Yes
- Flush-mounted installation
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Certifications
- CE marking (EU), Product Environm. Profile, IMQ (Italy)
Installation switch (VM-14001)
- Product type
- Installation switch
- Wiring system
- Switch 1-pole
- Operating method
- Rocker/button
- Assembly arrangement
- Modular device for domestic switching devices
- Number of modules (module system)
- 1
- Push button switch
- Yes
- Number of rockers
- 1
- Mounting method
- Flush-mounted
- Type of fastening
- Engage (snap)
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9003
- Label space/information surface
- Yes
- Lighting
- Optional
- Function lighting
- Control and orientation
- Type of lighting
- LED exchangeable
- Suitable for degree of protection (IP)
- IP40
- Nominal voltage
- 250 V
- Rated current
- 16 A
- Connection type
- Screwed terminal
- Device width
- 22.3 mm
- Device height
- 49 mm
- Device depth
- 38.4 mm
- Built-in depth
- 24 mm
- Certifications
- CE marking (EU), SASO (Saudi Arabia), IMQ (Italy), TISI (Thailand), INGCER (Chile), PSE (Japan), TSE (Turkey), RCM (Australia), CCC (China), NOM (Mexico), IQC (Argentina), WEEE Directive
Technical drawings
Downloads
FAQ
What is this Vimar Plana 3 gang switch intended for?
This parent product is a Vimar Plana plastic 3 gang switch for projects using the Plana switch range. It is suited to buyers who need a Reflex Snow finish and a 16A rated switch format within the listed Plana switch categories.
What are the main dimensions of this parent product?
The listed dimensions are 120.0000 mm wide, 80.0000 mm long, and 9.0000 mm high. The listed product weight is 1.0000 kg.
What finish colour does this Vimar Plana switch use?
This parent model is listed in the Reflex Snow finish. The child variants shown for this family also use the same Reflex Snow finish, so the finish does not differ across the provided variants.
Do the child variants differ in colour, warranty, or listed technical specs?
Based on the provided child data, both variants share the same product name, Reflex Snow finish, and 3 year warranty period. No differences are provided for CCT, beam angle, CRI, power rating, brightness, cut-out size, driver, dimming control, or lifetime.
Is this product part of the Vimar Plana switch range?
Yes, the product is categorized under multiple Plana-related categories, including archi_switch_plana, b2b_switch_3_gang_plana, b2b_switch_plana, light_plana_3gang, and light_vimar_plana. Buyers should match it to the relevant Plana project requirements and the Reflex Snow finish.
What warranty period is listed for this Vimar Plana 3 gang switch?
The parent product has a listed warranty period of 3.0000 year. The provided child variants also list the same 3.0000 year warranty period.
