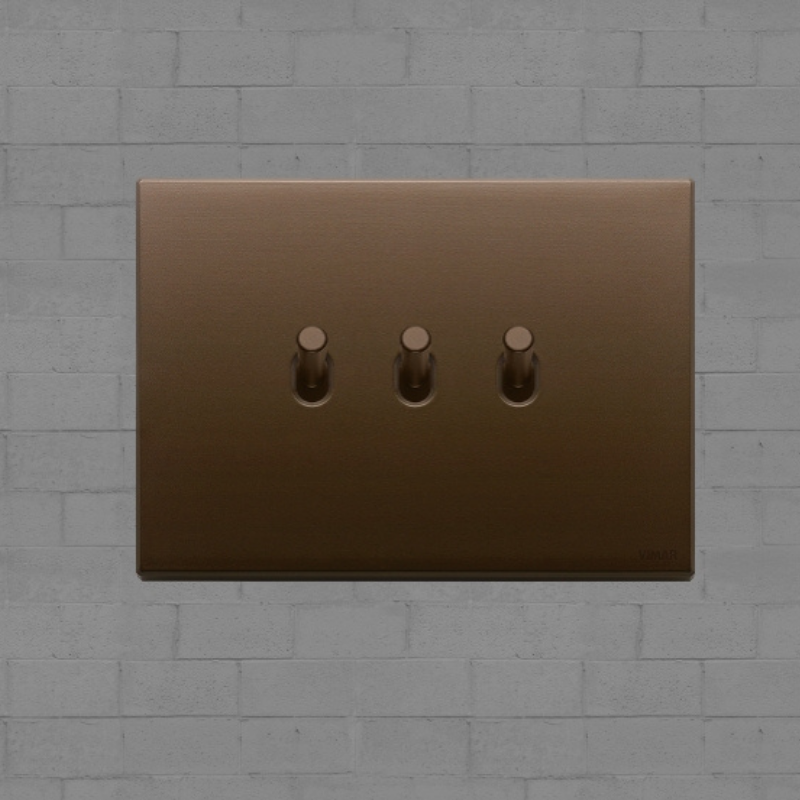

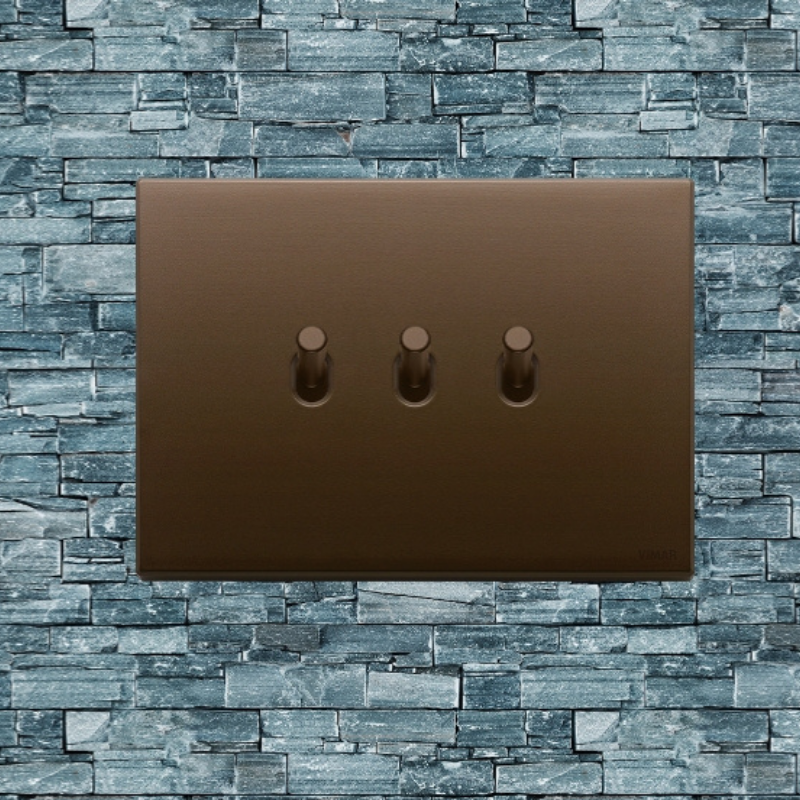

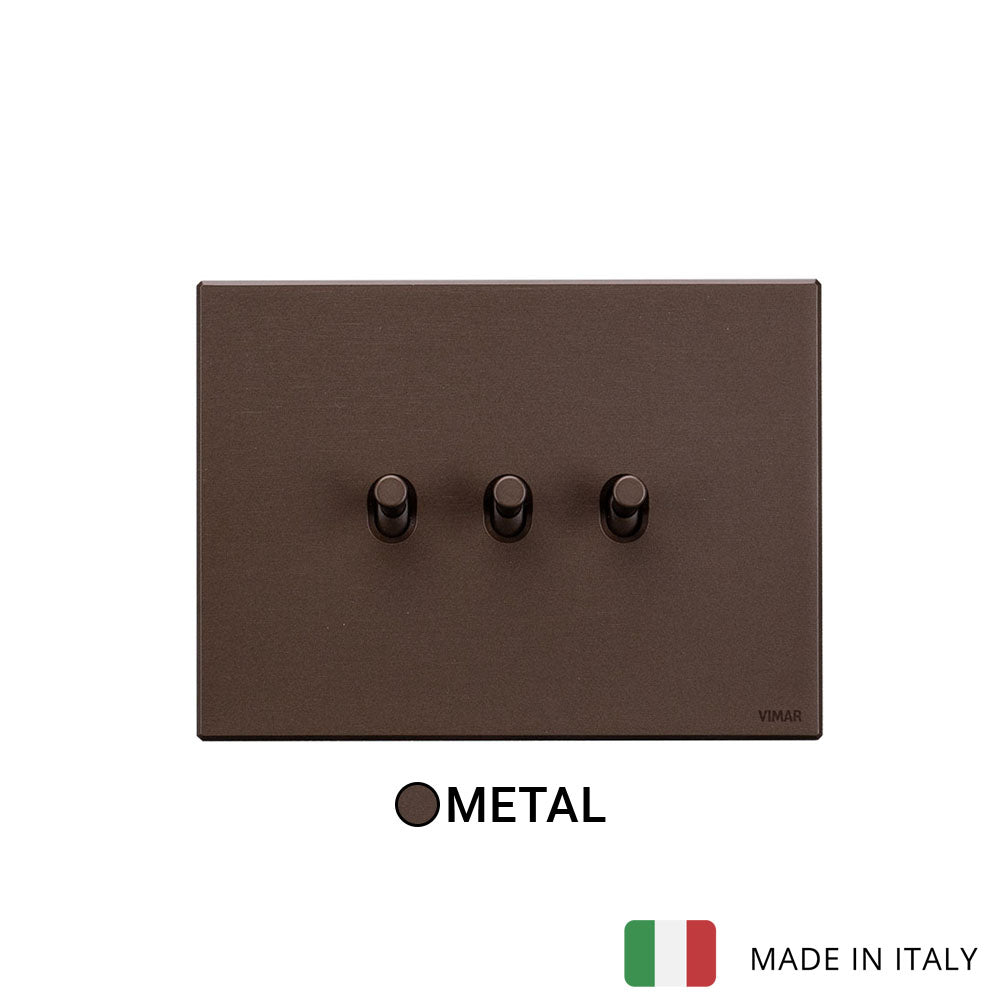

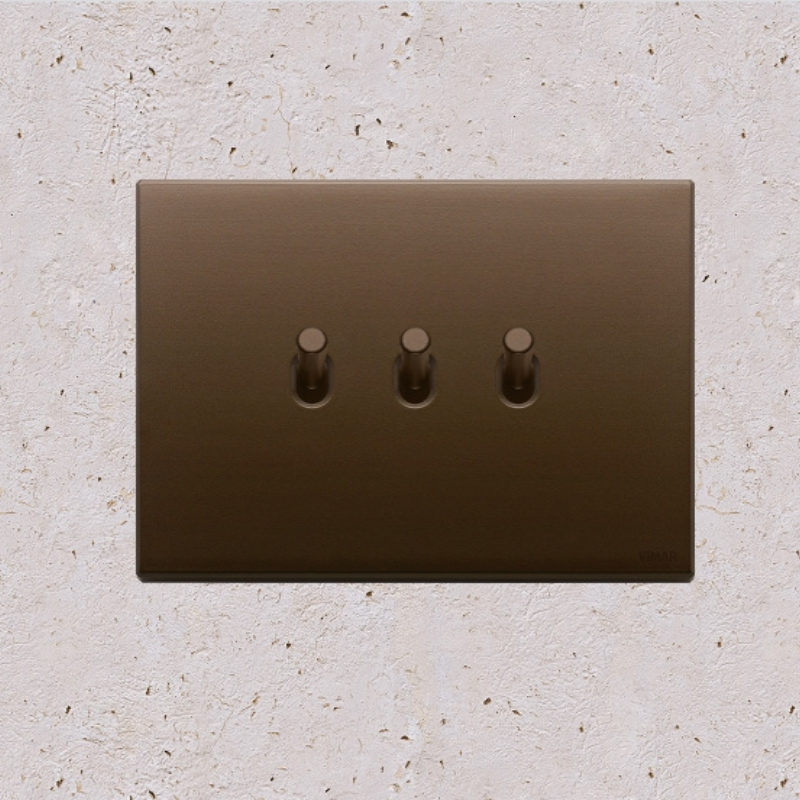

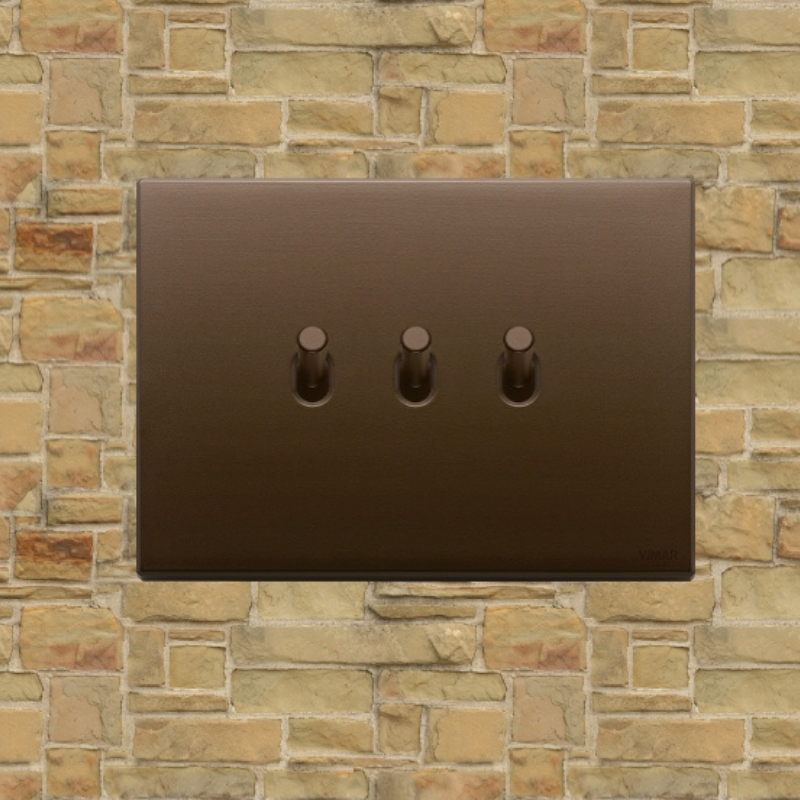

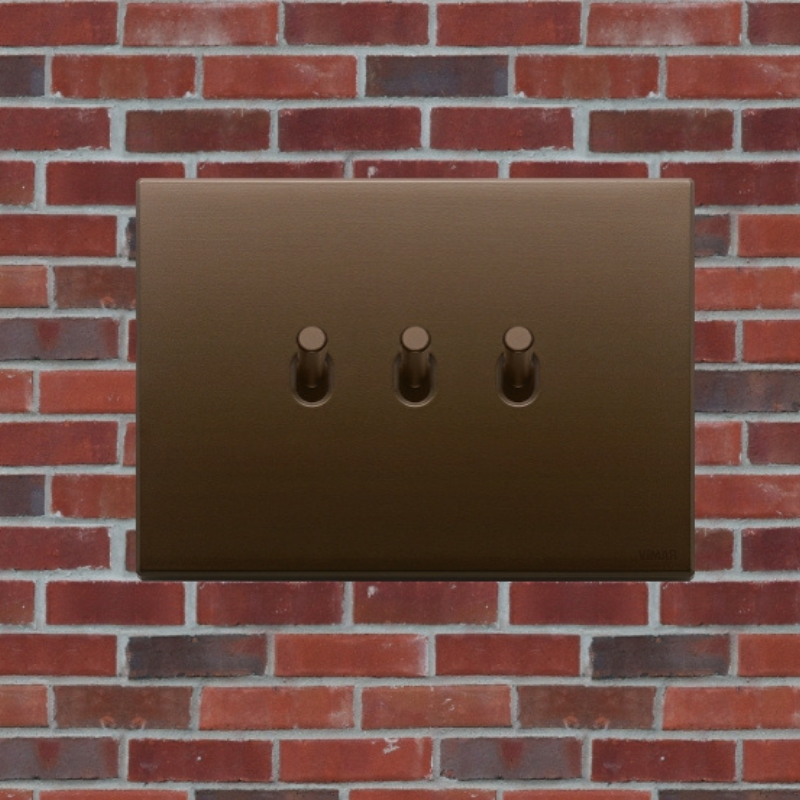

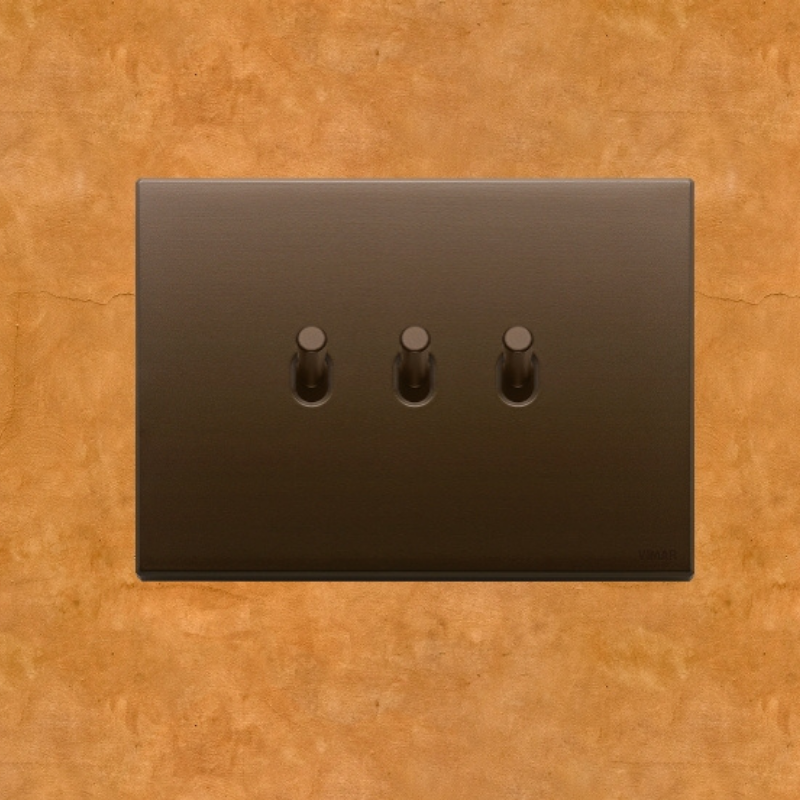

Vimar Eikon Vintage Metal 3 Gang Switch - Dark Bronze - 10A
Log in to see priceOverview
This kit is assembled from Vimar parts: 1 × plate 3Mx3 Vintage brushed dark bronze (VM-22673.3.12); 1 × frame 3M +screws (VM-21613); 3 × 1P 10AX 2-way switch Vintage bronze (VM-22004.12). Each part's specifications follow, with a link to its own page.
Specifications
Kit contents
- Cover plate × 1
- VM-22673.3.12 · plate 3Mx3 Vintage brushed dark bronze
- Frame × 1
- VM-21613 · frame 3M +screws
- Installation switch × 3
- VM-22004.12 · 1P 10AX 2-way switch Vintage bronze
Cover plate (VM-22673.3.12)
- Product type
- Cover frame for domestic switching devices
- Number of units
- 3
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 3
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 3
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Metal
- Surface protection
- Lacquered
- Surface finishing
- Matt
- Colour
- Bronze
- RAL-number (similar)
- 7013
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 122 mm
- Height
- 90 mm
- Depth
- 7.15 mm
- Built-in width
- 122 mm
- Built-in height
- 90 mm
- Certifications
- CE marking (EU), IMQ (Italy)
Frame (VM-21613)
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 3
- Number of modules vertical (module system)
- 1
- With screws
- Yes
- Flush-mounted installation
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Certifications
- CE marking (EU), IMQ (Italy), Product Environm. Profile
Installation switch (VM-22004.12)
- Product type
- Installation switch
- Wiring system
- Two-way switch
- Assembly arrangement
- Modular device for domestic switching devices
- Number of modules (module system)
- 1
- Push button switch
- Yes
- Number of rockers
- 1
- Mounting method
- Flush-mounted
- Type of fastening
- Engage (snap)
- Material
- Plastic
- Surface protection
- Lacquered
- Surface finishing
- Glossy
- Colour
- Bronze
- RAL-number (similar)
- 7008
- Label space/information surface
- Yes
- Function lighting
- Control and orientation
- Nominal voltage
- 250 V
- Rated current
- 10 A
- Connection type
- Screwed terminal
- Device width
- 22.3 mm
- Device height
- 48.8 mm
- Device depth
- 54.7 mm
- Built-in depth
- 32 mm
- Certifications
- CE marking (EU), INMETRO (Brazil), IMQ (Italy), ISI (India), VDE (Germany), SNI-SUCOFINDO Indonesia, RoHS UAE, CCC (China), NOM (Mexico), WEEE Directive, IQC (Argentina)
Technical drawings
Downloads
Datasheet3
Catalogues15
FAQ
What type of spaces is the Vimar Eikon Vintage Metal 3 Gang Switch suited for?
This model is suited for spaces where the switch finish is part of the design, such as hospitality, residential, retail, or office interiors. Its dark bronze metal finish and Eikon Vintage styling give it a retro-inspired look while keeping a coordinated, modern appearance.
Is this a 3 gang switch?
Yes. The product is identified as a Vimar Eikon Vintage 3 gang switch package, intended for applications that need three switch positions in one coordinated unit.
What is the rated current of this switch?
This model is rated at 10A. That rating should be considered when checking whether the product is suitable for the intended electrical specification of the project.
What finish does this Vimar Eikon Vintage switch have?
This SKU comes in a dark bronze metal finish. The product description highlights chromatic coordination between the controls and cover for a consistent total-look effect.
What temperature range is this switch specified for?
The specified operating temperature range is -20°C to 50°C. This makes the product suitable for indoor environments that remain within those stated temperature limits.
How long is the warranty period for this product?
The listed warranty period for this Vimar Eikon Vintage Metal 3 Gang Switch is 3 years. The warranty applies to this specific SKU, Z-VM43GDB-VDB.
