Mean Well

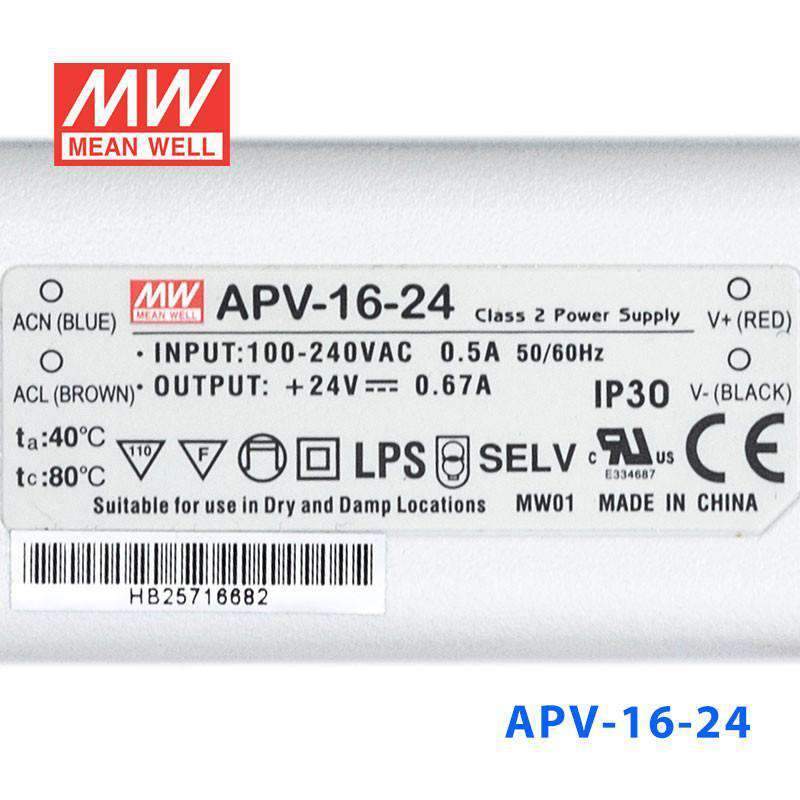

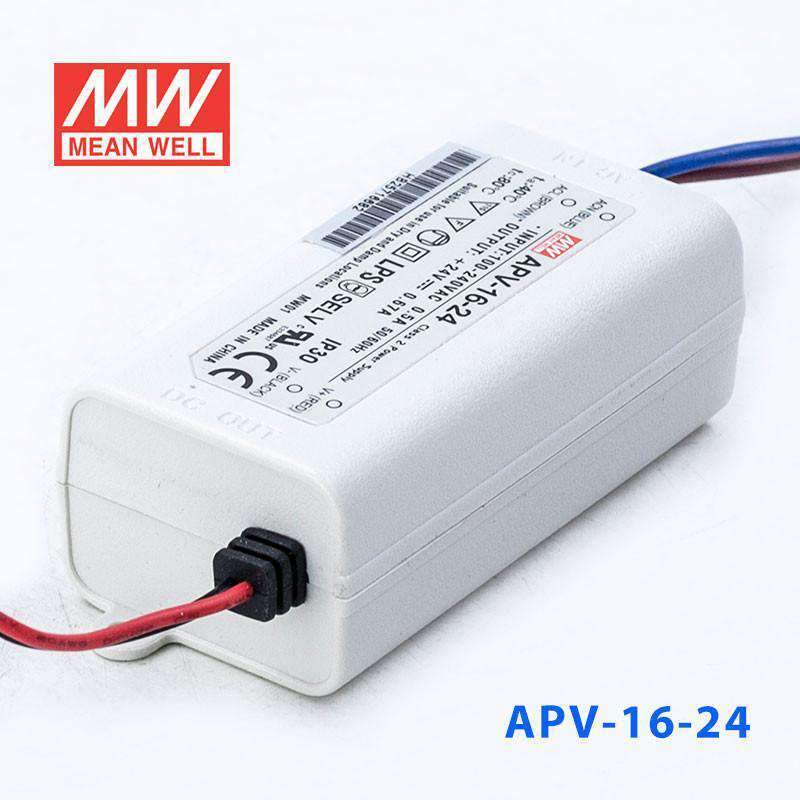

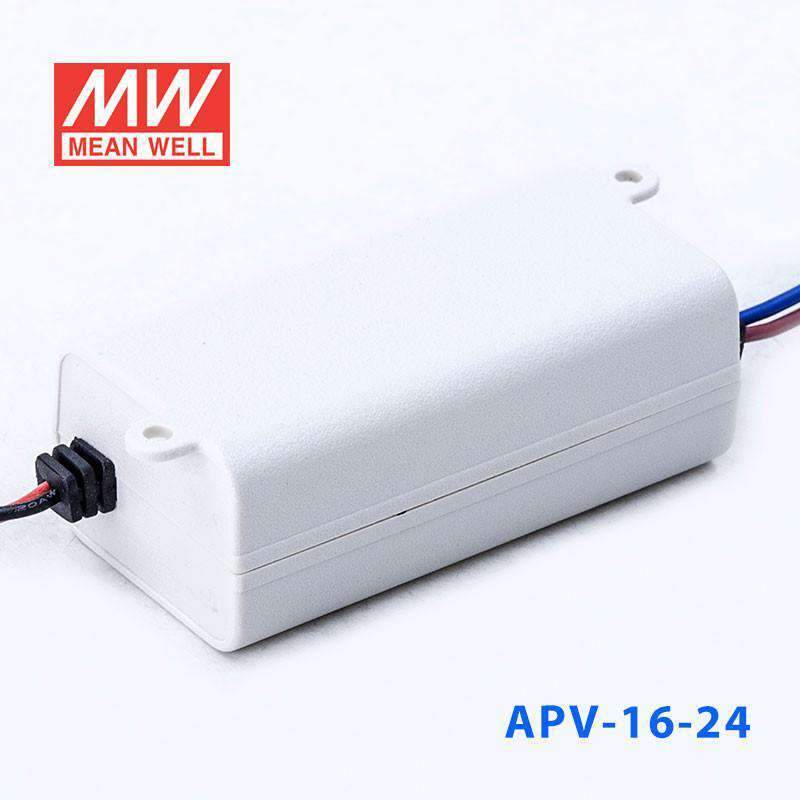

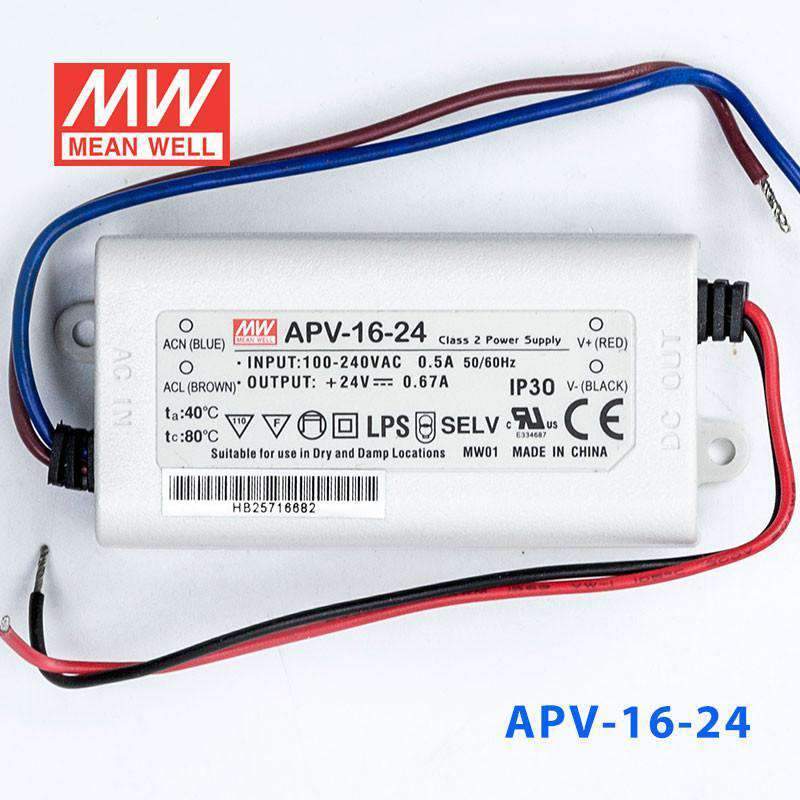

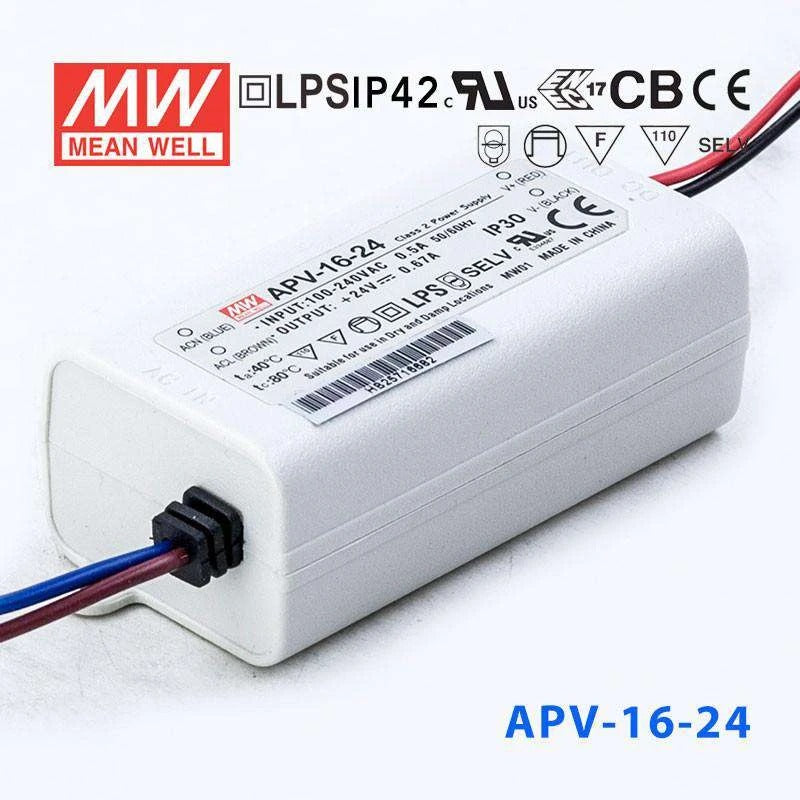

Mean Well APV-16-24 Power Supply 16W 24V 670mA

4.6 (11 reviews)
Class II designlow costsmall and compactIP42
SKU APV-16-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 5 in this family

APV-16-24
In stock
|

Overview

APV-16-24 is the 24V output model of this series: rated current 0.67A, rated power 16.08W, typical efficiency 83%.

Features

  • Constant voltage design
  • Universal AC input / Full range
  • Protections: Short circuit / Over load / Over voltage
  • Fully isolated plastic case
  • Cooling by free air convection
  • Small and compact size
  • Class Ⅱ power unit, no FG
  • Class 2 power unit
  • Pass LPS
  • IP42 design
  • Display devices for decorative & advertising accessories (Note.7)
  • General-purpose electronics operated in dusty or damp environments
  • 100% full load burn-in test
  • Low cost, high reliability
  • 2 years warranty

Specifications

APV-16-24Specifications from the official datasheet (2026-09-04 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
0.67A
CURRENT RANGE
0 ~ 0.67A
RATED POWER
16.08W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE TOLERANCENote.3
±5.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±2.0%
SETUP, RISE TIMENote.6
1500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load
HOLD UP TIME (Typ.)
20ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGENote.4
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
83%
AC CURRENT
0.3A/230VAC 0.5A/115VAC
INRUSH CURRENT(Typ.)
COLD START 50A(twidth=250μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
13 units (circuit breaker of type B) / 22 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
0.25mA / 240VAC

PROTECTION

OVER LOAD
Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
27.6 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃(Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750,CSA C22.2 No.250.0-08, BIS IS15885(except for 15V),EAC TP TC 004,IP42 , BS EN/EN 62368-1 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020

OTHERS

MTBF
7265.5K hrs min. Telcordia SR-332 (Bellcore) ; 1128.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
77*40*29mm (L*W*H)
PACKING
0.1Kg; 120pcs/14Kg/1.06CUFT
Test conditions and notes10
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. Please connect L line to the positive pole and N line to the negative pole under DC input.
  5. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. Products sourced from the Americas regions may not have the ENEC/BIS logo. Please contact your MEAN WELL sales for more information.
  10. 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

APV-16-24 Mechanical Specification
Mechanical Specification
APV-16-24 Block Diagram
Block Diagram

Downloads

FAQ

What 24V LED lighting applications suit the APV-16-24?

The APV-16-24 outputs 24V at 0.67A for a maximum of 16.08W. It is suitable for 24V LED strip in countertop display illumination, 24V LED downlights, and small backlit signage panels where the total load stays within 16.08W.

How much 24V LED strip can the APV-16-24 support?

The APV-16-24 provides 16.08W at 24V. At a 24V strip rated 8 W/m, that supports about 2 m of strip. Divide 16.08W by your strip's rated power per meter to calculate your specific maximum, and check your strip's rated power per meter before specifying.

Does the APV-16-24 handle dripping water in an indoor installation?

The APV-16-24 carries an IP42 rating, covering protection against solid objects larger than 1 mm and limited dripping water. It is suitable for clean indoor environments with limited moisture (20–90% RH non-condensing) but is not rated for splash, rain, or outdoor conditions. Wet or outdoor LED applications require a driver rated IP65 or higher.
