Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

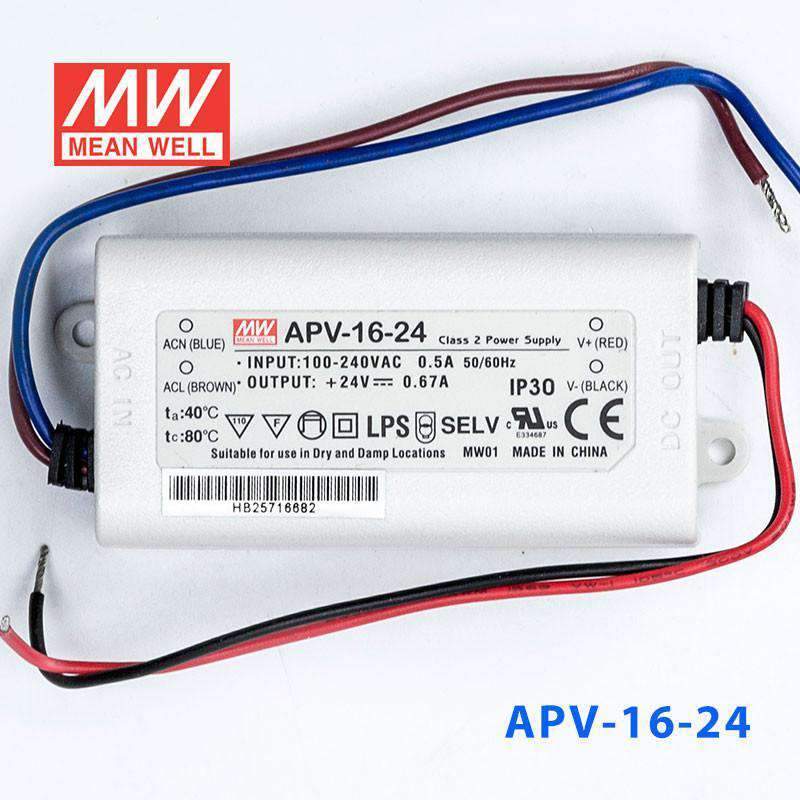

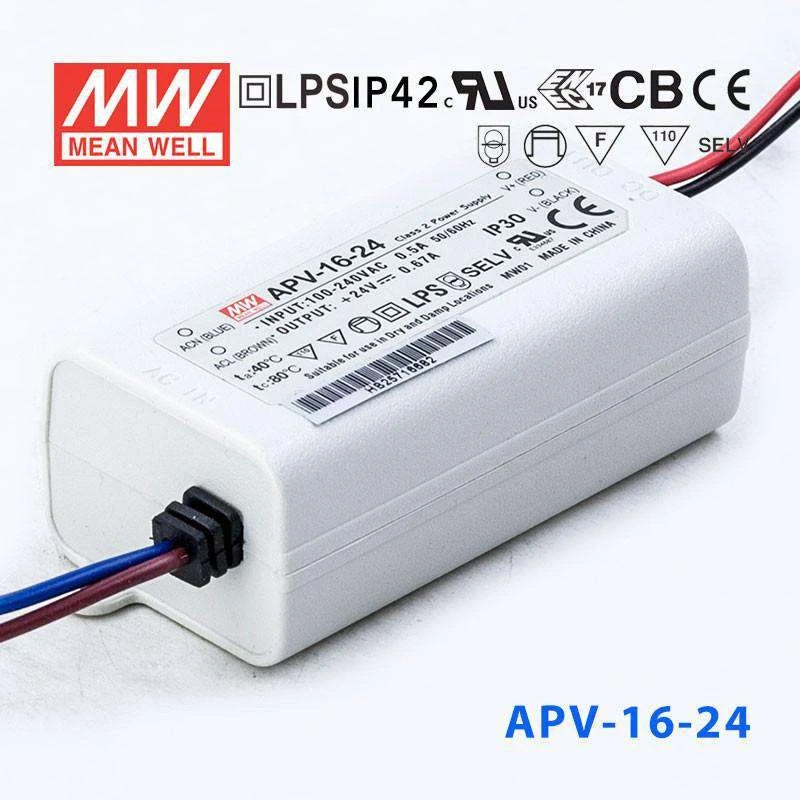

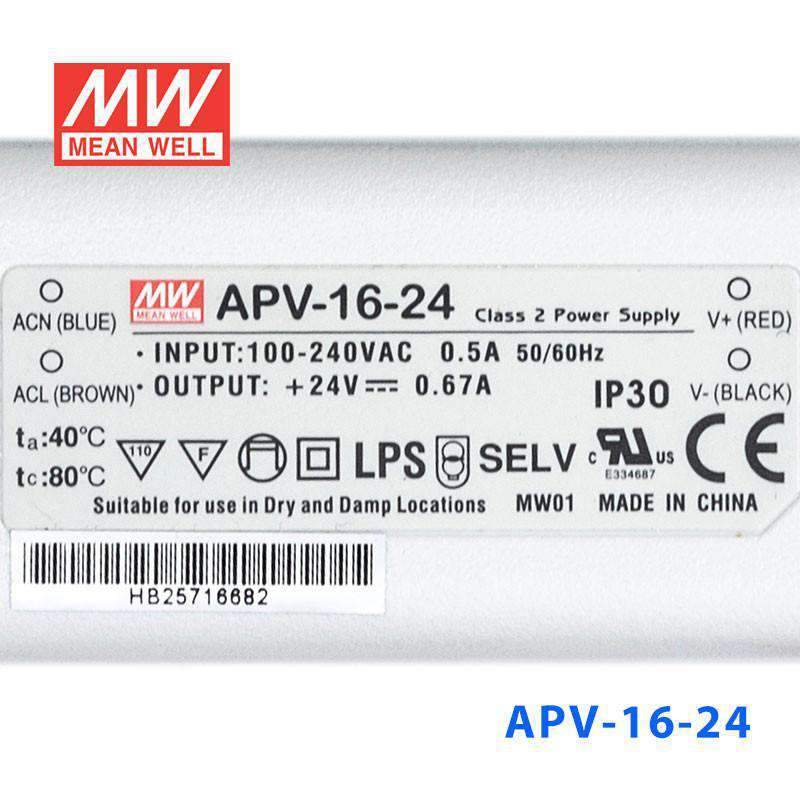

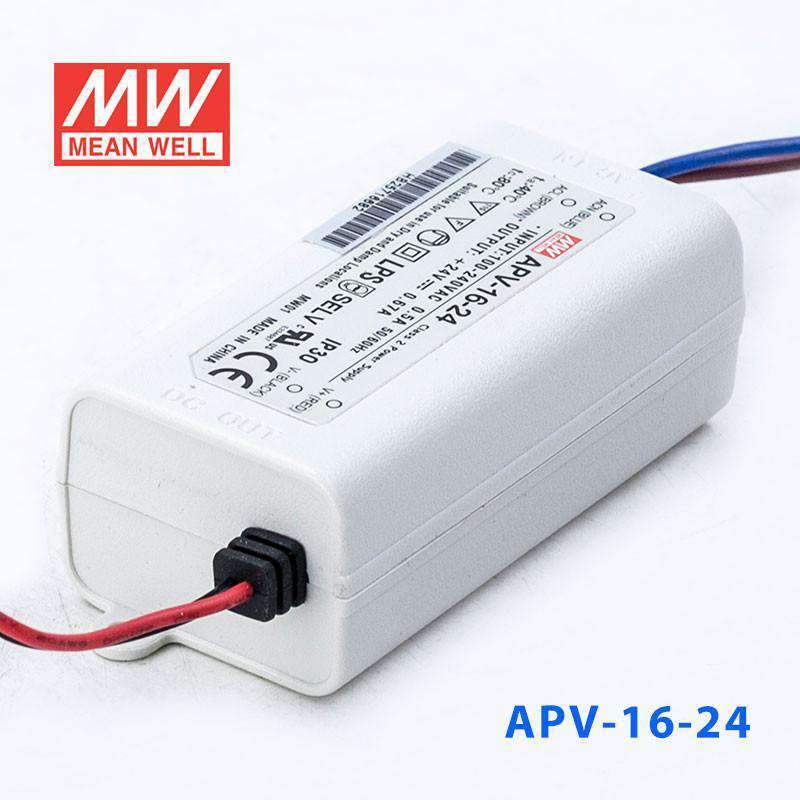

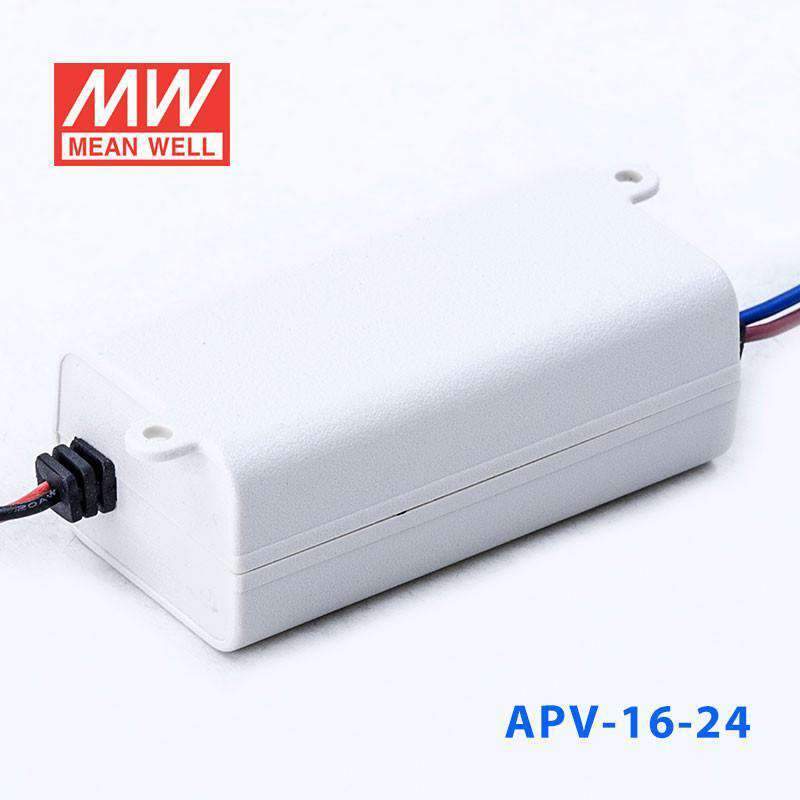

Mean Well APV-16-24 Power Supply 16W 24V

Class II design, low cost, small and compact, IP42

SKU:

APV-16-24

Model

8W 24V

SKU: APV-8-24

12W 24V

SKU: APV-12-24

16W 24V

SKU: APV-16-24

25W 24V

SKU: APV-25-24

35W 24V

SKU: APV-35-24

Product variants

Please for Pricing

Notify me when it's back in stock

Description

The APV-16 is a 16W Mean Well. power converter. and an input range of 90~264VAC.

Key Features

✓ Input voltage range: 90~264VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Over voltage
✓ Safety approvals: Note.8 UL8750,CSA C22.2 No.250.0-08, NEC E EN61347-1,EN61347-2-13,EN62384 Independent,IP 42
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

APV Series
Power Rating

16.08 Watt
Output Voltage

24 Volt
Rated Current

0.67 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,ENEC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

7.7 cm
Width

4 cm
Height

2.9 cm
Weight

0.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What 24V LED lighting applications suit the APV-16-24?

The APV-16-24 outputs 24V at 0.67A for a maximum of 16.08W. It is suitable for 24V LED strip in countertop display illumination, 24V LED downlights, and small backlit signage panels where the total load stays within 16.08W.

How much 24V LED strip can the APV-16-24 support?

The APV-16-24 provides 16.08W at 24V. At a 24V strip rated 8 W/m, that supports about 2 m of strip. Divide 16.08W by your strip's rated power per meter to calculate your specific maximum, and check your strip's rated power per meter before specifying.

How does the APV-16-24 compare to the APV-12-24 and APV-25-24?

All three output 24V from 90–264VAC. The APV-12-24 provides 12W at 0.5A in a 77.0 × 40.0 × 29.0 mm housing. The APV-16-24 provides 16.08W at 0.67A in the same enclosure. The APV-25-24 increases output to 25.2W at 1.05A in a larger 84.0 × 57.0 × 29.5 mm housing. Select based on required wattage.

Does the APV-16-24 handle dripping water in an indoor installation?

The APV-16-24 carries an IP42 rating, covering protection against solid objects larger than 1 mm and dripping water falling vertically. It is suitable for clean indoor environments with limited moisture but is not rated for splash, rain, or outdoor conditions. Wet or outdoor LED applications require a driver rated IP65 or higher.

Model	Power	Voltage	Current	IP Rating
Mean Well APV-16-12 Power Supply 15W 12V	15W	12V	1.25A	Indoor	View
Mean Well S-APV-16-24 Power Supply 16W 24V with AU/NZ plug	16.08W	24V	0.67A	—	View
Mean Well APV-16-5 Power Supply 12W 5V	13W	5V	2.6A	Indoor	View
Mean Well APV-16-15 Power Supply 15W 15V	15W	15V	1A	Indoor	View
