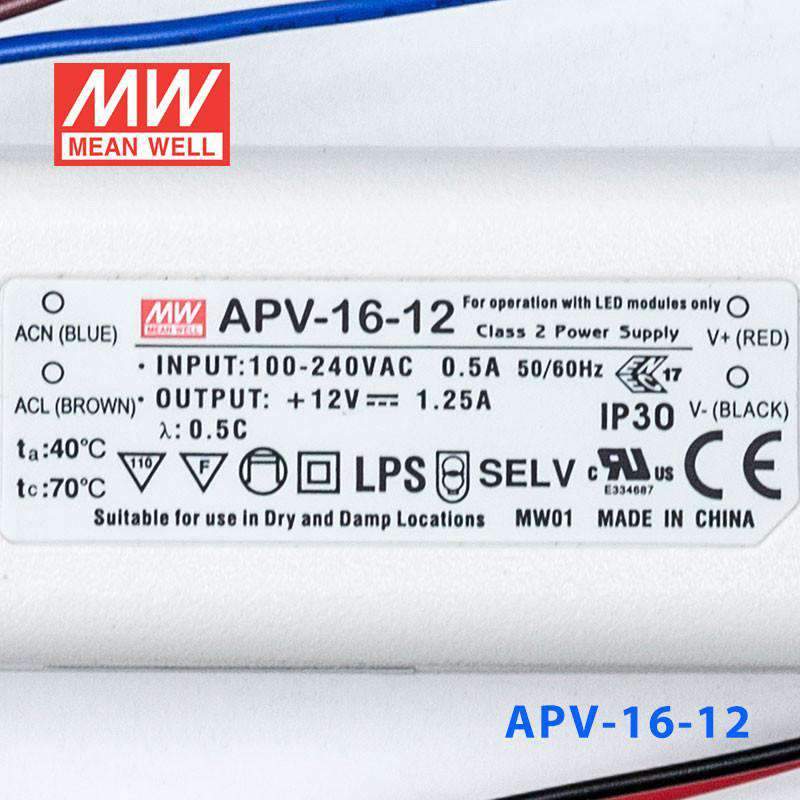

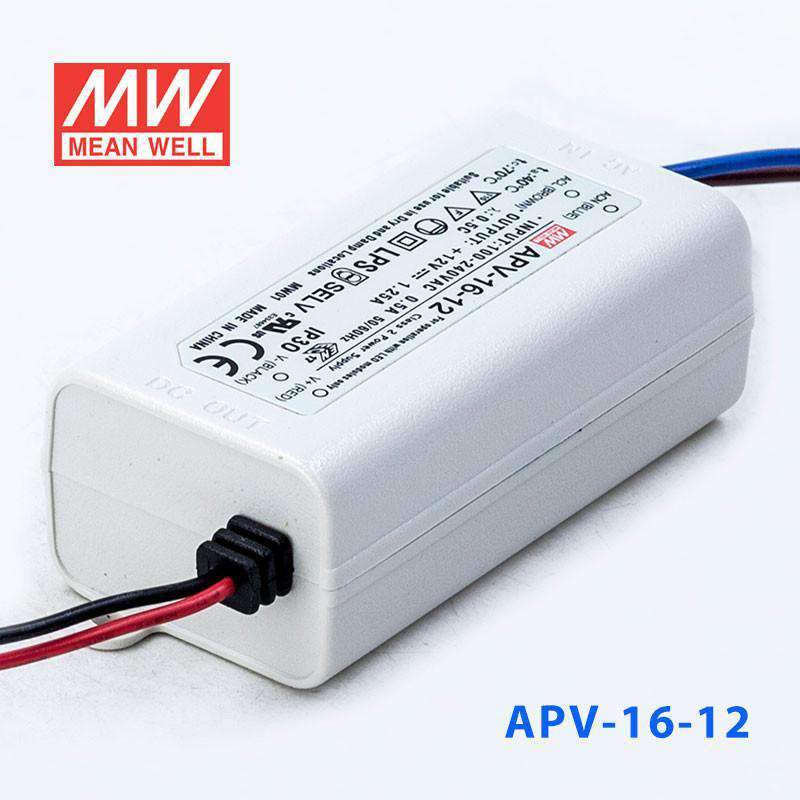

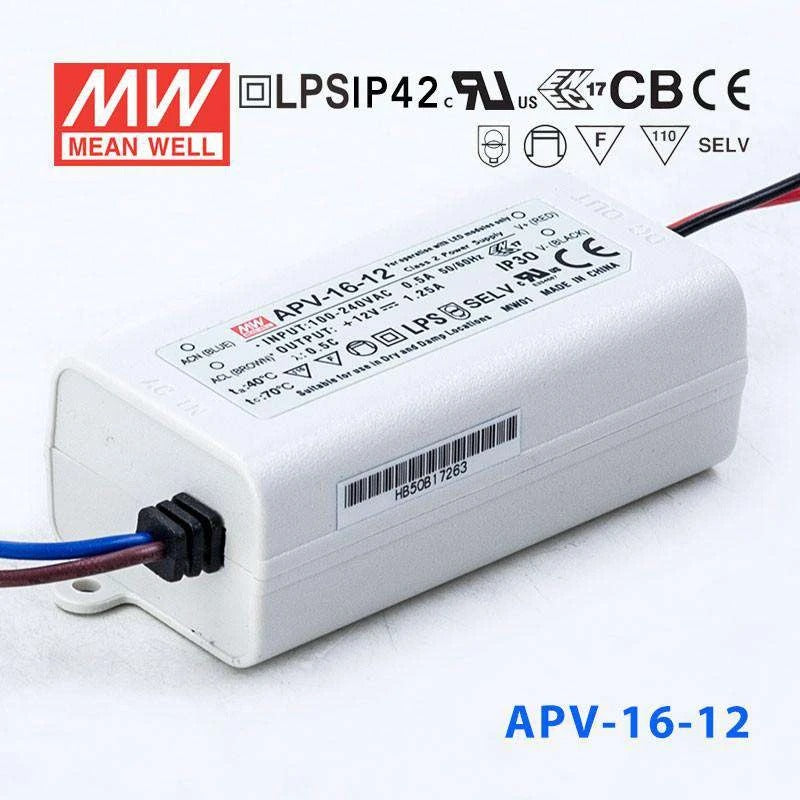

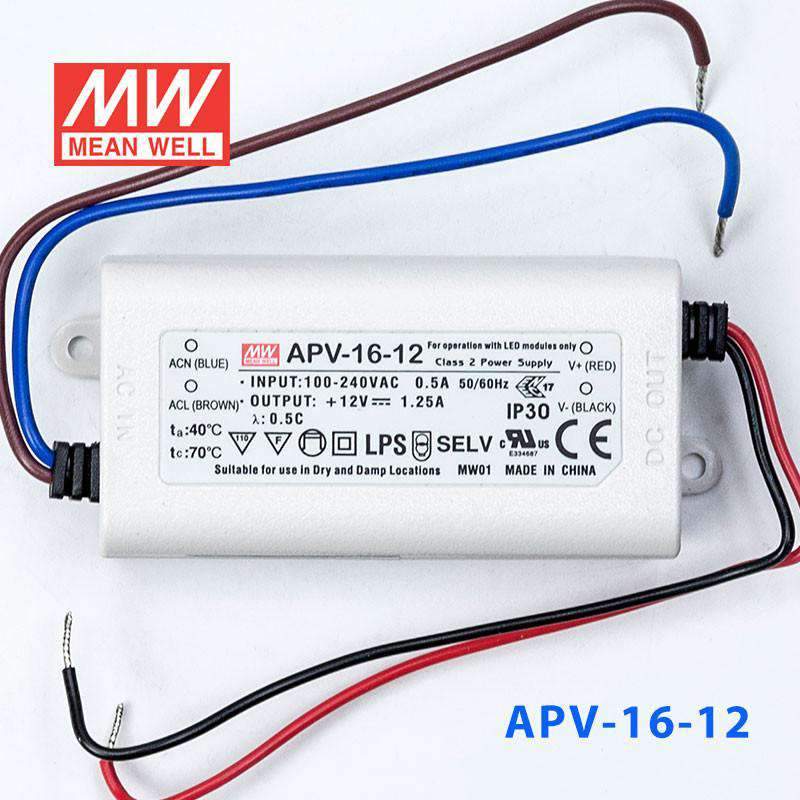

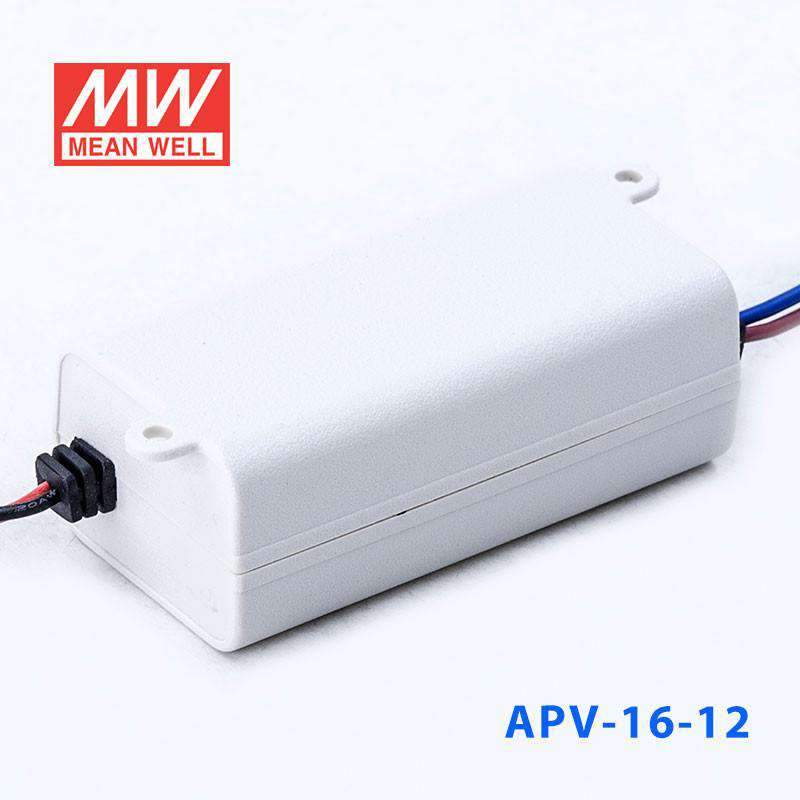

Mean Well APV-16-12 Power Supply 15W 12V

Class II design, low cost, small and compact, IP42

SKU:

APV-16-12

Model

8W 12V

SKU: APV-8-12

12W 12V

SKU: APV-12-12

16W 12V

SKU: APV-16-12

25W 12V

SKU: APV-25-12

35W 12V

SKU: APV-35-12

Product variants

Please for Pricing

Notify me when it's back in stock

Description

The APV-16 is a 16W Mean Well. power converter. and an input range of 90~264VAC.

Key Features

✓ Input voltage range: 90~264VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Over voltage
✓ Safety approvals: Note.8 UL8750,CSA C22.2 No.250.0-08, NEC E EN61347-1,EN61347-2-13,EN62384 Independent,IP 42
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

APV Series
Power Rating

15 Watt
Output Voltage

12 Volt
Rated Current

1.25 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,ENEC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

7.7 cm
Width

4 cm
Height

2.9 cm
Weight

0.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What 12V LED lighting tasks is the APV-16-12 suited to?

The APV-16-12 outputs 12V at 1.25A for a maximum of 15W. It suits 12V LED strip runs in display cases, retail shelving, under-cabinet fixtures, and small illuminated signage where the total load does not exceed 15W.

How many meters of 12V LED strip can the APV-16-12 power?

The APV-16-12 delivers 15W at 12V. At a strip rated 4.8 W/m, that supports approximately 3.1 m. Divide 15W by your strip's rated power per meter to find your maximum run, and check your strip's rated power per meter before finalizing the design.

How does the APV-16-12 compare to the APV-12-12 and APV-25-12 at 12V?

All three output 12V. The APV-12-12 provides 12W at 1A in a 77.0 × 40.0 × 29.0 mm housing. The APV-16-12 provides 15W at 1.25A in the same size enclosure. The APV-25-12 provides 25.2W at 2.1A in a larger 84.0 × 57.0 × 29.5 mm housing. Select based on your total wattage requirement.

Is the APV-16-12 appropriate for a damp indoor environment?

The APV-16-12 is rated IP42, which guards against solid objects larger than 1 mm and dripping water at up to 15° from vertical. It is suitable for clean, dry to lightly damp indoor locations but not for outdoor, rain-exposed, or splashing environments. Wet-location LED installations require a driver rated IP65 or higher.

Model	Power	Voltage	Current	IP Rating
Mean Well APV-16-24 Power Supply 16W 24V	16.08W	24V	0.67A	Indoor	View
Mean Well S-APV-16-24 Power Supply 16W 24V with AU/NZ plug	16.08W	24V	0.67A	—	View
Mean Well APV-16-5 Power Supply 12W 5V	13W	5V	2.6A	Indoor	View
Mean Well APV-16-15 Power Supply 15W 15V	15W	15V	1A	Indoor	View
