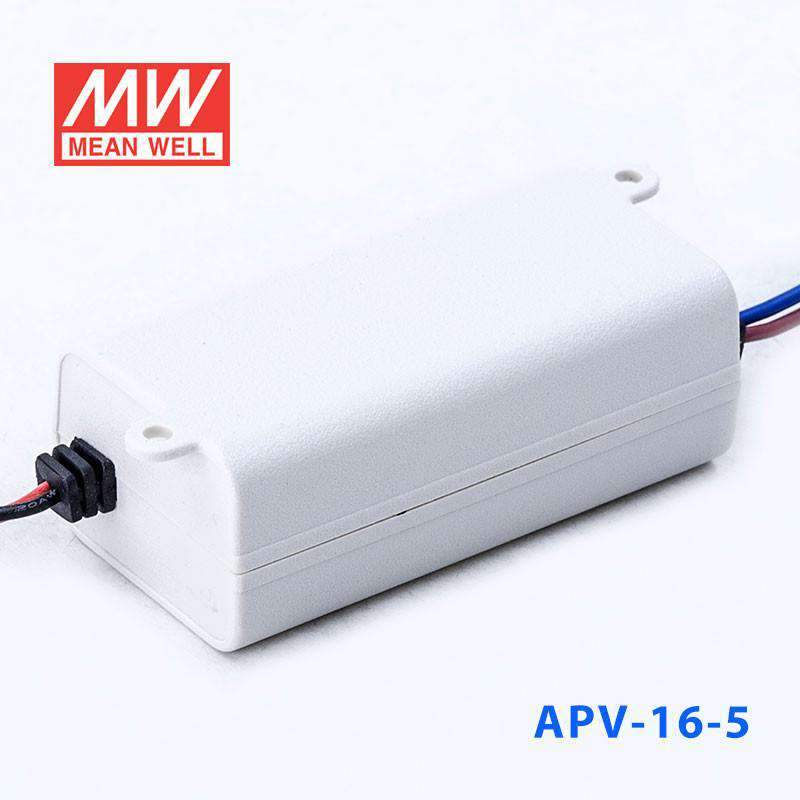

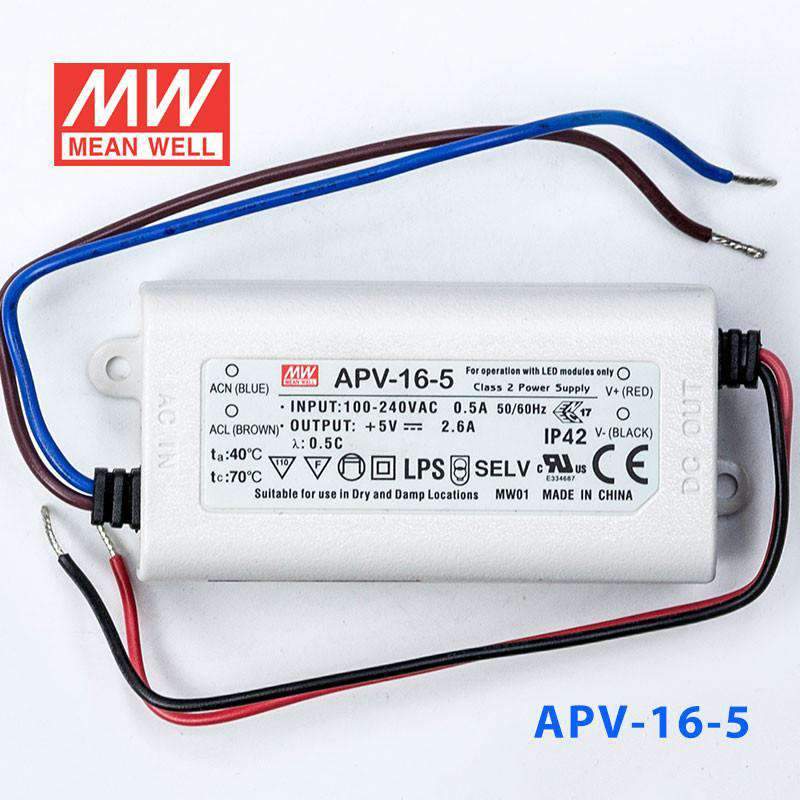

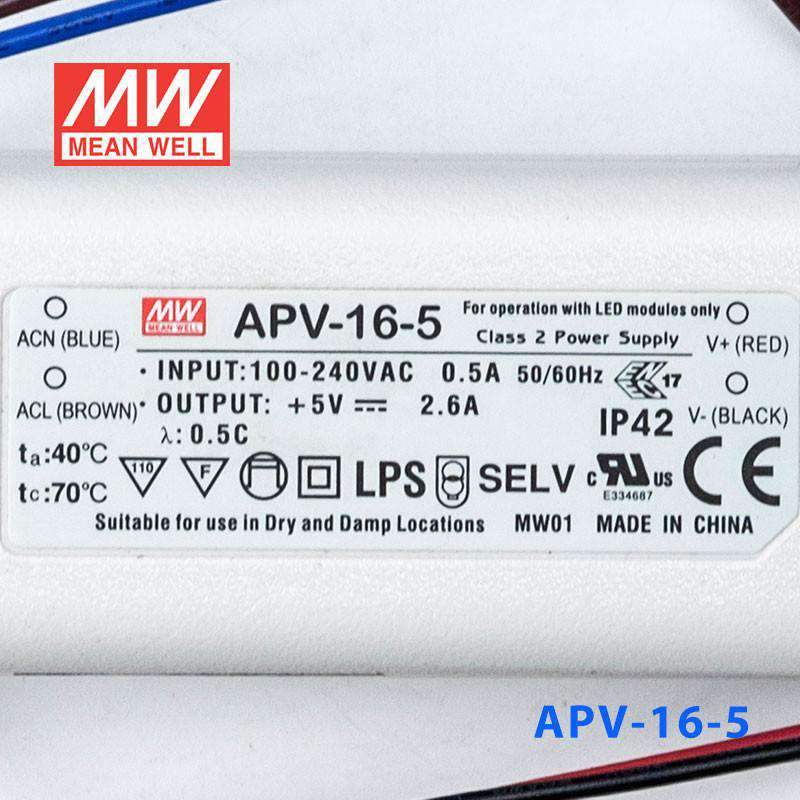

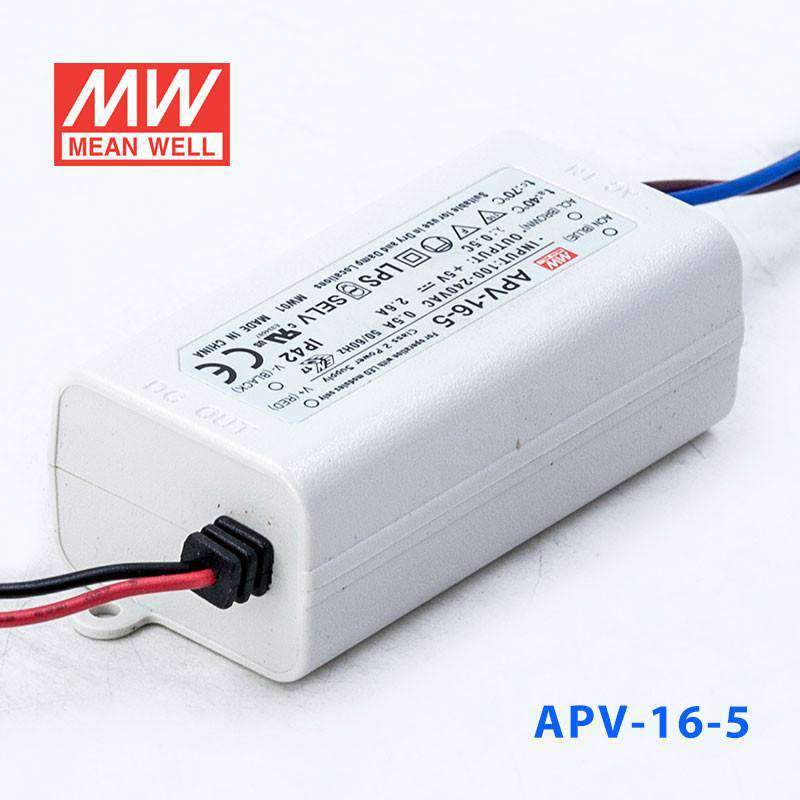

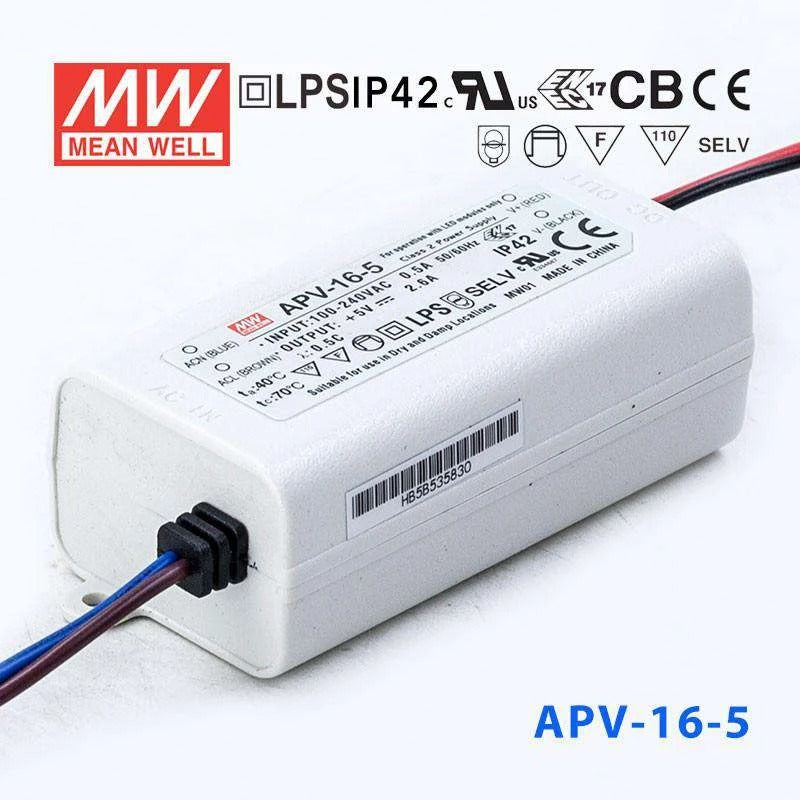

Mean Well APV-16-5 Power Supply 12W 5V

Class II design, low cost, small and compact, IP42

SKU:

APV-16-5

Model

8W 5V

SKU: APV-8-5

12W 5V

SKU: APV-12-5

16W 5V

SKU: APV-16-5

25W 5V

SKU: APV-25-5

35W 5V

SKU: APV-35-5

Product variants

Please for Pricing

Notify me when it's back in stock

Description

The APV-16 is a 16W Mean Well. power converter. and an input range of 90~264VAC.

Key Features

✓ Input voltage range: 90~264VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Over voltage
✓ Safety approvals: Note.8 UL8750,CSA C22.2 No.250.0-08, NEC E EN61347-1,EN61347-2-13,EN62384 Independent,IP 42
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

APV Series
Power Rating

13 Watt
Output Voltage

5 Volt
Rated Current

2.6 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,ENEC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

7.7 cm
Width

4 cm
Height

2.9 cm
Weight

0.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What 5V LED loads can the APV-16-5 drive?

The APV-16-5 outputs 5V at 2.6A for a maximum of 13W. It is suited to 5V addressable LED strips, 5V LED pixel arrays, and small 5V LED panel installations where the combined load does not exceed 13W.

How does the APV-16-5 differ from the APV-12-5 and APV-25-5?

All three output 5V. The APV-12-5 provides 10W at 2A in a 77.0 × 40.0 × 29.0 mm housing. The APV-16-5 provides 13W at 2.6A in the same enclosure. The APV-25-5 steps up to 17.5W at 3.5A in a larger 84.0 × 57.0 × 29.5 mm housing. All accept 90–264VAC. Choose based on total wattage required.

How many meters of 5V LED strip can the APV-16-5 power?

The APV-16-5 delivers 13W at 5V. At a strip rated 5 W/m, that supports roughly 2.6 m. Divide 13W by your strip's rated power per meter for your specific limit, and check your strip's rated power per meter before finalizing the design.

Is the APV-16-5 protected against moisture in food service or retail environments?

The APV-16-5 is rated IP42, offering protection against particles larger than 1 mm and dripping water only. In food service or retail display environments with potential for cleaning spray or condensation, the driver should be housed in a sealed IP-rated enclosure or replaced with a driver rated IP65 or higher.

Model	Power	Voltage	Current	IP Rating
Mean Well APV-16-24 Power Supply 16W 24V	16.08W	24V	0.67A	Indoor	View
Mean Well APV-16-12 Power Supply 15W 12V	15W	12V	1.25A	Indoor	View
Mean Well S-APV-16-24 Power Supply 16W 24V with AU/NZ plug	16.08W	24V	0.67A	—	View
Mean Well APV-16-15 Power Supply 15W 15V	15W	15V	1A	Indoor	View
