Mean Well LPF-60-24 Power Supply | Universal AC Input, Built-in PFC

Overview

LPF-60-24 is the 24V output model of this series: rated current 2.5A, rated power 60W, typical efficiency 89%.

LPF-60 series is a 60W AC/DC LED driver featuring the dual modes constant voltage and constant current output. LPF-60 operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations.

Features

Constant Voltage + Constant Current mode output
Plastic housing with Class II design
Built-in active PFC function
Class 2 power unit
Fully encapsulated with IP67 level
Typical lifetime>50000 hours
5 years warranty

Specifications

LPF-60-24Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION^Note.2: 14.4 ~ 24V
RATED CURRENT: 2.5A
RATED POWER^Note.5: 60W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
VOLTAGE TOLERANCE^Note.4: ±4.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1000ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 89%
AC CURRENT: 0.8A / 115VAC 0.4A / 230VAC 0.32A/277VAC
INRUSH CURRENT(Typ.): COLD START 55A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 28 ~ 35V
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +80℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP67, J61347-1, J61347-2-13, BIS IS15885 (for 24V only) , EAC TP TC 004, GB/T19510.1,GB/T19510. 213 approved ; design refer to UL60950-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 3786.9K hrs min. Telcordia SR-332 (Bellcore) ; 440.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 162.5*43*32mm (L*W*H)
PACKING: 0.45Kg; 32pcs/15.4Kg/0.93CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.

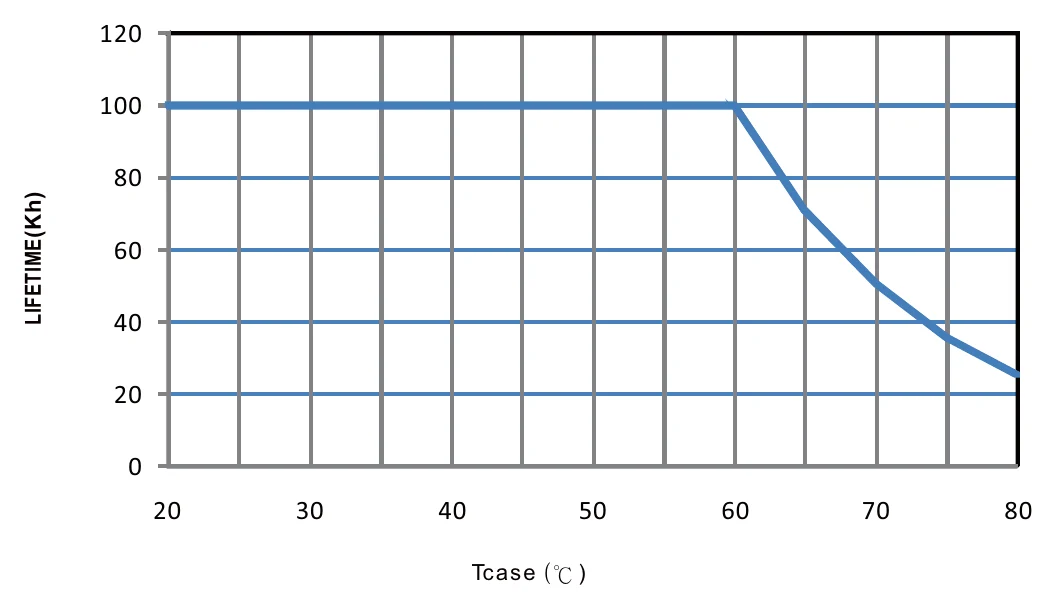

9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

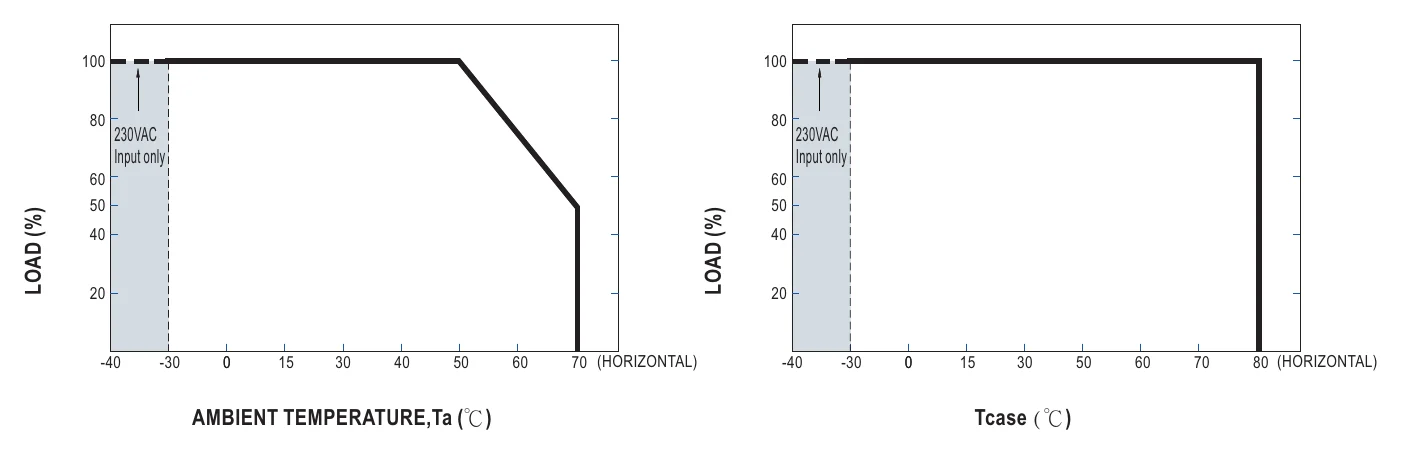

LPF-60-24 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

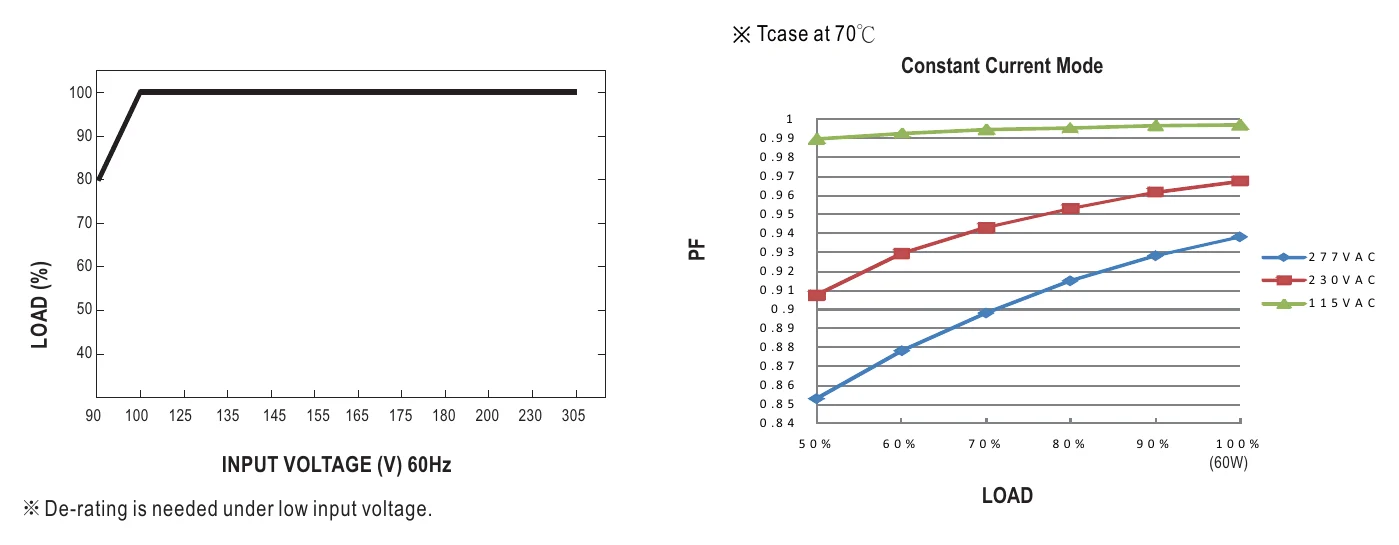

LPF-60-24 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

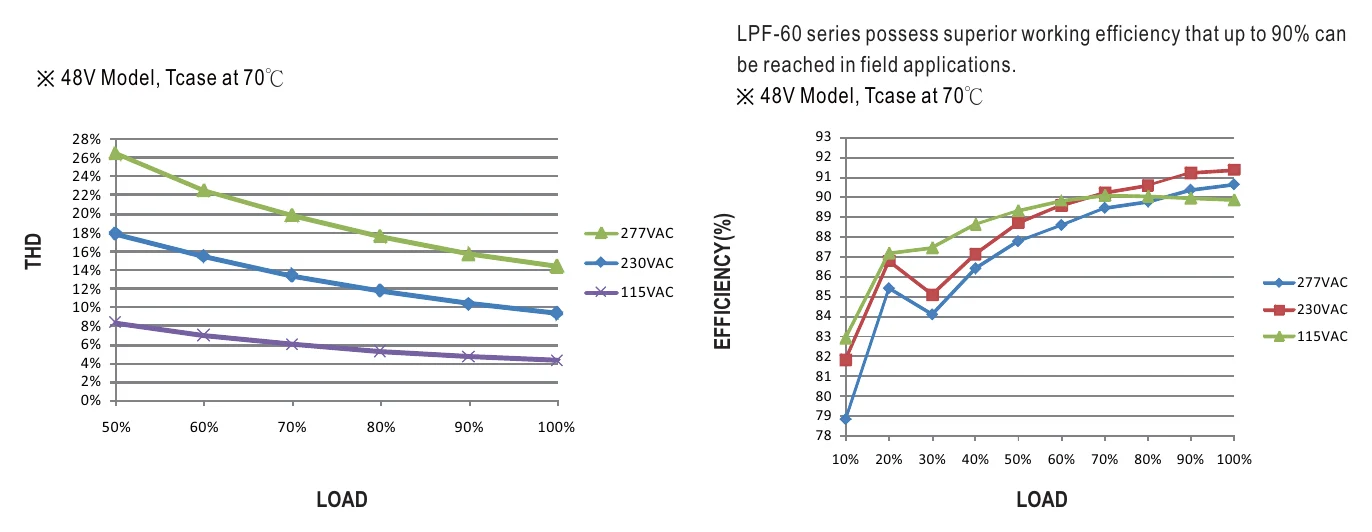

LPF-60-24 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

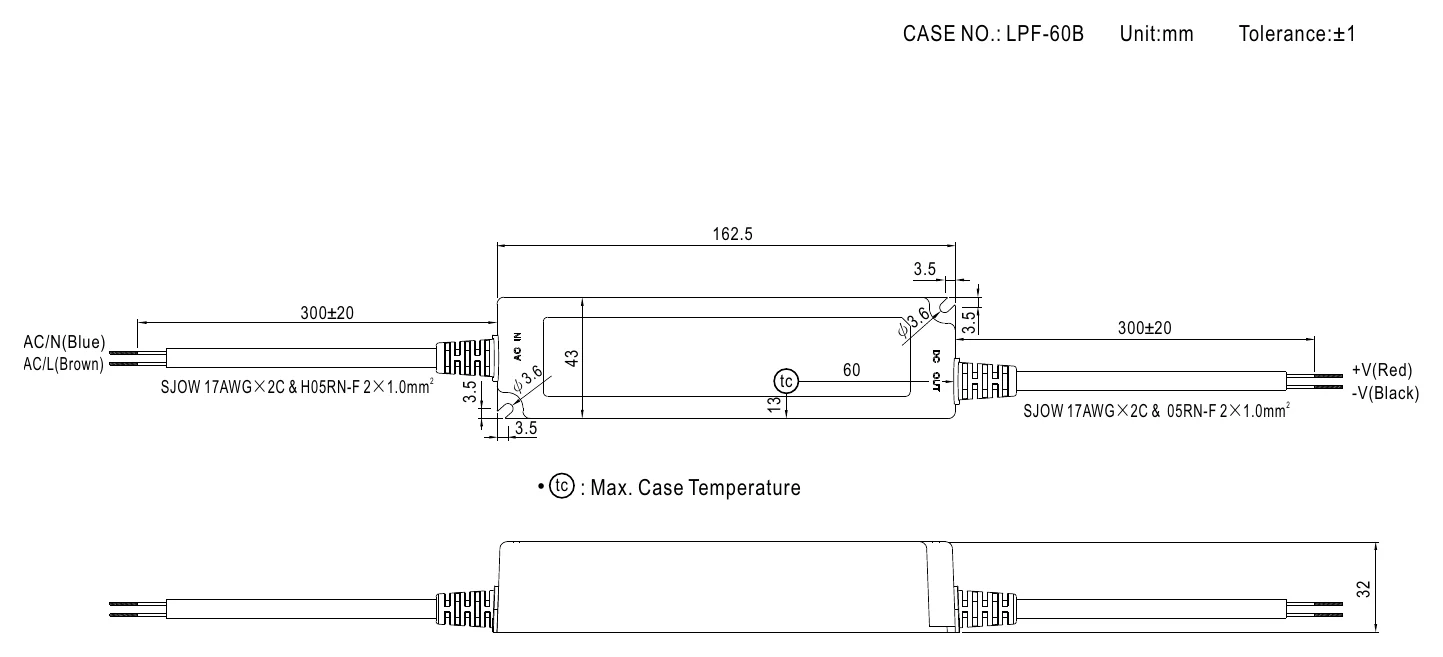

LPF-60-24 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

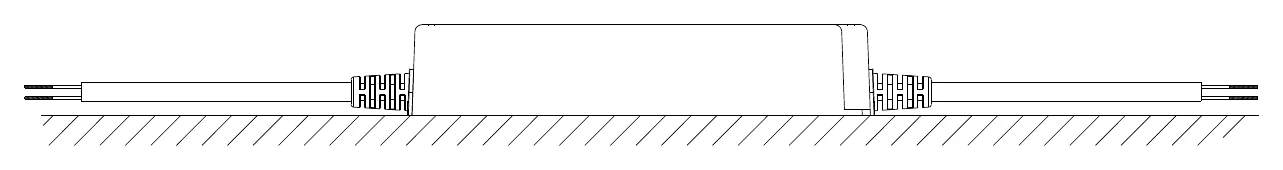

LPF-60-24 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED panel lighting
LED downlight
LED decorative lighting
LED tunnel lighting
Moving sign

Downloads

Certificates5

UL Certificate (LPF-60)(EN) PDF Download

CB Certificate (LPF-60)(EN) PDF Download

EMC Certificate (LPF-60)(EN) PDF Download

ENEC Certificate (LPF-60)(EN) PDF Download

PSE Certificate (LPF-60)(EN) PDF Download

Test reports1

Test Report(LPF-60-24)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPF-60-24 with a 24V LED strip lighting product?

Yes, if the 24V lighting product stays within 60W and 2.5A. This driver supplies 24V constant voltage for CV strips and also has a 14.4-24V constant current region, so either type of load can be used within those limits.

Is the LPF-60-24 a fit for 24V sign lighting exposed to weather?

It can be a fit for 24V sign lighting when the connected modules are 24V constant voltage or 14.4-24V constant current types and the total load does not exceed 60W or 2.5A. The IP67 rating is appropriate for outdoor and wet-location use where the driver may see rain or splashing water.

Can this driver be used for 24V architectural or facade lighting?

Yes, it can be used for 24V architectural lighting if the fixture or light engine is specified for 24V constant voltage or constant current input within the 14.4-24V range. Its Tcase working range of -40°C to +80°C (with load derating at higher temperatures) also supports demanding indoor or outdoor site conditions.

Would this work for a sealed lighting enclosure in a damp area?

This model is designed for damp and wet environments because it carries an IP67 waterproof rating. Its IP67-rated body can also be useful where a sealed driver is preferred inside a protected enclosure.

How do I estimate the maximum 24V LED strip length for this driver?

The driver can supply up to 60W total at 24V, with a maximum output current of 2.5A. For strip length, use 60W / strip watts per meter; for example, if a strip is rated in W/m, divide 60W by that number, and check your strip rated power per meter before sizing.

How does the LPF-60-24 compare with the other LPF-60 voltage options?

The LPF-60 family steps through 12V 5A 60W, 15V 4A 60W, 20V 3A 60W, 24V 2.5A 60W, 30V 2A 60W, 36V 1.67A 60.12W, 42V 1.43A 60.06W, 48V 1.25A 60W, and 54V 1.12A 60.48W. All share the same 90-305VAC input, IP67 rating and 162.5 x 43 x 32 mm case.
