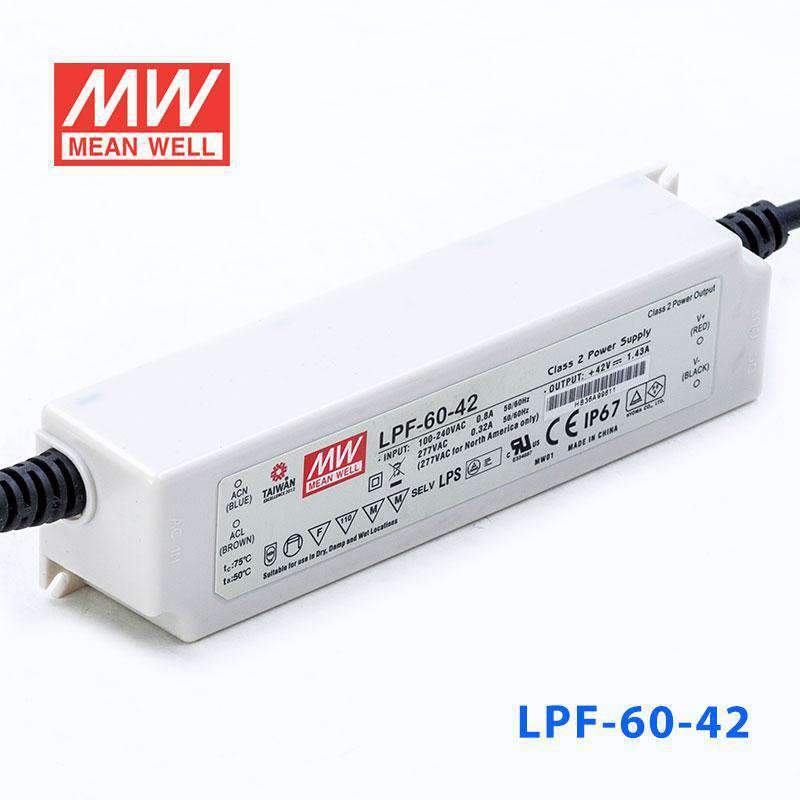

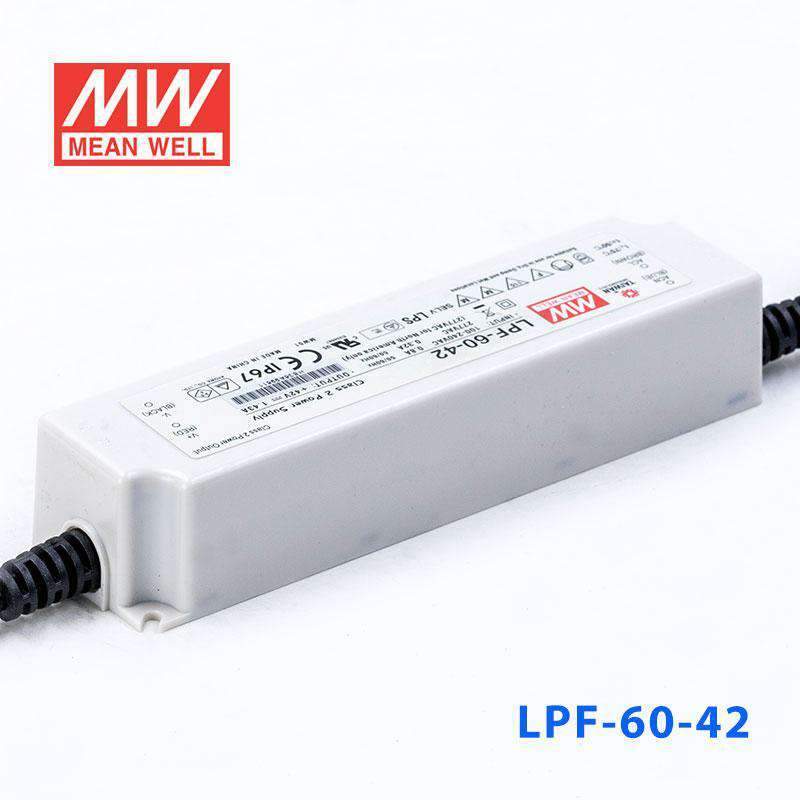

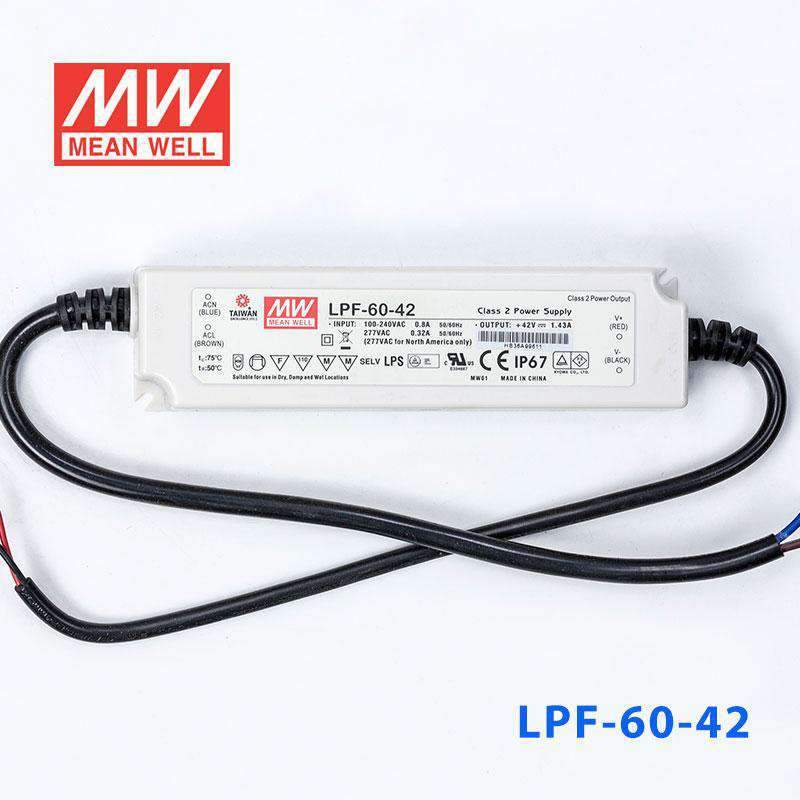

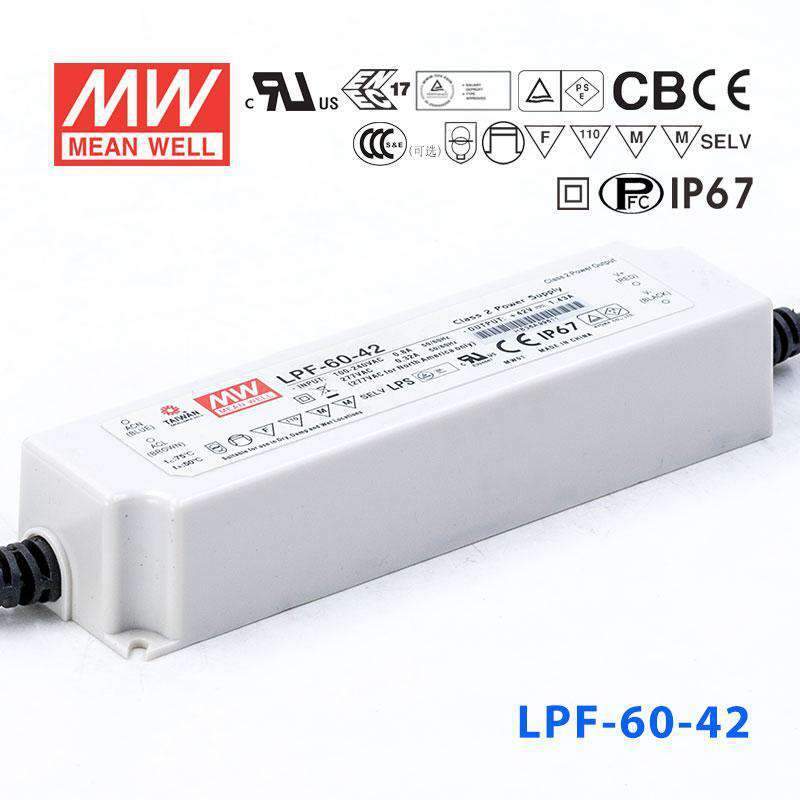

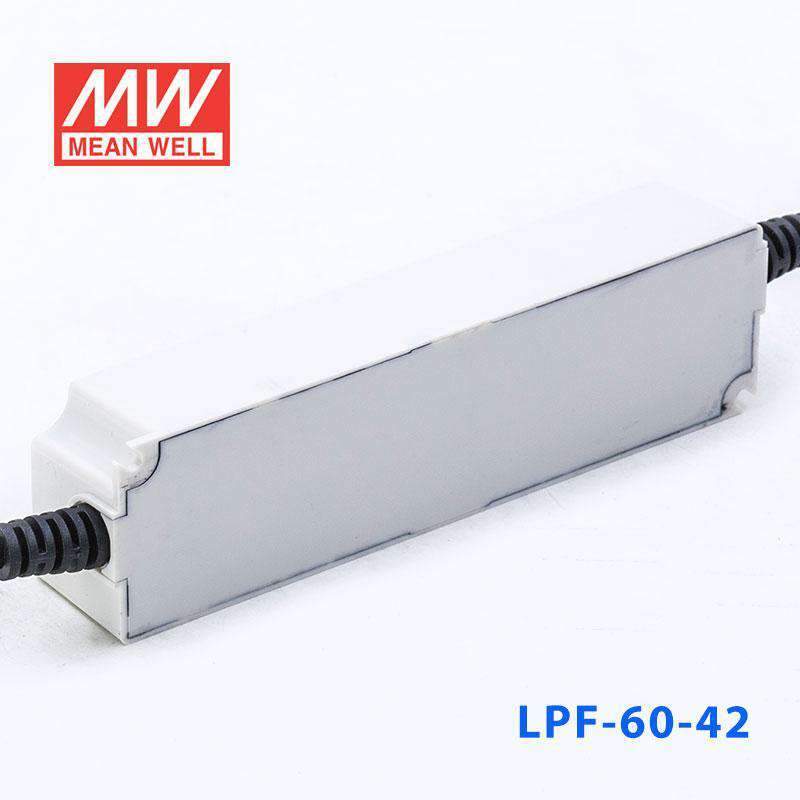

Mean Well LPF-60-42 Power Supply 60W 42V
Please Login for Pricing
Description
Description
The LPF-60 is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60.06 Watt
-
Output Voltage42 Volt
-
Rated Current1.43 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length16.25 cm
-
Width4.3 cm
-
Height3.2 cm
-
Weight0.45 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60-42 for a 42V LED lighting load?
Yes, if the 42V lighting product is built for constant current operation and does not exceed 60.06W or 1.43A. The driver operates across a 25-42V CC range, so the load needs to be compatible with that range.
Is this driver appropriate for 42V outdoor sign or display lighting?
It can be appropriate for 42V sign or display lighting when the modules are constant current and remain within the 60.06W, 1.43A limit. Its IP67 rating is relevant for outdoor conditions where water exposure is possible.
Can the LPF-60-42 be used for exterior architectural lighting fixtures?
Yes, provided the fixture's LED engine is designed for constant current input within the 25-42V range. The driver is also rated for -40°C to +80°C operation, which helps in exposed architectural environments.
Is the LPF-60-42 suitable for wet or outdoor environments?
Yes, it has an IP67 waterproof rating, so it is intended for outdoor and wet-location use. That rating is the key specification for resistance to water and dust exposure around the driver body.
How much 42V LED strip can this driver run?
The maximum output is 60.06W total at 42V, with a maximum current of 1.43A. To estimate strip length, divide 60.06W by the strip's watts per meter, and check your strip rated power per meter before choosing a final run length.
What other LPF-60 models are available besides the 42V version?
Other LPF-60 outputs are 12V 5A 60W, 15V 4A 60W, 20V 3A 60W, 24V 2.5A 60W, 30V 2A 60W, 36V 1.67A 60.12W, 48V 1.25A 60W, and 54V 1.12A 60.48W, alongside this 42V 1.43A 60.06W model. LPF-60D versions mirror those same output ratings in the D-series.
Other LPF-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well LPF-60-48 Power Supply 60W 48V | 60W | 48V | 1.25A | IP67 | View |
| Mean Well LPF-60-24 Power Supply 60W 24V | 60W | 24V | 2.5A | IP67 | View |
| Mean Well LPF-60-12 Power Supply 60W 12V | 60W | 12V | 5A | IP67 | View |
| Mean Well LPF-60-54 Power Supply 60W 54V | 60.48W | 54V | 1.12A | IP67 | View |
| Mean Well LPF-60-36 Power Supply 60W 36V | 60.12W | 36V | 1.67A | IP67 | View |
| Mean Well LPF-60-30 Power Supply 60W 30V | 60W | 30V | 2A | IP67 | View |
| Mean Well LPF-60-20 Power Supply 60W 20V | 60W | 20V | 3A | IP67 | View |
| Mean Well LPF-60-15 Power Supply 60W 15V | 60W | 15V | 4A | IP67 | View |
