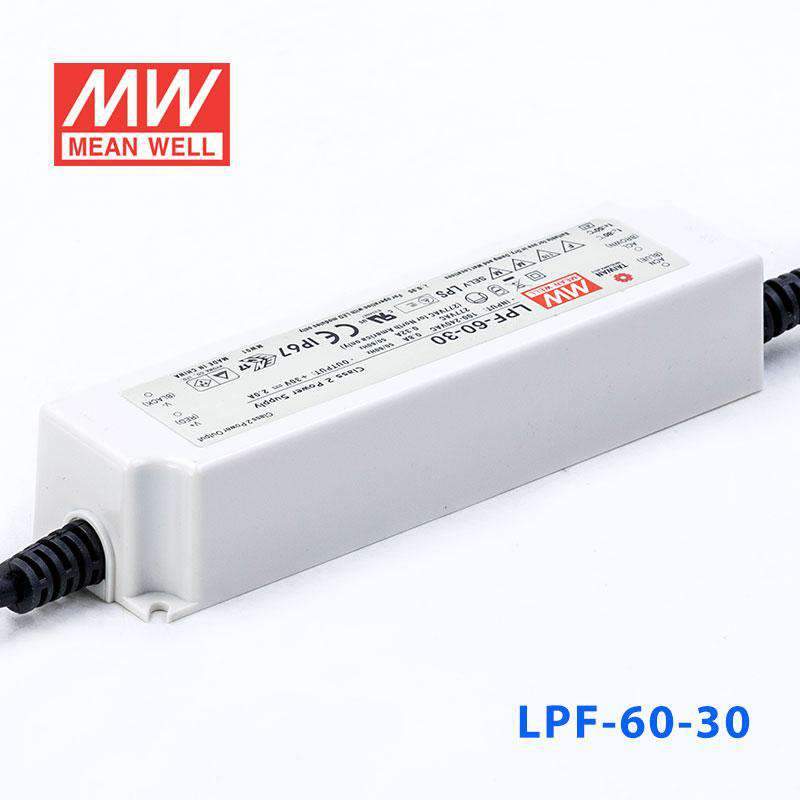

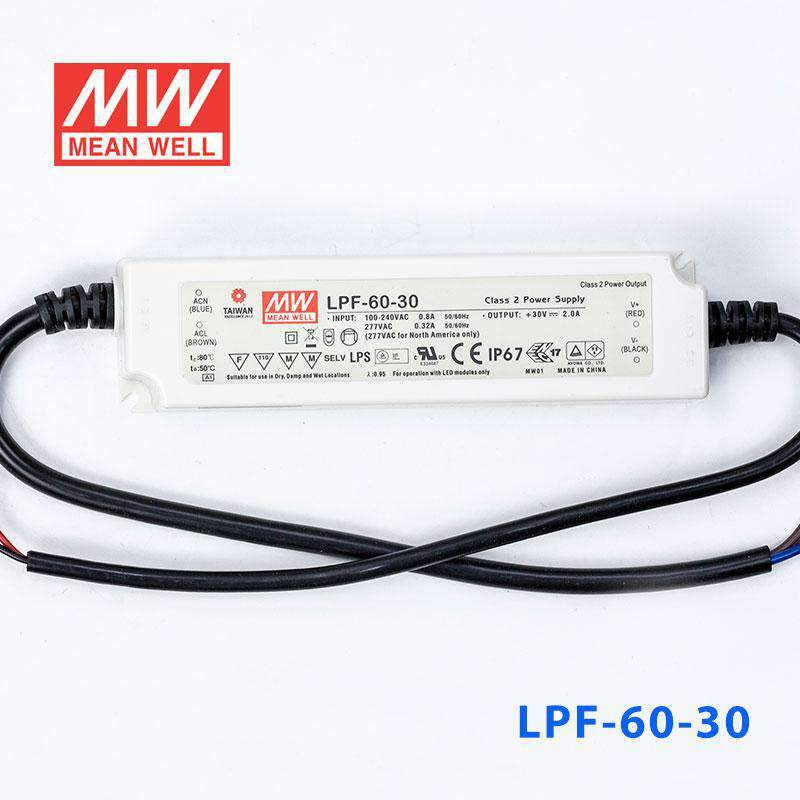

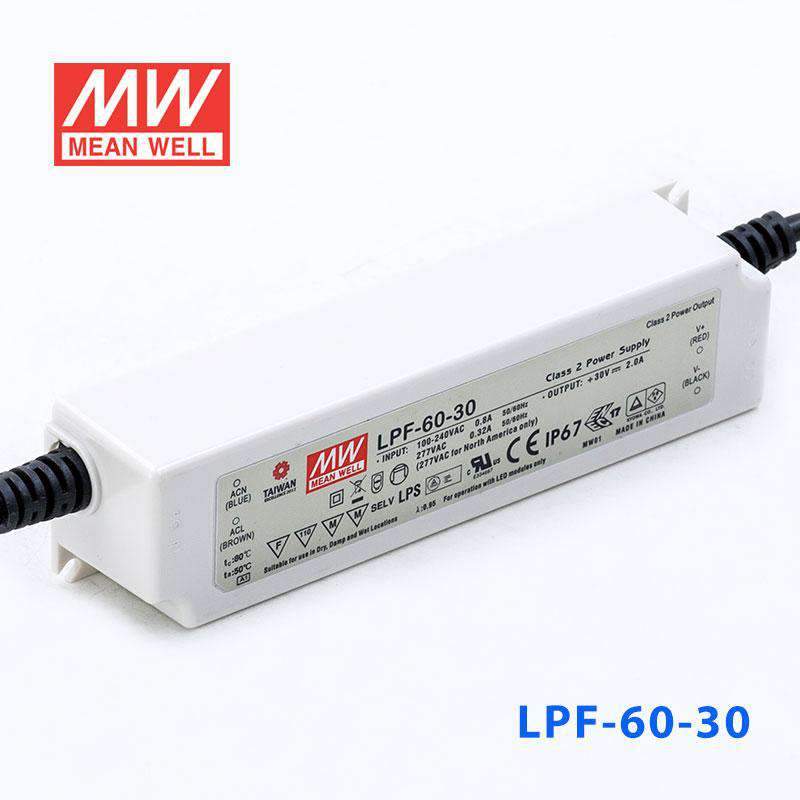

Mean Well LPF-60-30 Power Supply | Mean Well LPF Series | Auckland Distributor

Description

The LPF-60 is a 60W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY & EMC
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

LPF Series
Power Rating

60 Watt
Output Voltage

30 Volt
Rated Current

2 Ampere
Input Voltage

90V~305V

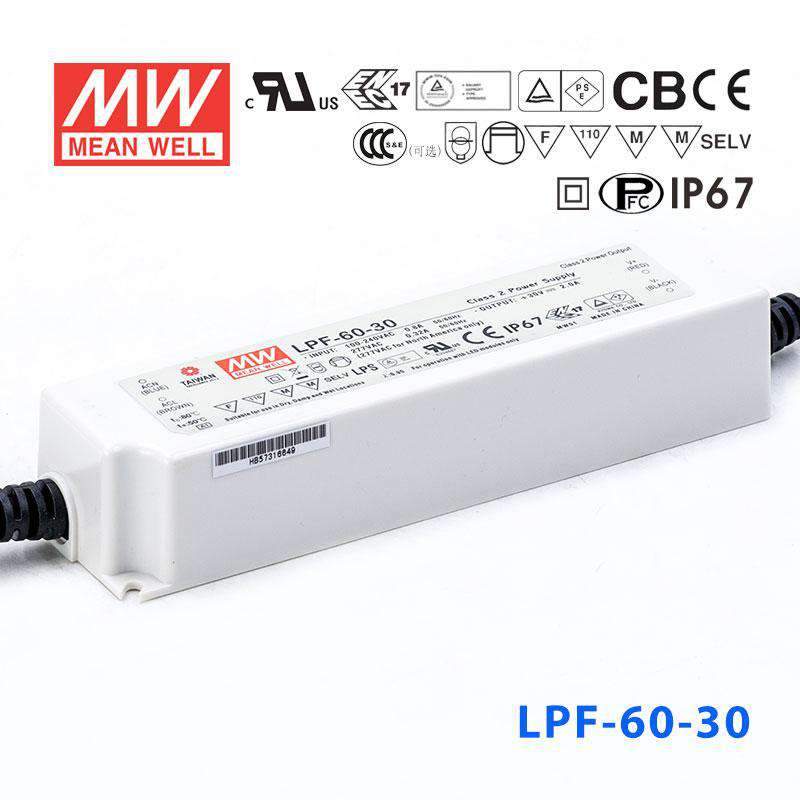

Standards Met

CB,CE,EAC,ENEC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

16.25 cm
Width

4.3 cm
Height

3.2 cm
Weight

0.21 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPF-60-30 for a 30V LED lighting application?

Yes, if the 30V fixture, strip, or module is intended for constant current operation and does not exceed 60W or 2A. This model runs in constant current mode with an 18-30V range, so the connected load must match that requirement.

Is this driver suitable for 30V illuminated sign modules in outdoor conditions?

It can be suitable for 30V sign lighting when the load is constant current and stays within 60W and 2A. The IP67 waterproof rating supports outdoor use where the driver may be exposed to weather.

Can the LPF-60-30 be used for exterior accent or facade lighting?

Yes, for exterior accent or facade lighting products that are built for constant current operation within the 18-30V range. The driver is rated for -40°C to +80°C operation, which is relevant for exposed installations with wide temperature swings.

Does this model make sense for a compact sealed lighting assembly?

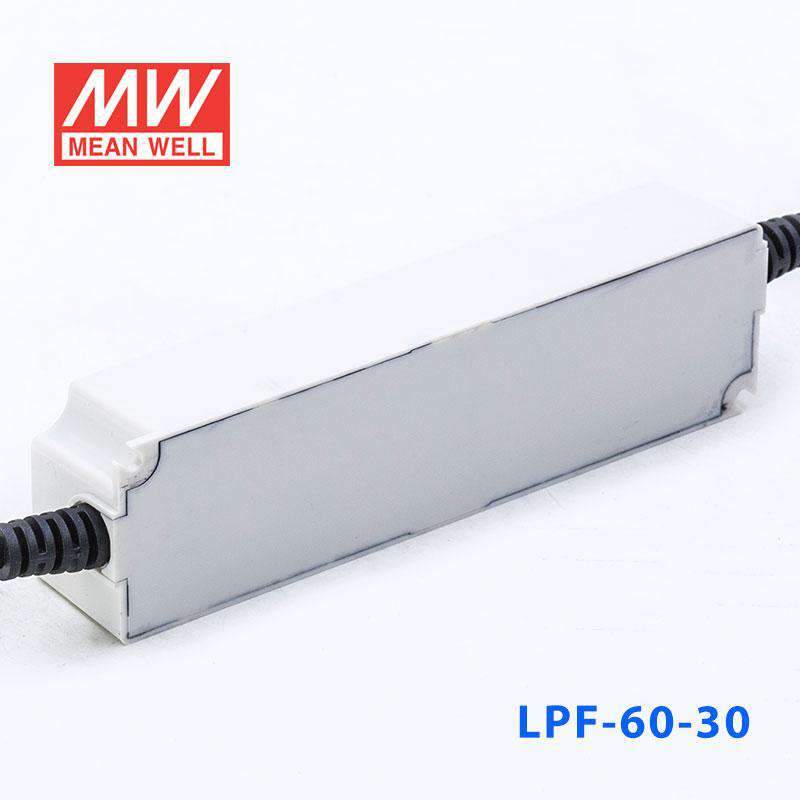

It can, since the housing is 162.5 x 43.0 x 32.0 mm and uses a fully isolated plastic case. That combination is useful where a sealed driver is needed in a relatively compact lighting assembly.

How much 30V LED strip can the LPF-60-30 support?

Its maximum output is 60W total at 30V, limited to 2A. To estimate strip length, divide 60W by the strip's watts per meter, and check your strip rated power per meter to confirm the final length is within the driver's capacity.

What are the LPF-60-30 alternatives in the same LPF-60 series?

The LPF-60 series is available as 12V 5A 60W, 15V 4A 60W, 20V 3A 60W, 24V 2.5A 60W, 30V 2A 60W, 36V 1.67A 60.12W, 42V 1.43A 60.06W, 48V 1.25A 60W, and 54V 1.12A 60.48W. Equivalent LPF-60D variants use the same listed output combinations.

Model	Power	Voltage	Current	IP Rating
Mean Well LPF-60-48 Power Supply 60W 48V	60W	48V	1.25A	IP67	View
Mean Well LPF-60-24 Power Supply 60W 24V	60W	24V	2.5A	IP67	View
Mean Well LPF-60-12 Power Supply 60W 12V	60W	12V	5A	IP67	View
Mean Well LPF-60-54 Power Supply 60W 54V	60.48W	54V	1.12A	IP67	View
Mean Well LPF-60-42 Power Supply 60W 42V	60.06W	42V	1.43A	IP67	View
Mean Well LPF-60-36 Power Supply 60W 36V	60.12W	36V	1.67A	IP67	View
Mean Well LPF-60-20 Power Supply 60W 20V	60W	20V	3A	IP67	View
Mean Well LPF-60-15 Power Supply 60W 15V	60W	15V	4A	IP67	View
