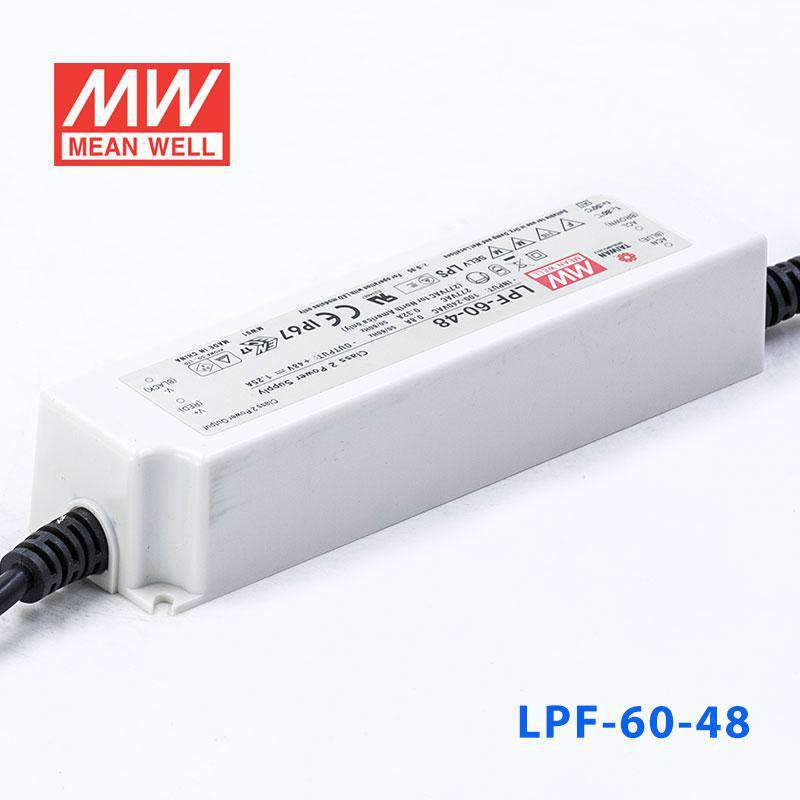

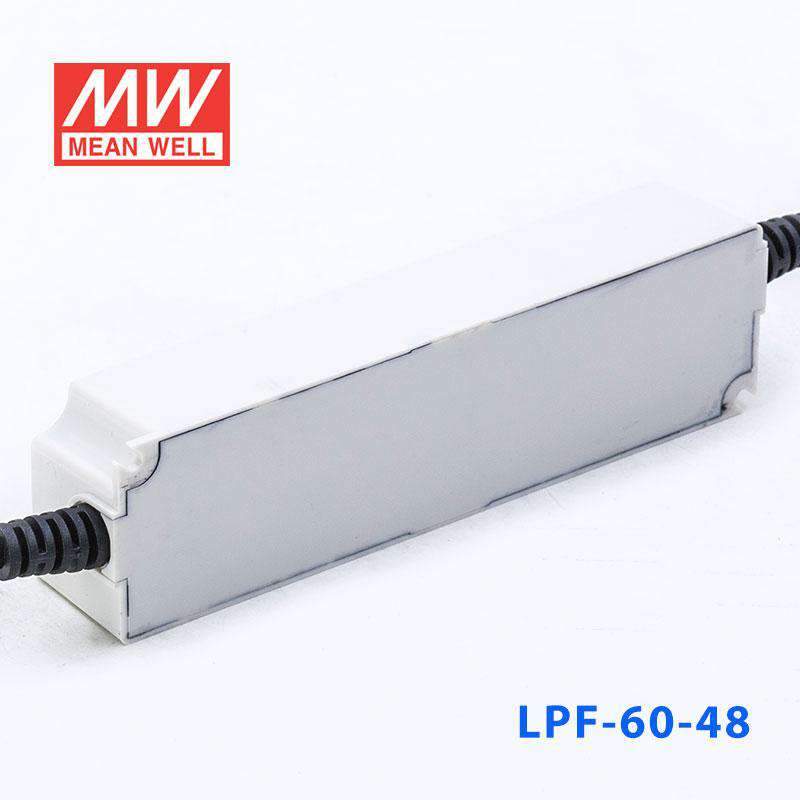

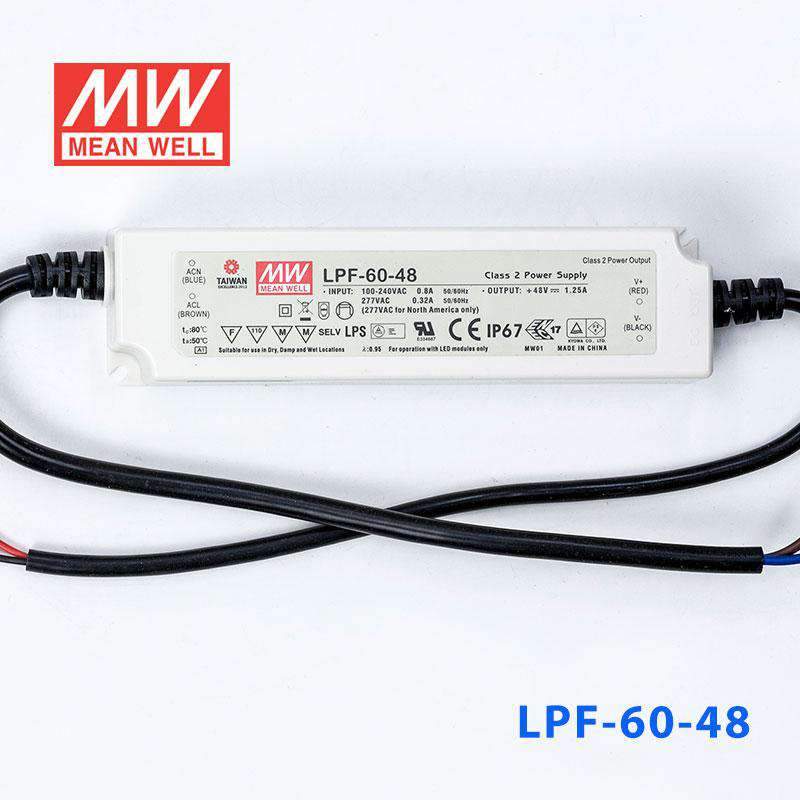

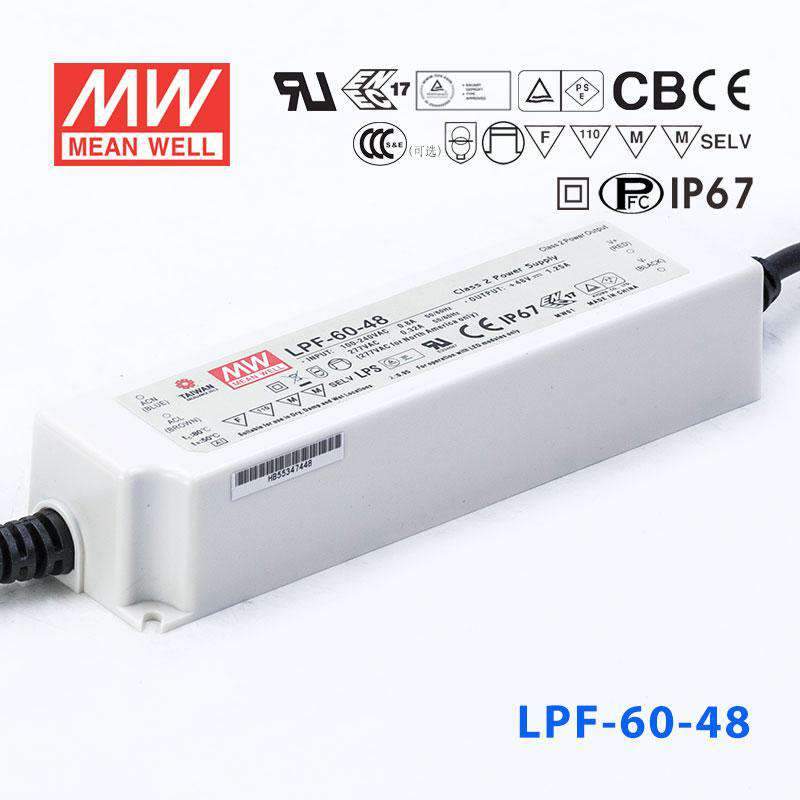

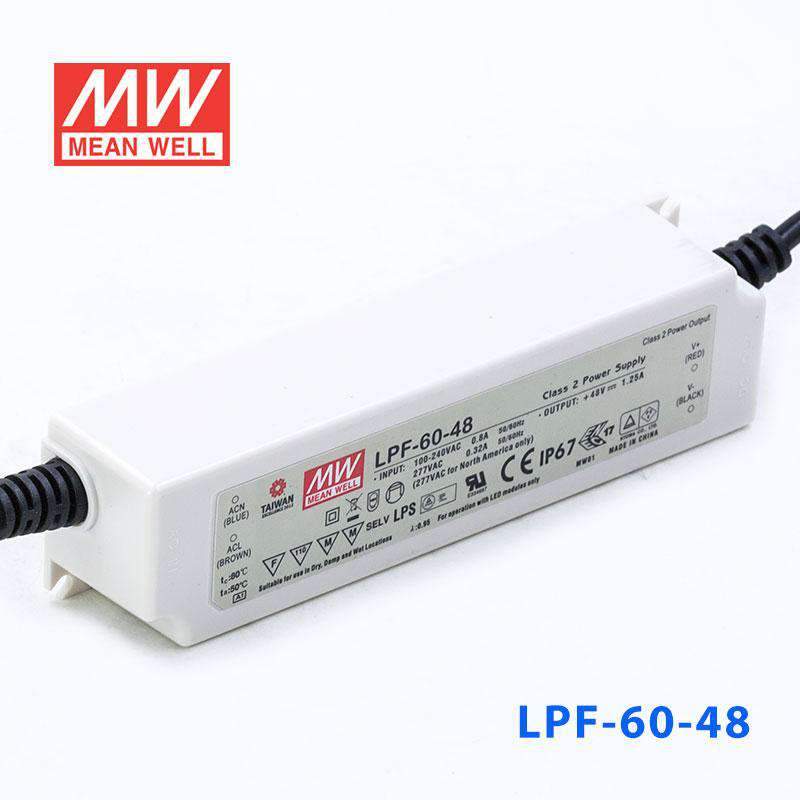

Mean Well LPF-60-48 Power Supply 60W 48V

Description

Features

Universal AC input (up to 305VAC) / Full range

Built-in active PFC function

Fully isolated plastic case

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type

Fully encapsulated with IP67 level

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Protections: Short circuit / Over current / Over voltage / Over temperature

Suitable for LED lighting and moving sign applications

Suitable for dry, damp, and wet location

Cooling by free air convection

5 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 55A
Over current protection	95% ~108% constant current, auto-recovery
Over voltage protection	110%~150% rated output voltage
Withstand voltage	I/P - O/P: 3.75kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D)
EMC standards	EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	UL rated, SVT 18AWGx2C (30cm)
Dimension (LxWxH)(mm)	162.5x 43x 32

Specifications

Brand

Mean Well
Series

LPF Series
Power Rating

60 Watt
Output Voltage

48 Volt
Rated Current

1.25 Ampere
Input Voltage

90V~305V
Standards Met

CB,CE,EAC,ENEC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

16.25 cm
Width

4.3 cm
Height

3.2 cm
Weight

0.45 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPF-60-48 for a 48V LED strip lighting run?

Yes, if the 48V strip's total load stays within this driver's 60W maximum and 1.25A output. For strip sizing, divide 60W by your strip's rated watts per meter to estimate the maximum length, and check your strip rated power per meter before choosing a run length.

Is this 48V driver suitable for outdoor architectural lighting?

It can be used in outdoor lighting applications where a 48V load matches the driver's output and stays within 60W. The IP67 rating and -40°C to +80°C operating temperature make it appropriate for wet and demanding environments.

Can I use this power supply for 48V illuminated signage?

Yes, for 48V sign lighting loads that fit within 60W and 1.25A. It is intended for LED driver use, and its IP67 housing helps when the signage application is exposed to weather or washdown conditions.

Will the LPF-60-48 work for long-run 48V linear lighting?

It is often chosen for 48V linear lighting because the output is 48V with up to 60W available. Confirm the fixture or strip is compatible with the 48V output and that the total load does not exceed 1.25A or 60W.

Is the LPF-60-48 okay for wet or exposed locations?

Yes, this model is rated IP67, so it is suited to outdoor or wet-location use where water resistance is required. It also operates from -40°C to +80°C, which supports use in very cold and very hot conditions.

Model	Power	Voltage	Current	IP Rating
Mean Well LPF-60-24 Power Supply 60W 24V	60W	24V	2.5A	IP67	View
Mean Well LPF-60-12 Power Supply 60W 12V	60W	12V	5A	IP67	View
Mean Well LPF-60-54 Power Supply 60W 54V	60.48W	54V	1.12A	IP67	View
Mean Well LPF-60-42 Power Supply 60W 42V	60.06W	42V	1.43A	IP67	View
Mean Well LPF-60-36 Power Supply 60W 36V	60.12W	36V	1.67A	IP67	View
Mean Well LPF-60-30 Power Supply 60W 30V	60W	30V	2A	IP67	View
Mean Well LPF-60-20 Power Supply 60W 20V	60W	20V	3A	IP67	View
Mean Well LPF-60-15 Power Supply 60W 15V	60W	15V	4A	IP67	View
