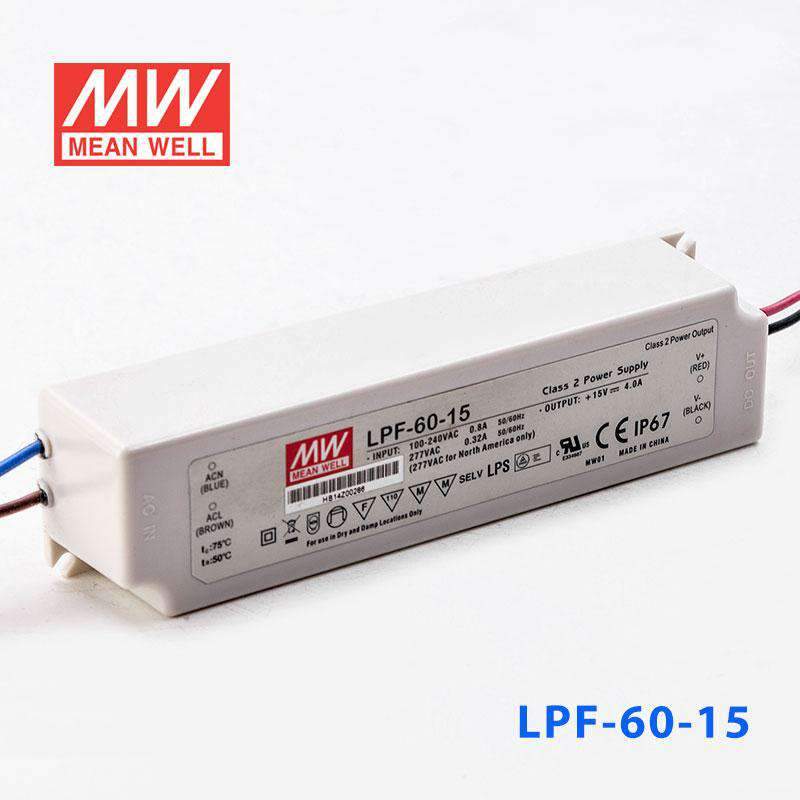

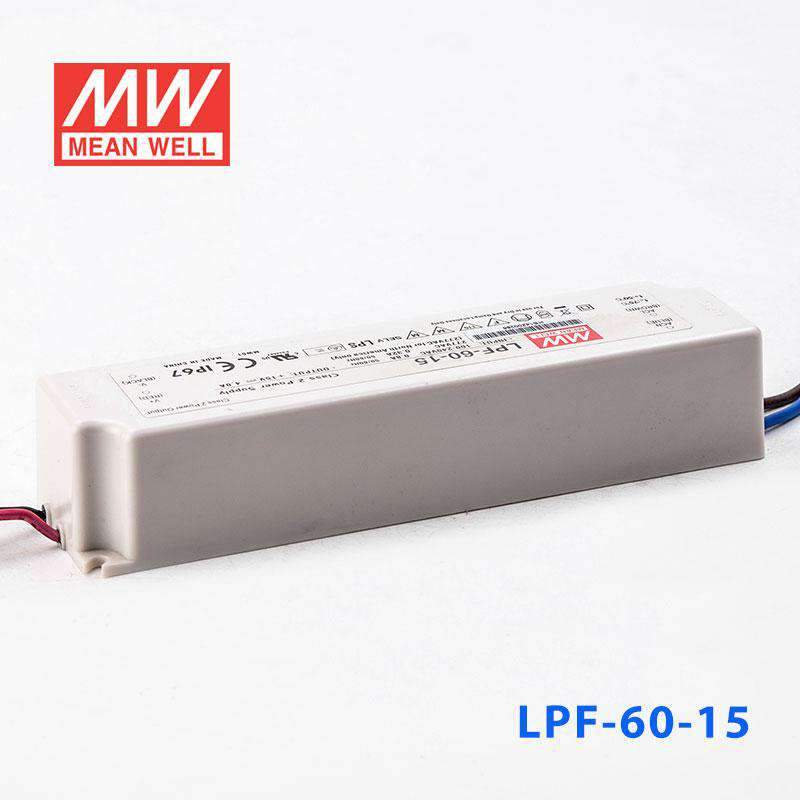

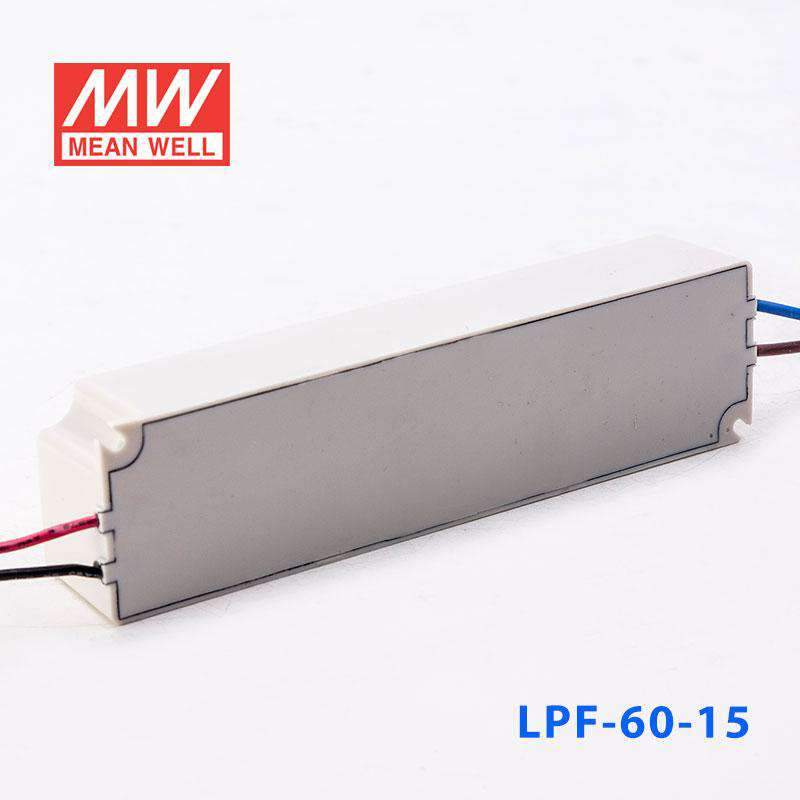

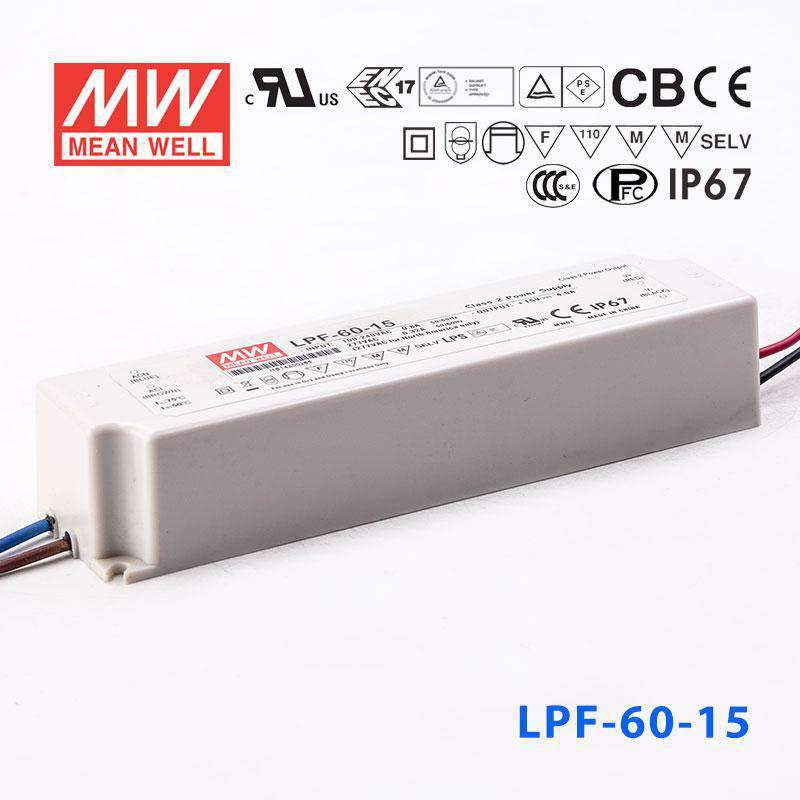

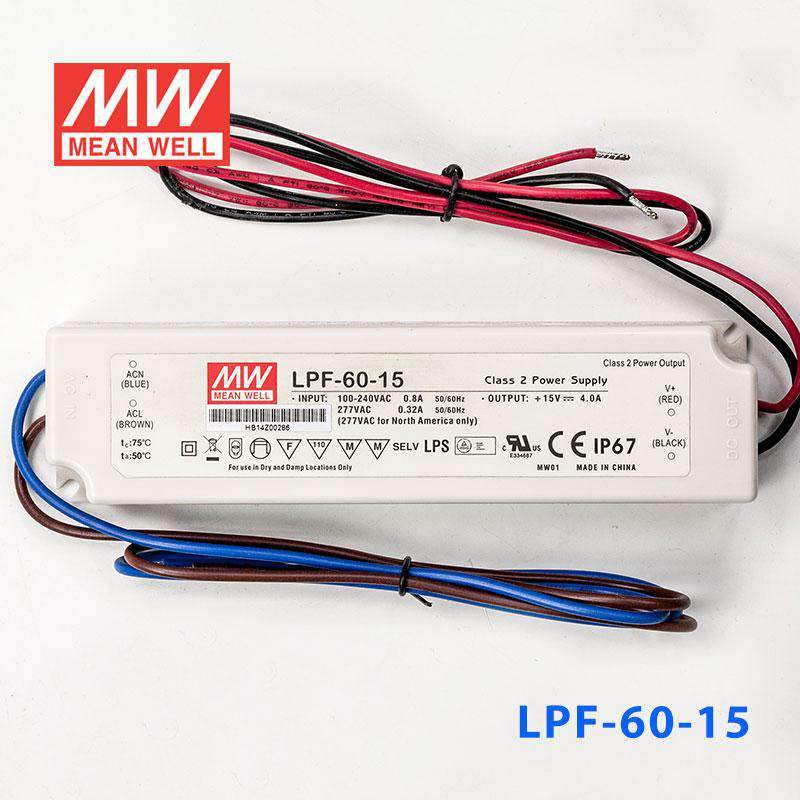

Mean Well LPF-60-15 Power Supply 60W 15V

Description

The LPF-60 is a 60W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY & EMC
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

LPF Series
Power Rating

60 Watt
Output Voltage

15 Volt
Rated Current

4 Ampere
Input Voltage

90V~305V
Standards Met

CB,CE,EAC,ENEC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

16.25 cm
Width

4.3 cm
Height

3.2 cm
Weight

0.45 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPF-60-15 for 15V LED strip or linear lighting?

Yes, for compatible 15V lighting loads up to 60W with an output current of 4A. The load should remain within the 9-15V range listed for this model.

Is this a good fit for 15V illuminated signs or display lighting?

It can be used for 15V sign or display lighting if the connected load is compatible and stays at or below 60W. The driver accepts 90-305VAC input, which is useful across a wide AC input range.

Can the LPF-60-15 be used for outdoor 15V lighting projects?

Yes, when the lighting load is a compatible 15V product and does not exceed 60W or 4A. The IP67 waterproof rating and -40°C to +80°C operating temperature make it suitable for outdoor conditions.

How do I calculate the maximum LED strip length for the LPF-60-15?

This model can supply up to 60W. Divide 60W by the strip's rated watts per meter to estimate the maximum length, and check your strip rated power per meter before finalizing the load.

What is the difference between the LPF-60-15 and other LPF-60 models?

In the LPF-60 series, the outputs are 12V 60W 5A, 15V 60W 4A, 20V 60W 3A, 24V 60W 2.5A, 30V 60W 2A, 36V 60.12W 1.67A, 42V 60.06W 1.43A, 48V 60W 1.25A, and 54V 60.48W 1.12A. The LPF-60-15 is the 15V, 4A version of that group.

Model	Power	Voltage	Current	IP Rating
Mean Well LPF-60-48 Power Supply 60W 48V	60W	48V	1.25A	IP67	View
Mean Well LPF-60-24 Power Supply 60W 24V	60W	24V	2.5A	IP67	View
Mean Well LPF-60-12 Power Supply 60W 12V	60W	12V	5A	IP67	View
Mean Well LPF-60-54 Power Supply 60W 54V	60.48W	54V	1.12A	IP67	View
Mean Well LPF-60-42 Power Supply 60W 42V	60.06W	42V	1.43A	IP67	View
Mean Well LPF-60-36 Power Supply 60W 36V	60.12W	36V	1.67A	IP67	View
Mean Well LPF-60-30 Power Supply 60W 30V	60W	30V	2A	IP67	View
Mean Well LPF-60-20 Power Supply 60W 20V	60W	20V	3A	IP67	View
