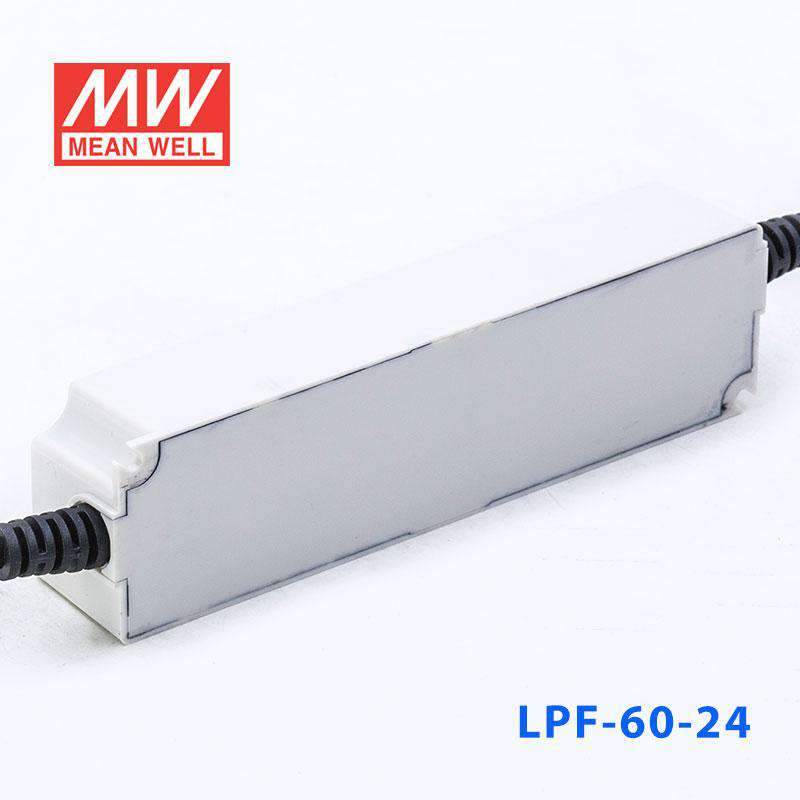

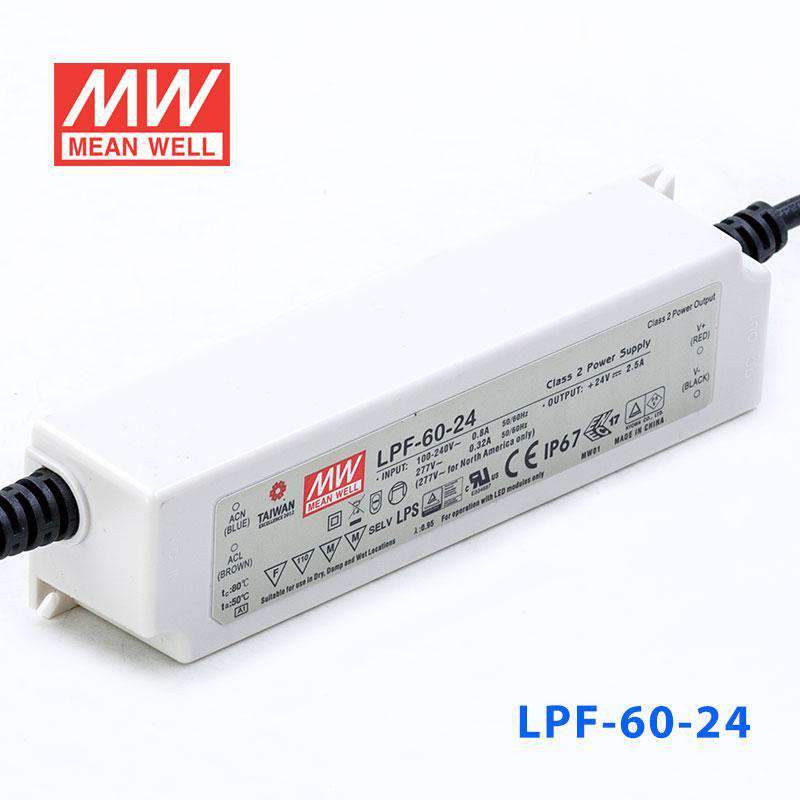

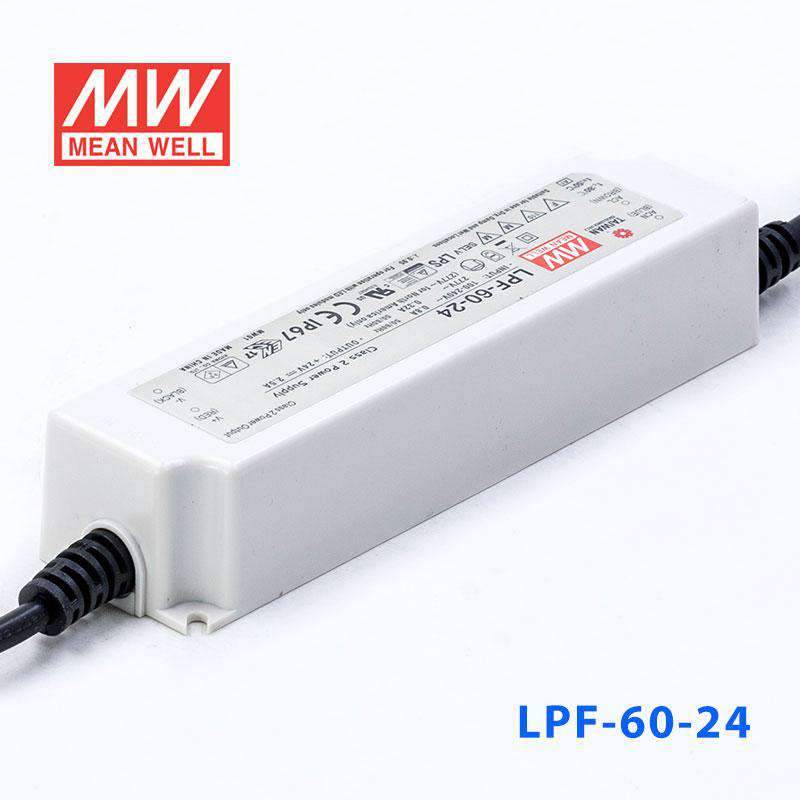

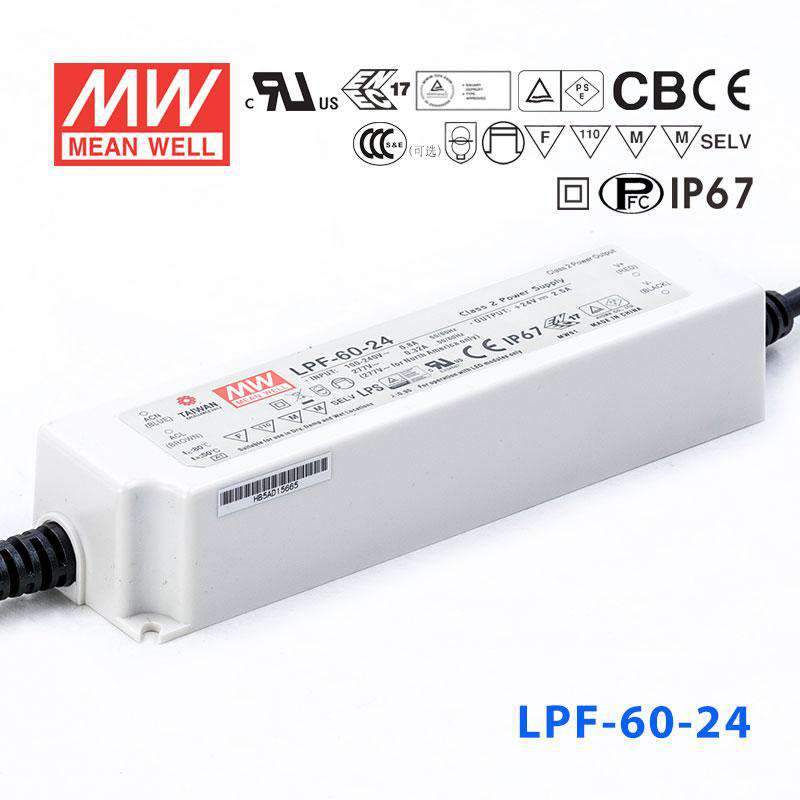

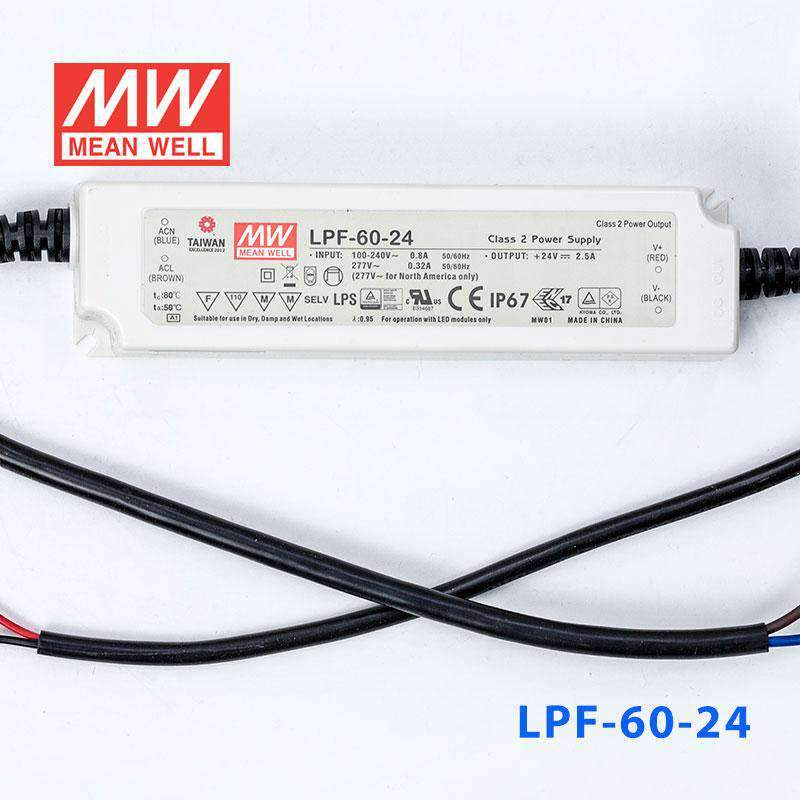

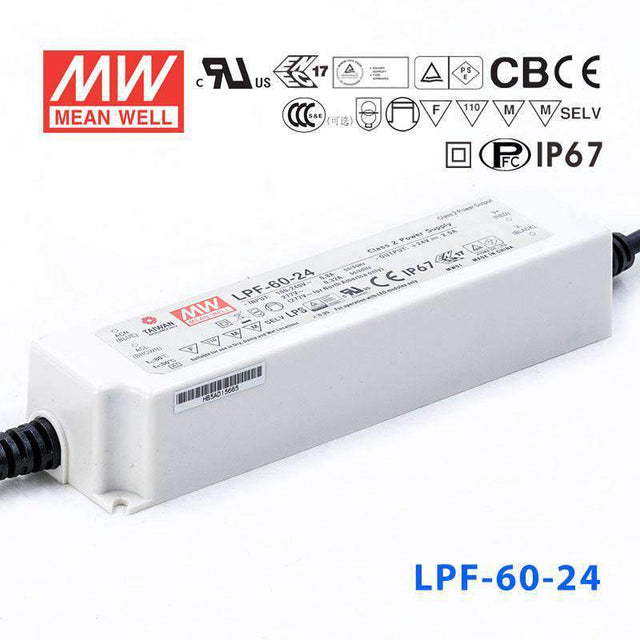

Mean Well LPF-60-24 Power Supply | Universal AC Input, Built-in PFC

Description

The LPF-60 is a 60W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY & EMC
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

LPF Series
Power Rating

60 Watt
Output Voltage

24 Volt
Rated Current

2.5 Ampere
Input Voltage

90V~305V
Standards Met

CB,CE,EAC,ENEC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

16.25 cm
Width

4.3 cm
Height

3.2 cm
Weight

0.21 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPF-60-24 with a 24V LED strip lighting product?

Yes, if the 24V lighting product is designed for constant current operation and stays within 60W and 2.5A. This driver has a 14-24V constant current range, so the load needs to be compatible with that operating mode.

Is the LPF-60-24 a fit for 24V sign lighting exposed to weather?

It can be a fit for 24V sign lighting when the connected modules are constant current and the total load does not exceed 60W or 2.5A. The IP67 rating is appropriate for outdoor and wet-location use where the driver may see rain or splashing water.

Can this driver be used for 24V architectural or facade lighting?

Yes, it can be used for 24V architectural lighting if the fixture or light engine is specified for constant current input within the 14-24V range. The -40°C to +80°C operating temperature range also supports demanding indoor or outdoor site conditions.

Would this work for a sealed lighting enclosure in a damp area?

This model is designed for damp and wet environments because it carries an IP67 waterproof rating. Its fully isolated plastic case can also be useful where a sealed driver body is preferred inside a protected enclosure.

How do I estimate the maximum 24V LED strip length for this driver?

The driver can supply up to 60W total at 24V, with a maximum output current of 2.5A. For strip length, use 60W / strip watts per meter; for example, if a strip is rated in W/m, divide 60W by that number, and check your strip rated power per meter before sizing.

How does the LPF-60-24 compare with the other LPF-60 voltage options?

The LPF-60 family steps through 12V 5A 60W, 15V 4A 60W, 20V 3A 60W, 24V 2.5A 60W, 30V 2A 60W, 36V 1.67A 60.12W, 42V 1.43A 60.06W, 48V 1.25A 60W, and 54V 1.12A 60.48W. LPF-60D models mirror those same output ratings in the D-series.

Model	Power	Voltage	Current	IP Rating
Mean Well LPF-60-48 Power Supply 60W 48V	60W	48V	1.25A	IP67	View
Mean Well LPF-60-12 Power Supply 60W 12V	60W	12V	5A	IP67	View
Mean Well LPF-60-54 Power Supply 60W 54V	60.48W	54V	1.12A	IP67	View
Mean Well LPF-60-42 Power Supply 60W 42V	60.06W	42V	1.43A	IP67	View
Mean Well LPF-60-36 Power Supply 60W 36V	60.12W	36V	1.67A	IP67	View
Mean Well LPF-60-30 Power Supply 60W 30V	60W	30V	2A	IP67	View
Mean Well LPF-60-20 Power Supply 60W 20V	60W	20V	3A	IP67	View
Mean Well LPF-60-15 Power Supply 60W 15V	60W	15V	4A	IP67	View
