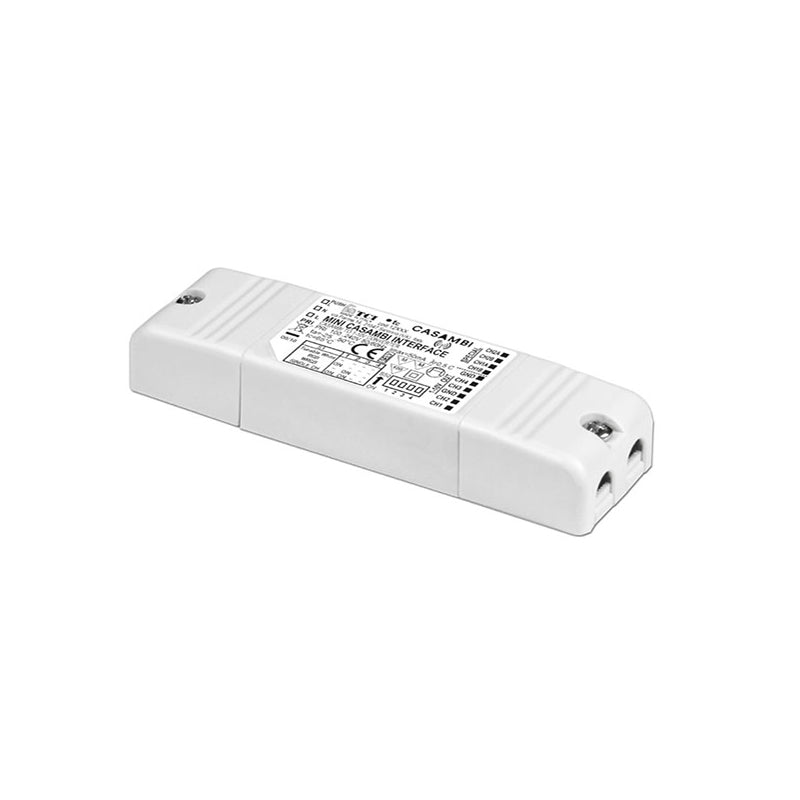

TCI Casambi tunable white 1-10V signal converter(127637)
Log in to see priceFeatures
• Interface which can convert a WIRELESS CASAMBI signal into a
0/1...10 V signal.
• TW version allows control of LENS VECTOR device (see LENS
VECTOR technical specification).
• Class II protection against electric shock for direct or indirect
contact.
• The converter can be powered directly from the mains
(100 ÷ 240 VAC).
• Protections:
- against input over voltages from mains;
- against short circuit and open circuit;
- thermal protection = automatic resetting type;
- Non-IC; minimum clearance distance from top and lateral
sides to normally flammable building element or building
insulation = 5 mm. Minimum clearance distance from
separate lamp or light source container = 5 mm.
-
BrandTCI
-
SeriesTCI Casambi Series
-
Input Voltage90V~305V
-
Standards MetEN,ENEC,ETSI,SELV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-25°C~50°C
-
Warranty7 Year
-

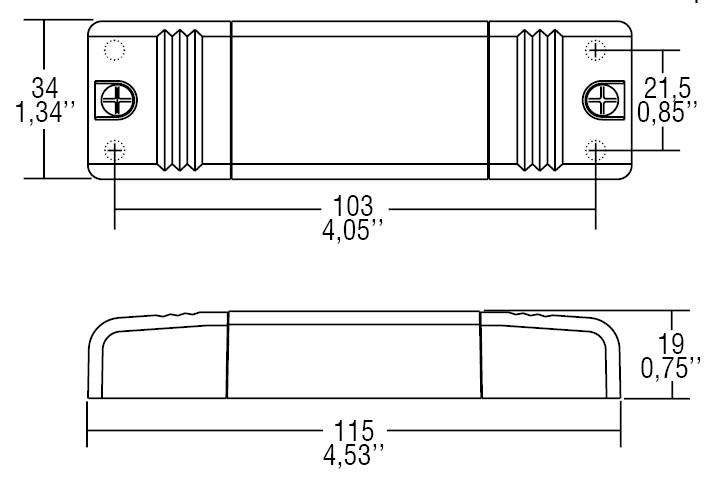

Length10.3 cm
-
Width2.15 cm
-
Height1.9 cm
-
Weight0.09 kg
::specification::
Frequently Asked Questions
What does the TCI Casambi tunable white 1-10V signal converter do?
This model converts a wireless Casambi control signal into a 0/1...10 V output signal. It is designed for tunable white control applications where Casambi-based wireless control needs to interface with compatible 1-10V signal devices.
Is this converter suitable for tunable white lighting control?
Yes. This is the tunable white version, so it is intended for tunable white lighting control scenarios rather than basic single-channel dimming only. The product description also states that this TW version allows control of the LENS VECTOR device, subject to that device's technical specification.
What control protocols or dimming methods does this model support?
This converter is designed around Casambi wireless control and produces a 0/1...10 V control signal. Based on the provided product data, it is intended for applications using Casambi and 1-10V dimming/control.
What kind of products is this converter compatible with?
It is intended for compatible devices that use a 0/1...10 V control signal and for tunable white applications using Casambi wireless control. The description specifically references control of the LENS VECTOR device, which makes that a key model-specific compatibility note.
Can this product be used in demanding ambient temperatures?
Yes, this model is rated for operation from -25°C to 50°C. That range makes it suitable for a wide variety of commercial and professional lighting environments, provided the overall installation stays within the specified limits.
What protection features are listed for this converter?
The description lists protection against mains input overvoltages, short circuit, open circuit, and thermal protection with automatic reset. Those protections are relevant for buyers looking for a controller intended for dependable professional use.
How does this model differ from a standard non-wireless 1-10V controller?
The main differentiator is that this unit converts a wireless Casambi signal into a 0/1...10 V control signal. That makes it a fit for projects that want Casambi-based wireless control while still working with compatible 1-10V-controlled lighting equipment.
What are the physical and support-related basics for this model?
The listed product weight is 0.0900 kg, which makes it a compact control component rather than a large power device. The stated warranty period is 7 years, which is a useful consideration for long-term commercial projects.
