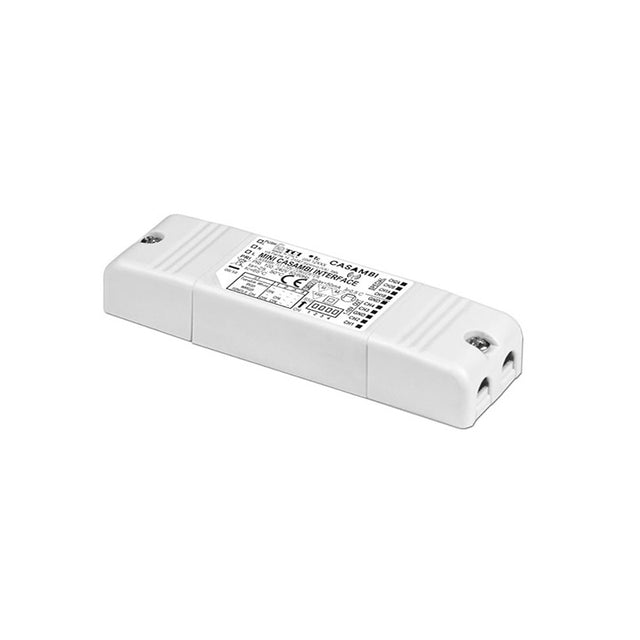

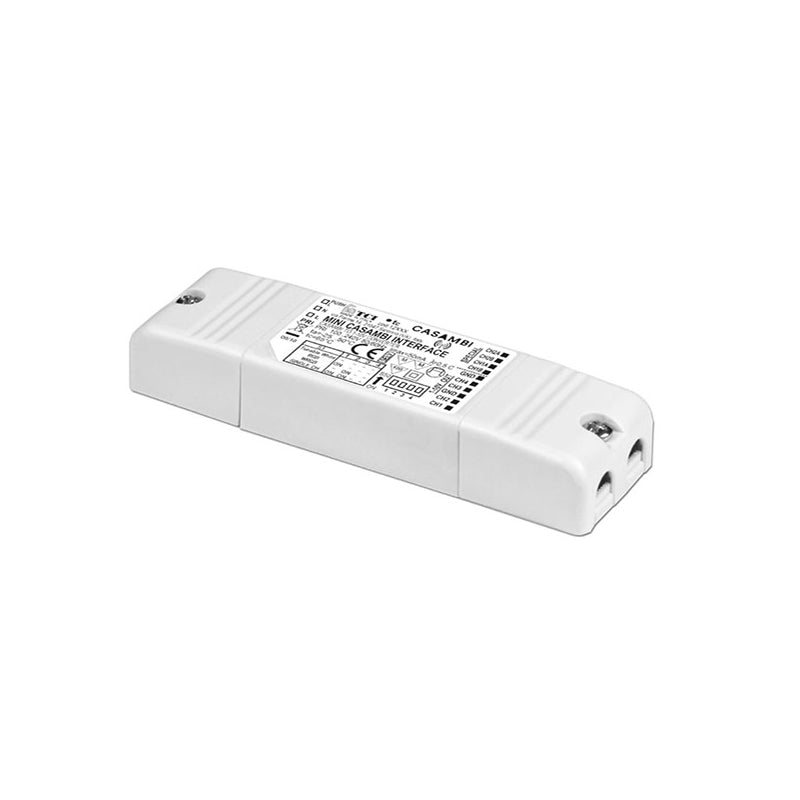

TCI Casambi tunable RGBW 1-10V signal converter(127638)

SKU:

TCI-CA-RGBW

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Features

• Interface which can convert a WIRELESS CASAMBI signal into a

0/1...10 V signal.

• TW version allows control of LENS VECTOR device (see LENS

VECTOR technical specification).

• Class II protection against electric shock for direct or indirect

contact.

• The converter can be powered directly from the mains

(100 ÷ 240 VAC).

• Protections:

- against input over voltages from mains;

- against short circuit and open circuit;

- thermal protection = automatic resetting type;

- Non-IC; minimum clearance distance from top and lateral

sides to normally flammable building element or building

insulation = 5 mm. Minimum clearance distance from

separate lamp or light source container = 5 mm.

Frequently Asked Questions

What does the TCI Casambi tunable RGBW 1-10V signal converter do?

This model converts a wireless Casambi control signal into a 0/1...10 V control signal. It is intended for applications where Casambi-based lighting control needs to interface with equipment that responds to 1-10 V style dimming signals.

Is this converter suitable for tunable white and RGBW lighting control?

Yes. This TCI model is identified as a tunable RGBW 1-10V signal converter, making it relevant for projects using tunable white or RGBW lighting control logic through Casambi. Buyers should still confirm that the target controlled device is designed to work with a 0/1...10 V control signal.

What kind of control protocol compatibility does this product support?

The listed dimming control types for this model are Casambi and 1-10V. In practice, that means it is designed to bridge Casambi wireless control with lighting devices that use a 0/1...10 V signal interface.

Can this model be used in demanding indoor environmental conditions?

It is rated for an ambient operating range of -25 °C to 50 °C, which supports use across a wide range of commercial and professional environments. Environmental suitability should still be evaluated against the full conditions of the specific project site.

How does this converter compare with a standard non-wireless 1-10V control interface?

The main difference is that this TCI unit is designed to receive wireless Casambi control and convert it into a 0/1...10 V output signal. That makes it useful where a project wants Casambi-based control flexibility while working with equipment that expects analog dimming input rather than native wireless control.

What protection and reliability features are listed for this model?

The product description lists Class II protection against electric shock and protections against mains input overvoltage, short circuit, open circuit, and overheating with automatic reset thermal protection. It also carries a 7-year warranty period, which is notable for long-term commercial use planning.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Outputs	Output Type	Dimming
TCI Casambi 120W 24V Constant Voltage Driver(127641) 5A	1	—	Casambi	View
TCI Casambi tunable white 1-10V signal converter(127637)	2	0-10V Signal	1-10V,Casambi	View
TCI Casambi track adapter black(127636)	1	—	Casambi	View
TCI Casambi 60W 350-1050mA adjustable constant current driver(127644)	1	—	Casambi,Push Dimming	View
TCI Casambi 50W 350-1200mA adjustable constant current driver(127645)	1	—	Casambi,Push Dimming	View
TCI Casambi 45W 650-1400mA adjustable constant current driver(127660)	1	—	Casambi,Push Dimming	View
TCI Casambi 38W 300-1050mA adjustable constant current driver(127630)	1	—	Casambi,Push Dimming	View
