Mean Well SKMW30F-12 DC-DC Converter - 30W - 9~36V in 12V out 2.5A

SKU SKMW30F-12

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SKMW30F-12 is the 12V output model of this series: rated power 30W, typical efficiency 89%.

SKMW30 and DKMW30 series are 30W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit, overload, over temperature, input under voltage protection, remote ON/OFF and trimmable output voltage etc. The models account for different input voltage 9~36V and 18~75V 4:1 ultrawide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±12V/±15V for dual outputs, which are suitable for all kinds of systems, s uch as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP 1"x1" package with industry standard pinout
4:1 ultrawide input range
Operating temperature range -40 ~ +85℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 90%
Protections: Short circuit (Continuous) / Overload / Over voltage / Over temperature / Input under voltage
1.5KVDC I/O isolation
Remote ON/OFF control and Triming output (±10%)
3 years warranty

Specifications

SKMW30F-12Specifications from the official datasheet (2024-04-30 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): 24V (9 ~ 36V)
INPUT CURRENT NO LOAD: 10mA
INPUT CURRENT FULL LOAD: 1404mA
OUTPUT VOLTAGE: 12V
OUTPUT CURRENT: 0~2500mA
EFFICIENCY (TYP.): 89%
CAPACITOR LOAD (MAX.)^{* For each output}: 2500μF

INPUT

VOLTAGE RANGE: 9~36Vdc ,
SURGE VOLTAGE (100ms max.): 24Vin models : 50Vdc, 48Vin models : 100Vdc
FILTER: Pi type
PROTECTION: Fuse recommended. 24Vin models: 6A delay time Type, 48Vin models: 3A delay time Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

VOLTAGE ACCURACY: ±1.5%
RATED POWER: 30W
RIPPLE & NOISE^Note.2: 3.3/5Vout models: 75mVp-p, other models:100mVp-p
LINE REGULATION^Note.3: ±0.2%
LOAD REGULATION^Note.4: Single output models: ±0.2%, Dual output models:±1%
SWITCHING FREQUENCY (Typ.): 3.3/5Vout models: 270KHz, other models: 330KHz
EXTERNAL TRIM ADJ. RANGE (Typ.): ±10% (Single output model only)

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 110 ~ 170% rated output power Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE: Protection type : Clamp by diode
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

UNDER VOLTAGE LOCKOUT Start-up voltage: 24Vin (F-type): 8.8Vdc, 48Vin (G-type): 17Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 24Vin (F-type): 8Vdc, 48Vin (G-type): 16Vdc
REMOTE CONTROL: Power ON: R.C. ~ -Vin >3.5~75Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1.2Vdc or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 60℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 1500pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 3.3/5Vout models: 860Khrs, Other models: 1170Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 25.4*25.4*10.2mm (1*1*0.4 inch)
CASE MATERIAL: Black coated copper with non-conductive base

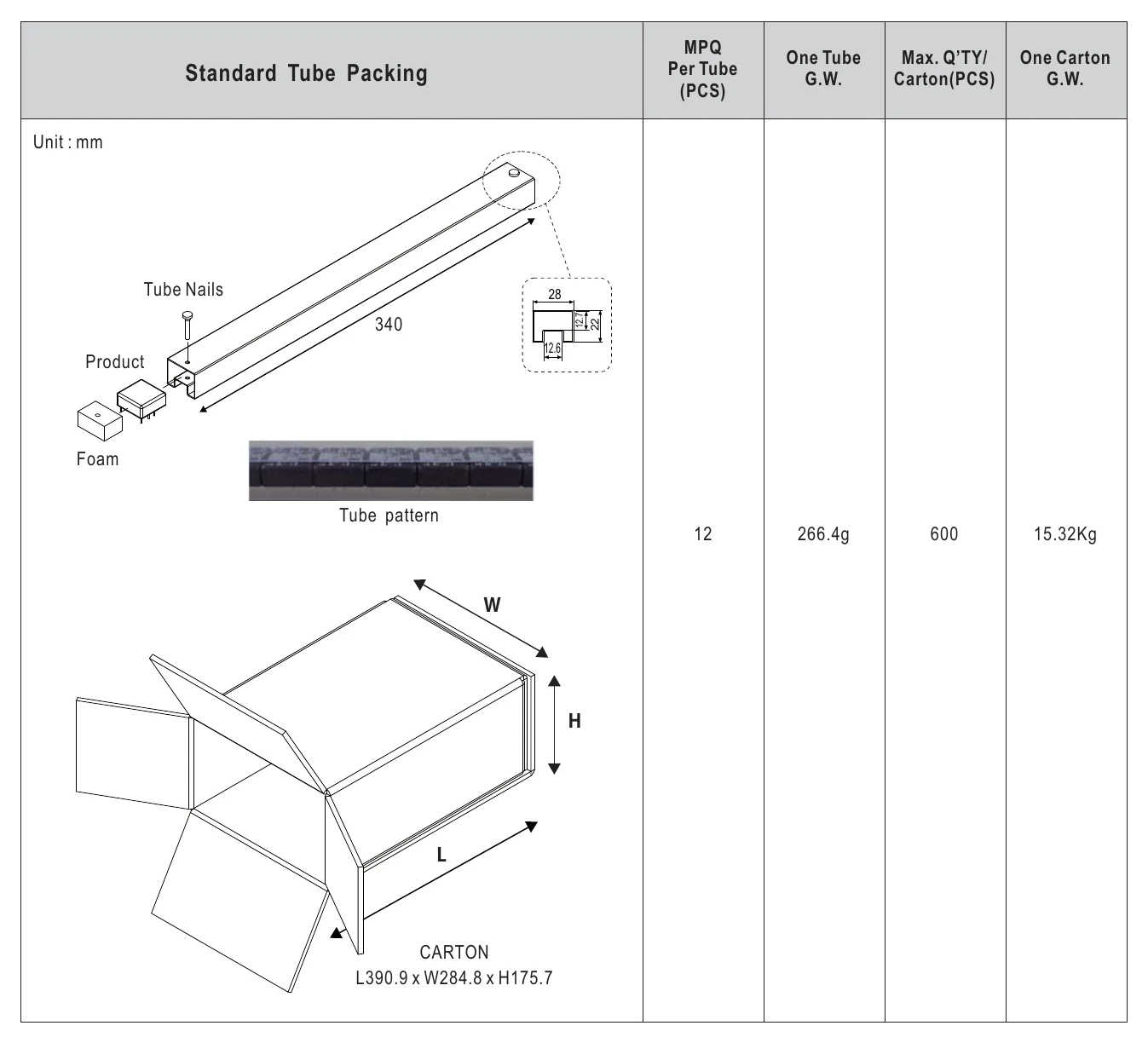

PACKING: 19.2g ; 12pcs/per tube, 600pcs/50 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(F:24Vdc, G:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 0% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

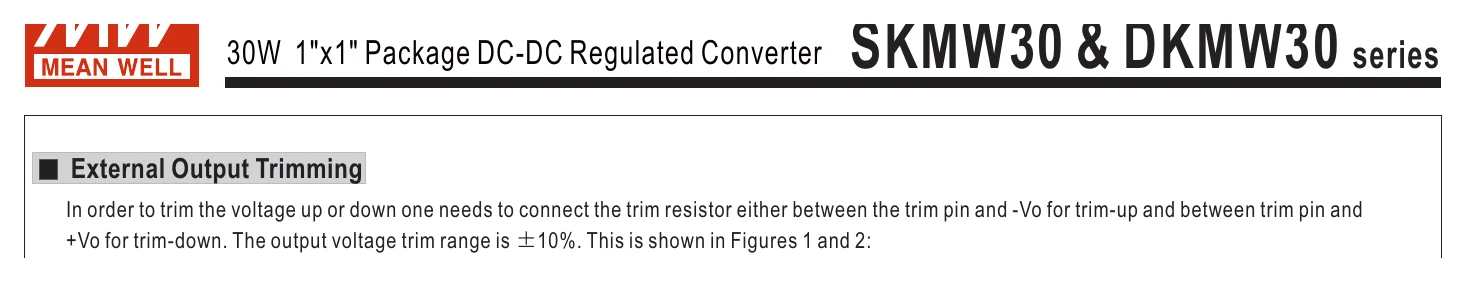

SKMW30F-12 SKMW30 & DKMW30 series — SKMW30 & DKMW30 series

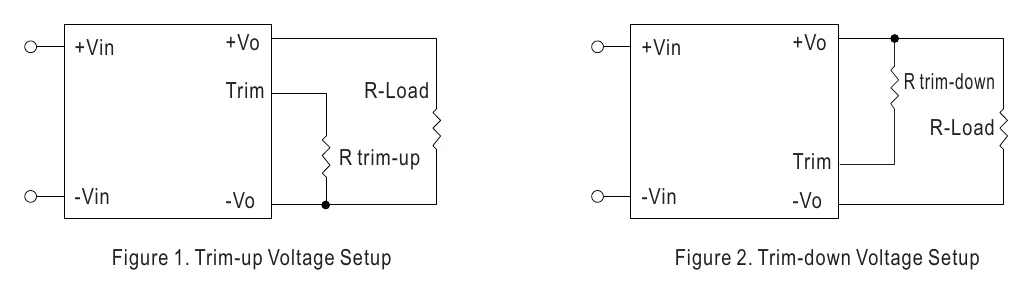

SKMW30F-12 SKMW30 & DKMW30 series (2) — SKMW30 & DKMW30 series (2)

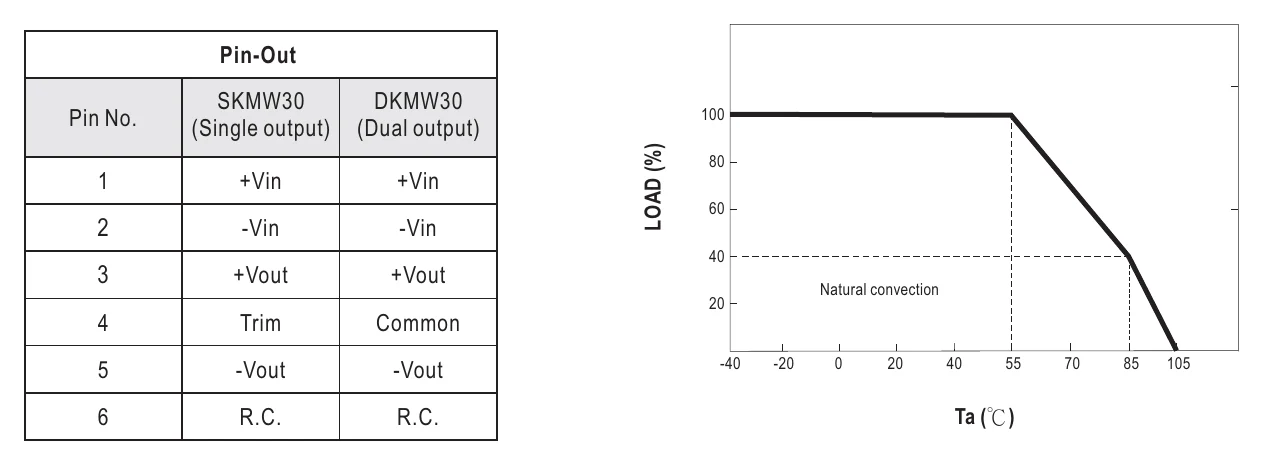

SKMW30F-12 Plug Assignment — Plug Assignment

Typical applications

Downloads

Certificates2

Certificate (SKMW30-DKMW30-CE-dec)(EN) PDF Download

Certificate (SKMW-DKMW30-UK-dec)(EN) PDF Download

Test reports1

Test Report (SKMW30F-12)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SKMW30F-12 to run 12V industrial control or monitoring equipment?

Yes, this model provides constant 12V output and is rated for 30W with up to 2.5A output current. It fits 12V loads that need regulated output and remain within those limits.

Is the SKMW30F-12 appropriate for embedded or automation systems that need a regulated 12V rail?

It can be used in embedded or automation equipment because it supplies a fixed 12V output at up to 2.5A. The compact 25.4 × 25.4 × 10.2 mm package is also useful where internal space is limited.

Can this converter power 12V auxiliary devices in equipment with a 9-36VDC input range?

Yes, its specified input range is 9-36VDC and its output is 12V constant voltage. The available output is up to 2.5A, with a total power rating of 30W.

What is the difference between the SKMW30F-12 and the other SKMW30F models?

The SKMW30F-12 is a 30W converter with 12V output at 2.5A. Other listed siblings are the SKMW30F-03 at 3.3V and 7.5A, the SKMW30F-05 at 5V and 6A, and the SKMW30F-15 at 15V and 2A. All of them are 30W models in the same series.

Is the SKMW30F-12 suitable for outdoor equipment or unconditioned enclosures?

The temperature specification is -40°C to +85°C, which supports operation across a wide temperature range. However, no IP rating is listed, so the provided specs do not confirm suitability for direct outdoor exposure.
