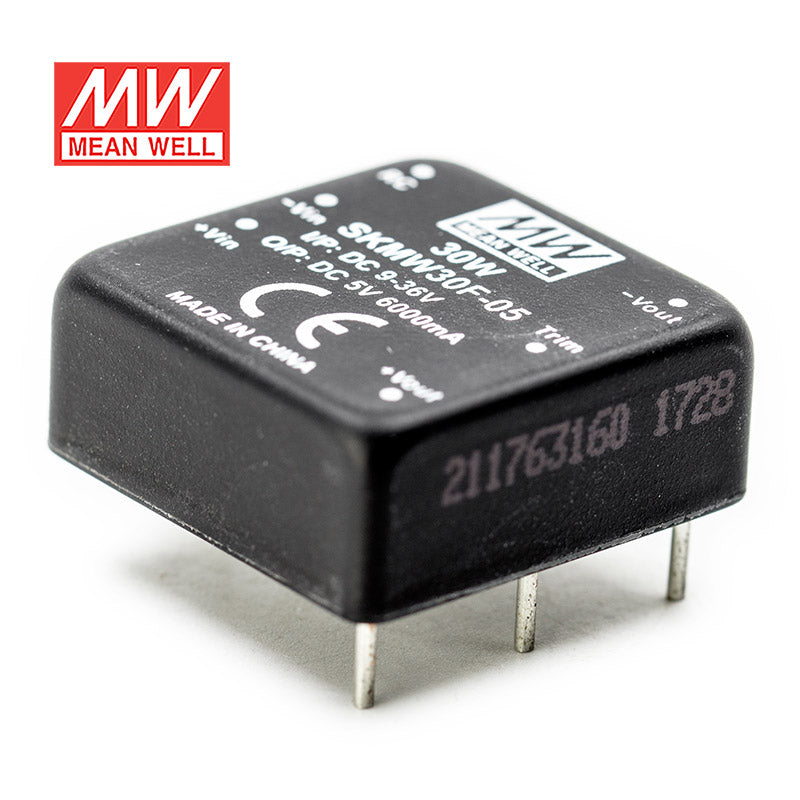

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SKMW30F-05 DC-DC Converter - 30W - 9~36V in 5V out

SKU:

SKMW30F-05

Please for Pricing

Notify me when it's back in stock

Description

Features

DIP 1"x1" package with industry-standard pinout

Operating temperature range -40~+85°C

4:1 ultrawide input range

No minimum load required

Comply to BS EN/EN55032 radiated Class A without additional components

High efficiency up to 90%

Protection: Short circuit(continuous)/Overload/Over voltage/Input under voltage

1.5KVDC I/O isolation

Remote ON/OFF control and trimming output (±10%)

3 years warranty

General Specification

Voltage accuracy	±1.5%
Vibration	10~500Hz, 2G 10min./1 cycle, the period for 60 min, each along the X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	Continuous, automatic recovery
Working temperature	-40°C to +85°C
EMC	Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6
Temp. Coefficient	0.03% / ℃ (0 ~ 60℃)
Dimension (LxWxH) (mm)	25.425.410.2mm (110.4 inch)
Potting material	Black coated copper with a non-conductive base

Specifications

Brand

Mean Well
Series

SKMW Series
Power Rating

30 Watt
Output Voltage

5 Volt
Rated Current

6 Ampere
Input Voltage

9V~36V
Standards Met

CE
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

3 Year
Length

2.54 cm
Width

2.54 cm
Height

1.02 cm
Weight

0.02 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKMW30F-05 for 5V industrial controllers or single-board computers?

Yes, this converter delivers a constant 5V output and is rated for 30W with up to 6A output current. That makes it relevant for 5V control and computing loads that need more current headroom.

Is the SKMW30F-05 suitable for powering 5V USB-class electronics inside OEM equipment?

It can be suitable for 5V electronics when the load requires a regulated 5V rail and stays within 6A and 30W. The compact 25.4 × 25.4 × 10.2 mm form factor also helps in space-constrained OEM designs.

Can this model support 5V automation peripherals from a 9-36VAC source range?

Yes, the specified input range is 9-36VAC, and the output is constant 5V at up to 6A. It is intended for 5V peripherals or subsystems that fit within the 30W rating.

How does the SKMW30F-05 compare with other converters in the SKMW30F family?

The SKMW30F-05 is a 30W converter with 5V output at 6A. The other listed SKMW30F models are 3.3V at 7.5A for the SKMW30F-03, 12V at 2.5A for the SKMW30F-12, and 15V at 2A for the SKMW30F-15. All share the same 30W series rating.

Can the SKMW30F-05 be used where temperatures swing from very low to very high?

The operating temperature range is -40°C to +85°C, so it is specified for a wide temperature window. No IP rating is provided, so the environmental sealing level is not defined by the listed specs.

Model	Power	Voltage	Current	IP Rating
Mean Well SKMW30G-15 DC-DC Converter - 30W - 18~75V in 15V out	30W	15V	2A	Indoor	View
Mean Well SKMW30G-12 DC-DC Converter - 30W - 18~75V in 12V out	30W	12V	2.5A	Indoor	View
Mean Well SKMW30G-05 DC-DC Converter - 30W - 18~75V in 5V out	30W	5V	6A	Indoor	View
Mean Well SKMW30G-03 DC-DC Converter - 30W - 18~75V in 3.3V out	30W	3.3V	7.5A	Indoor	View
Mean Well SKMW30F-15 DC-DC Converter - 30W - 9~36V in 15V out	30W	15V	2A	Indoor	View
Mean Well SKMW30F-12 DC-DC Converter - 30W - 9~36V in 12V out	30W	12V	2.5A	Indoor	View
Mean Well SKMW30F-03 DC-DC Converter - 30W - 9~36V in 3.3V out	30W	3.3V	7.5A	Indoor	View
