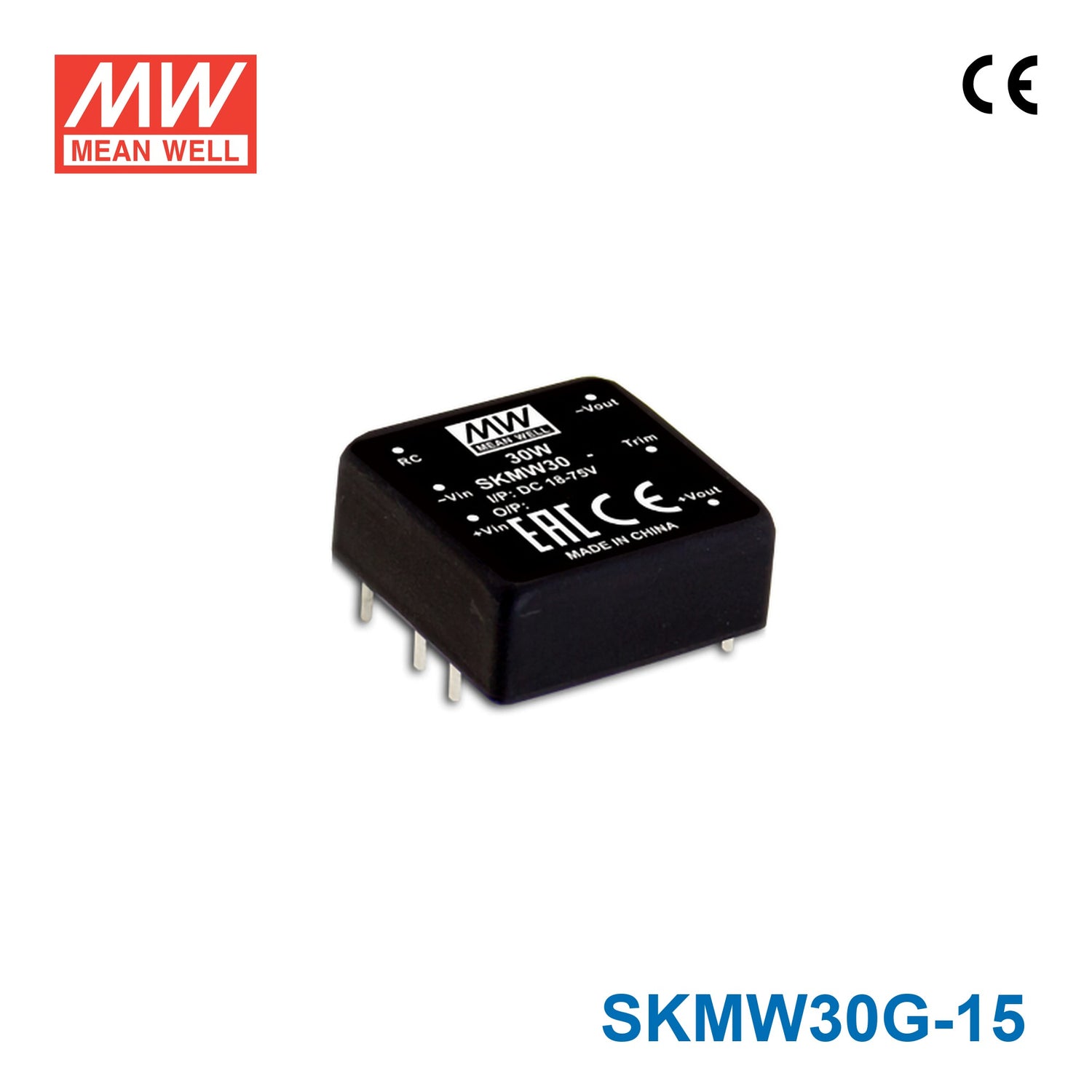

Mean Well SKMW30G-15 DC-DC Converter - 30W - 18~75V in 15V out
Please Login for Pricing
Description
Description
Remote ON/OFF control and trimming output (±10%)
3 years warranty
Key Features
- ✓DIP 1"x1" package with industry-standard pinout
- ✓Operating temperature range -40~+85°C
- ✓4:1 ultrawide input range
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class A without additional components
- ✓High efficiency up to 90%
- ✓Protection: Short circuit(continuous)/Overload/Over voltage/Input under voltage
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control and trimming output (±10%)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKMW Series
-
Power Rating30 Watt
-
Output Voltage15 Volt
-
Rated Current2 Ampere
-
Input Voltage18V~75V
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2.54 cm
-
Width2.54 cm
-
Height1.02 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKMW30G-15 for 15V industrial instrumentation or control electronics?
Yes, it supplies a constant 15V output at up to 2A, with a total power rating of 30W. That suits 15V instrumentation, control electronics, and embedded subsystems designed for a regulated 15V rail within those limits.
Is the SKMW30G-15 appropriate for systems that start from a higher-voltage DC bus?
This model is designed for an 18-75V input range and converts that to a constant 15V output. It is therefore suitable where the source bus is higher than the required load voltage and the load stays within 2A and 30W.
Can this converter be used in compact embedded or automation assemblies?
Yes, the package is only 25.4 x 25.4 x 10.2 mm and weighs 0.018 kg, which supports compact layouts. Electrically, it is aimed at 15V loads that need no more than 2A from a constant-voltage output.
Is the SKMW30G-15 rated for outdoor use or only temperature extremes?
The listed operating temperature range is -40C to +85C, so the thermal rating is broad. The product data shown does not include an IP rating, which means outdoor ingress protection is not confirmed by the stated specs.
How does the SKMW30G-15 differ from the other voltage options in the same series?
The SKMW30G line offers the same 30W power class and 18-75V input range across the group. The output choices are 3.3V at 7.5A, 5V at 6A, 12V at 2.5A, and 15V at 2A for this model.
Other SKMW30 Models
9 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SKMW30W8-15 30W DC-DC Converter 15VDC | — | — | — | Indoor | View |
| Mean Well SKMW30W8-12 30W DC-DC Converter 12VDC | — | — | — | Indoor | View |
| Mean Well SKMW30G-12 DC-DC Converter - 30W - 18~75V in 12V out | 30W | 12V | 2.5A | Indoor | View |
| Mean Well SKMW30G-05 DC-DC Converter - 30W - 18~75V in 5V out | 30W | 5V | 6A | Indoor | View |
| Mean Well SKMW30G-03 DC-DC Converter - 30W - 18~75V in 3.3V out | 30W | 3.3V | 7.5A | Indoor | View |
| Mean Well SKMW30F-15 DC-DC Converter - 30W - 9~36V in 15V out | 30W | 15V | 2A | Indoor | View |
| Mean Well SKMW30F-12 DC-DC Converter - 30W - 9~36V in 12V out | 30W | 12V | 2.5A | Indoor | View |
| Mean Well SKMW30F-05 DC-DC Converter - 30W - 9~36V in 5V out | 30W | 5V | 6A | Indoor | View |
| Mean Well SKMW30F-03 DC-DC Converter - 30W - 9~36V in 3.3V out | 30W | 3.3V | 7.5A | Indoor | View |
