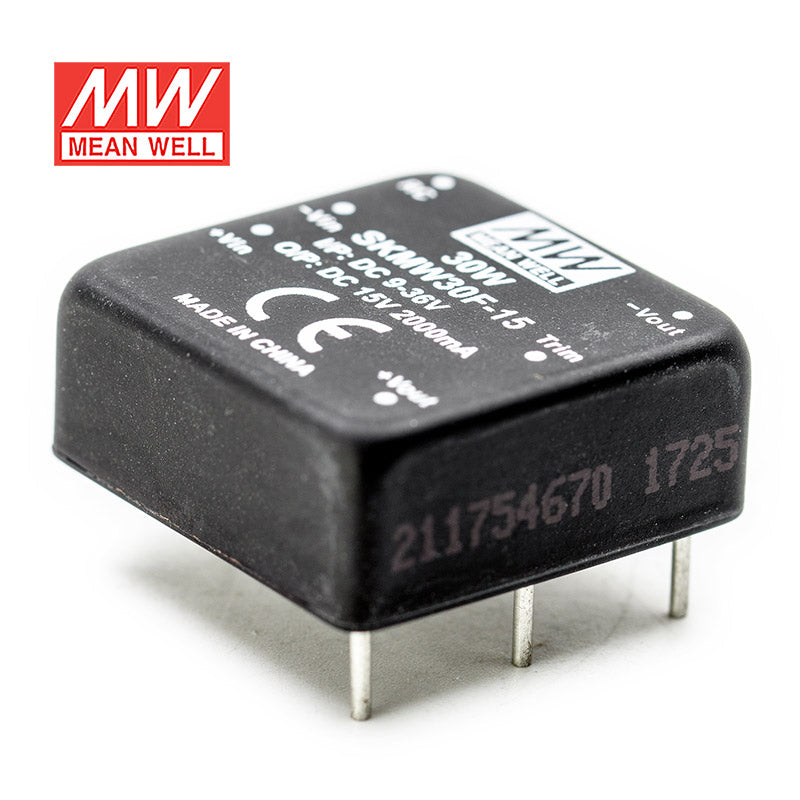

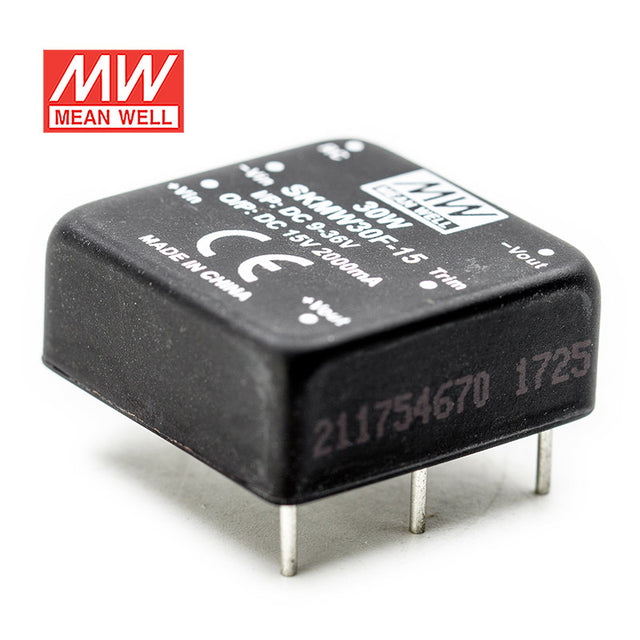

Mean Well SKMW30F-15 DC-DC Converter - 30W - 9~36V in 15V out
Please Login for Pricing
Description
Description
Remote ON/OFF control and trimming output (±10%)
3 years warranty
Key Features
- ✓DIP 1"x1" package with industry-standard pinout
- ✓Operating temperature range -40~+85°C
- ✓4:1 ultrawide input range
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class A without additional components
- ✓High efficiency up to 90%
- ✓Protection: Short circuit(continuous)/Overload/Over voltage/Input under voltage
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control and trimming output (±10%)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKMW Series
-
Power Rating30 Watt
-
Output Voltage15 Volt
-
Rated Current2 Ampere
-
Input Voltage9V~36V
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2.54 cm
-
Width2.54 cm
-
Height1.02 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKMW30F-15 to power a 15V industrial control board or sensor assembly?
Yes, this model provides a constant 15V output and up to 2A, with a total power rating of 30W. That makes it suitable for 15V industrial control boards, sensor assemblies, or embedded electronics that need regulated 15V power within those limits.
Is the SKMW30F-15 suitable for embedded equipment with limited space?
It is designed for compact equipment, with dimensions of 25.4 x 25.4 x 10.2 mm and a weight of 0.018 kg. Those specs make it practical where board space and overall package size are constrained.
Can this converter be used in automation equipment that sees wide temperature swings?
It is rated for operation from -40C to +85C, which supports use in automation or embedded equipment exposed to low or high ambient temperatures. The final fit still depends on the rest of the system staying within the converter's 30W, 15V, and 2A output limits.
Is the SKMW30F-15 intended for outdoor or washdown environments?
The provided specs list an operating temperature range of -40C to +85C, but they do not list an IP rating. Without an IP rating, outdoor or washdown suitability is not established by the stated specifications alone.
How does the SKMW30F-15 compare with the other SKMW30F models?
All SKMW30F variants in this group are rated at 30W. The sibling outputs are SKMW30F-03 at 3.3V and 7.5A, SKMW30F-05 at 5V and 6A, SKMW30F-12 at 12V and 2.5A, and this SKMW30F-15 at 15V and 2A.
Other SKMW30 Models
9 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SKMW30W8-15 30W DC-DC Converter 15VDC | — | — | — | Indoor | View |
| Mean Well SKMW30W8-12 30W DC-DC Converter 12VDC | — | — | — | Indoor | View |
| Mean Well SKMW30G-15 DC-DC Converter - 30W - 18~75V in 15V out | 30W | 15V | 2A | Indoor | View |
| Mean Well SKMW30G-12 DC-DC Converter - 30W - 18~75V in 12V out | 30W | 12V | 2.5A | Indoor | View |
| Mean Well SKMW30G-05 DC-DC Converter - 30W - 18~75V in 5V out | 30W | 5V | 6A | Indoor | View |
| Mean Well SKMW30G-03 DC-DC Converter - 30W - 18~75V in 3.3V out | 30W | 3.3V | 7.5A | Indoor | View |
| Mean Well SKMW30F-12 DC-DC Converter - 30W - 9~36V in 12V out | 30W | 12V | 2.5A | Indoor | View |
| Mean Well SKMW30F-05 DC-DC Converter - 30W - 9~36V in 5V out | 30W | 5V | 6A | Indoor | View |
| Mean Well SKMW30F-03 DC-DC Converter - 30W - 9~36V in 3.3V out | 30W | 3.3V | 7.5A | Indoor | View |
