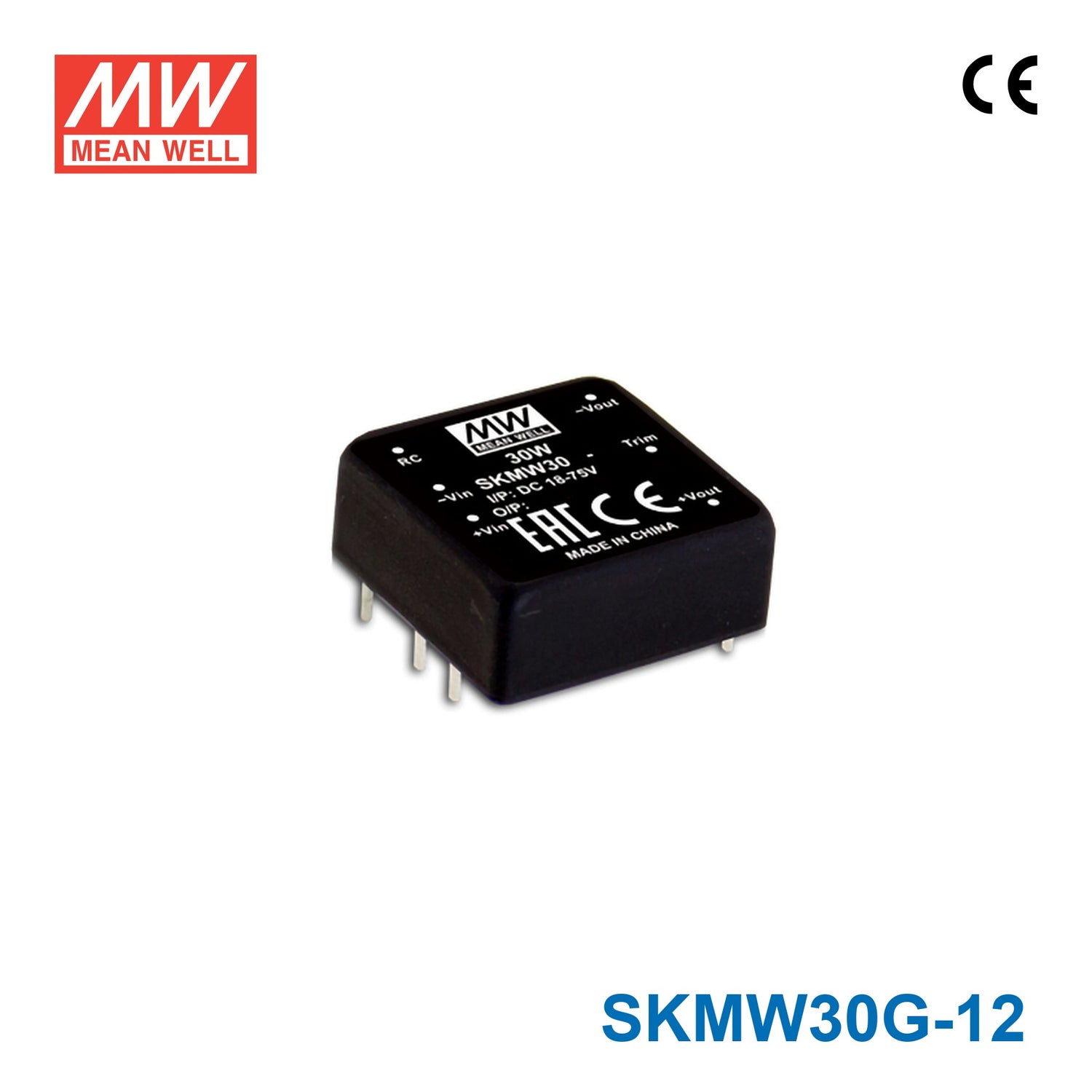

Mean Well SKMW30G-12 DC-DC Converter - 30W - 18~75V in 12V out
Please Login for Pricing
Description
Description
Remote ON/OFF control and trimming output (±10%)
3 years warranty
Key Features
- ✓DIP 1"x1" package with industry-standard pinout
- ✓Operating temperature range -40~+85°C
- ✓4:1 ultrawide input range
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class A without additional components
- ✓High efficiency up to 90%
- ✓Protection: Short circuit(continuous)/Overload/Over voltage/Input under voltage
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control and trimming output (±10%)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKMW Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current2.5 Ampere
-
Input Voltage18V~75V
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2.54 cm
-
Width2.54 cm
-
Height1.02 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKMW30G-12 for 12V control devices in industrial or automation systems?
Yes, this unit provides a constant 12V output with up to 2.5A, for a total output rating of 30W. It fits 12V control devices, embedded subsystems, or automation electronics that operate within those power limits.
Is the SKMW30G-12 suitable for distributed 12V electronics fed from a higher-voltage input bus?
It is intended for that type of use because the input range is 18-75V while the output is a regulated 12V. The load must remain at or below 2.5A and 30W.
Can this model be used for instrumentation or monitoring equipment that requires 12V power?
Yes, the constant 12V output is appropriate for instrumentation, monitoring, or control electronics designed around a 12V rail. The converter supplies up to 2.5A, so it should be matched to equipment within that current and power envelope.
Will the SKMW30G-12 handle demanding indoor temperature conditions?
Its specified operating temperature range is -40C to +85C, which is broad for industrial and embedded equipment. The published data does not show an IP rating, so temperature capability should not be taken as proof of outdoor sealing.
What are the output differences across the SKMW30G family?
All four versions are rated at 30W and use the same 18-75V input range. The outputs are 3.3V at 7.5A, 5V at 6A, 12V at 2.5A, and 15V at 2A.
Other SKMW30 Models
9 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SKMW30W8-15 30W DC-DC Converter 15VDC | — | — | — | Indoor | View |
| Mean Well SKMW30W8-12 30W DC-DC Converter 12VDC | — | — | — | Indoor | View |
| Mean Well SKMW30G-15 DC-DC Converter - 30W - 18~75V in 15V out | 30W | 15V | 2A | Indoor | View |
| Mean Well SKMW30G-05 DC-DC Converter - 30W - 18~75V in 5V out | 30W | 5V | 6A | Indoor | View |
| Mean Well SKMW30G-03 DC-DC Converter - 30W - 18~75V in 3.3V out | 30W | 3.3V | 7.5A | Indoor | View |
| Mean Well SKMW30F-15 DC-DC Converter - 30W - 9~36V in 15V out | 30W | 15V | 2A | Indoor | View |
| Mean Well SKMW30F-12 DC-DC Converter - 30W - 9~36V in 12V out | 30W | 12V | 2.5A | Indoor | View |
| Mean Well SKMW30F-05 DC-DC Converter - 30W - 9~36V in 5V out | 30W | 5V | 6A | Indoor | View |
| Mean Well SKMW30F-03 DC-DC Converter - 30W - 9~36V in 3.3V out | 30W | 3.3V | 7.5A | Indoor | View |
